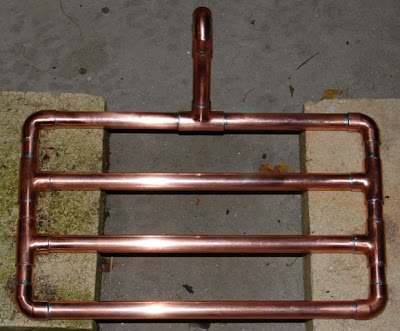

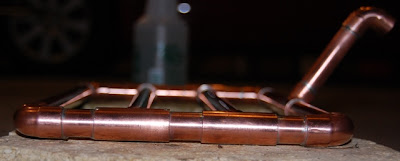

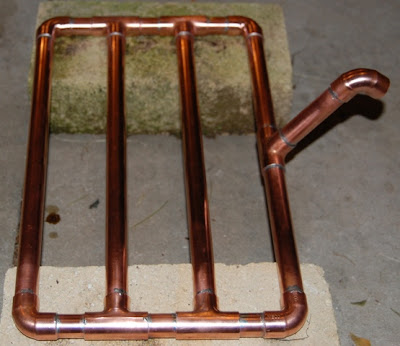

This was my project for this afternoon. I made it to fit into my Igloo 60qt cooler.







I was wondering what suggestions everyone has for cutting the holes in the bottom....how many???? what size????? etc.

__________________
In response to the thread: 6x beer buddy larger mix (which I'm not sure anyone knows what it means/is)
Brew Stand Pickup Tube Sight Glass Counter Flow Chiller Mash Manifold

Recipes:

Planning an Irish Red
Planning a Celebration Ale Clone

its02003

Recipes

And the picture is apparently not working.....

__________________
In response to the thread: 6x beer buddy larger mix (which I'm not sure anyone knows what it means/is)
Brew Stand Pickup Tube Sight Glass Counter Flow Chiller Mash Manifold

Recipes:

Planning an Irish Red
Planning a Celebration Ale Clone

Kevin Dean

Recipes

It's a small image of a copper manifold. I can see it.

[Edit: Three much larger pictures now!]

__________________
Free State Project liaison to the homebrew hobby!

"What's your name? Well my mom calls me Son, and my cat calls me Meow, either will do." -- Sam Dodson of the Obscured Truth Network

its02003

Recipes

Sorry for the technical difficulties, I was having some issues linking to my picasa files. Now that I have opened my eyes, issues have been fixed

__________________
In response to the thread: 6x beer buddy larger mix (which I'm not sure anyone knows what it means/is)
Brew Stand Pickup Tube Sight Glass Counter Flow Chiller Mash Manifold

Recipes:

Planning an Irish Red
Planning a Celebration Ale Clone

drunkatuw

Recipes

I used a hack saw and cut slots every 1/2" on my manifold. The cuts were about 1/3 of the way through the pipe. The article in BYO suggested not cutting over half way through the pipe.

I'm not sure it's necessary to solder all the joints though. It's ok if everything is not air tight, because you want the water to drain. It makes it easier to take apart and clean if it's not solder as well.

Atl300zx

Recipes

i used a thin cutting disc on a dremel and made cuts everything 1/2" and tried to make the cuts around 1/3 the way thru, although some went over half and are fine.

__________________
Jaded Spirits Brewery
Primary: Dennis Hoppier III
Secondary: Empty
Bottles: Triple Berry Apple Cider, Cote Apple Cider, Wild Blackberry Apple Cider, Dim Wit II, Mighty Porter
Kegs: 4Cs IPA - The Diamond Standard, Innis & Gunn Rum Cask Clone.
On Deck: The "Three Stouts", Wild Blackberry Mead, Irish Red

Jaded Spirits DIY Stirplate
Blog @ JadedSpirits.com
Blog @ HBT

Baron ken

Recipes

No matter what, cut the slots or holes before you solder!!









Ok, just kidding

its02003

Recipes

I am learning that the hard way....anyone in the central CT area have a dremel they could loan out for a couple days?????

__________________
In response to the thread: 6x beer buddy larger mix (which I'm not sure anyone knows what it means/is)
Brew Stand Pickup Tube Sight Glass Counter Flow Chiller Mash Manifold

Recipes:

Planning an Irish Red
Planning a Celebration Ale Clone

nathan

Recipes

dremel.
And you may come to regret having soldered it all together. I like being able to dismantle mine and use a long thin brush to clean it thoroughly after a brew day.
Live and learn, though! If you have a pump to push cleaners through and super water pressure for rinsing, hopefully you'll be okay.

__________________
______________________________________
beer.

its02003

Recipes

I'm not so much worried about keeping it clean. Since its copper, as long as I boil it after each batch and blow some water through the whole contraption, I don't anticipate any real issues. Its got plenty of holes for crap to shoot out of..
