I'm trying to figure out how to design a tippy dump for my yet to be built Brutus. I need advice on how to solve a few problems:

(1) How do you determine the position of the tippy and the swing angle of the mashtun?

(2) Is it a problem for the mash tun to be higher than (i.e. not sit on) the sculpture?

(3) What do you think of having the tippy dump lock in the dump position to remove the grain (is this necessary?) and how would you do it?

(4) Would a single 'stick' of 2" be enough support for the tippy, or do I need a triangle like B3's design?

(5) Where and how would you attach a grain shute?

Thank you for your advice!

__________________
Brickhouse is offline

Reply With Quote Quick reply to this message
Old 03-28-2009, 12:32 AM   #2
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 2 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 21,822
Liked 899 Times on 600 Posts
Likes Given: 26

Default

I made my stand with tippy dumps for the MLT and BK and to be honest, it doesn't have all that much utility. I ended up not ever using it. I just suck the spend grain and hops out of them with my shop vac. Scrub, rinse, and suck that out too.

__________________
BrewHardware.com
Sightglass, Refractometer, Ball Valve, Weldless bulkhead, Thermometer, Decals, Stainless Steel Fittings, Compression Fittings, Camlock Quick Disconnects, Scale, RIMS tube, Plate Chiller, Chugger Pump, Super Clear Silicone Tubing, and more!

New Stuff?
Bobby_M is offline

Reply With Quote Quick reply to this message
Old 03-28-2009, 02:32 AM   #3
Lonnie Mac
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2006
Location: Bacliff, TX
Posts: 326
Liked 4 Times on 3 Posts

Default

I can appreciate you wanting a tippy dump my friend... I thought long and hard about this in my original Brutus design. It indeed must have to be designed around (just above) the max CG of a full mash tun and NOT something that tips the whole tun over the edge... Not many systems are designed to hang that much weight over the edge without compromising the CG of the system itself and tipping the whole dang thing over...

In the end though, I felt that it was just not a necessary feature to expend the energy and funds on... A very cool feature, indeed I would agree if coolness is the factor... It's just too easy for me to yank the mash tun off and dump the whole thing into a trash can!

__________________

Lonnie Mac...
President of the Brutus Ten cult!

Lonnie Mac is offline

Reply With Quote Quick reply to this message
Old 03-28-2009, 02:43 AM   #4
ClaudiusB
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: El Paso, Texas
Posts: 1,256
Liked 57 Times on 49 Posts
Likes Given: 108

Default

Quote:
I'm trying to figure out how to design a tippy dump for my yet to be built Brutus. I need advice on how to solve a few problems:
I don't have a Brutus, my small mash tun has a tippy dump and the large one has man hole.

Removing the tun is easy.

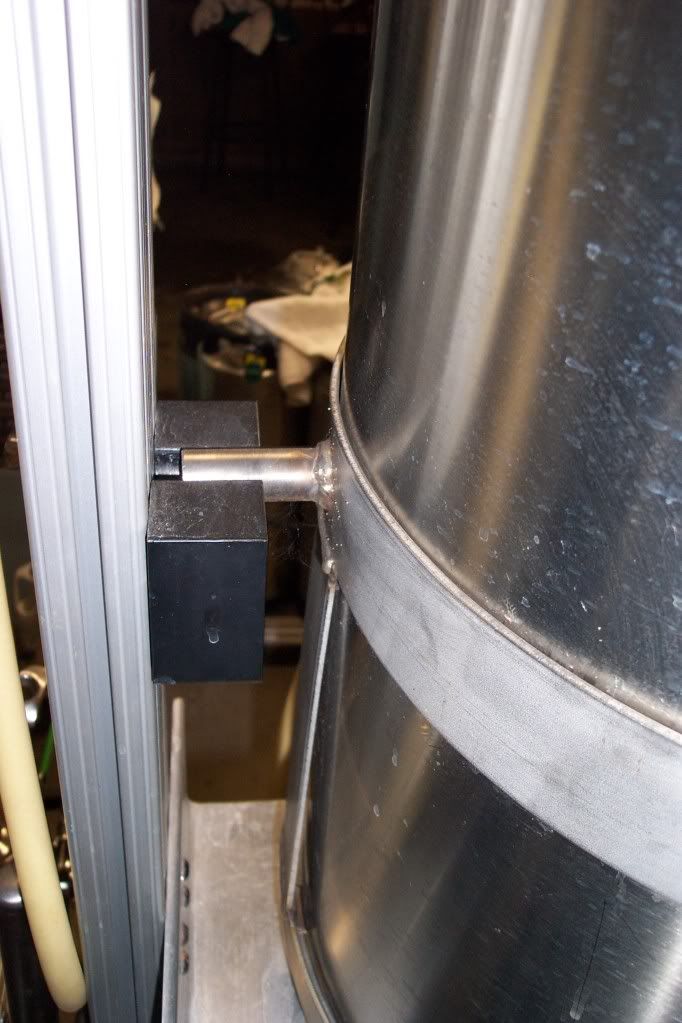

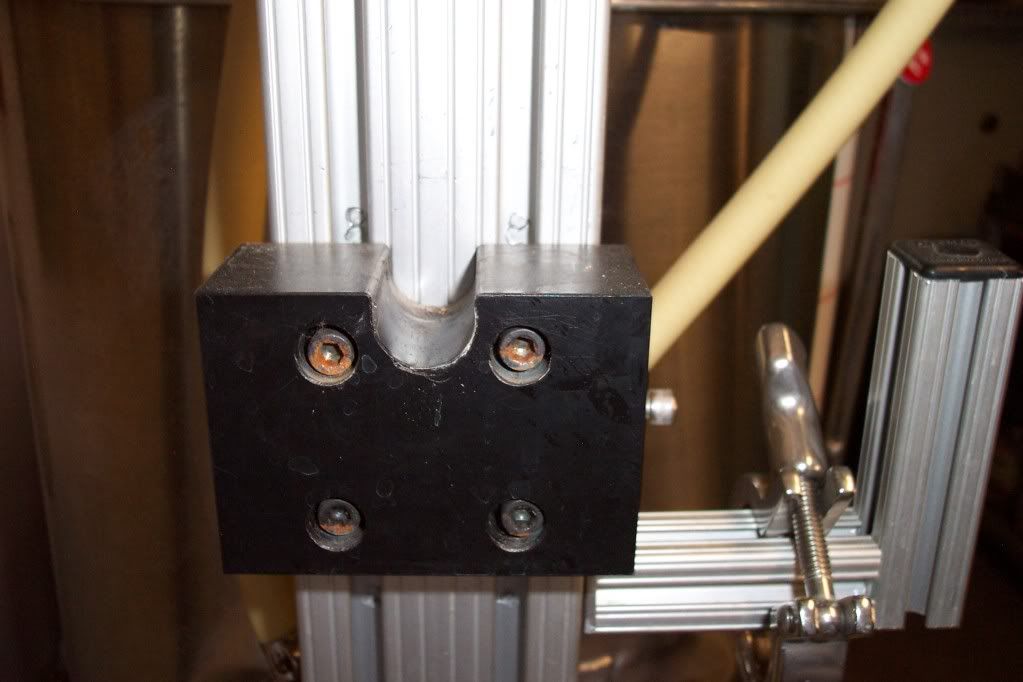

The tun hangs by the black Delrin material only.

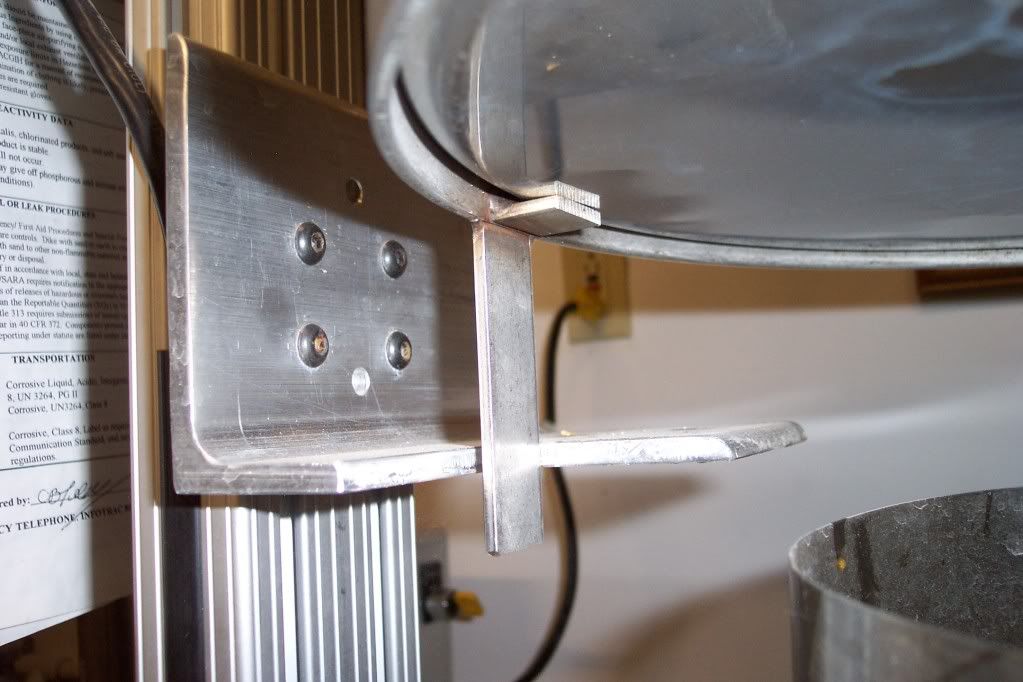

Tippy dump stop
