Old 04-29-2012, 01:18 AM   #1
kevink
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2010
Location: PA
Posts: 443
Liked 44 Times on 34 Posts
Likes Given: 4

Default Stir plate video

Why not...

__________________
kevink is offline

Reply With Quote Quick reply to this message
Old 05-01-2012, 08:07 PM   #2
scrawbag
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2011
Location: ireland, ireland
Posts: 146
Liked 5 Times on 5 Posts
Likes Given: 23

Default

what did it cost ya?

__________________
scrawbag is offline

Reply With Quote Quick reply to this message
Old 05-01-2012, 08:15 PM   #3
TonyR
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2010
Location: Cleveland, Ohio
Posts: 223
Liked 3 Times on 3 Posts
Likes Given: 3

Default

Do you have a parts list?

__________________
TonyR is online now

Reply With Quote Quick reply to this message
Old 05-01-2012, 11:20 PM   #4
kevink
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2010
Location: PA
Posts: 443
Liked 44 Times on 34 Posts
Likes Given: 4

Default

It didn't cost a whole lot. Here's what I know:

Fan: 120mm ball bearing PC fan. I can get the model number if anyone is interested, but I have to take the stir plate apart to do it. No cost- had it.

Case: Radio Shack model # 270-1809. $7.39

Power supply: 10V, .740 amps. No cost- had it.

Potentiometer: Radio Shack model # 271-0265. $4.29

Switch: Radio Shack model # 275-635. $3.69

Magnets: Ace Hardware model # 07046. $8.95

Washer: No cost- had it.

25ohm resistor. No cost- had it. I have this hooked up the the toggle switch so I can either use it or not. The pot gets warm without it when the pot is on low.

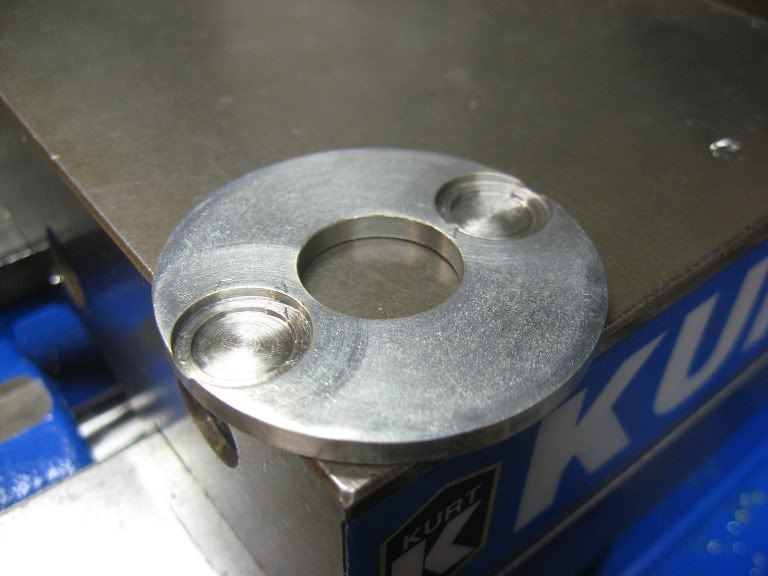

This is the washer that I glued to the fan to hold the magnets. I put it in my lathe to true the OD and ID. I then put it in my milling machine to cut the pockets for the magnets to ensure that it would be well balanced and the magnets would be the correct distance apart for the stir bar that I was using. To figure out the distance, I stuck the magnets to the stir bar and measured how far apart they were.

I did notice how shi*ty stir bars are during this project. Either the magnet's N and S poles are not perfectly centered in the bar or the ring in the center of the bar is not perfectly centered between the N and S poles of the magnet. Good thing the pockets in the washer ended up a little big. Because of that, I'm able to tweak the magnet placement so the bar spins on it's ring. It hurts balance, but at the speeds the stir plate will normally function it's not a big deal. Here's the washer:
