Quote:
Originally Posted by divi2323 View Post
yay! a search pulled up a thread similar to my situation. Have a question for your external relay setup as well. I've got a similar temp controller (one channel only for cooling though). Seems as though my compressor draw amperage is higher than the rated capacity of the switching controller internally. (5 amps on the controller circuit vs 5 amps operating draw on the compressor, meaning the draw to get the compressor motor going is more than 5) My compressor will not kick on when the circut detects it's time to start cooling. My solution is going to be an external relay but i'm not sure which type of relay to use.

my switching circuit is 120v/5A, but the power side of the relay needs to be 120v/10A or 15A. I've found some relays on radio-shaft's website, but not sure what i need. Can you maybe elaborate on what relay i would need to drive it? SPDT, DPDT etc?
Should just be a SPST SSR with a load rating of at least 10A and AC control rated for at least 110V. I use Crydom SSR's on my BCS-460-based HERMS. Mine are DC controlled 20A SSR's that I got off ebay a few years ago for around $8. You might have to shop around a bit to find a decent price. The panel mount SSR's are pretty cool in that they're compact and easy to mount. These ones are like mine.
__________________
http://www.microbusbrewery.org/
microbusbrewery is offline

Reply With Quote Quick reply to this message
Old 05-30-2012, 09:41 PM   #13
vinper
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2012
Location: Houston, Tx
Posts: 330
Liked 10 Times on 9 Posts

Default

those controllers are pretty slick ,anyone know if they make one that controls time instead of temp?

__________________
vinper is offline

Reply With Quote Quick reply to this message
Old 05-31-2012, 04:28 PM   #14
lincoln
Feedback Score: 0 reviews

lincoln's Avatar
Recipes

Join Date: Dec 2009
Location: san jose, ca
Posts: 205
Liked 4 Times on 4 Posts
Likes Given: 1

Default

Quote:
Originally Posted by Huaco View Post
Would the fuse block go inline between the power-in line and the component? Would it just be a 10 Amp fuse to protect the 10 Amp controller?
Also, could you expand on your external relay idea? I plan to control a refrigerator or a deep freeze with mine that I built this weekend, but have not put it under load yet...
ether side would work, I put it inline with income power. I would use a 10 amp slow blow type, or a 12/14 amp regular blow. Motors have a significant in rush current that can burn a fast blow fuse.

Quote:
Originally Posted by gatorbite87
Hmm, on my test run everything ran perfectly and has been since I turned it on
Sorry gatorbite87, I'm going to take you to the wood shed over this. The point of a fuse is to prevent a fire when things don't "run perfectly" The outlet in your wall has at worst a 20 amp circuit breaker. The controller is rated for 10 amps. You need a fuse. Have you see this guy:


this is what I did:

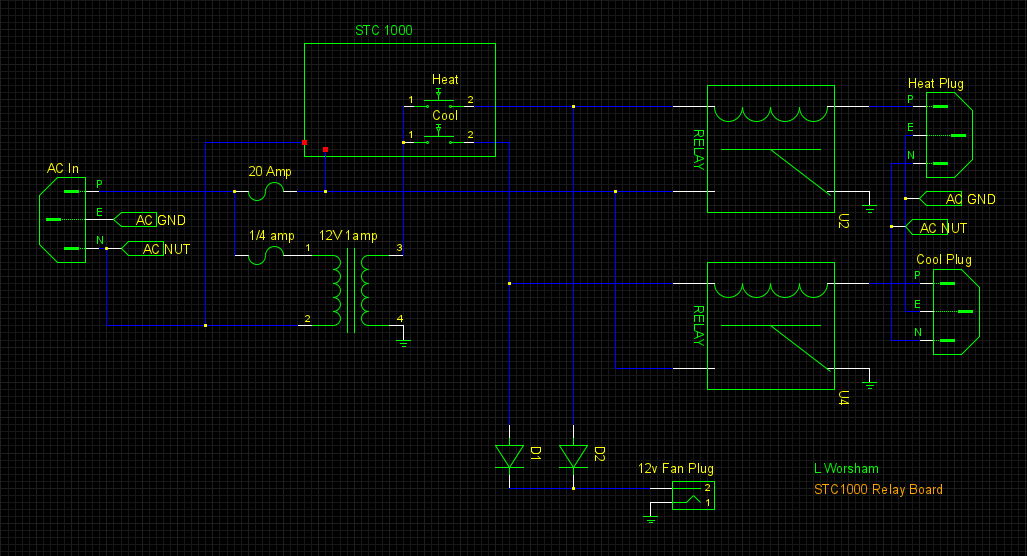

basically there are two SSR one for each side (Heat / Cool) the ones I found were 40 amp but can be triggered by 12~24 vdc/ac The two diodes are 1 amp rectifiers. Ether heat or cool come on the fan will run and the diodes give (albeit lumpy) dc to a computer fan inside to keep air moving. If your SSR's can handle ac input adding a diode or 4 with a cap to the output of the transformer will make them happier.

Quote:
Originally Posted by vinper
those controllers are pretty slick ,anyone know if they make one that controls time instead of temp?
what your looking for is called a process timer. I have one that i scrounged many years ago, just a quick look through ebay it don't look like it. there are other ones from omega and the like but the sellers want unreasonable amounts of money for them!!!! What range of timing are you looking for? What kind of outputs?
