Home Brew Forums > Home Brewing Beer > DIY Projects > Square Tubing Size

Reply

LinkBack Thread Tools
Old 09-22-2010, 04:46 PM   #1
timm747
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2010
Location: Baltimore
Posts: 271
Liked 1 Times on 1 Posts
Likes Given: 3

Default Square Tubing Size

After reading everything I possibly could about building a brewstand, I went ahead and bought a welder. I am looking to get the square steel now and was wondering if anyone has built a stand with 1 1/4" square tubing as opposed to the 1 1/2". I didnt find anything doing a search.

Thanks.

Tim

__________________

Fermenting American IPA AG 7-9-11

timm747 is offline

Reply With Quote Quick reply to this message
Old 09-22-2010, 05:36 PM   #2
Henrythe9th
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2010
Location: Redmond OR, Oregon
Posts: 327
Liked 5 Times on 5 Posts
Likes Given: 12

Default

sure just make sure you get thick walled like .090 or .135

__________________
Henrythe9th is offline

Reply With Quote Quick reply to this message
Old 09-22-2010, 05:47 PM   #3
Brewers Hardware
Vendor
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: Orange County, CA
Posts: 455
Liked 6 Times on 5 Posts

Default

I built my first one out of 1X2 16 gauge (.065 wall). The rest I've built with 2X2 16 gauge. Haven't tried 1.25 square, but I will say square tubing is much easier to fit up than rectangle!

Brewers Hardware is offline

Reply With Quote Quick reply to this message
Old 09-22-2010, 08:38 PM   #4
SweetSounds
Feedback Score: 1 reviews
Recipes

Join Date: Jan 2010
Location: Des Moines, Iowa
Posts: 1,429
Liked 17 Times on 16 Posts
Likes Given: 4

Default

There's no reason you couldn't use 1" thin wall, if you properly cross braced and supported it... Triangles are very strong - It's not necessary to use 200# of steel to make a 4' table that can hold 300 pounds...

__________________
Quote:
Originally Posted by Ecnerwal View Post
What does the primary pressure gauge on the tank tell us? That's right, the temperature. Put it on a scale if you want to know how much is in it...
Put some duct tape over the gauge - Or better yet - Replace the high pressure gauge with a plug - High pressure gauges are useless!
SweetSounds is offline

Reply With Quote Quick reply to this message
Old 09-22-2010, 10:25 PM   #5
Joker
Feedback Score: 0 reviews

Joker's Avatar
Recipes

Join Date: Nov 2007
Location: Orygun
Posts: 1,954
Liked 15 Times on 15 Posts
Likes Given: 4

Default

Quote:
Originally Posted by SweetSounds View Post
There's no reason you couldn't use 1" thin wall, if you properly cross braced and supported it... Triangles are very strong - It's not necessary to use 200# of steel to make a 4' table that can hold 300 pounds...
Exactly what I was thinking, a couple vertical sections and some triangulation and you will be set.
__________________
Joker is offline

Reply With Quote Quick reply to this message
Old 09-23-2010, 12:58 AM   #6
timm747
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2010
Location: Baltimore
Posts: 271
Liked 1 Times on 1 Posts
Likes Given: 3

Default

Thanks guys. I figured that bracing was where its at. However what do you mean by triangulation? Put the supports up in an angle or something?

__________________

Fermenting American IPA AG 7-9-11

timm747 is offline

Reply With Quote Quick reply to this message
Old 09-23-2010, 01:22 PM   #7
SweetSounds
Feedback Score: 1 reviews
Recipes

Join Date: Jan 2010
Location: Des Moines, Iowa
Posts: 1,429
Liked 17 Times on 16 Posts
Likes Given: 4

Default

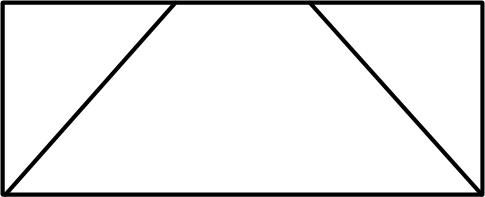

Triangles are stronger than rectangles.

Something like this, to support the top.

__________________
Quote:
Originally Posted by Ecnerwal View Post
What does the primary pressure gauge on the tank tell us? That's right, the temperature. Put it on a scale if you want to know how much is in it...
Put some duct tape over the gauge - Or better yet - Replace the high pressure gauge with a plug - High pressure gauges are useless!
SweetSounds is offline

Reply With Quote Quick reply to this message
Old 09-23-2010, 02:08 PM   #8
DSPracing
Feedback Score: -1 reviews
Recipes

Join Date: Sep 2010
Location: Monrovia, CA
Posts: 9
Default

Also, get the thickest tubing you can afford. If you are just learning to weld, it will make your life a lot easier.

__________________
DSPracing is offline

Reply With Quote Quick reply to this message
Old 09-23-2010, 09:32 PM   #9
Berniep
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2010
Location: Greensburg IN
Posts: 164
Liked 6 Times on 6 Posts
Likes Given: 7

Default

I got a whole bunch of 16 gauge 1 inch surplus.
I used it for a lot of stuff. I was amazed at how strong it was once built and braced, having been raised to build everything out of 1/4 inch. And if I was told to go get a piece of "that thin wall stuff" they we're talking about 1/8.
Now I know that it is not needed. I dan make very sturdy things from the 16 guage 1 inch square. Too bad I ran out of it because now I could use it to build a brew stand n

__________________
Berniep is offline

Reply With Quote Quick reply to this message
Old 09-23-2010, 10:25 PM   #10
SweetSounds
Feedback Score: 1 reviews
Recipes

Join Date: Jan 2010
Location: Des Moines, Iowa
Posts: 1,429
Liked 17 Times on 16 Posts
Likes Given: 4

Default

I agree - I don't know why people (used to be me) think they need heavy steel to build something strong. I made a go cart when I was a kid out of 1 1/4" steel pipe... That mofo was HEAVY! Ever look at the frame of a truck? 12Ga maybe. And that's got 3000# rolling on it!

1" thin-wall is fine when properly braced.

__________________
Quote:
Originally Posted by Ecnerwal View Post
What does the primary pressure gauge on the tank tell us? That's right, the temperature. Put it on a scale if you want to know how much is in it...
Put some duct tape over the gauge - Or better yet - Replace the high pressure gauge with a plug - High pressure gauges are useless!
SweetSounds is offline

Reply With Quote Quick reply to this message
