Default Sparge Arm?

So now I'm looking into building a sparge arm of some sorts. I like the idea of the Norcal one except I would make it mysellf. Any ideas on how to make one.

http://www.norcalbrewingsolutions.com/store/product419.html



__________________
marshallbeer is offline

Reply With Quote Quick reply to this message
Old 03-21-2013, 07:15 PM   #2
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 1 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Piscataway, NJ
Posts: 21,729
Liked 853 Times on 572 Posts
Likes Given: 26

Default

If you plan to recirculate your mash, that sort of thing would get clogged. It's only practical if you're just sparging.



__________________
Bobby_M is offline

Reply With Quote Quick reply to this message
Old 03-21-2013, 07:35 PM   #3
Huaco
Feedback Score: 0 reviews

Huaco's Avatar
Recipes

Join Date: Dec 2011
Location: Just south of Cow Town, Tx
Posts: 1,177
Liked 102 Times on 65 Posts
Likes Given: 27

Default

Why not just sparge with a length of silicone hose long enough to wrap the entire I.D. of the vessel while resting on top of the grain bed?

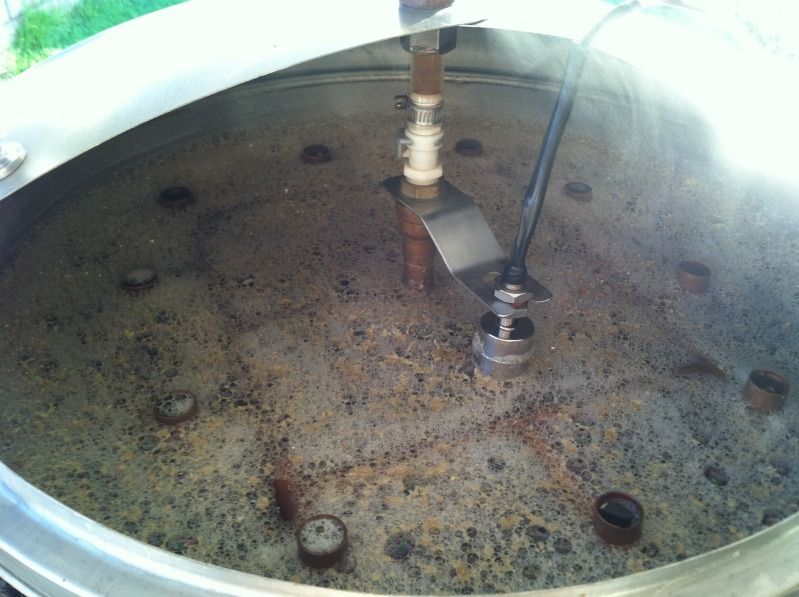

Shown in picture below. The hose is actually just below the surface of the wort where you can't see it, but wraps far enough to just overlap itself.

Huaco is offline

Reply With Quote Quick reply to this message
Old 03-21-2013, 07:36 PM   #4
socalboomer
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2011
Location: Riverside, CA
Posts: 209
Liked 4 Times on 3 Posts
Likes Given: 6

Default

I just take a length of copper pipe, crimp one end and solder (with lead-free) and drill a bunch of holes. Suspend above the mash tun and it works great - and was nearly free.

sparge arms (for fly sparging, not recirc) do NOT need to be anything fancy. You're just trying to put hot water gently on top of your grainbed/wort so that the wonderful wort will go out the bottom.

I've had success with a silicon tube letting water out horizontally, I've had success with it falling on a spoon (I bent the handle so it hooked over the edge of the cooler and was just above the grain bed), and I'm having good success with the "holy toob"

__________________

On Tap: Chocolate Palomino Chocolate Oatmeal Porter
On Tap: Black Sand Foreign Extra Stout
On Tap: Gold Dust Pale
In Secondary: Gold Dust Pale (bottles conditioning)
In Secondary:
In Primary: O'Rally Red Amber
Next up: not sure yet

socalboomer is offline

Reply With Quote Quick reply to this message
Old 03-22-2013, 06:30 PM   #5
marshallbeer
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2011
Location: Nottingham, NH, New Hampshire
Posts: 61
Liked 3 Times on 2 Posts
Likes Given: 22

Default

Thank you for the feedback. I like the silcone sparge idea.

__________________
marshallbeer is offline

Reply With Quote Quick reply to this message
Old 03-22-2013, 07:09 PM   #6
marshallbeer
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2011
Location: Nottingham, NH, New Hampshire
Posts: 61
Liked 3 Times on 2 Posts
Likes Given: 22

Default

What about using this to recirculate with?

__________________
marshallbeer is offline

Reply With Quote Quick reply to this message
Old 03-22-2013, 08:31 PM   #7
Huaco
Feedback Score: 0 reviews

Huaco's Avatar
Recipes

Join Date: Dec 2011
Location: Just south of Cow Town, Tx
Posts: 1,177
Liked 102 Times on 65 Posts
Likes Given: 27

Default

Yes! I recirculate all the time. 90 minute mash too...

__________________
My E-Brewery Build ---- My Multi-Temp Fermentation Chamber Build ---- My Multi-Temp Fermentation Controller
Huaco is offline

Reply With Quote Quick reply to this message
Old 03-22-2013, 08:51 PM   #8
marshallbeer
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2011
Location: Nottingham, NH, New Hampshire
Posts: 61
Liked 3 Times on 2 Posts
Likes Given: 22

Default

I forgot to add the link.

http://www.brewhardware.com/accessories/114-mashtube

__________________
marshallbeer is offline

Reply With Quote Quick reply to this message
Old 03-22-2013, 09:51 PM   #9
Monster Mash
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2006
Location: Castaic, CA
Posts: 1,317
Liked 82 Times on 65 Posts
Likes Given: 12

Default

I like this configuration because it flows free, it's easy to clean and spreads the liquid evenly.



__________________
My 1BBL Brewery Pics
Monster Mash is offline

Reply With Quote Quick reply to this message
Old 03-23-2013, 01:23 AM   #10
krazydave
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2010
Location: Santa Clarita, California
Posts: 844
Liked 23 Times on 21 Posts
Likes Given: 2

Default

I rock the silicone hose idea myself, also. Works just fine and I get great efficiency with it as long as I make sure to keep a layer of water on top of the grain bed. It's also the same thing that you'll see on the Blichmann Auto Sparge.
