Old 04-04-2011, 06:48 AM   #551
BrewBeemer
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2006
Location: an island, inside an atoll
Posts: 3,504
Liked 20 Times on 20 Posts
Likes Given: 7

Default

Quote:
Originally Posted by itsme6582 View Post
So does this all mean you don't see an issue arising or that you would avoid it.
I have found no problems with what they called dissimilar metal bonding with soldered joints. Even brass to brass or copper to copper soldered joint with soft solder can be ripped apart if enough force were applied.
__________________

Bier Jagdwaffe... Bier 30 zeit.....~~=o&o>..........

BrewBeemer is offline

Reply With Quote Quick reply to this message
Old 04-04-2011, 11:28 AM   #552
wyzazz
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2009
Location: Atwater, OH
Posts: 4,263
Liked 39 Times on 39 Posts
Likes Given: 48

Default

Quote:
Originally Posted by itsme6582 View Post
So does this all mean you don't see an issue arising or that you would avoid it.
In a nutshell, it's a non-issue.
__________________
Quote:
Originally Posted by Revvy View Post
And I'd like to see my 1.080 beers ready from grain to glass in a week, and served to me by red-headed twin penthouse pets wearing garter belts and fishnet stockings, with Irish accents, calling me "master luv gun," but we can't always get what we want can we? :)
wyzazz is offline

Reply With Quote Quick reply to this message
Old 04-20-2011, 06:50 AM   #553
Quaffer
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: Snohomish, WA
Posts: 488
Liked 24 Times on 15 Posts
Likes Given: 1

Default Dimple Solder a Grant Drain

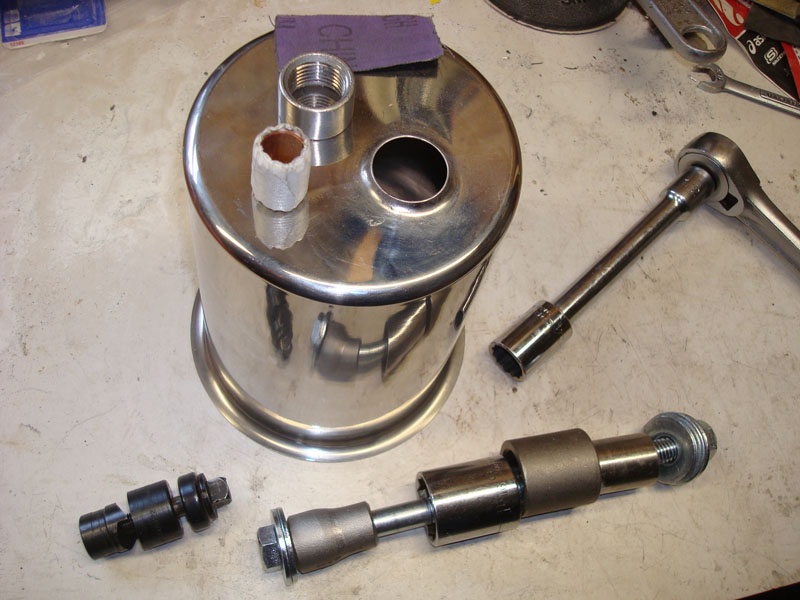

I'd like to add my bit to this otherwise most excellent thread. I just did my first dimple solder today. I decided to start with the grant because it is the least expensive vessel should things go wrong. The grant needs a bottom drain with a Camlock male. I will be installing a 1/2" half coupling. Here I have cut a hole with a 1/2" conduit punch (7/8" dia) and pulled a dimple with the tool set up as shown. I use a 1/2" bolt so a 1-1/16" socket for 1/2" square drive makes a great self-centering receiver. The remaining pieces on the bolt are just spacers for the long bolt. It is so long because I hope to later pull dimples and pull in couplings in one step, like Green Monti. Notice the piece of 1/2" copper pipe with masking tape on top of the grant.



After having pulled the expansion piece partially through, i reassembled the tool to pull the half coupling through. The piece of 1/2" copper pipe with masking tape is a snug fit inside the coupling which centers it on the bolt. Parts go on the bolt from left to right.

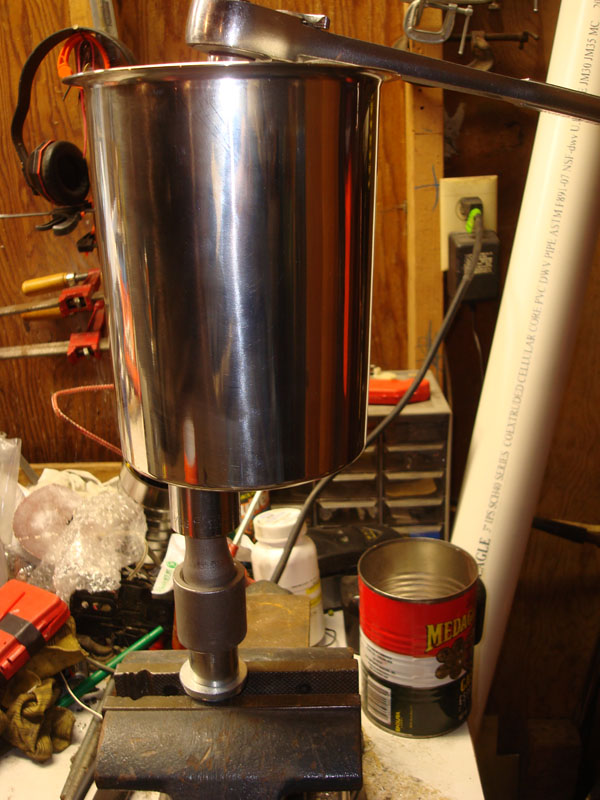

I put the nut in a vice which made it a lot easier to work the wrench with both hands.

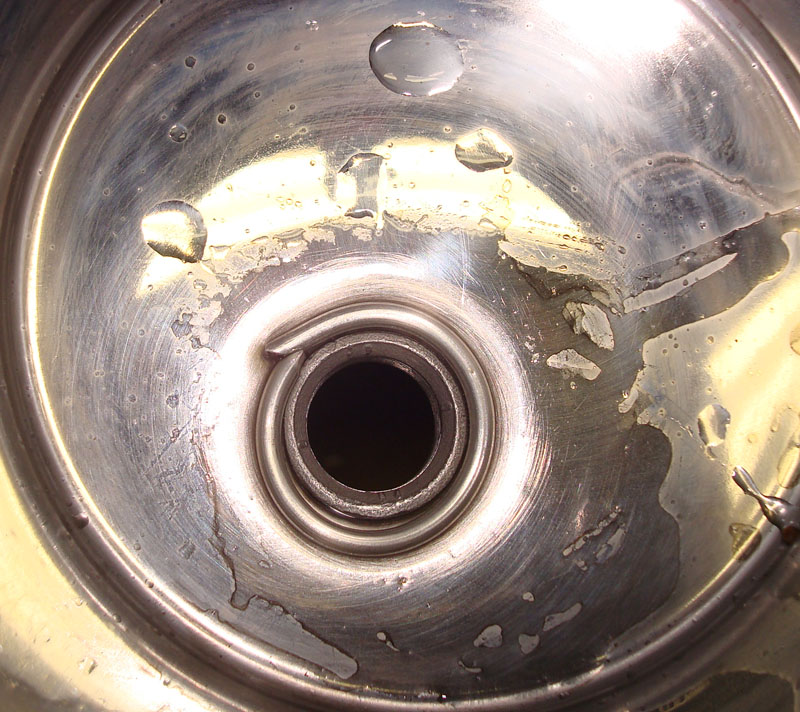

The joint has flux and a solder ring is in place, almost ready for heat.

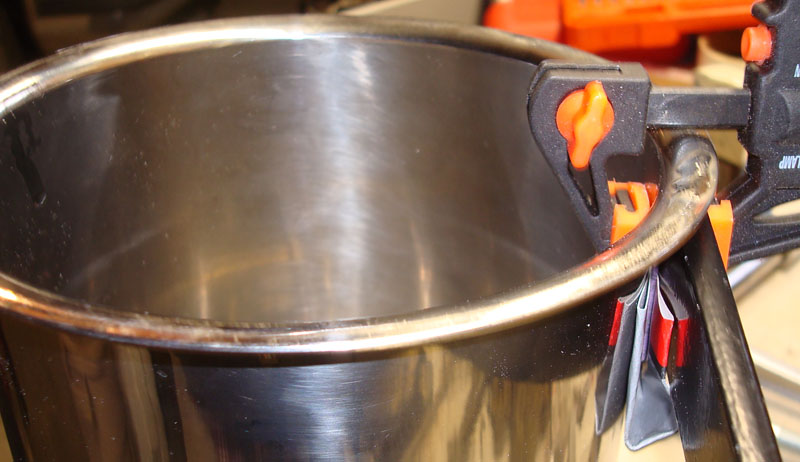

Before I put in the solder ring I filled the dimple with flux. It works like a spirit level so I can modify the mounting of the grant until it is plumb.


After applying heat with a MAPP gas torch. The solder has flowed through the joint and a bead shows up around the coupling. This alone verifies that the joint is sound and leak free. The inside of the joint is now mostly an esthetics issue, which is still worth doing right. By the way, notice the buildup of hardened flux in the threads.

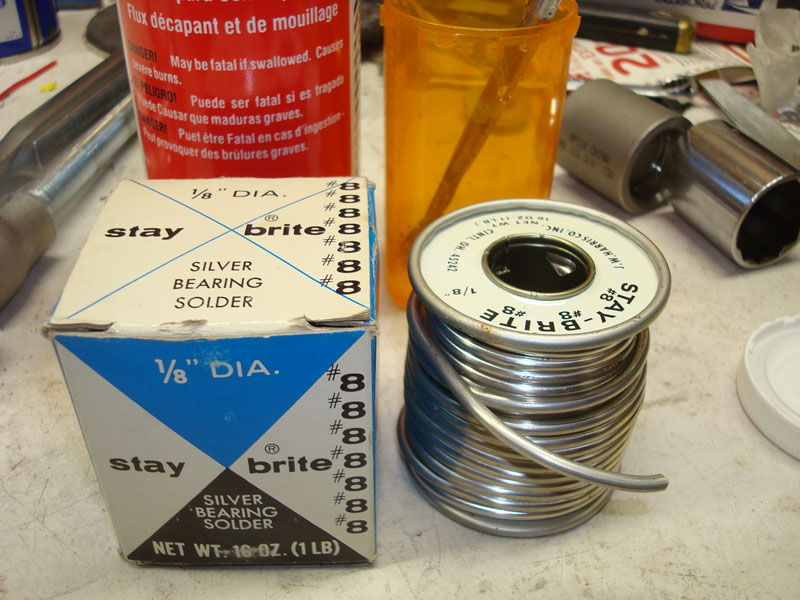

Here's the stuff I used; Stay-Clean liquid flux applied with an acid brush, and Stay-Brite #8 solder.

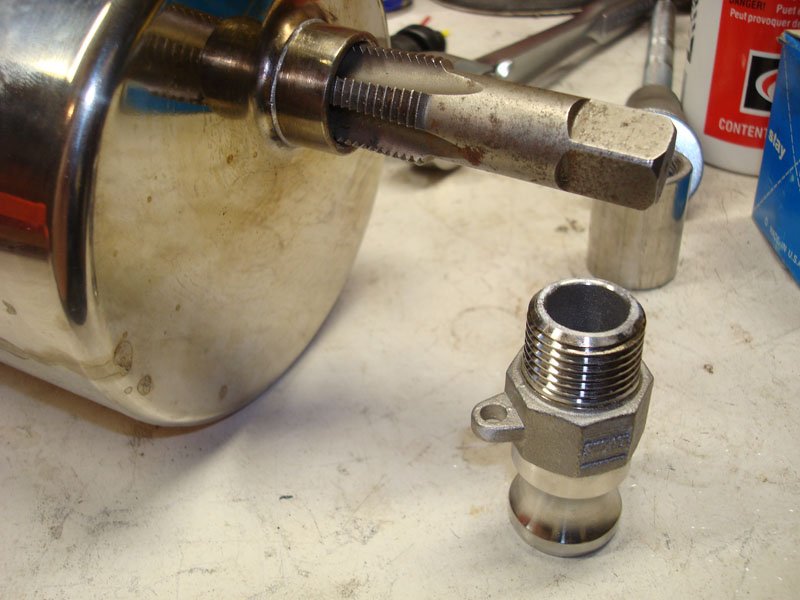

The flux in the threads was hard to get out with just flux on a rag. I eventually used a 1/2" NPT tap to chase the threads out; the flux had turned to almost glass in there. The tap pulled out crunchy flakes.

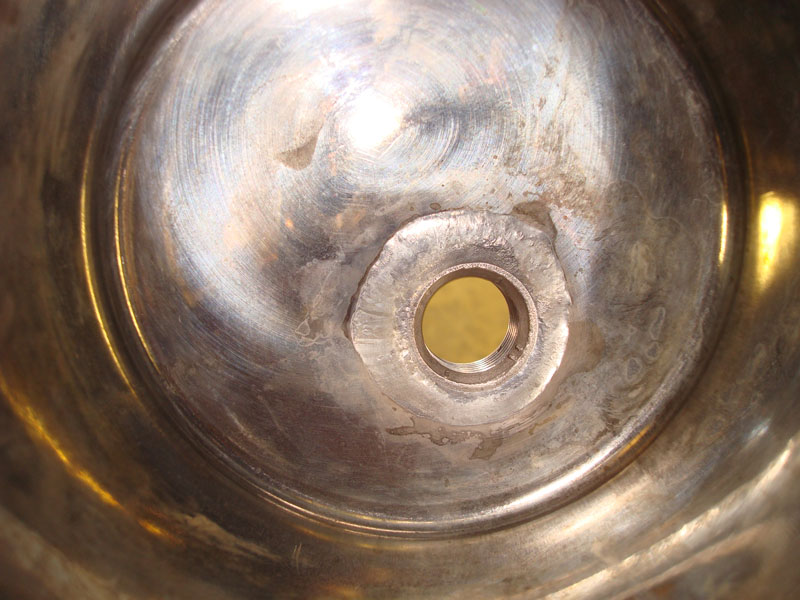

Here's what the inside joint looked like after cleaning with flux, then soap and water. There is more solder than I would have liked. I think next time I'll use 75% of a ring and cut it in half to spread it around a little. Also there are stains remaining which do not look so hot. I tried to remove them with a green scrubby pad. It started to remove the stains but it scratched the metal surface so I stopped.

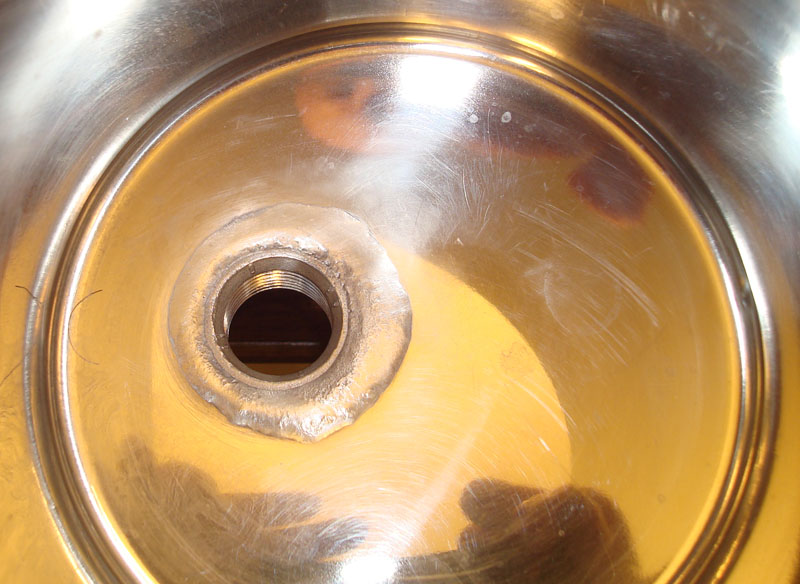

The solution to the flux stains turned out to be Bar Keepers Friend on a wet paper towel. I had an unopened can sitting around since I read rave reviews about BKF here on HBT. It did not let me down, I am a fan too now. The scratches you see are from the green scrubby. There are some faint marks left from the flux which I believe are etched into the surface so they will not come out. Removing the flux sooner may reduce these etchings.


That's it for me. Thanks all who have contributed to our common knowledge.

__________________

Alcohol, the source of - and solution to - all of life’s problems. H.J.S.
My keezer, My E-brewery build thread, How I soldered 1" nut for heater

Quaffer is offline

Reply With Quote Quick reply to this message
Old 04-20-2011, 02:43 PM   #554
bbognerks
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2010
Location: Wichita, KS, Kansas
Posts: 377
Liked 16 Times on 16 Posts
Likes Given: 1

Default

Word of warning on the dimple tool. Check your bolt and nut every once in a while to make sure they are in good shape. I had done about 20 fittings with this nut on the hardned bolt from McMaster. After pulling a half coupling through, when I was trying to back the nut off, it jammed. That's right, I could back it off about 1/4 inch from pulling it through and then it wouldn't move at all.



I spent the next 45 minutes cussing, dremeling, hammering, and wedging it off the bolt so I could finish soldering the coupling. Managed to bruise the tip of my thumb in several places where I missed the punch I was using to wedge it apart. Fun times.

__________________

Primary: Belgian Dark Strong Ale

Keg 1: English IPA
Keg 2: Dortmunder Export
Keg 3: Sweet Stout
Keg 4: Kölsch

bbognerks is offline

Reply With Quote Quick reply to this message
Old 04-20-2011, 09:14 PM   #555
klyph
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: North Pole, Alaska
Posts: 1,809
Liked 38 Times on 34 Posts
Likes Given: 3

Default

Ya, I used up a handful of stainless nuts. As soon as one started binding a little, I chucked it and grabbed a new one.

__________________
10 gallon electric system
Stovetop 110v single vessel 5 gallon system

Primary: saison
Secondary: nada
Conditioning: macaroon stout
Drinking: store bought
klyph is offline

Reply With Quote Quick reply to this message
Old 04-21-2011, 12:28 AM   #556
itsme6582
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2009
Location: Cleveland
Posts: 813
Liked 22 Times on 20 Posts
Likes Given: 23

Default

Finished my keggle a couple of weeks ago but I just managed to get the pics on the PC.

I cut the top of the keg off with an angle grinder and then dimpled and soldered a coupler in place. The whole process was incredibly easy. There really is no reason that someone with no experience and just the slightest bit of common sense couldn't do this. Here's a http://www.youtube.com/view_play_list?p=40264571DF6C6DD1 of how-to videos I watched beforehand. Nastalgia's dimpling and soldering video was definitely the most helpful. I put the keg tool together mostly with borrowed parts from work. I ordered the reducing coupler and 1 in coupler from McMaster. I actually ordered the wrong 1 inch coupler. I ordered a threaded one. The threads were not an issue. These pics are before final cleanup. The discoloration on the coupler came off right away with a little BKF. It looks brand new again.

I ordered a ball valve kit and a side-pickup tube kit from Bargain Fittings. All stainless and < $50. The Bargain Fittings coupler fit into the dimple sort of loosely but not enough that I hammered the dimple in, as discussed in earlier posts so I could get a tight fit. While soldering, some flux seeped through because it wasn't CH tight. That's what the discoloration is.

Altogether, I finished this project for a hair under $100.





__________________
itsme6582 is offline

Reply With Quote Quick reply to this message
Old 04-21-2011, 04:59 PM   #557
Quaffer
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: Snohomish, WA
Posts: 488
Liked 24 Times on 15 Posts
Likes Given: 1

Default

Quote:
Originally Posted by itsme6582 View Post
Beautiful joint! I did one on an old abused hole on my keggle last night, and yours is far better. My keggle split when I pulled the dimple and I had a dickens of a time to get it tight. I'll do a fresh one tonight.
__________________

Alcohol, the source of - and solution to - all of life’s problems. H.J.S.
My keezer, My E-brewery build thread, How I soldered 1" nut for heater

Quaffer is offline

Reply With Quote Quick reply to this message
Old 04-21-2011, 10:45 PM   #558
itsme6582
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2009
Location: Cleveland
Posts: 813
Liked 22 Times on 20 Posts
Likes Given: 23

Default

Quaffer: I'm not sure how to prevent the splitting. Maybe pull slower? I pulled out about halfway through to check the progress before I finished. What about lube? I didn't use anything fancy. I used a little olive oil. I think Nostalgia uses WD-40 in his video. Also, on your grant, I think you could have gotten away with a little less solder.

__________________
itsme6582 is offline

Reply With Quote Quick reply to this message
Old 04-21-2011, 11:12 PM   #559
Quaffer
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: Snohomish, WA
Posts: 488
Liked 24 Times on 15 Posts
Likes Given: 1

Default

Quote:
Originally Posted by itsme6582 View Post
Quaffer: I'm not sure how to prevent the splitting. Maybe pull slower? I pulled out about halfway through to check the progress before I finished. What about lube? I didn't use anything fancy. I used a little olive oil. I think Nostalgia uses WD-40 in his video. Also, on your grant, I think you could have gotten away with a little less solder.
I used WD40 and went slow. I think it split because of metal fatigue or something.

Years ago I had tried to braze a 1/2" male copper adapter to this hole, and it was a struggle with futility. In retrospect I probably used the wrong flux; I picked the first one on the shelf basically. It was white powder that burned into black peanut brittle and soot. I attempted repairs which held up for one or two brews until I finally gave up and went weld-less. I think I must have done something to the material then to make it split now; too much heat or too many heating cycles. The brazing rod needed a much higher temperature then the solder I use now.

I ended up using two rings of solder last night because it was leaking out through the crack. Finally I flipped the keg over and capped the crack with solder, and so far so good. I will test it with heat this weekend to see if it is going to hold up.
__________________

Alcohol, the source of - and solution to - all of life’s problems. H.J.S.
My keezer, My E-brewery build thread, How I soldered 1" nut for heater

Quaffer is offline

Reply With Quote Quick reply to this message
Old 04-22-2011, 03:33 PM   #560
Quaffer
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: Snohomish, WA
Posts: 488
Liked 24 Times on 15 Posts
Likes Given: 1

Default

There was one more thing about that half coupling. I checked it twice, still the "genius" pulled it in backwards. Luckily I had a 1/2" NPT tap. I am now the owner of the world's shortest full coupling.

The next full coupling went in without issue. HLT only needs a dip tube and a sight glass now.

Then I cut my brand spanking new Bayou 15.5 gallon kettle and put in a full coupling. Easy peasy. The thin metal of this pot stayed hot a lot longer than did the keggle. I let it cool for almost two minutes then tried to brush of the joint with flux. The solder was still liquid and I messed it up. It is still sound but not as pretty as could have been had I been patient.

__________________

Alcohol, the source of - and solution to - all of life’s problems. H.J.S.
My keezer, My E-brewery build thread, How I soldered 1" nut for heater

Quaffer is offline

Reply With Quote Quick reply to this message
