Default Single tier metal frame without welding?

Anyone have pics of a brewstand frame they've made without welding? I've seen angle iron frames and iron pipe frames before but can't seem to find pics of any of them.

Or is it worth it to have a local welder do one for me? I just need a single tier frame.

__________________
jikastew is offline

Reply With Quote Quick reply to this message
Old 06-02-2008, 01:02 AM   #2
sjvicker
Feedback Score: 0 reviews
Recipes

Join Date: May 2008
Location: Des Moines, WA
Posts: 100
Default

check out www.unistrut.com you could build whatever you need out of that stuff.

__________________
sjvicker is offline

Reply With Quote Quick reply to this message
Old 06-02-2008, 12:42 PM   #3
jas0420
Feedback Score: 1 reviews

jas0420's Avatar
Recipes

Join Date: Apr 2007
Location: College Station, Texas
Posts: 166
Liked 6 Times on 4 Posts
Likes Given: 4

Default

You could get a good start with something like this maybe... I've seen them in the store, but already had my brew stand needs fulfilled so I didn't look all that close at the quality/size.

http://www.academy.com/index.php?pag...267-40037-0001

In hindsight, that woulda' been wayyyyyyyy cheaper to go this route.

__________________
jas0420 is offline

Reply With Quote Quick reply to this message
Old 06-02-2008, 12:55 PM   #4
Atl300zx
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2007
Location: Hoplanta, Georgia
Posts: 746
Liked 3 Times on 3 Posts

Default

just collect bed frame, cut them up with an angle grinder, and assemble them with machine screws.

__________________
Jaded Spirits Brewery
Primary: Dennis Hoppier III
Secondary: Empty
Bottles: Triple Berry Apple Cider, Cote Apple Cider, Wild Blackberry Apple Cider, Dim Wit II, Mighty Porter
Kegs: 4Cs IPA - The Diamond Standard, Innis & Gunn Rum Cask Clone.
On Deck: The "Three Stouts", Wild Blackberry Mead, Irish Red

Jaded Spirits DIY Stirplate
Blog @ JadedSpirits.com
Blog @ HBT
Atl300zx is offline

Reply With Quote Quick reply to this message
Old 06-02-2008, 01:19 PM   #5
Aleforge
Feedback Score: 0 reviews
Recipes

Join Date: May 2007
Location: Wentzville, Missouri
Posts: 1,356
Liked 4 Times on 4 Posts
Likes Given: 1

Default

Quote:
Originally Posted by jas0420 View Post
You could get a good start with something like this maybe... I've seen them in the store, but already had my brew stand needs fulfilled so I didn't look all that close at the quality/size.

http://www.academy.com/index.php?pag...267-40037-0001

In hindsight, that woulda' been wayyyyyyyy cheaper to go this route.
Wow, dual burners, frame for 109...
__________________
Aleforge is offline

Reply With Quote Quick reply to this message
Old 06-02-2008, 01:25 PM   #6
crabtre
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2007
Location: Hilliard, OH
Posts: 81
Default

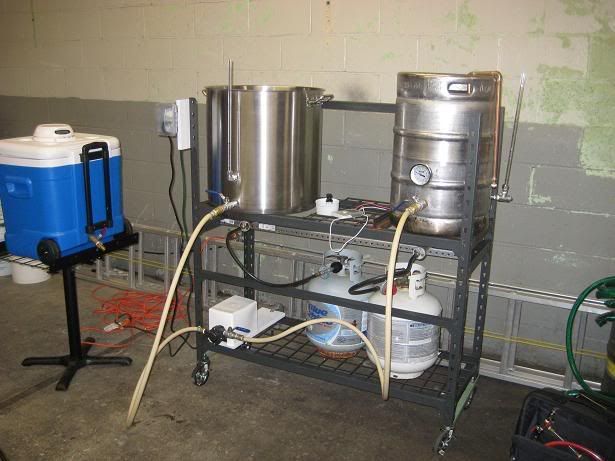

I built this system from a storage rack I bought from Tractor Supply Company. I had to strengthen the base by bolting some cutdown bedframe angle iron from leg-to-leg across the short side of the base (green lengths of angle iron at the base.) I added casters to the bottom so that it was mobile. I used a length of perforated angle iron/steel that I bought at Lowes to attach the burners, bolting it to one pair of shelf supports that came with the unit to allow adjustment. I used another length of angle iron (thicker, non-perforated) for the supports for the keggle. The Boil kettle is large enough to only need support on three sides, but another lenth of angle iron would work if two keggles were used.

The two largest advantages of this rack is that it breaks down quickly (I can break it down or set it up in about 5 mins) and it allows for adjustment of the height of the burners or kettle support. The rack is made of 14 gauge steel and is pretty strong. The wire shelf supports that came with the unit are plenty strong enough to support the propane tanks, pump, etc.



__________________

On Tap: Wet Mountain IPA Clone - DH Cascade
On Tap: Turbid Belgian Wit
Carbonating: 2009 Wee Heavy Scotch Ale
In Primary: empty

crabtre is offline

Reply With Quote Quick reply to this message
Old 06-02-2008, 02:33 PM   #7
aekdbbop
Feedback Score: 0 reviews

aekdbbop's Avatar
Recipes

Join Date: Sep 2006
Location: Nashville, TN
Posts: 2,772
Liked 8 Times on 7 Posts

Default

Quote:
Originally Posted by jas0420 View Post
You could get a good start with something like this maybe... I've seen them in the store, but already had my brew stand needs fulfilled so I didn't look all that close at the quality/size.

http://www.academy.com/index.php?pag...267-40037-0001

In hindsight, that woulda' been wayyyyyyyy cheaper to go this route.
you mean like this??



thats the one from academy.. plus a 160K burner for 25 bucks that i found there too..
__________________
Bare Tree Brewing Co.
"Straight from the earth"

aekdbbop is offline

Reply With Quote Quick reply to this message
Old 06-02-2008, 03:26 PM   #8
jikastew
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2008
Location: Omaha
Posts: 16
Default

Well I spent yesterday working on single tier designs. I have 2 major concerns.

1. Welding. I wasn't going to weld one. But, after thinking about it, I'm probably going to learn how to weld. I've always wanted to do it. This is a nice project to have as a goal. I would assume an entry level AC 130A Arc Welder should be sufficient?

2. NEED for wind protection. Most of the iron/steel stands have minimal ability to block wind. I really need more than just some iron/steel to surround the flame (like on store bought burners). I do note that the guy with the wood single tier stand has 2X8s surrounding the flame. That's what I'd need. My question is, would sheet metal work for this or would they get too hot or would the cost be prohibitive?


I am a very apt woodworker. Putting together a nice wood frame is easily doable...........but I'm not sure I want finished wood next to Banjo Burners. I suppose if I did it, I would make a heat shield of aluminum-air gap-sheet rock attached to the inside of the wood facing the flame. The other issue with a wood frame is that I want to roll this stand from inside to outside via a walkout basement. Having a 30" wide wood stand takes up ALOT of room in my workshop. I'm not sure that's in my best interest. A 16" wide stand is much easier to move around and sits better in the shop.

So, here's the question. Should I learn to weld and get this done, or should I go wood with heat shields?

__________________
jikastew is offline

Reply With Quote Quick reply to this message
Old 06-02-2008, 04:34 PM   #9
david_42
Feedback Score: 0 reviews

david_42's Avatar
Recipes

Join Date: Oct 2005
Location: Willamina & Oak Grove, Oregon, USA
Posts: 25,651
Liked 134 Times on 127 Posts

Default

I'd stick with what you know. You would need a steel shelf for the kettles. You can get galvanized steel flashing (for roofing) in widths from 4-20", that works well for the heat shields.

The concrete board used for tile underlay would be much better than sheet rock. You probably wouldn't need any other heat shielding.

__________________

Remember one unassailable statistic, as explained by the late, great George Carlin: "Just think of how stupid the average person is, and then realize half of them are even stupider!"

"I would like to die on Mars, just not on impact." Elon Musk

david_42 is offline

Reply With Quote Quick reply to this message
Old 06-02-2008, 05:11 PM   #10
jas0420
Feedback Score: 1 reviews

jas0420's Avatar
Recipes

Join Date: Apr 2007
Location: College Station, Texas
Posts: 166
Liked 6 Times on 4 Posts
Likes Given: 4

Default

Quote:
Originally Posted by jikastew View Post
Well I spent yesterday working on single tier designs. I have 2 major concerns.

1. Welding. I wasn't going to weld one. But, after thinking about it, I'm probably going to learn how to weld. I've always wanted to do it. This is a nice project to have as a goal.

------

I am a very apt woodworker. Putting together a nice wood frame is easily doable...........but I'm not sure I want finished wood next to Banjo Burners.

-----

So, here's the question. Should I learn to weld and get this done, or should I go wood with heat shields?

I was in a similar boat when I built mine. I'm much more familiar with woodworking than metal, but I wanted to learn. I went out and bought a little mig welder, chopped up an old Soloflex for metal, and taught myself to weld. Just pick up a grinder when you're buying your welder, and everything will turn out just fine.

So if it's something you WANT to learn to do, I totally agree with you that this is a rewarding first project to learn on. Just be sure and do some load tests with non-boiling liquids first!
