Quote:
Originally Posted by ClaudiusB View Post
Great setup
The float requires too much engineering
Use a capacitive prox switch or optical sensor clamped to the sight glass and connect to your BCS and done..

Cheers,
ClaudiusB
Thanks. Any links to suitable examples of the two sensors you described?
__________________
JonW is offline

Reply With Quote Quick reply to this message
Old 11-08-2010, 12:22 PM   #22
Sawdustguy
Feedback Score: 1 reviews
Recipes

Join Date: Mar 2009
Location: Manorville, New York
Posts: 2,772
Liked 28 Times on 25 Posts

Default

Quote:
Originally Posted by ClaudiusB View Post
Great setup
The float requires too much engineering
Use a capacitive prox switch or optical sensor clamped to the sight glass and connect to your BCS and done..

Cheers,
ClaudiusB
+1 Claudius, with no way to simply read the voltage from a pressure sensor that is how I would do it.

Quote:
Originally Posted by JonW View Post
I'm big into home automation, thus the reason I went this direction with my BCS & ball valves, but I'm not interested in setting something up for hands-off brewing and really have no interest in doing bubbler systems, pressure sensors or anything like that. Currently, monitoring levels is a very minimal issue for me, but again, I may address it in the future with some float switches.
I can appreciate that. Just an FYI: If you use wet pressure sensors like Kladue does there is no need for a bubbler. The bubbler is only needed if you are measuring how much the air is compressed by a volume of liquid. If the sensor is wet there is no air hence no need for a bubbler.
__________________

Guy

Sawdustguy is offline

Reply With Quote Quick reply to this message
Old 11-08-2010, 01:38 PM   #23
RonRock
Always Ready
Feedback Score: 1 reviews

RonRock's Avatar
Recipes

Join Date: Jul 2008
Location: Underwood, Iowa
Posts: 1,317
Liked 7 Times on 7 Posts
Likes Given: 2

Default

Someone have a link to either of these volume sensor setups? I keep reading about them, but no instruction.

RonRock is offline

Reply With Quote Quick reply to this message
Old 11-08-2010, 01:58 PM   #24
Sawdustguy
Feedback Score: 1 reviews
Recipes

Join Date: Mar 2009
Location: Manorville, New York
Posts: 2,772
Liked 28 Times on 25 Posts

Default

Quote:
Originally Posted by RonRock View Post
Someone have a link to either of these volume sensor setups? I keep reading about them, but no instruction.
http://forum.brewtroller.com/showthread.php?t=538
__________________

Guy

Sawdustguy is offline

Reply With Quote Quick reply to this message
Old 11-08-2010, 09:07 PM   #25
JonW
Feedback Score: 0 reviews

JonW's Avatar
Recipes

Join Date: Dec 2009
Location: Huntington Beach ☼
Posts: 1,458
Liked 93 Times on 57 Posts
Likes Given: 36

Default

Quote:
Originally Posted by Sawdustguy View Post
This looks to mostly about bubbler/air systems. At this point in time, about the only level I need/want to track is to know when I've collected my runoff. A simple float switch or something similar will do the trick there. I really don't care what the volume is in between - only when I've reached the volume I want.
__________________
JonW is offline

Reply With Quote Quick reply to this message
Old 11-08-2010, 09:12 PM   #26
klyph
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: North Pole, Alaska
Posts: 1,809
Liked 38 Times on 34 Posts
Likes Given: 3

Default

Don't you measure your strike water with a certain amount of precision?

__________________
10 gallon electric system
Stovetop 110v single vessel 5 gallon system

Primary: saison
Secondary: nada
Conditioning: macaroon stout
Drinking: store bought
klyph is offline

Reply With Quote Quick reply to this message
Old 11-08-2010, 09:18 PM   #27
JonW
Feedback Score: 0 reviews

JonW's Avatar
Recipes

Join Date: Dec 2009
Location: Huntington Beach ☼
Posts: 1,458
Liked 93 Times on 57 Posts
Likes Given: 36

Default

Sure, but I just fill it to a mark on the sight glass based on the recipe I'm doing. I then put many more gallons than I need into my HLT (I use the extra during cleanup). When fly sparging, I'll adjust my valves just a bit to match runoff rates, but I'd like an automated float switch (or similar) to trigger the end of the fly sparge process so I don't have to do it on the BCS at that point.

__________________
JonW is offline

Reply With Quote Quick reply to this message
Old 11-08-2010, 11:10 PM   #28
chapa
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2010
Location: St Louis, MO
Posts: 805
Liked 5 Times on 5 Posts
Likes Given: 1

Default

Very nice, clean set-up!

__________________
Fermenting/Conditioning: Casc/Cent APA, Hoppy Birthday Amarillo/Simcoe IPA(6g American/5g Belgian), Chappist Belgian Dubbel
Bottled/Kegged: Red Rye IPA, Wesside Trip(Westmalle Tripel clone), ESB, Lil Trap (4% Trappist Starter Batch), Robust (Pumpkin) Porter, 3% Little Hopper, "Slick Rick" Old Engine Oil Clone(oaked w/ vanilla and balvenie scotch), Imperial RyePA,
On Deck: Quad, Belgian IPA, Orfy's Mild, Scotch Ale
chapa is offline

Reply With Quote Quick reply to this message
Old 11-09-2010, 12:34 AM   #29
JonW
Feedback Score: 0 reviews

JonW's Avatar
Recipes

Join Date: Dec 2009
Location: Huntington Beach ☼
Posts: 1,458
Liked 93 Times on 57 Posts
Likes Given: 36

Default

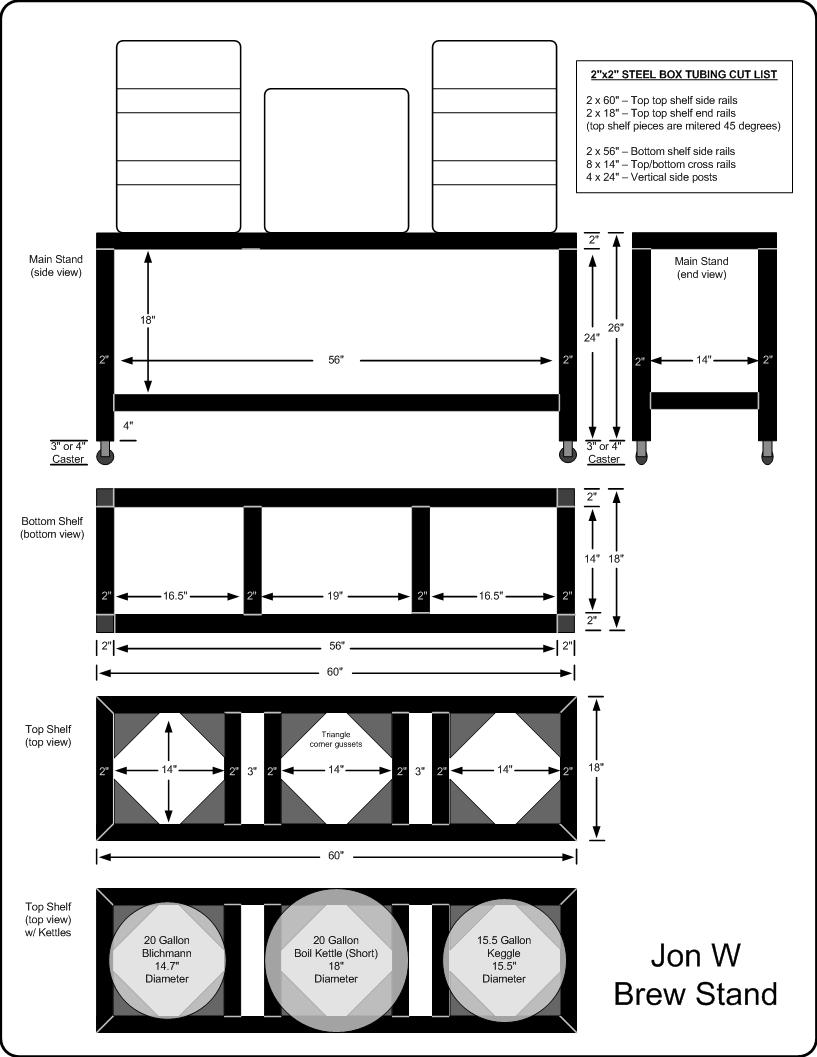

I was asked for dimensional data on the stand, so here is the Visio layout I created before it was welded up.

The idea of the corner gussets was two-fold: one was to prevent heat wash from coming up the sides of the kettles and two was to allow a more flexible footprint for various sizes of kettles. When I started this, I was using the kettles from my first stand (shelving unit) which included two keggles and a 20G short/wide kettle. However, I knew that at some point I might be moving to Blichmann's, so I wanted a flexible footprint for the kettle support area.



edit: OK, I linked the image in from an external source, so now it keeps it larger!
