Old 12-06-2012, 05:23 PM   #221
JonW
Feedback Score: 0 reviews

JonW's Avatar
Recipes

Join Date: Dec 2009
Location: Huntington Beach ☼
Posts: 1,414
Liked 78 Times on 48 Posts
Likes Given: 31

Default

Quote:
Originally Posted by bduane View Post
I did see all of those modifications, my question was more in regards to the stand itself, the frame. Are you completely happy with the configuration of the stands frame, other than Stainless of course.
Yes, for what I wanted, I'm very happy with the stand dimensions and build design. I have thought about doing it again in SS only because I've had several people interested in buying mine. I may do it, don't know yet.

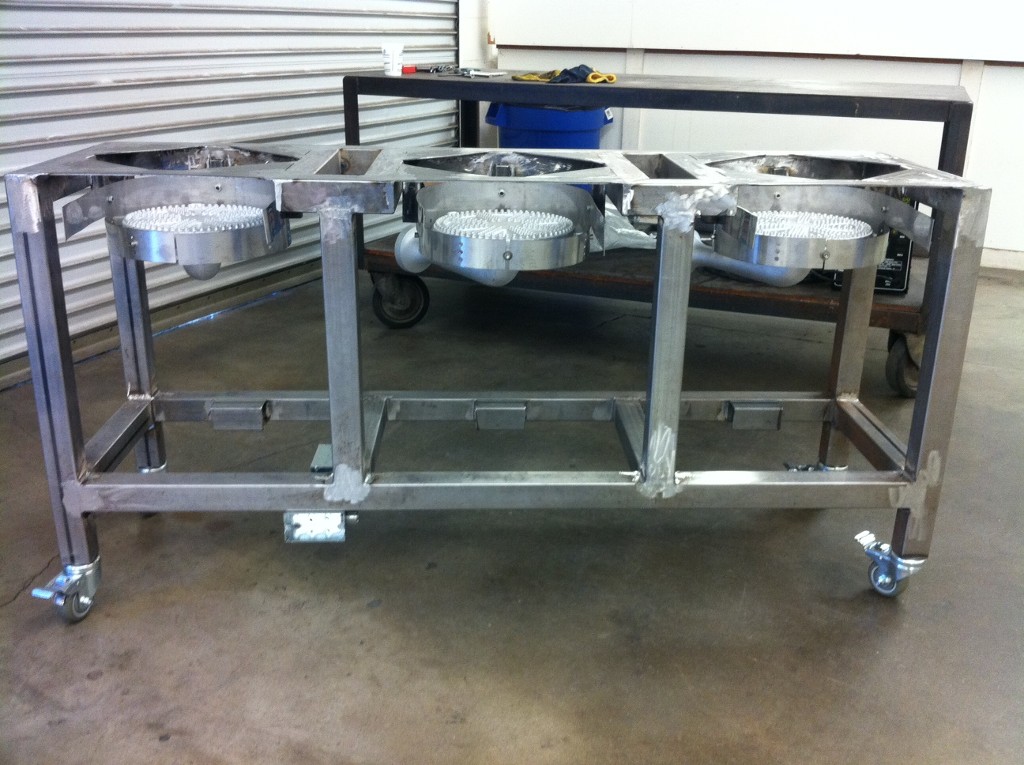

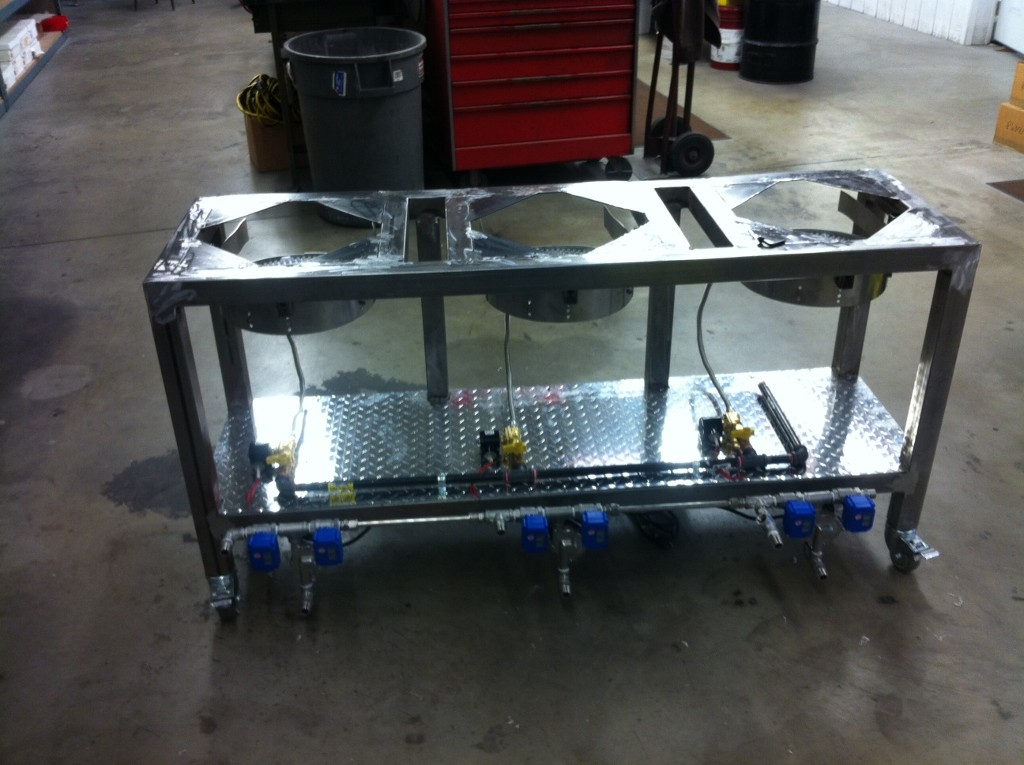

I did help a friend build a clone of mine and I changed up the design for his. We were using the BG14 burners for his and decided to create a design that would open the rear of the frame for better venting of the burners. Instead of a 2x2 bar across the back, I used a 1/8" thick by 2" wide steel plate so that the footprint from the top was identical, but the back ended up being wide open. We also added vertical uprights in the rear since we didn't have a solid rail across the back. This added a lot of extra miter cuts and welding, but the result came out really nice. We also put in a piece of box tubing behind the lower front rail for a better pump mounting area.

Here are some pics:




__________________
Surf City Brewing (TM)

My Single Tier, 3 Pump, BCS-462, Brutus Build: http://www.homebrewtalk.com/f51/single-tier-3-pump-bcs-462-automated-rig-204705/
My customized BCS-462 controller web interface: http://www.homebrewtalk.com/f51/hacking-bcs-add-customized-web-pages-done-209388/
My 8 tap, 11 keg, upright Keezer build: http://www.homebrewtalk.com/f51/upright-keezer-8-taps-11-kegs-371438/
JonW is offline
calebstringer Likes This
Reply With Quote Quick reply to this message
Old 12-10-2012, 07:15 PM   #222
allclene
Beer, What a beautiful thing
Feedback Score: 0 reviews

allclene's Avatar
Recipes

Join Date: Oct 2011
Location: payson, AZ
Posts: 229
Liked 1 Times on 1 Posts
Likes Given: 1

Default

Quote:
Originally Posted by JonW View Post

I'm not using any gas module. I have solenoid valves that control the gas flow and the igniters wired directly to an SSR. The BCS controls firing the igniters and the burner. There's a setting in the BCS where you tell it how long to fire the igniter before opening your valve and how long to continue firing it after opening the valve. For attended brewing, this works just fine. If you want to do unattended operations, then you should stay with the honeywell valves that have the flame dectectors and safety shutoffs.

Can you provide part numbers for the glowflies and the solinoids pleeeeese?


__________________

My Automated Rig Forum: http://www.homebrewtalk.com/f11/new-system-build-need-input-348808/

allclene is offline

Reply With Quote Quick reply to this message
Old 12-10-2012, 07:31 PM   #223
JonW
Feedback Score: 0 reviews

JonW's Avatar
Recipes

Join Date: Dec 2009
Location: Huntington Beach ☼
Posts: 1,414
Liked 78 Times on 48 Posts
Likes Given: 31

Default

Quote:
Originally Posted by allclene View Post
Can you provide part numbers for the glowflies and the solinoids pleeeeese?
Info for both is already in this thread.
__________________
Surf City Brewing (TM)

My Single Tier, 3 Pump, BCS-462, Brutus Build: http://www.homebrewtalk.com/f51/single-tier-3-pump-bcs-462-automated-rig-204705/
My customized BCS-462 controller web interface: http://www.homebrewtalk.com/f51/hacking-bcs-add-customized-web-pages-done-209388/
My 8 tap, 11 keg, upright Keezer build: http://www.homebrewtalk.com/f51/upright-keezer-8-taps-11-kegs-371438/
JonW is offline

Reply With Quote Quick reply to this message
Old 12-21-2012, 06:24 PM   #224
allclene
Beer, What a beautiful thing
Feedback Score: 0 reviews

allclene's Avatar
Recipes

Join Date: Oct 2011
Location: payson, AZ
Posts: 229
Liked 1 Times on 1 Posts
Likes Given: 1

Default

I received my igniters and I noticed there is no reference to where the ideal place is to place them by burner. What was the distance you placed yours from the burner and is it supposed to be sticking into the flame or next to the flame of the burner.

__________________

My Automated Rig Forum: http://www.homebrewtalk.com/f11/new-system-build-need-input-348808/

allclene is offline

Reply With Quote Quick reply to this message
Old 12-22-2012, 02:33 AM   #225
mikescooling
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2012
Location: Chicago, IL
Posts: 1,584
Liked 198 Times on 152 Posts
Likes Given: 176

Default

Nice brew stand, and thanks for the break down of all the steel. Is that 16 gauge tubing?

__________________
mikescooling is offline

Reply With Quote Quick reply to this message
Old 12-23-2012, 05:29 PM   #226
JonW
Feedback Score: 0 reviews

JonW's Avatar
Recipes

Join Date: Dec 2009
Location: Huntington Beach ☼
Posts: 1,414
Liked 78 Times on 48 Posts
Likes Given: 31

Default

Quote:
Originally Posted by allclene View Post
I received my igniters and I noticed there is no reference to where the ideal place is to place them by burner. What was the distance you placed yours from the burner and is it supposed to be sticking into the flame or next to the flame of the burner.
This all depends on the style of burners you have. You just need to place them next to some jets/tips.

Quote:
Originally Posted by mikescooling View Post
Nice brew stand, and thanks for the break down of all the steel. Is that 16 gauge tubing?
Thank you. The steel was 3/32". Not sure what that comes out to as a gauge equivalent.
__________________
Surf City Brewing (TM)

My Single Tier, 3 Pump, BCS-462, Brutus Build: http://www.homebrewtalk.com/f51/single-tier-3-pump-bcs-462-automated-rig-204705/
My customized BCS-462 controller web interface: http://www.homebrewtalk.com/f51/hacking-bcs-add-customized-web-pages-done-209388/
My 8 tap, 11 keg, upright Keezer build: http://www.homebrewtalk.com/f51/upright-keezer-8-taps-11-kegs-371438/
JonW is offline

Reply With Quote Quick reply to this message
Old 12-25-2012, 03:48 PM   #227
trekbiker1500
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2011
Location: Bowie, MD
Posts: 14
Likes Given: 3

Default

Quote:
Originally Posted by JonW View Post
It's pretty standard stuff. 1/2" SS pipe with Swagelok compression fittings. I picked the pieces up on Ebay.
Looks like SS tubing vs pipe, is that accurate? Planning in my head how my set up is going together. Piecing together materials now. Dunno when I will have all on hand...but the journey is the fun part anyway. Merry Christmas.
__________________
Hopfiend Brewing

Serving mankind in the pursuit of perfect hop utilization
trekbiker1500 is offline

Reply With Quote Quick reply to this message
Old 12-27-2012, 04:53 PM   #228
JonW
Feedback Score: 0 reviews

JonW's Avatar
Recipes

Join Date: Dec 2009
Location: Huntington Beach ☼
Posts: 1,414
Liked 78 Times on 48 Posts
Likes Given: 31

Default

Quote:
Originally Posted by trekbiker1500 View Post
Looks like SS tubing vs pipe, is that accurate?
Yes, it is 1/2" SS tubing w/ Swagelok compression fittings.
__________________
Surf City Brewing (TM)

My Single Tier, 3 Pump, BCS-462, Brutus Build: http://www.homebrewtalk.com/f51/single-tier-3-pump-bcs-462-automated-rig-204705/
My customized BCS-462 controller web interface: http://www.homebrewtalk.com/f51/hacking-bcs-add-customized-web-pages-done-209388/
My 8 tap, 11 keg, upright Keezer build: http://www.homebrewtalk.com/f51/upright-keezer-8-taps-11-kegs-371438/
JonW is offline

Reply With Quote Quick reply to this message
Old 01-01-2013, 04:38 PM   #229
bduane
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2011
Location: howell, mi
Posts: 202
Liked 12 Times on 9 Posts
Likes Given: 1

Default

Quote:
Originally Posted by JonW View Post
Yes, it is 1/2" SS tubing w/ Swagelok compression fittings.
A lot of the pictures aren't loading right now, so not sure if this was in the drawing, but what length SS tubes did you end up using? I ask because brewhardware.com has 8" SS nipples, not sure if that could work to simplify things the plumbing. I figure if it doesn't add enough length, I could compensate with longer nipples between the valves and the pumps.
__________________
bduane is offline

Reply With Quote Quick reply to this message
Old 01-02-2013, 12:34 AM   #230
JonW
Feedback Score: 0 reviews

JonW's Avatar
Recipes

Join Date: Dec 2009
Location: Huntington Beach ☼
Posts: 1,414
Liked 78 Times on 48 Posts
Likes Given: 31

Default

Quote:
Originally Posted by bduane View Post
A lot of the pictures aren't loading right now, so not sure if this was in the drawing, but what length SS tubes did you end up using? I ask because brewhardware.com has 8" SS nipples, not sure if that could work to simplify things the plumbing. I figure if it doesn't add enough length, I could compensate with longer nipples between the valves and the pumps.
Pics are loading now... had a server issue this morning.

The SS tubes are about 12" long each. I had originally thought about using SS nipples, but decided on the tubing for a couple of reasons. The first being that it is much easier to get the tubing to the exact length I needed for the pump spacing instead of messing with nipples/couplers. The second reason is that it makes it easier to remove a pump for any servicing needs since they won't all be hard piped together.


__________________
Surf City Brewing (TM)

My Single Tier, 3 Pump, BCS-462, Brutus Build: http://www.homebrewtalk.com/f51/single-tier-3-pump-bcs-462-automated-rig-204705/
My customized BCS-462 controller web interface: http://www.homebrewtalk.com/f51/hacking-bcs-add-customized-web-pages-done-209388/
My 8 tap, 11 keg, upright Keezer build: http://www.homebrewtalk.com/f51/upright-keezer-8-taps-11-kegs-371438/
JonW is offline

Reply With Quote Quick reply to this message
