forgive my ignorance, but does that cool software you're running come with the BCS?

__________________
Hopfiend Brewing

Serving mankind in the pursuit of perfect hop utilization
trekbiker1500 is offline

Reply With Quote Quick reply to this message
Old 11-15-2012, 11:30 PM   #202
JonW
Feedback Score: 0 reviews

JonW's Avatar
Recipes

Join Date: Dec 2009
Location: Huntington Beach ☼
Posts: 1,479
Liked 101 Times on 62 Posts
Likes Given: 40

Default

Quote:
Originally Posted by trekbiker1500 View Post
forgive my ignorance, but does that cool software you're running come with the BCS?
My interface is a customized web page that I use for a touch screen. If you know your way around a computer and HTML/Javascript, you can download my files and do a custom version of your own.

Info on the interface and links to the files are in my signature.
__________________
Surf City Brewing (TM)

My Single Tier, 3 Pump, BCS-462, Brutus Build: http://www.homebrewtalk.com/f51/sing...ed-rig-204705/
My customized BCS-462 controller web interface: http://www.homebrewtalk.com/f51/hack...s-done-209388/
My 8 tap, 11 keg, upright Keezer build: http://www.homebrewtalk.com/f51/upri...1-kegs-371438/
JonW is offline

Reply With Quote Quick reply to this message
Old 11-16-2012, 02:11 AM   #203
trekbiker1500
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2011
Location: Bowie, MD
Posts: 14
Likes Given: 3

Default

Quote:
Originally Posted by JonW View Post
If you know your way around a computer and HTML/Javascript, you can download my files and do a custom version of your own.

Info on the interface and links to the files are in my signature.
And another channel in the hobby opens up . I am not skilled but I can learn...

thank you
__________________
Hopfiend Brewing

Serving mankind in the pursuit of perfect hop utilization
trekbiker1500 is offline

Reply With Quote Quick reply to this message
Old 11-16-2012, 03:14 AM   #204
clawler
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2012
Posts: 24
Likes Given: 1

Default

Quote:
Originally Posted by JonW View Post
Here's my new single tier Brutus style build. I've used the BCS-462 controller for the pumps/valves/temp probes. The BCS is mounted to the garage wall and is also used to control the temp for my serving fridges (2 kegerators) and my fermentor fridge (3rd kegerator). There are 3 CAT-5 data jacks on the back of the rig that are plugged into the BCS on the wall. One CAT-5 for the temp probes, one for the gas valves and pumps, and one for the liquid SS ball valves. Check out the next post for a liquid flow diagram.

Burners are natural gas. I ran a dedicated 3/4" gas line in my garage and have a 1/2" ID gas line with QD that the stand attaches to.

The finish on the stand is a high temp powder coating. I was running it for a while with no finish, but it starts to rust pretty quick. I've only fired it up once now that the coating is on it, but it seems like it should last pretty good. The powder coat is rated for 1200 degrees.

Yeah, I know, 3 pumps seems like overkill, but with pumps now available for $100, it really just simplified the setup when using the electronic ball valves. It also lets me setup for doing back-to-back brew sessions where I can be mashing brew #2 while I'm still finishing up brew #1 in the BK. I like to do continuous recirculation on both the HLT & MLT, so this handles that nicely as well.

Updates done since original posting:
- changed to SS QD's (Morebeer ones w/ Brewers Hardware full flow barbs).
- Swapped out pump heads for Chugger SS versions.
- Moved gas control valves from rear to front for easier access.
- Added tippy dump. This helps greatly on double brew days for fast swap to batch #2.

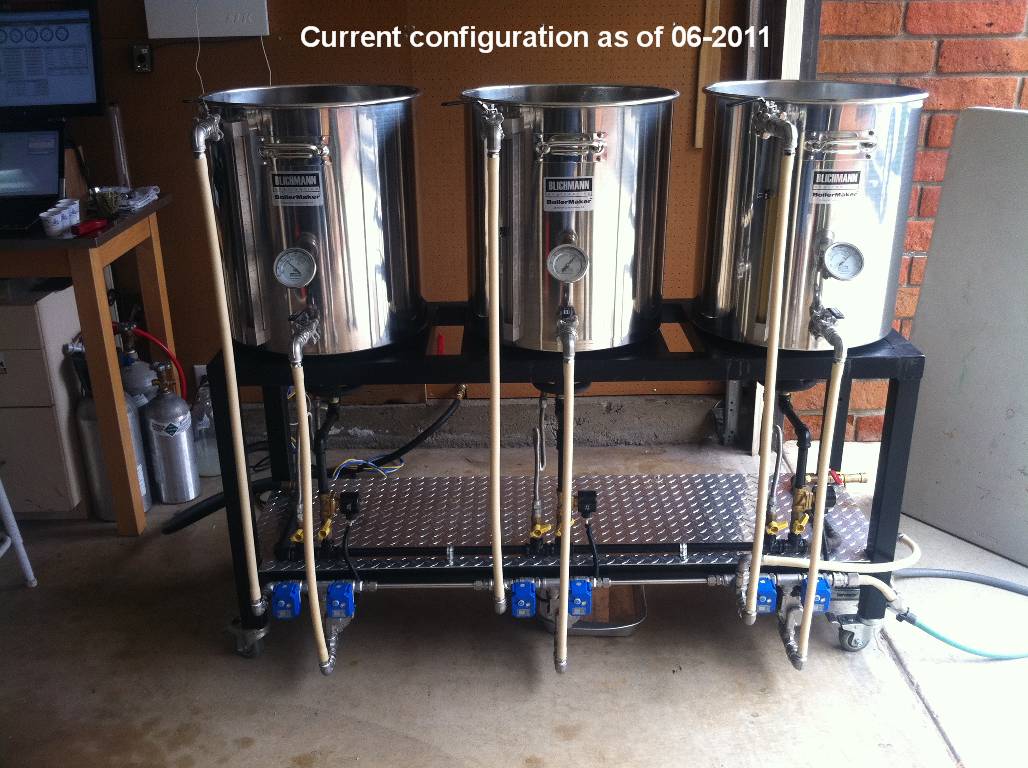

Current Configuration

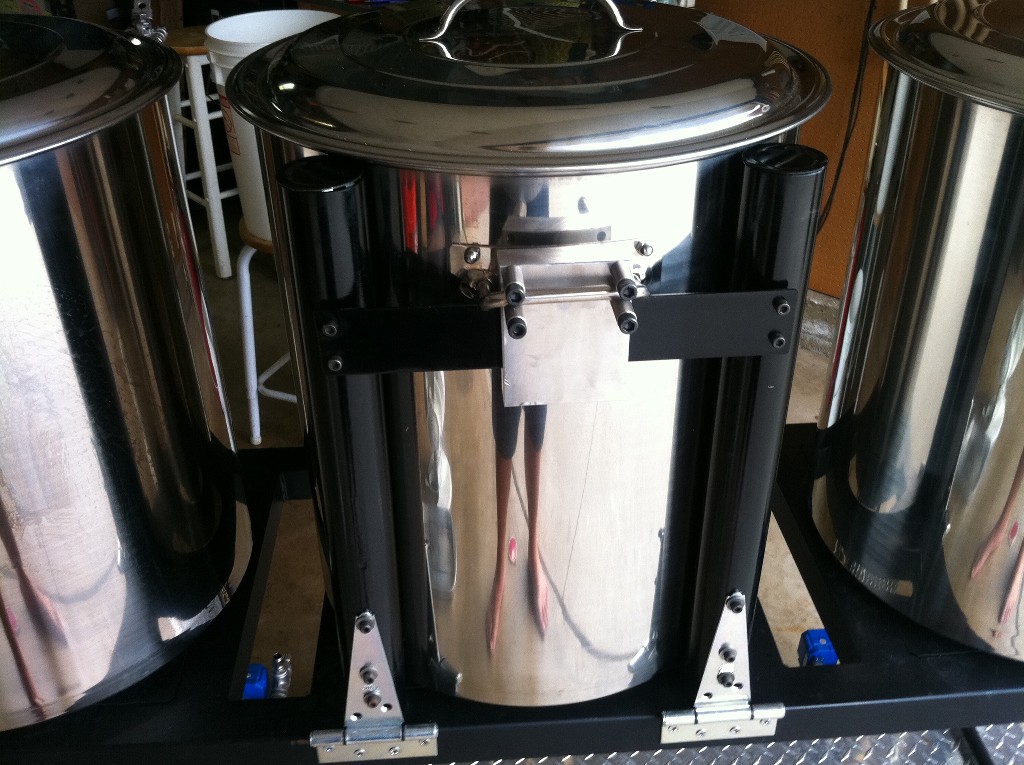

Tippy Dump view (See separate thread on Tippy dump here: http://www.homebrewtalk.com/f51/tippy-dump-blichmann-mash-tun-266852/ )


Front view - no kettles
Attachment 17786

Front view - with kettles
Attachment 17787

Therminator/Chiller view
Attachment 17788

Pump/Valve view
Attachment 17789

Burner View
Attachment 17790
I am very jealous of you
__________________
Primary #1 - Howlin Hefeweizen
Primary #2 - High Sierra Pale Ale
Bottled - White Mountin Wit
On Deck - Super Top Secret Recipe
On Deck- Super Top Secret Recipe 2
clawler is offline

Reply With Quote Quick reply to this message
Old 11-18-2012, 09:22 PM   #205
brewman !
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2006
Posts: 1,227
Liked 14 Times on 13 Posts
Likes Given: 16

Default

How high is the underside of the tubing that holds up the bottom shelf above the floor ? (Ie, how much ground clearance does it have ?) Would you change that +/- if you did it over ?

Thanks

__________________

Getting back into brewing...

brewman ! is offline

Reply With Quote Quick reply to this message
Old 11-18-2012, 09:50 PM   #206
JonW
Feedback Score: 0 reviews

JonW's Avatar
Recipes

Join Date: Dec 2009
Location: Huntington Beach ☼
Posts: 1,479
Liked 101 Times on 62 Posts
Likes Given: 40

Default

Quote:
Originally Posted by brewman ! View Post
How high is the underside of the tubing that holds up the bottom shelf above the floor ? (Ie, how much ground clearance does it have ?) Would you change that +/- if you did it over ?

Thanks
I was shooting for 8" total clearance under the tubing which is a combination of th 4" leg and just over 4" from the wheels. I ended up with 8.25" of clearance. I'd do it just the same again.
__________________
Surf City Brewing (TM)

My Single Tier, 3 Pump, BCS-462, Brutus Build: http://www.homebrewtalk.com/f51/sing...ed-rig-204705/
My customized BCS-462 controller web interface: http://www.homebrewtalk.com/f51/hack...s-done-209388/
My 8 tap, 11 keg, upright Keezer build: http://www.homebrewtalk.com/f51/upri...1-kegs-371438/
JonW is offline

Reply With Quote Quick reply to this message
Old 11-18-2012, 10:35 PM   #207
JonW
Feedback Score: 0 reviews

JonW's Avatar
Recipes

Join Date: Dec 2009
Location: Huntington Beach ☼
Posts: 1,479
Liked 101 Times on 62 Posts
Likes Given: 40

Default

Duplicate post deleted.

__________________
Surf City Brewing (TM)

My Single Tier, 3 Pump, BCS-462, Brutus Build: http://www.homebrewtalk.com/f51/sing...ed-rig-204705/
My customized BCS-462 controller web interface: http://www.homebrewtalk.com/f51/hack...s-done-209388/
My 8 tap, 11 keg, upright Keezer build: http://www.homebrewtalk.com/f51/upri...1-kegs-371438/

Reason: dup
JonW is offline

Reply With Quote Quick reply to this message
Old 11-18-2012, 11:43 PM   #208
brewman !
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2006
Posts: 1,227
Liked 14 Times on 13 Posts
Likes Given: 16

Default

Quote:
Originally Posted by JonW View Post
I was shooting for 8" total clearance under the tubing which is a combination of th 4" leg and just over 4" from the wheels. I ended up with 8.25" of clearance. I'd do it just the same again.
Thank you for sharing that, and everything in this thread.

How much room does that leave under your pumps ?

I was shooting for 10" of clearance before I read your reply.
__________________

Getting back into brewing...

brewman ! is offline

Reply With Quote Quick reply to this message
Old 11-19-2012, 04:42 PM   #209
JonW
Feedback Score: 0 reviews

JonW's Avatar
Recipes

Join Date: Dec 2009
Location: Huntington Beach ☼
Posts: 1,479
Liked 101 Times on 62 Posts
Likes Given: 40

Default

Quote:
Originally Posted by brewman ! View Post
How much room does that leave under your pumps ?
It leaves about 1.5-2" under the QD.
__________________
Surf City Brewing (TM)

My Single Tier, 3 Pump, BCS-462, Brutus Build: http://www.homebrewtalk.com/f51/sing...ed-rig-204705/
My customized BCS-462 controller web interface: http://www.homebrewtalk.com/f51/hack...s-done-209388/
My 8 tap, 11 keg, upright Keezer build: http://www.homebrewtalk.com/f51/upri...1-kegs-371438/
JonW is offline

Reply With Quote Quick reply to this message
Old 11-29-2012, 11:40 PM   #210
JonW
Feedback Score: 0 reviews

JonW's Avatar
Recipes

Join Date: Dec 2009
Location: Huntington Beach ☼
Posts: 1,479
Liked 101 Times on 62 Posts
Likes Given: 40

Default

Quote:
Originally Posted by skroged View Post
Here is a question to anybody using an electric bbq igniter.
I am using the 3 probe igniter on my rig that I am building. It is controlled via Arduino -> Shift register -> Relay -> Igniter. The problem is that when the igniter is sparking, the power surge that it creates makes the shift registers go all wonky and lose their output status. Anybody have any thoughts/suggestions/input of any kind?
Quote:
Originally Posted by jpalarchio View Post
Some of the BrewTroller guys went through this, not sure what the resolution ever was if there was one.
I started having some intermittent problems with my spark igniters. I swapped them out for the hot surface igniters (HSI's) and they are working great. They are powered by 120V, so I wired all three of them to a single SSR. The BCS powers them up 5 seconds before opening the gas valve and continues to keep them on for another 5 seconds after the valve is opened. They are working flawlessly. I'm now going to suggest these to anyone doing an igniter system like mine.

You can search ebay for "Honeywell Hot Surface Igniter". Model number is Q3200U1004.
