Kegconnection Complete Starter Kit and More Giveaway!


Home Brew Forums > Home Brewing Beer > DIY Projects > Show us your sculpture or brew rig

Reply

LinkBack Thread Tools
Old 08-27-2012, 05:00 PM   #2061
allclene
Beer, What a beautiful thing
Feedback Score: 0 reviews

allclene's Avatar
Recipes

Join Date: Oct 2011
Location: payson, AZ
Posts: 237
Liked 1 Times on 1 Posts
Likes Given: 1

Default

Quote:
Originally Posted by tdbc2011
Here is my build. I finished it on 8/19/12 and home to brew on it on 8/26/12. I have the cover to install over the pumps and I will also make a wind guard from some al. flashing if needed.
I can't tell from the pic too well but did you use quick connects on your tubing connections and if so do you have a part number and were you baught them?
__________________

My Automated Rig Forum: http://www.homebrewtalk.com/f11/new-...-input-348808/

allclene is offline

Reply With Quote Quick reply to this message
Old 08-27-2012, 05:25 PM   #2062
duckredbeard
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2005
Location: ATL
Posts: 589
Liked 42 Times on 33 Posts

Default

Quote:
Originally Posted by allclene

Did you make the counterflow chiller yourself or did you buy it? if you made it, how much it cost you in parts and do you have a part list?
Got lucky on eBay...$50. Chillus convolutus is the Latin name for it.
__________________
duckredbeard is offline

Reply With Quote Quick reply to this message
Old 08-28-2012, 02:09 AM   #2063
Otter_Bay_Brewing
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2012
Location: tulalip, wa
Posts: 4
Default Greetings from the Pacific Northwest

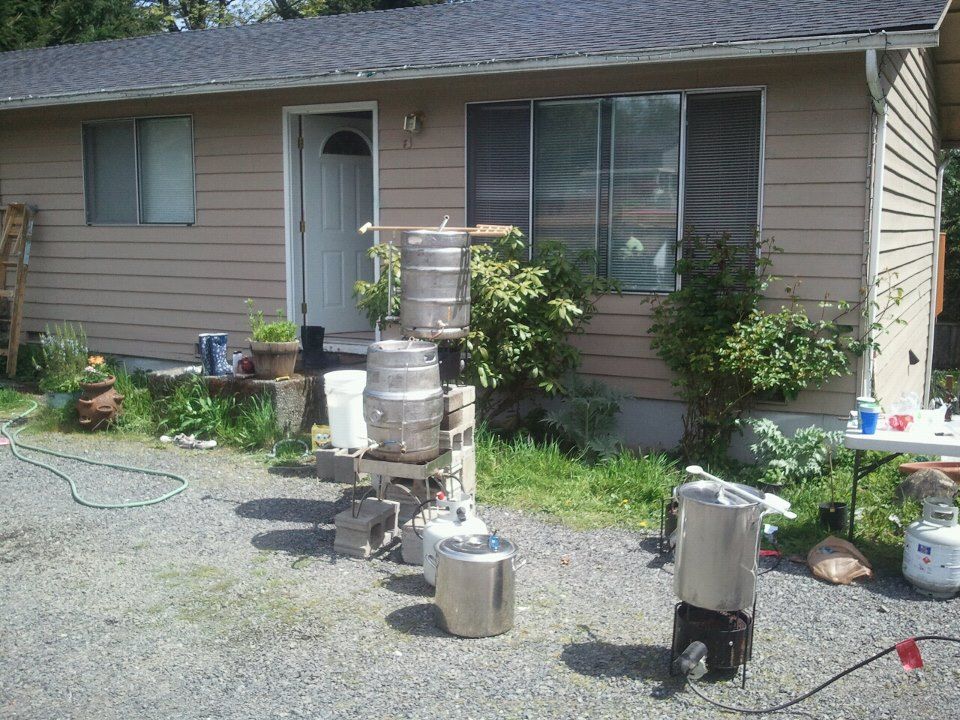

We did a couple 5 gallon batches using the kegs as the 'mashing station' that day and moved the boil pots onto other burners.

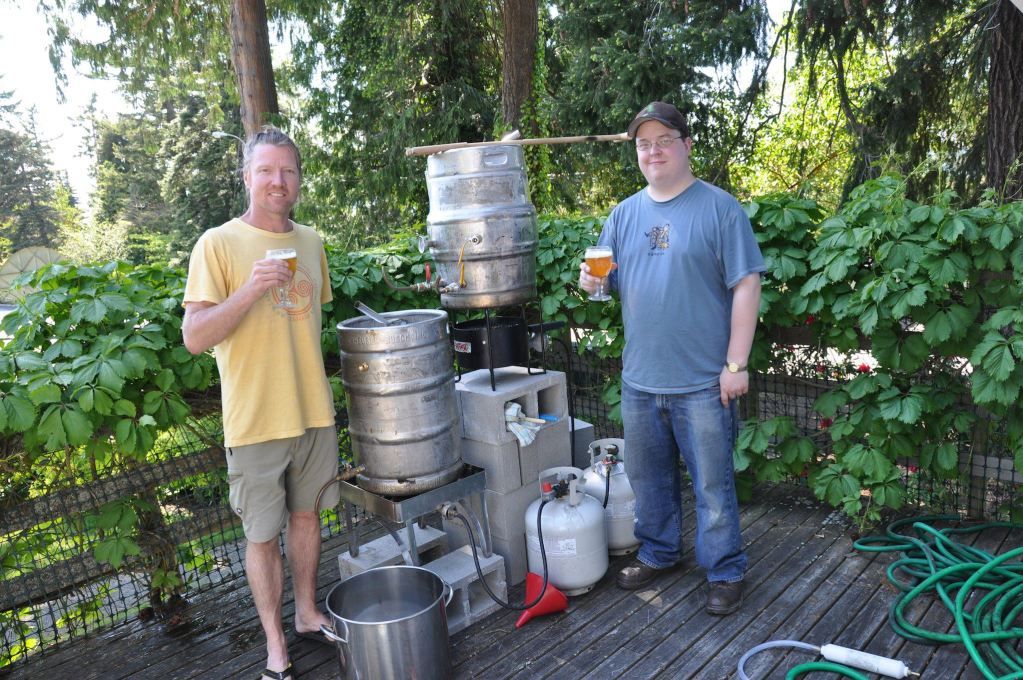

Then on the deck, copper coil installed in HLT but no pump yet to use it.



We were brewing a saison that day, my buddy decided to use the zest of an entire grapefruit, along with coriander and grains of paradise near the end of boil.

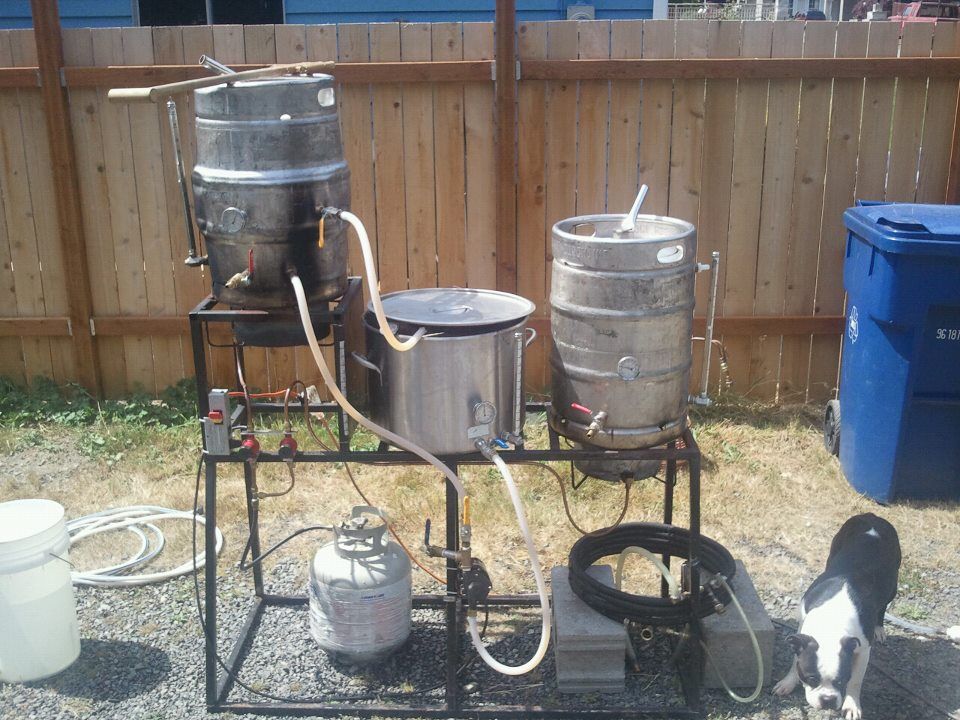

The evolution to a brewstand. The straight sided keg became the boil pot. The stand was built for a cooler-masher so the HLT wasn't high enough to mash in a keg. Luckily, I already had a short/wide 15 gallon pot that works well for the mash so far.





This was my first attempt at a keggle-mash false bottom device turned upside-down. When recirculating mash it was getting clogged so I widened a few of the slots. I've brewed once since this pic and I plan on widening more slots before next time. It's suspended by a bent up coat hanger but I'm thinking of putting a hole in the lid and just mounting it up there...



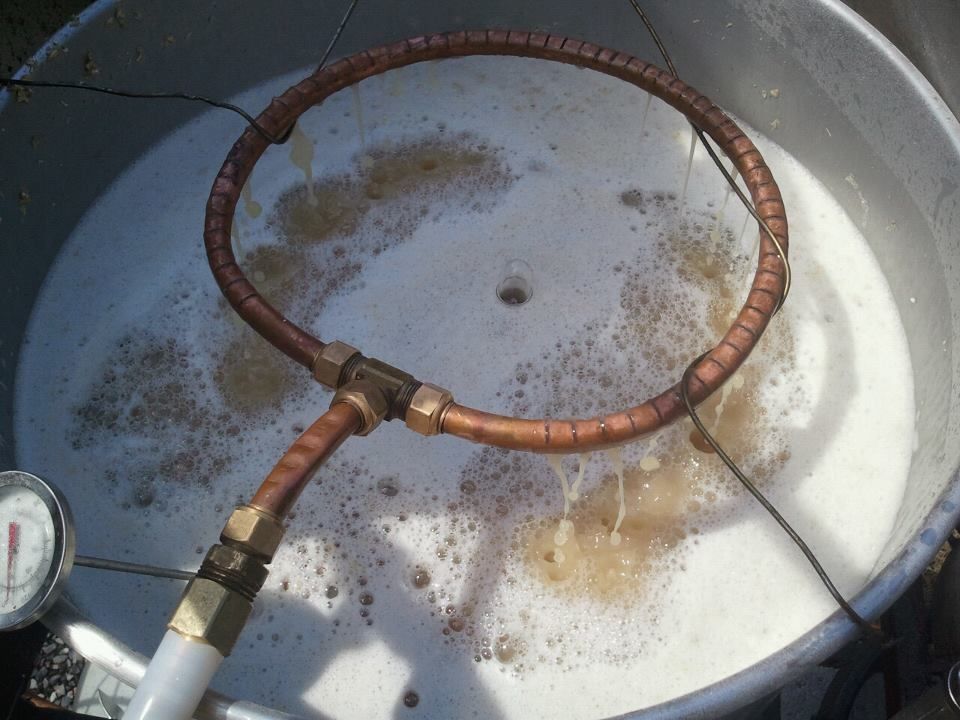

My keg already had a hole up near the top so I used a scrap of copper tube and bent up this attempt at a whirlpool arm. I think it goes down to around the 8 gallon mark before the bend. I didn't have high hopes, but when I went to clean the keg there was a cake about an inch tall and 6 inches accross. Maybe it worked some, this was with all pellet hops.

I'd like to hard plumb a simple water system on to the stand, but before next brew I'm going to throw together a simple 'hop spider' strainer bag suspension to use in boil. Last time we used whole leaf hops they stole more wort than we anticipated.

I made up a keg/carboy cleaner from a bucket that sits in the mash pot and uses the brewing pump to recirculate cleaner/sanitizer. I don't have a picture of it right now but I'll post one after it's next use.

Cheers!
__________________
Otter_Bay_Brewing is offline

Reply With Quote Quick reply to this message
Old 08-28-2012, 06:15 AM   #2064
BurgBrewer
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2012
Location: Ellesnburg, WA
Posts: 60
Liked 5 Times on 4 Posts
Likes Given: 3

Default

My brew sculpture, all in all cost me about 25-27 dollars in screws and brackets. it consists of stop sign posts (been replacing stop sign 4x4's for my work and some were sub-quality for reuse). The thing is built like brick-sh*t-house. I was sitting on the top tier that is about 68 inches off the ground. the good news, it only weighs about 250-300 lbs. I like the fact I can store almost everything in there including a 10 gallon tote for all my random stuff.

__________________
BurgBrewer is offline

Reply With Quote Quick reply to this message
Old 08-28-2012, 06:22 AM   #2065
BurgBrewer
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2012
Location: Ellesnburg, WA
Posts: 60
Liked 5 Times on 4 Posts
Likes Given: 3

Default

all closed up (I messed up the gaping on my doors, kind of kicking myself in the rear for that...) but the shelf slides in and out and I am thinking about building a removable grain mill in to the main tier where there is space, have the hopper be removable and everything... Another DIY project for a different day =)

__________________
BurgBrewer is offline

Reply With Quote Quick reply to this message
Old 08-28-2012, 10:46 AM   #2066
discooby
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2010
Location: ♦ Las Vegas ♦, NV
Posts: 379
Liked 4 Times on 4 Posts
Likes Given: 11

Default

Quote:
Originally Posted by BurgBrewer View Post
My brew sculpture, all in all cost me about 25-27 dollars in screws and brackets. it consists of stop sign posts
I agree, stop signs are overrated!

Quote:
Originally Posted by BurgBrewer View Post
The thing is built like brick-sh*t-house. I was sitting on the top tier that is about 68 inches off the ground. the good news, it only weighs about 250-300 lbs. I like the fact I can store almost everything in there including a 10 gallon tote for all my random stuff.
HA! "only weighs about 250-300 lbs"!?! Hope its on casters... but I love the ingenuity... and the price even better! And screw those stop signs!!!
__________________
-While trying to order she said: “We ain’t got no roast beef, we’s a broke Arby’s!”
discooby is offline

Reply With Quote Quick reply to this message
Old 09-01-2012, 08:55 PM   #2067
DogTail
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2011
Location: Madison, Wisconsin
Posts: 52
Likes Given: 9

Default My Stand

This stand has seen over 60 batches and is working great. This is the first time I ever got any pictures while we were actually brewing. This is during the mash of a 120 minute with 19 pounds of grains for a 5 gallon batch.
I also included a closeup picture of the control panel that we recently put together.

stand2.jpg   control-panel.jpg
__________________

Dogs Tail Brewery

FaceBook Page

DogTail is offline

Reply With Quote Quick reply to this message
Old 09-01-2012, 09:11 PM   #2068
kal
Feedback Score: 0 reviews

kal's Avatar
Recipes

Join Date: Nov 2006
Location: Ottawa, Canada
Posts: 2,031
Liked 188 Times on 128 Posts
Likes Given: 5

Default

Quote:
Originally Posted by Otter_Bay_Brewing View Post


This was my first attempt at a keggle-mash false bottom device turned upside-down. When recirculating mash it was getting clogged so I widened a few of the slots. I've brewed once since this pic and I plan on widening more slots before next time. It's suspended by a bent up coat hanger but I'm thinking of putting a hole in the lid and just mounting it up there...
From the colour of the liquid and text you wrote, it looks like you're recirculating wort here right during the mash?

If yes, I would lower it so that it sits at the top of the mash, mostly submerged. You're aerating the wort having the wort drip down like this. You don't want to aerate the wort here. (Only prior to fermentation, after the wort is cooled).

Many of the commercial examples that have lautering systems like this are adjustable so that you can lower it to sit in the top inch or so of water/mash.

Or if you want to keep it simply, just remove the whole copper loop and just put the silicone hose on top of the grain bed. That's what I do, what Blichmann does with their autosparge arm, and what Sabco does with their brew setups. I get 95% efficiency doing it that way. No channeling at all. No chance of clogs.

Kal
__________________
TheElectricBrewery.com: A step by step guide to building your own electric brewery
My basement/bar/brewery build 2.0
kal is offline

Reply With Quote Quick reply to this message
Old 09-01-2012, 09:19 PM   #2069
kscarrington
Silent Brewer
Feedback Score: 0 reviews

kscarrington's Avatar
Recipes

Join Date: Jan 2012
Location: Fairbanks, Alaska
Posts: 570
Liked 45 Times on 37 Posts
Likes Given: 10

Default

I had more scrap wood sitting around in the yard than I thought, so for about $14 for the cost of the casters I was able to build this. It certainly isn't fancy, but it's sturdy, greatly eased yesterday's brew day, and can be used for other projects as well.

__________________
kscarrington is offline

Reply With Quote Quick reply to this message
Old 09-01-2012, 09:21 PM   #2070
kshuler
Feedback Score: 0 reviews

kshuler's Avatar
Recipes

Join Date: Mar 2010
Location: Seattle, WA
Posts: 281
Liked 4 Times on 4 Posts
Likes Given: 2

Default

Quote:
Originally Posted by kal View Post
... just put the silicone hose on top of the grain bed. That's what I do, what Blichmann does with their autosparge arm, and what Sabco does with their brew setups. I get 95% efficiency doing it that way. No channeling at all. No chance of clogs.

Kal
I saw this on your site, and that's what i did. But I find that when I do this, I end up with a deep pool right underneath the end of the tube, caused by the trickle of wort squirting away grains. I have only used it twice and got about 85% efficiency, which works for me, but I always wonder, when most of the grain bed is 3 inches deep, and the grain bed directly under the end of the hose is only 1 inch deep, isn't wort going to preferentially go through the shallower part? I use a very slow recirc rate so it doesn't upset the grainbed much, but the result is that the recirculating wort drips straight down in a single location.

Am I doing this wrong? After seeing this, I had considered building a similar ring to the one built by Otter_bay_brewing.
__________________
Quote:
Originally Posted by Beer_Maker View Post
Light travels faster than sound. This is why some people appear bright until you hear them speak.
You can't reason someone out of a position they didn't reason themselves into.

-------------------------------------------
http://www.bokehtests.com
http://web.mac.com/kshuler/Site/Welcome.html
kshuler is offline

Reply With Quote Quick reply to this message
Reply


Quick Reply
Message:
Options
Thread Tools


Similar Threads
Thread Thread Starter Forum Replies Last Post
Show Me Your Wood Brew Sculpture/Rig twst1up DIY Projects 814 07-27-2014 04:41 PM
brew sculpture? beerme Equipment/Sanitation 10 09-18-2013 02:40 AM
First all grain brew (with amazing brew sculpture pic) alpo All Grain & Partial Mash Brewing 14 02-11-2013 03:50 AM
Brew Sculpture ? lpdean Equipment/Sanitation 13 05-13-2009 11:40 AM
My new brew sculpture Lil' Sparky All Grain & Partial Mash Brewing 26 02-25-2007 04:11 AM
