Triple brew day on the Woodie. Rye PA, India PA, and a Bohemian Pilsner.




__________________

"You can lead a horse to water, but a pencil must be lead."

Rcole is offline
harten74 Likes This
Reply With Quote Quick reply to this message
Old 10-19-2012, 02:26 PM   #362
ButcherBrew
Feedback Score: 0 reviews

ButcherBrew's Avatar
Recipes

Join Date: Jan 2011
Location: Austin, Texas
Posts: 91
Likes Given: 1

Default

Quote:
Originally Posted by Rcole View Post
Triple brew day on the Woodie. Rye PA, India PA, and a Bohemian Pilsner.

Attachment 78825
Howdy RCOLE.....Love this set up and very similar to where I would like to go. Only problem is that I am not too good at eye balling things and was wondering if you had any measurements, plans, details you could share?

Nice looking Rig....and a triple brew day....wow!


__________________
Primary: - Goodnight Sunshine Wheat
Secondary: - Don't need one!
Up Next: - Plum Creek Pale Ale
Bottled - Nope...
Keg: -
#1 Goodnight Sunshine Wheat
#2 Oatmeal Stout
#3 Butcher's Brown Ale
#4 Hoparillo IPA

Plum Creek Brewing
ButcherBrew is offline

Reply With Quote Quick reply to this message
Old 10-24-2012, 05:03 PM   #363
LandoLincoln
Feedback Score: 0 reviews

LandoLincoln's Avatar
Recipes

Join Date: Feb 2011
Location: Joliet, IL
Posts: 1,780
Liked 370 Times on 222 Posts
Likes Given: 9

Default

Quote:
Originally Posted by ButcherBrew View Post
Howdy RCOLE.....Love this set up and very similar to where I would like to go. Only problem is that I am not too good at eye balling things and was wondering if you had any measurements, plans, details you could share?

Nice looking Rig....and a triple brew day....wow!
You really should tailor it to your own equipment.

Height of your BK burner plus height of your BK minus the height of the valve on your MLT = minimum height of your 2nd tier.

Height of your 2nd tier plus the height of your MLT minus the height of your HLT burner minus the height of the valve on your HLT = minimum height of your 3rd tier.
__________________
LandoLincoln is offline

Reply With Quote Quick reply to this message
Old 10-24-2012, 06:19 PM   #364
krenshaw
Feedback Score: 0 reviews

krenshaw's Avatar
Recipes

Join Date: Dec 2010
Location: Lancaster, PA
Posts: 1,051
Liked 45 Times on 41 Posts
Likes Given: 24

Default

don't forget to tailor it to your own height as well.. i made some measurements of what is a comfortable height for my single tier

__________________

~ A fine beer may be judged with only one sip, but it's better to be thoroughly sure.

DOWN THE HATCH BREWING
Stainless Hop Spider | Wooden Brew Rig | Dual Hinge Keezer Build

Primaries.. Apfelwein, The Fox Says... Yum, Shot in the Dark
Keg 1: The Fox Says... Yum | Keg 2: Shot in the Dark | Keg 3: Second Breakfast Oatmeal Stout Clone
Bottles: lots full and even more empty

krenshaw is offline

Reply With Quote Quick reply to this message
Old 10-24-2012, 06:21 PM   #365
bd2xu
Feedback Score: 0 reviews

bd2xu's Avatar
Recipes

Join Date: Jul 2012
Location: Atlanta, GA
Posts: 753
Liked 26 Times on 24 Posts

Default What do you think about this?

http://www.amazon.com/King-Kooker-94-90TKD-Dual-Burner/dp/B00264G584/ref=sr_1_8?ie=UTF8&qid=1351102238&sr=8-8&keywords=banjo+burner

Was searching the web for propane burners and came across this. I think it might work well for a three tier brewing rig. I'd put my SS HLT on top, put my round cooler MLT in the middle, toss the jet burner in the middle and add a floor burner for my SS boil kettle. Could easily add some plywood to the bottom for a shelf. Thoughts? I can build a 2x4 version with the materials I have now but this is metal and already done.
__________________
bd2xu is offline

Reply With Quote Quick reply to this message
Old 10-24-2012, 09:35 PM   #366
camiller
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2007
Location: Omaha, NE
Posts: 1,883
Liked 27 Times on 27 Posts
Likes Given: 9

Default

Quote:
Originally Posted by bd2xu View Post
http://www.amazon.com/King-Kooker-94-90TKD-Dual-Burner/dp/B00264G584/ref=sr_1_8?ie=UTF8&qid=1351102238&sr=8-8&keywords=banjo+burner

Was searching the web for propane burners and came across this. I think it might work well for a three tier brewing rig. I'd put my SS HLT on top, put my round cooler MLT in the middle, toss the jet burner in the middle and add a floor burner for my SS boil kettle. Could easily add some plywood to the bottom for a shelf. Thoughts? I can build a 2x4 version with the materials I have now but this is metal and already done.
When I follow that link and scroll down a little there is a "Frequently bought together" section showing this item and a step drill. I suspect you are not the first homebrewer to notice this duel burner rig.
__________________
In Nebraska? Nebraska Brewers Group
My Club OmaHops Homebrew Club

Put yourself on the Homebrewers Map see the forum thread

My ridiculously easy stir plate buildMy Kegerator
camiller is offline

Reply With Quote Quick reply to this message
Old 11-25-2012, 12:30 PM   #367
Rcole
Member
Feedback Score: 0 reviews

Rcole's Avatar
Recipes

Join Date: Jan 2011
Location: Providence, Rhode Island
Posts: 84
Liked 9 Times on 7 Posts
Likes Given: 2

Default

Quote:
Originally Posted by LandoLincoln

You really should tailor it to your own equipment.

Height of your BK burner plus height of your BK minus the height of the valve on your MLT = minimum height of your 2nd tier.

Height of your 2nd tier plus the height of your MLT minus the height of your HLT burner minus the height of the valve on your HLT = minimum height of your 3rd tier.
Agreed. The only additional advice I would give is to not skimp on the wood and hardware. With 25 or more gallons of scalding liquids and hot grains, you don't want to risk a collapse. I recommend 4x4s and 2x6s tied together with lag bolts. And, don't buy cheap, undersized wheels.

Good luck.
__________________

"You can lead a horse to water, but a pencil must be lead."

Rcole is offline

Reply With Quote Quick reply to this message
Old 11-25-2012, 12:39 PM   #368
Rcole
Member
Feedback Score: 0 reviews

Rcole's Avatar
Recipes

Join Date: Jan 2011
Location: Providence, Rhode Island
Posts: 84
Liked 9 Times on 7 Posts
Likes Given: 2

Default

Quote:
Originally Posted by castermmt
Here's my Electric Brewery Kal clone with modifications.
Very nice finish on the wood. And, the matching hood looks great.
__________________

"You can lead a horse to water, but a pencil must be lead."

Rcole is offline

Reply With Quote Quick reply to this message
Old 11-25-2012, 01:20 PM   #369
brew2enjoy
Feedback Score: 1 reviews
Recipes

Join Date: Oct 2010
Location: Delaware
Posts: 914
Liked 31 Times on 28 Posts

Default

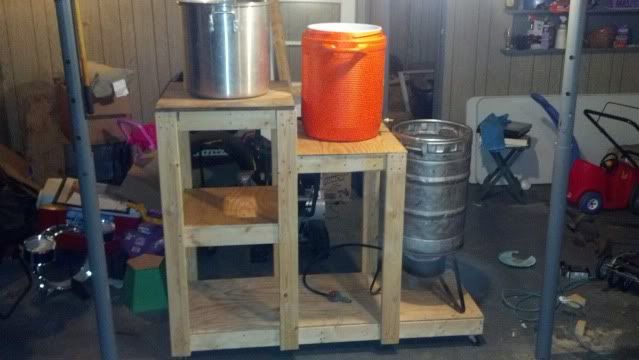

Made mine yesterday. Still need to add some finishing touches. Also need a second burner and valves for the kettles.

__________________
DIY stuff...
- Bar
- S/S mash paddle, PEX manifold
brew2enjoy is offline

Reply With Quote Quick reply to this message
Old 11-29-2012, 02:40 PM   #370
Cpt_Kirks
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2008
Location: Lakeland TN
Posts: 3,731
Liked 43 Times on 38 Posts

Default

Quote:
Originally Posted by Rcole View Post
Agreed. The only additional advice I would give is to not skimp on the wood and hardware. With 25 or more gallons of scalding liquids and hot grains, you don't want to risk a collapse. I recommend 4x4s and 2x6s tied together with lag bolts. And, don't buy cheap, undersized wheels.

Good luck.
Check the weight rating on the wheels, and make sure they lock.


__________________
