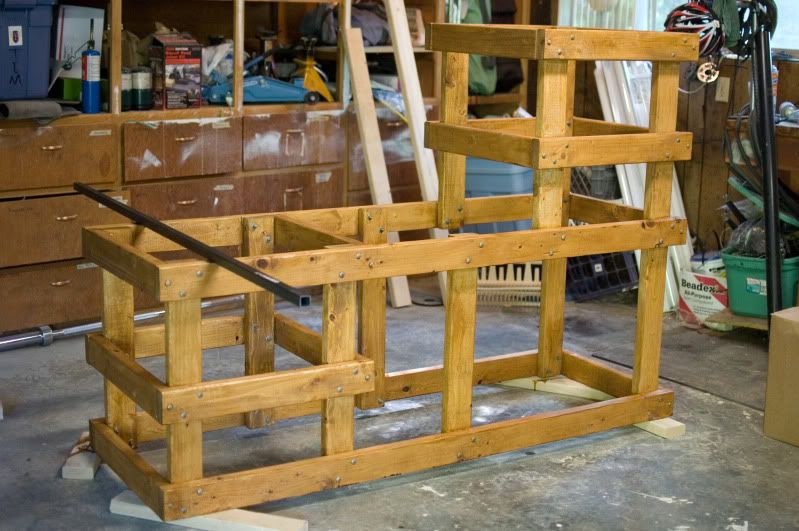

Here is mine; I've been brewing on it for about 10 months. It is based on Morebeer's 1550 off-set 3 tier design - and it is kind of a pump/gravity hybrid. Very small footprint, one burner, and I can easily see into the Orange MLT, so no steps or ladders involved. I can also break it down to two pieces (the tower holding the MLT can be unbolted) and pack the whole thing into my small Volvo to brew at my buddy's house. I was also able to integrate my old SQ14 burner, kettle, and coolers.
The other thing worth noting is that after I run the whirlpool chiller, I can clamp on a sanitary tri-clamp 90 and gravity drain the wort from my kettle right into a carboy. The entire height of the system is built around the ability to perform that function.
The wood was dirt cheap, construction took about 2 weeks, but the QD's were the real money pit. Those things add up quickly.
Here is a full write-up, but the best pics are attached below. I've posted elsewhere, but I wanted to get on board with the wooden-rig pride.
http://www.homebrewtalk.com/f36/my-ag-rig-1550-lite-240483/
Beats balancing buckets!
Joe
