I've been brewing for many years now, but have never come up with a good name for my "brewery". Lately I've been brainstorming a new single tier system... And I woke up at 3am last night with the answer! (my brain solves a lot of things when I sleep)

Salvage Brewing Co.
"Several men's trash, is another man's brewery."

Background: I did buy a lot of new stuff when I started out, but quickly realized that I could repurpose many things to accomplish the same ends - delicious beer! When I moved to all-grain, I snagged two 10gal powerade coolers from the university, destined for the dumpster. Next, I dug out my great uncle's (and namesake) 100 year old aluminum lobster pot from the rafters of my parent's garage. Boil kettle, mash tun, check. Cost, $15 in fittings.

This worked great for several years.... Until I stumbled on a 1/2 bbl keg, sitting on the side of a friend's parent's house for over 15 years (since a high school party I might have been at). It was upside down and the skirt was full of dirt and had grass, dandelions and maple saplings (literally 3' tall saplings) growing in it. Now it's a boil kettle.

This brings me to my best salvage piece(s) to date:

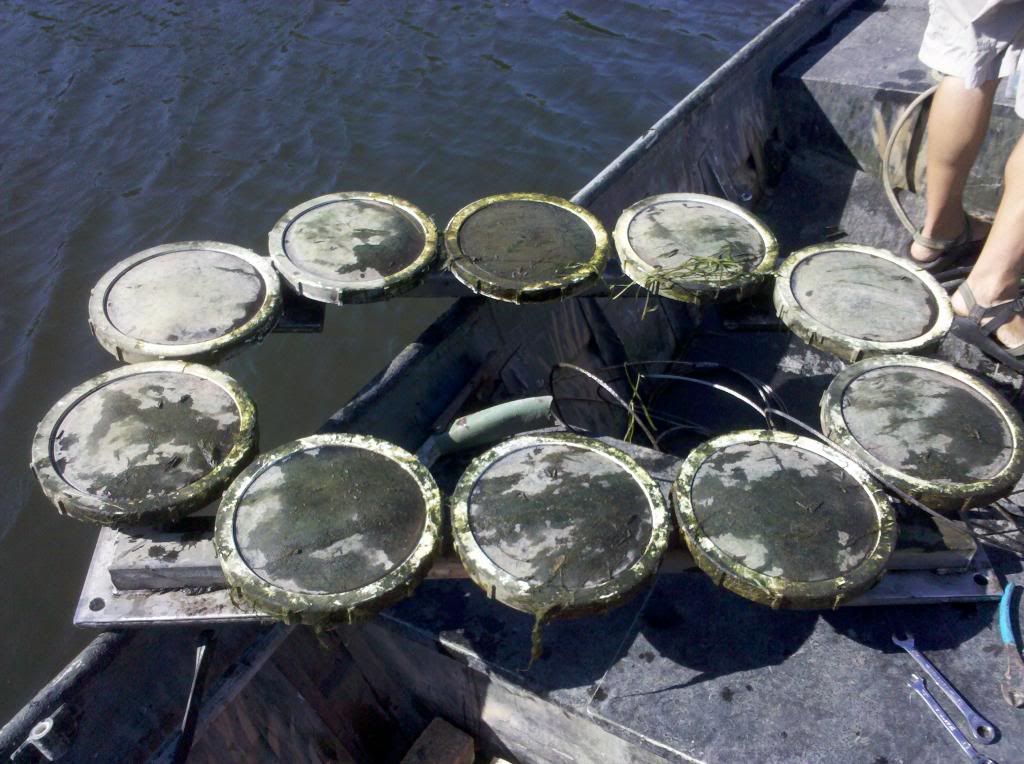

That's a custom made diffuser for an aeration system in a lake or pond. I manage lakes and ponds for a living, and these were old, clogged and useless for aerating...not to mention way way way over engineered for their intended end-use. We replaced them with normal diffusers and the home owner's said to get rid of the old ones.

Lucky for me, they used all stainless square tubing and 1/2" stainless plates and I have 3 of 6 right now...... Perfect for a single tier brew stand! :-)

I will update this build thread as I make progress. I would really like to find one Miller and one Coors keg, to make a BMC keg trio (have the B).

MT

__________________
MT
------------------------------------------------------------------------------------------
Save me, O God! For the waters have come up to my neck. - Psalm 69:1
mthompson is offline

Reply With Quote Quick reply to this message
Old 01-26-2013, 04:08 PM   #2
HDIr0n
Feedback Score: 6 reviews

HDIr0n's Avatar
Recipes

Join Date: Oct 2010
Location: Missouri City, Texas
Posts: 545
Liked 27 Times on 25 Posts
Likes Given: 14

Default

Looks interesting, do you have any more pics of the aerator?

__________________

My Brutus 20 build

My Brutus/1550 Failed build

“Fermentation may have been a greater discovery than fire."

– David Wallace

HDIr0n is offline

Reply With Quote Quick reply to this message
Old 01-26-2013, 05:16 PM   #3
mthompson
Feedback Score: 1 reviews
Recipes

Join Date: Sep 2008
Location: Plymouth, WI
Posts: 530
Liked 44 Times on 28 Posts
Likes Given: 2

Default

Quote:
Originally Posted by HDIr0n View Post
Looks interesting, do you have any more pics of the aerator?
I'm going to bust all the plastic heads off today. I'll take some with a real camera instead of the phone. Whoever made them could weld. They each have a 1/2" pipe on the end that is threaded for attaching hose barbs to attach the air line to. Then the air comes out of the 2" square tubing into each diffuser disc from a smaller threaded nipple (I imagine). The discs are somehow how locked on too, and don't just screw off.

I'm pretty excited to get this project started. I hate having to get out 30 pieces of equipment and tables and bricks and grill grates to brew... Then putting it all away! My goal is one stand, with the kegs storing underneath and easily disconnected mounts for the pump and chiller (thinking hitch type pins). I want a silicone tubing holder and maybe a lp tank mount on it somewhere, too.

I have a bunch of pictures off the great brew stand pic thread. Each with a piece or two I want to incorporate.... Essentially an HBT hybrid stand.

Plus one idea I haven't seen anyone else do.... Shhhh. ;-)


MT
__________________
MT
------------------------------------------------------------------------------------------
Save me, O God! For the waters have come up to my neck. - Psalm 69:1
mthompson is offline

Reply With Quote Quick reply to this message
Old 01-28-2013, 03:37 PM   #4
mthompson
Feedback Score: 1 reviews
Recipes

Join Date: Sep 2008
Location: Plymouth, WI
Posts: 530
Liked 44 Times on 28 Posts
Likes Given: 2

Default

Quote:
Originally Posted by HDIr0n View Post
Looks interesting, do you have any more pics of the aerator?
Got the diffusers taken off this weekend.

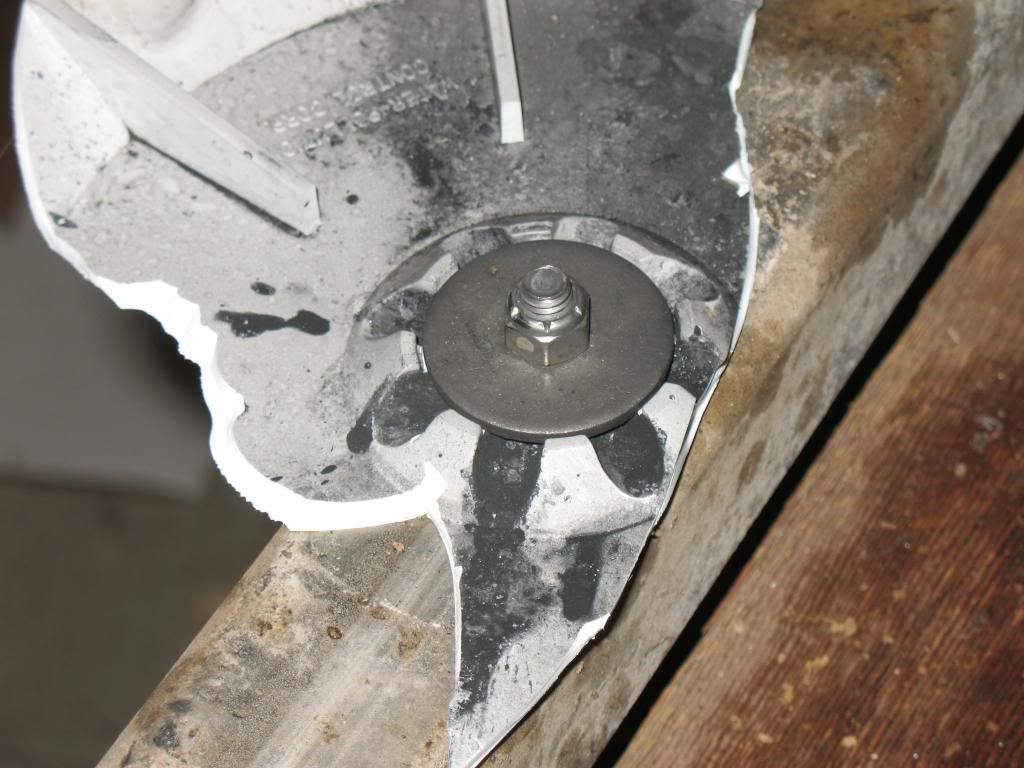

This is what the inside looks like for attachment to the frame:

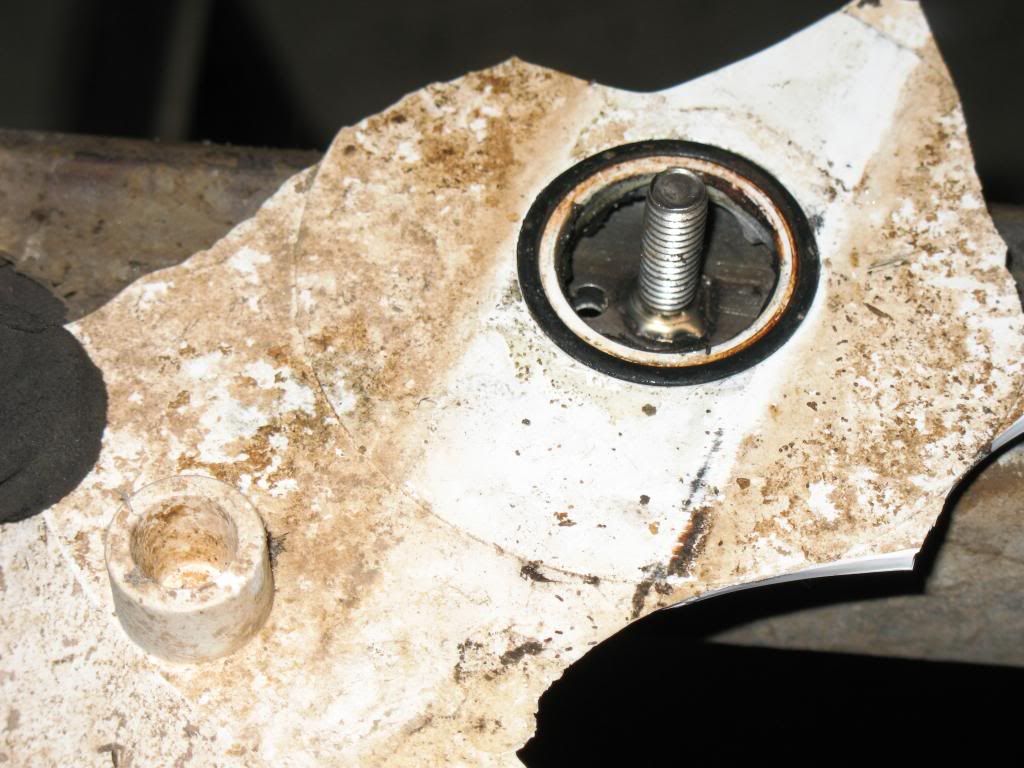

Air comes out of the slots underneath the washer above, from these holes below:

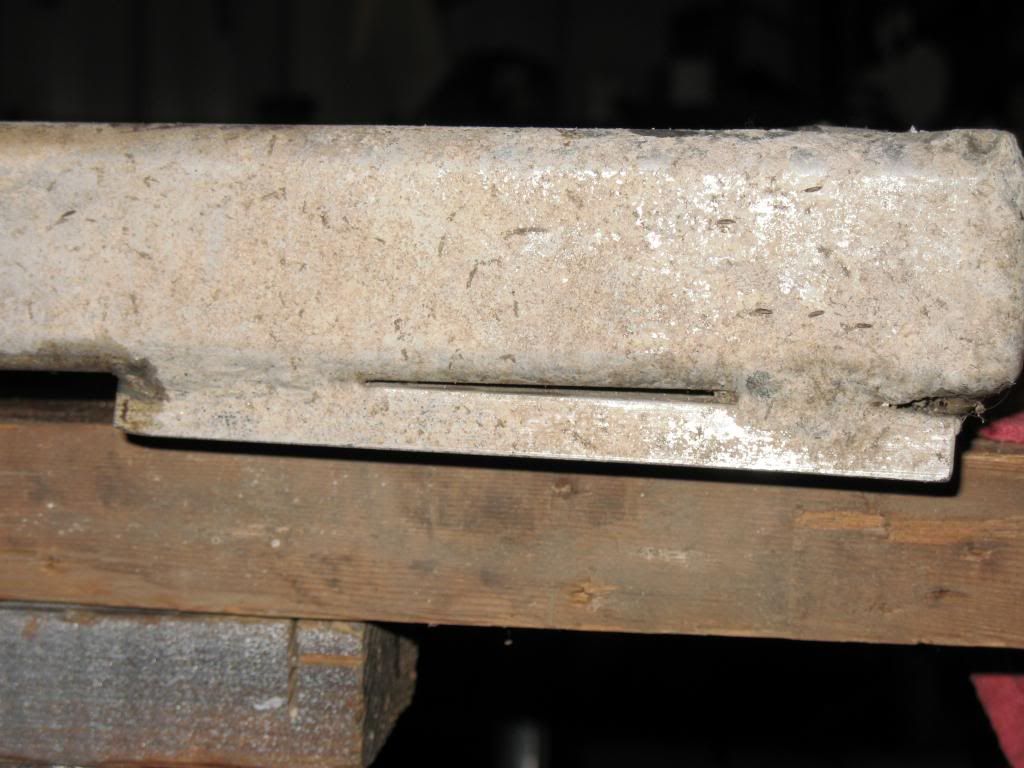

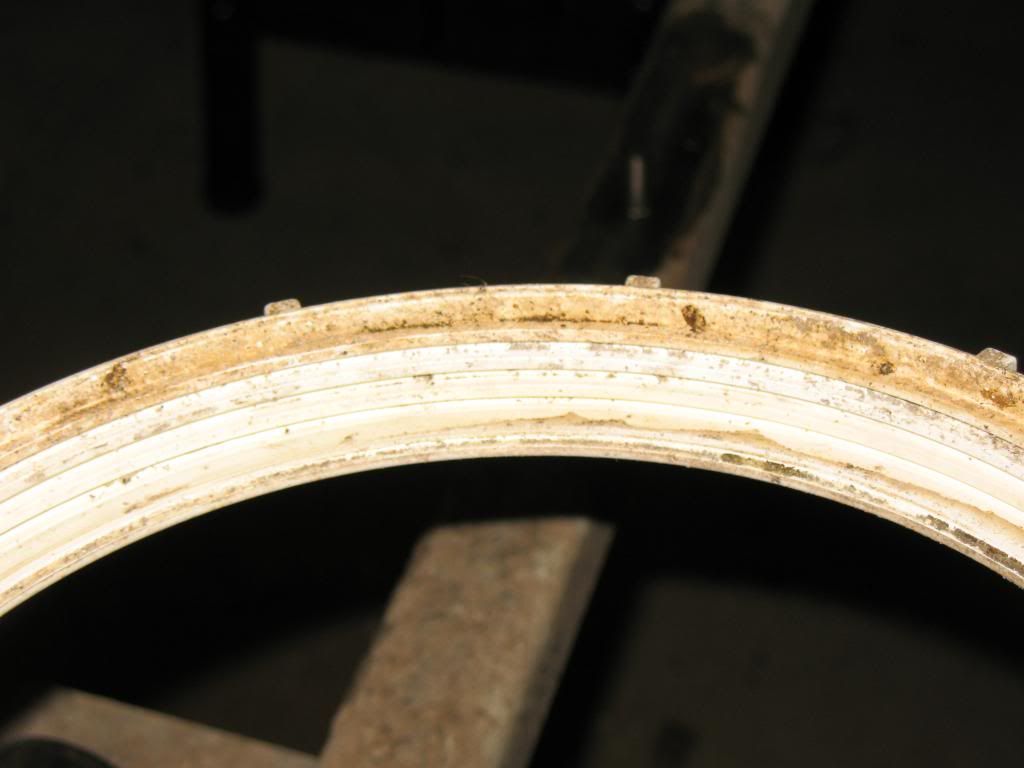

The bottom of the diffuser heads has an o-ring to seal out water and that tab on the left prevents the whole thing from backing off the threaded post:


After smashing the first couple off with a mallet, the rest had thawed enough that I could just back the top off the threads on the outside of the diffuser head (sort of like the band on a canning jar, just 12" in diameter).

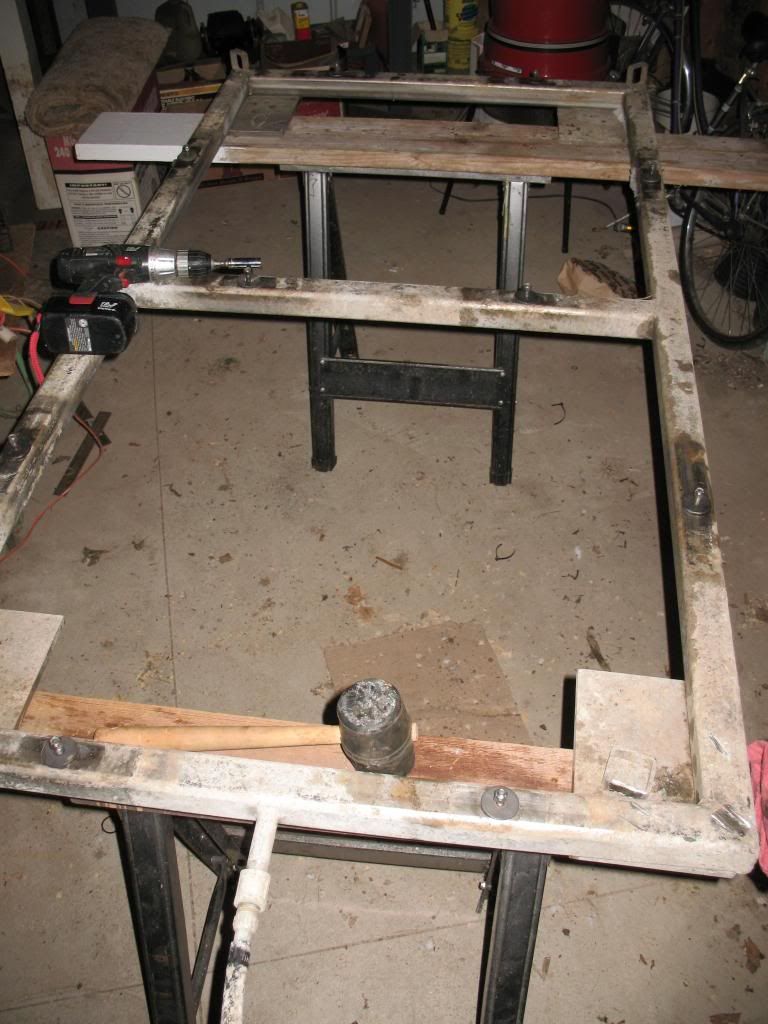

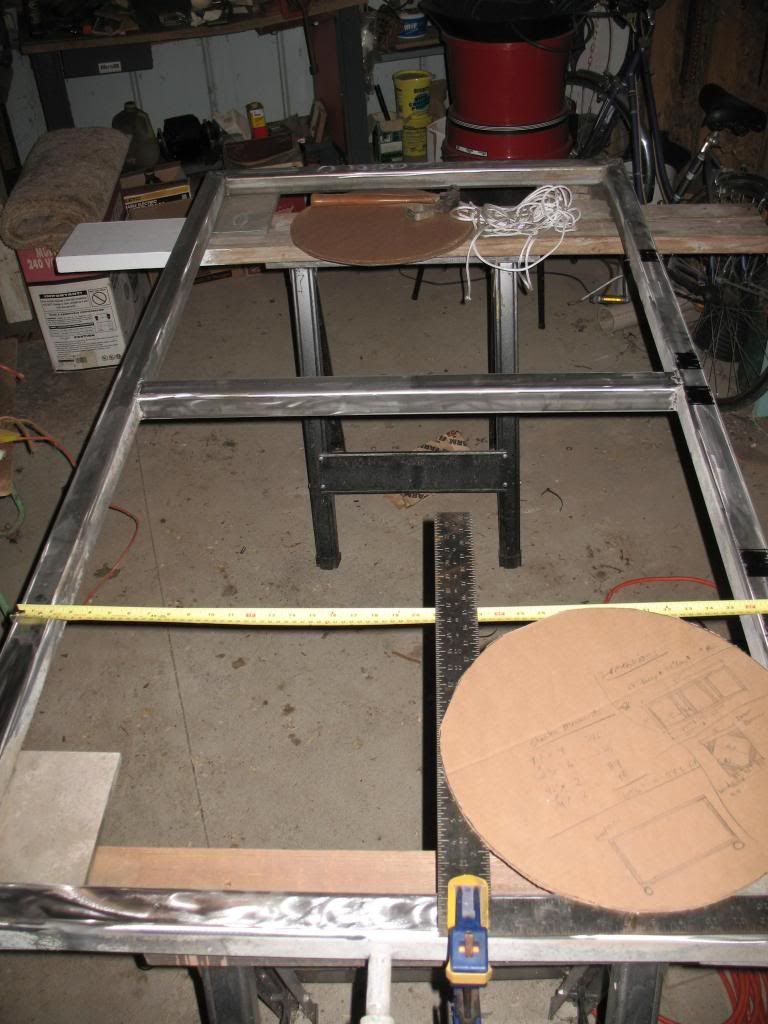

Here is the frame, diffuser free:


Other parts that needed to come off:

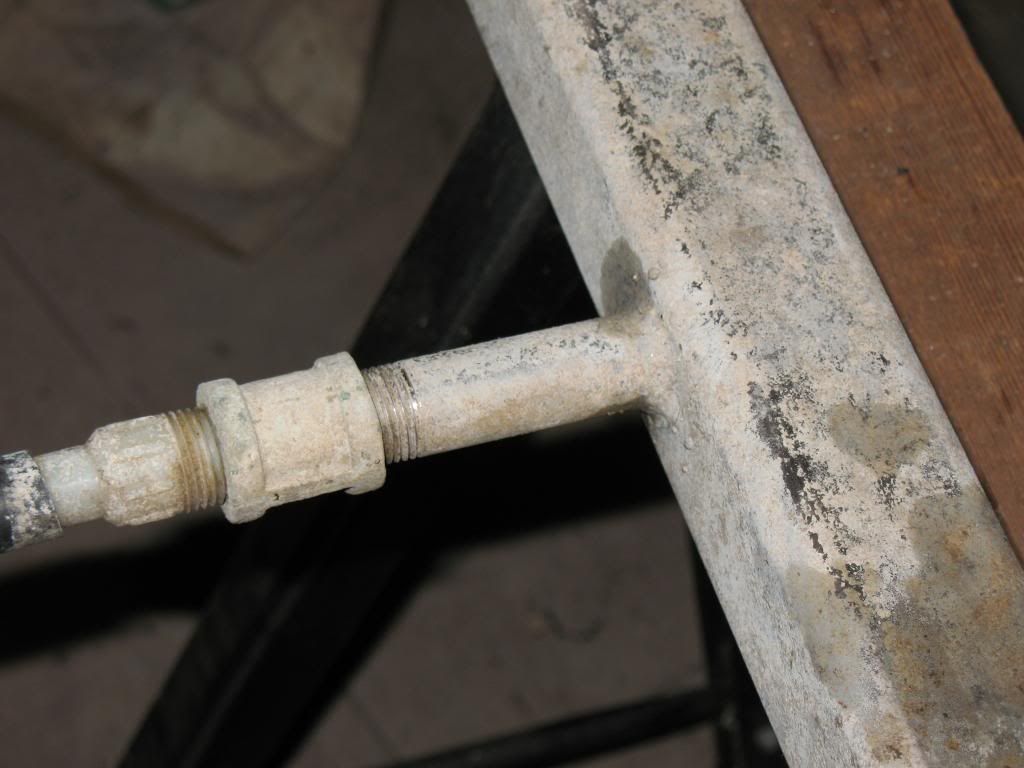

Air inlet:


Loops for attaching cables so that it could be lifted out of the water:

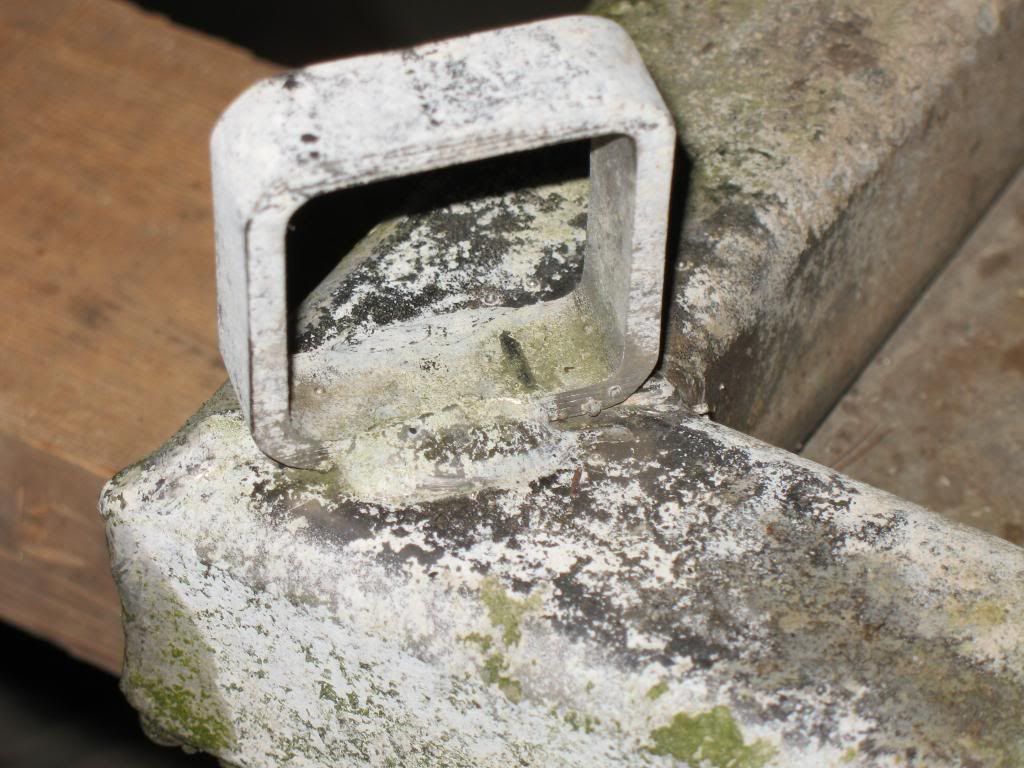

Plates on the corners:

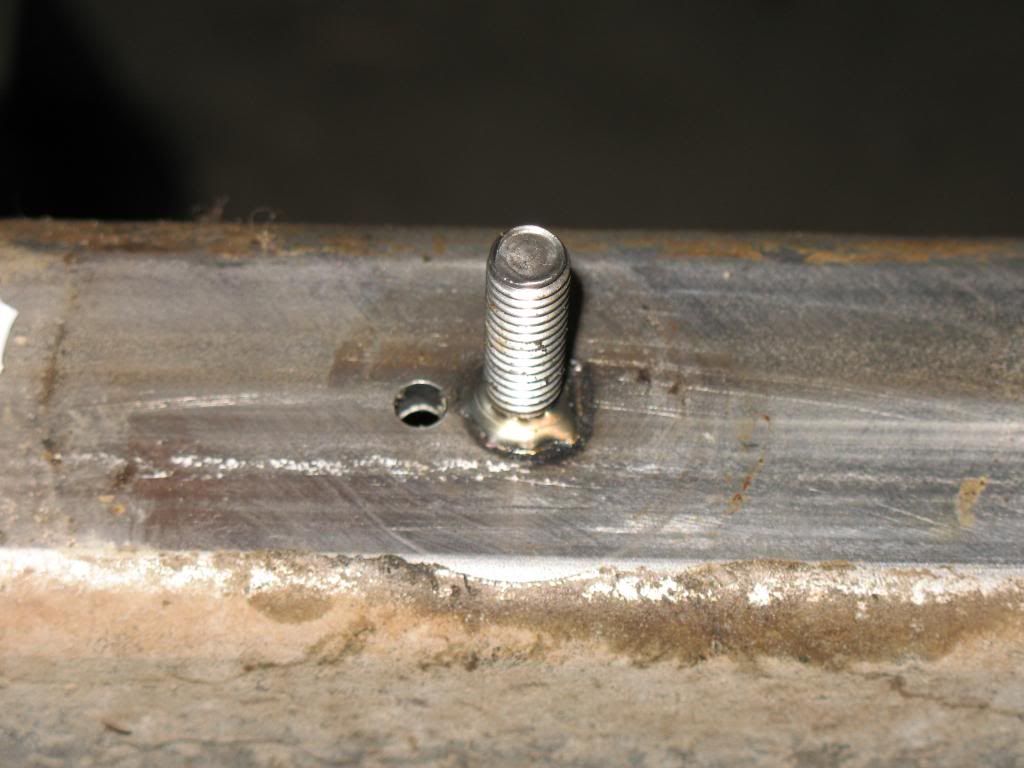

I got the threaded posts, and cable loops cut off. Ground the stubs/welds, and then ran over the top and sides quick with a 3M flap disc.

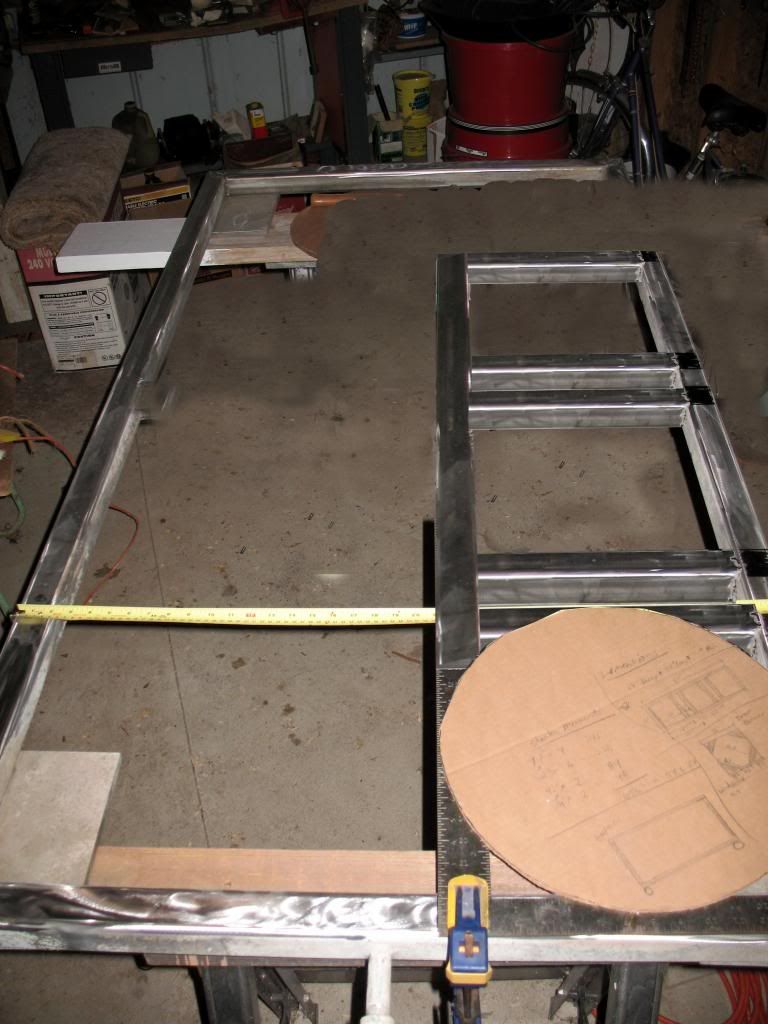

You can sort of see the before (bottom) and after (right hand) the flap disc in this image:



I'm going to work on a mock up/diagram today if I get a chance. I might do a quick Gimp image to help show what I'm thinking.

Any and all thoughts are welcome!
__________________
MT
------------------------------------------------------------------------------------------
Save me, O God! For the waters have come up to my neck. - Psalm 69:1
mthompson is offline

Reply With Quote Quick reply to this message
Old 01-28-2013, 04:19 PM   #5
mthompson
Feedback Score: 1 reviews
Recipes

Join Date: Sep 2008
Location: Plymouth, WI
Posts: 530
Liked 44 Times on 28 Posts
Likes Given: 2

Default

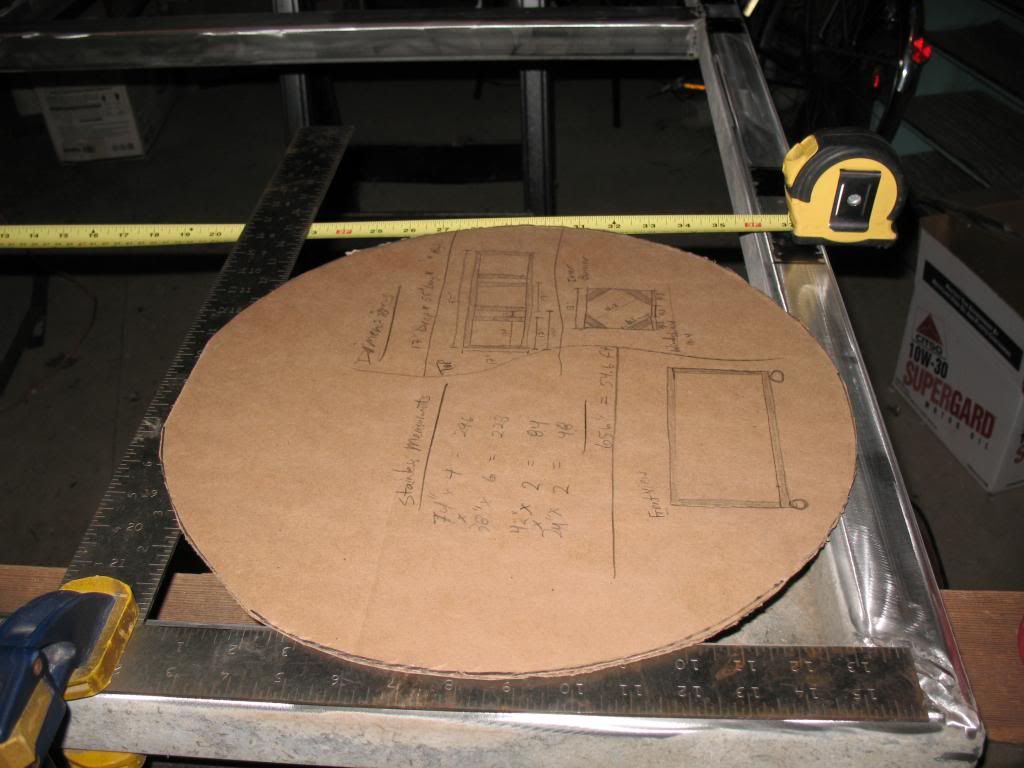

Here's a quick Gimp image of what I am thinking. I didn't take the time to put the 45° braces in each square.



Thoughts? I know it is pretty standard...

Dimensions: 55" long X 17" Deep

Each square is 17" X 17", with 2" in between each.

__________________
MT
------------------------------------------------------------------------------------------
Save me, O God! For the waters have come up to my neck. - Psalm 69:1
mthompson is offline

Reply With Quote Quick reply to this message
Old 01-28-2013, 07:54 PM   #6
mthompson
Feedback Score: 1 reviews
Recipes

Join Date: Sep 2008
Location: Plymouth, WI
Posts: 530
Liked 44 Times on 28 Posts
Likes Given: 2

Default

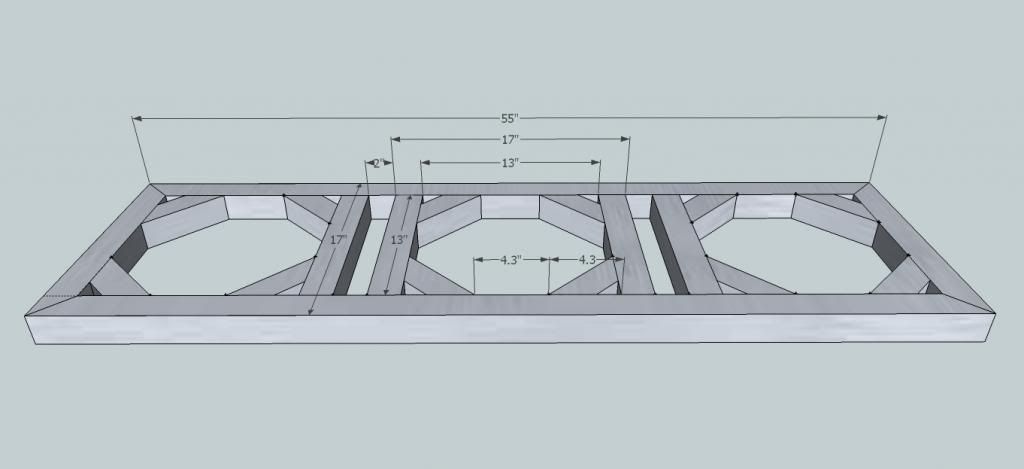

I have never used Sketch Up before...it took a bit of futzing, but I got it enough to make this dimensional mock up of the top:
