Default Running Stainless tubing through a bulkhead fitting of sorts

I have SS Conicals, and a coolant circulation system.

Currently I circulate the coolant around the conical, using vinyl tubing.

This works very well, my ale fermenter can get down to 52 degrees and my lager fermenter can get down to 42 degrees.

I would like to upgrade to having SS coils inside of the conicals, but I have no idea how to get the SS tubing inside without welding.

I could go through the lid to keep the connectors away from the wort...

Any other suggestions or ideas?

__________________
PaulHilgeman is offline

Reply With Quote Quick reply to this message
Old 10-29-2010, 09:09 PM   #2
DakotaPrerunner
Fortis et Egregius
Feedback Score: 0 reviews

DakotaPrerunner's Avatar
Recipes

Join Date: Jan 2009
Location: Edmonds, Wa
Posts: 171
Liked 11 Times on 8 Posts
Likes Given: 20

Default

Just curious why you want to avoid welding. You could have someone weld two stainless pipe nipples through, use stainless compression to npt fittings on the inside, quick disconnects on the outside, and be able to disassemble with ease. Thats how I did my boil kettle and dip tube. I used this fitting for my dip tube http://www.bargainfittings.com/index.php?route=product/product&path=36_39&product_id=132.

Where do you live? lots of TIG welders are beer drinkers/brewers.

__________________
DakotaPrerunner is offline

Reply With Quote Quick reply to this message
Old 10-29-2010, 09:15 PM   #3
samc
Feedback Score: 1 reviews
Recipes

Join Date: Aug 2008
Location: Portland OR
Posts: 5,420
Liked 54 Times on 51 Posts
Likes Given: 29

Default

You can just use these with some added silicone o-rings and a nut on the outside threads. That's for 1/2" tubing, obviously buy one that is for your intended tubing size.

__________________
samc is offline

Reply With Quote Quick reply to this message
Old 10-29-2010, 09:21 PM   #4
billtzk
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2007
Location: Dallas
Posts: 1,627
Liked 21 Times on 19 Posts
Likes Given: 6

Default

Why not weld the SS tubing to the outside of the conical? Doesn't the prospect of adding numerous hard-to-clean crevices where the tubing meets the smooth inside surface of your conical cause some concern?

Edit: Oh, I see what you are asking is a way to do it without welding. Good. Yes, something that goes through the lid would seem best. I think that's how Brewpastor did his.

__________________

Reality is a crutch for people who can't cope with drugs. -Lily Tomlin

billtzk is offline

Reply With Quote Quick reply to this message
Old 10-29-2010, 10:35 PM   #5
ScubaSteve
Feedback Score: 0 reviews

ScubaSteve's Avatar
Recipes

Join Date: May 2007
Location: New Bern, NC
Posts: 3,674
Liked 62 Times on 46 Posts
Likes Given: 11

Default

You could even solder it for that matter. It'll be plenty strong. Copper is also an excellent choice....then cover the coils with insulation....that's the same thing that morebeer does with their $1000 conicals, except they use a glycol chiller. If you already have the freezer/coolant/pump/controller portions taken care of, you're golden! Don't drop the coils inside, because ideally, you could clean-in-place.

ScubaSteve is offline

Reply With Quote Quick reply to this message
Old 10-29-2010, 11:03 PM   #6
klyph
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: North Pole, Alaska
Posts: 1,809
Liked 38 Times on 34 Posts
Likes Given: 3

Default







There's all the pieces you need to make a weldless bulkhead fitting for your chiller.
__________________
10 gallon electric system
Stovetop 110v single vessel 5 gallon system

Primary: saison
Secondary: nada
Conditioning: macaroon stout
Drinking: store bought
klyph is offline

Reply With Quote Quick reply to this message
Old 10-30-2010, 02:51 AM   #7
ScubaSteve
Feedback Score: 0 reviews

ScubaSteve's Avatar
Recipes

Join Date: May 2007
Location: New Bern, NC
Posts: 3,674
Liked 62 Times on 46 Posts
Likes Given: 11

Default

Think about it. If you immerse the coils, you have to clean them. If you wrap them round the outside, you don't!

__________________
UNIBREW 5500 SINGLE VESSEL BREWERY
WOODEN SINGLE TIER
ScubaSteve is offline

Reply With Quote Quick reply to this message
Old 10-30-2010, 03:46 AM   #8
ClaudiusB
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: El Paso, Texas
Posts: 1,272
Liked 58 Times on 50 Posts
Likes Given: 111

Default

Quote:
Originally Posted by PaulHilgeman View Post
I have SS Conicals, and a coolant circulation system.
I could go through the lid to keep the connectors away from the wort...
My conicals have the cooling coils inside and are soldered to the lid.
Cleaning is easy with or without a CIP system.

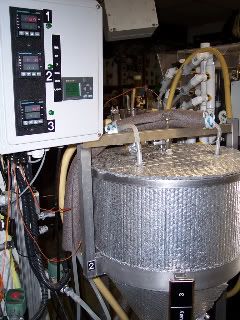

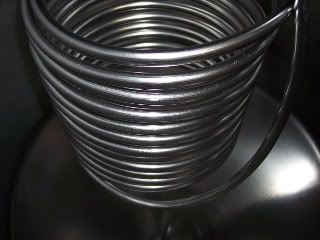

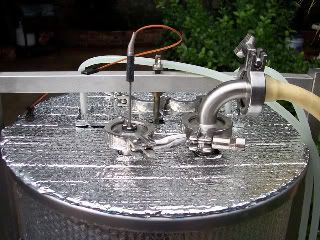

Some older pics


Cheers,
ClaudiusB
__________________
My Brewery Pics
Grain Mill Glycol Chiller
Keg Washer
ClaudiusB is offline

Reply With Quote Quick reply to this message
Old 10-30-2010, 04:16 AM   #9
kladue
Senior Member
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2006
Location: Turner, Oregon, Oregon most of the time now
Posts: 2,306
Liked 47 Times on 43 Posts

Default

You could try one of these bulkhead fittings http://www.swagelok.com/search/find_products_home.aspx?part=SS-810-61, a vinyl hose washer will stretch over the fitting for use as a gasket on the inside.

__________________
kladue is offline

Reply With Quote Quick reply to this message
Old 10-30-2010, 01:38 PM   #10
SweetSounds
Feedback Score: 1 reviews
Recipes

Join Date: Jan 2010
Location: Des Moines, Iowa
Posts: 1,429
Liked 17 Times on 16 Posts
Likes Given: 4

Default

Quote:
Originally Posted by kladue View Post
You could try one of these bulkhead fittings http://www.swagelok.com/search/find_products_home.aspx?part=SS-810-61, a vinyl hose washer will stretch over the fitting for use as a gasket on the inside.
You can get 1/2" Swagelok bulkhead fitting on ebay for pretty cheap (Considering they list for a LOT more!)
http://desc.shop.ebay.com/i.html?_nkw=1%2F2+swagelok+bulkhead&_sacat=0&_odkw =1%2F2+swaglok+bulkhead&_osacat=0&_trksid=p3286.c0 .m270.l1313&LH_TitleDesc=1
__________________
Quote:
Originally Posted by Ecnerwal View Post
What does the primary pressure gauge on the tank tell us? That's right, the temperature. Put it on a scale if you want to know how much is in it...
Put some duct tape over the gauge - Or better yet - Replace the high pressure gauge with a plug - High pressure gauges are useless!
SweetSounds is offline

Reply With Quote Quick reply to this message
