Old 12-01-2010, 06:54 PM   #521
JayInJersey
Feedback Score: 0 reviews
Recipes

Join Date: May 2009
Location: New Jersey
Posts: 600
Liked 1 Times on 1 Posts
Likes Given: 2

Default

SSR control is where it's at man

__________________
Hazard Brewing
JayInJersey is offline

Reply With Quote Quick reply to this message
Old 12-01-2010, 06:55 PM   #522
tasq
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2010
Location: Denver, Colorado
Posts: 582
Liked 12 Times on 12 Posts
Likes Given: 11

Default

Thanks for your reply!

__________________
The Keg Ran Out Club
Broomfield, Colorado
http://www.kroc.org/
tasq is offline

Reply With Quote Quick reply to this message
Old 12-01-2010, 08:42 PM   #523
stlbeer
Senior Member
Feedback Score: 0 reviews

stlbeer's Avatar
Recipes

Join Date: Jan 2008
Location: Fenton, MO
Posts: 878
Liked 33 Times on 32 Posts
Likes Given: 82

Default

Quote:
Originally Posted by tasq View Post
Hey gang - Quick question. I'm looking at buying this PID for my RIMS build: http://www.auberins.com/index.php?main_page=product_info&cPath=1&products_ id=102

Do I want the one with a Relay Contactor, or SSR control? I'm assuming SSR control.

Thanks!
The specs show both relay and SSR are available:

Output mode Relay Contact, 7A at 240VAC, 10A at 120VAC, 12VDC for SSR

Looks like it can handle both heating and cooling. Might be better used on a lagering fridge.

I plan on using this one: http://www.auberins.com/index.php?main_page=product_info&cPath=1&products_ id=106

It's a bit less expensive and still offers both relay and SSR outputs plus it offers a learning mode.
__________________
stlbeer is offline

Reply With Quote Quick reply to this message
Old 12-01-2010, 08:44 PM   #524
tasq
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2010
Location: Denver, Colorado
Posts: 582
Liked 12 Times on 12 Posts
Likes Given: 11

Default

Quote:
Originally Posted by stlbeer View Post
The specs show both relay and SSR are available:

Output mode Relay Contact, 7A at 240VAC, 10A at 120VAC, 12VDC for SSR

Looks like it can handle both heating and cooling. Might be better used on a lagering fridge.

I plan on using this one: http://www.auberins.com/index.php?main_page=product_info&cPath=1&products_ id=106

It's a bit less expensive and still offers both relay and SSR outputs plus it offers a learning mode.
Relay and SSR are options though. It does not come with both.

Which do I need for this RIMS setup?
__________________
The Keg Ran Out Club
Broomfield, Colorado
http://www.kroc.org/
tasq is offline

Reply With Quote Quick reply to this message
Old 12-01-2010, 08:48 PM   #525
stlbeer
Senior Member
Feedback Score: 0 reviews

stlbeer's Avatar
Recipes

Join Date: Jan 2008
Location: Fenton, MO
Posts: 878
Liked 33 Times on 32 Posts
Likes Given: 82

Default

SSR

Don't forget to get a heat sink.

__________________
stlbeer is offline

Reply With Quote Quick reply to this message
Old 12-01-2010, 08:48 PM   #526
Dave258
Feedback Score: 1 reviews
Recipes

Join Date: Sep 2009
Location: New York
Posts: 699
Liked 9 Times on 9 Posts
Likes Given: 8

Default

Quote:
Originally Posted by tasq View Post
Relay and SSR are options though. It does not come with both.

Which do I need for this RIMS setup?
I am ordering the same one you linked in your post. I belive SSR is the right option.
__________________

Dave

Blitzkrieg Brewery

Dave258 is offline

Reply With Quote Quick reply to this message
Old 12-01-2010, 08:59 PM   #527
tasq
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2010
Location: Denver, Colorado
Posts: 582
Liked 12 Times on 12 Posts
Likes Given: 11

Default

Many thanks gents!

__________________
The Keg Ran Out Club
Broomfield, Colorado
http://www.kroc.org/
tasq is offline

Reply With Quote Quick reply to this message
Old 12-01-2010, 11:56 PM   #528
pickles
Feedback Score: 0 reviews

pickles's Avatar
Recipes

Join Date: Feb 2008
Location: Columbus
Posts: 1,974
Liked 48 Times on 40 Posts
Likes Given: 23

Default

If your using a PID to control the heating element then the SSR is the only option. The switching is so fast and frequent that you'll burn up a mechanical relay in no time.

__________________
Gaptooth Brewhouse
pickles is offline

Reply With Quote Quick reply to this message
Old 12-02-2010, 12:14 AM   #529
stlbeer
Senior Member
Feedback Score: 0 reviews

stlbeer's Avatar
Recipes

Join Date: Jan 2008
Location: Fenton, MO
Posts: 878
Liked 33 Times on 32 Posts
Likes Given: 82

Default

Quote:
Originally Posted by pickles View Post
If your using a PID to control the heating element then the SSR is the only option. The switching is so fast and frequent that you'll burn up a mechanical relay in no time.
Got it.
__________________
stlbeer is offline

Reply With Quote Quick reply to this message
Old 12-03-2010, 07:59 PM   #530
dutch101st
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2009
Location: Roseville, CA, California
Posts: 243
Liked 1 Times on 1 Posts

Default Damn you...Damn you alll!!

Ok, so I have been reading and researching, much like this summer when I was trying to decide on to go HERMS or RIMS.

I am now kind of wishing I had gone RIMS (I ended up going HERMS). So having said that, I am going to make the switch over to a RIMS system, but slowly.

I have ordered my PID controller components- I think this is what I need from Auber (Let me know if I missed something):

Universal 1/16 DIN PID Temperature Controller
http://auberins.com/index.php?main_page=product_info&cPath=1&products_ id=106

25A SSR
http://www.auberins.com/index.php?main_page=product_info&cPath=2&products_ id=9

Heat Sink for 25 A SSR
http://www.auberins.com/index.php?main_page=product_info&cPath=2&products_ id=45

Liquid tight K type, 4 in probe, 1/2 NPT Thread
http://www.auberins.com/index.php?main_page=product_info&cPath=3&products_ id=165


Do I need to get a thermowell for the probe?

This project will slowly come to fruition- still have to build my RIMS tube and get the heating element. Then I will be building a new control box replete with a cooling fan and vents for the SSR heatsink. It will also be replete with aircraft switches (those rock!). The idea is not too much automation, but have the availability to if I want. I certainly want to get the wort recirculation efficency question solved- my temp control thought process is a bit flawed as I am using a RANCO (not working the way I thought it would)

Anyone have any other ideas, thoughts or input?

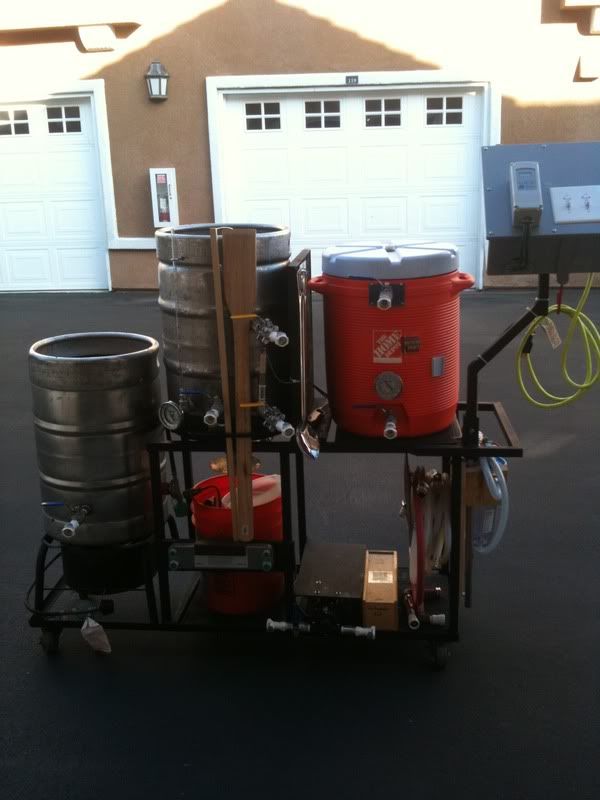

My current HERMS is this:




I figure without too much trouble I should be able to retrofit.
