Old 03-18-2013, 03:24 PM   #1
marshallbeer
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2011
Location: Nottingham, NH, New Hampshire
Posts: 61
Liked 3 Times on 2 Posts
Likes Given: 22

Default Pump Control Box

I am currently building a HERMS system but am looking to keep it manual. However, I do need to control the dual pumps. Where would I go to find out how to wire a control box for the pumos?

__________________
marshallbeer is offline

Reply With Quote Quick reply to this message
Old 03-18-2013, 03:28 PM   #2
Jeebas
Feedback Score: 3 reviews

Jeebas's Avatar
Recipes

Join Date: Mar 2010
Location: Pittsburgh, Pennsylvania
Posts: 465
Liked 28 Times on 21 Posts
Likes Given: 1

Default

If you wanted to put your pumps into a box you could do something like this - http://www.homebrewtalk.com/f51/marc...-build-324780/

Jeebas is offline

Reply With Quote Quick reply to this message
Old 03-18-2013, 06:33 PM   #3
marshallbeer
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2011
Location: Nottingham, NH, New Hampshire
Posts: 61
Liked 3 Times on 2 Posts
Likes Given: 22

Default

Quote:
Originally Posted by Jeebas View Post
If you wanted to put your pumps into a box you could do something like this - http://www.homebrewtalk.com/f51/marc...-build-324780/
A great idea but I'm looking to have a standard control box since they are already mounted to my brew rig.
__________________
marshallbeer is offline

Reply With Quote Quick reply to this message
Old 03-19-2013, 01:31 PM   #4
Old_E
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2010
Location: Tampa, FL
Posts: 268
Liked 1 Times on 1 Posts

Default

I'm curious about this too.

__________________
Old_E is offline

Reply With Quote Quick reply to this message
Old 03-19-2013, 01:43 PM   #5
terodox
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2011
Location: Concord, NH
Posts: 106
Liked 6 Times on 6 Posts
Likes Given: 4

Default

An easy control box would just be an in plug (I like these from Amazon: http://www.amazon.com/gp/product/B00...?ie=UTF8&psc=1) with two switches and two outlets.

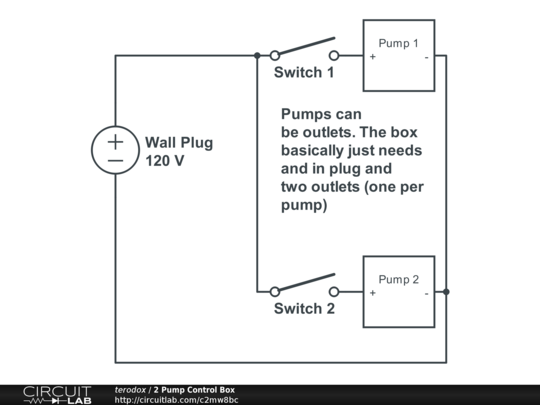

Quick wiring diagram:

__________________
terodox is offline

Reply With Quote Quick reply to this message
Old 03-19-2013, 02:02 PM   #6
Jeebas
Feedback Score: 3 reviews

Jeebas's Avatar
Recipes

Join Date: Mar 2010
Location: Pittsburgh, Pennsylvania
Posts: 465
Liked 28 Times on 21 Posts
Likes Given: 1

Default

Or instead of hardwiring the pumps to the switches inside of the box, you could plug the pumps into outlets that are controlled by the switches.

Jeebas is offline

Reply With Quote Quick reply to this message
Old 03-19-2013, 03:51 PM   #7
marshallbeer
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2011
Location: Nottingham, NH, New Hampshire
Posts: 61
Liked 3 Times on 2 Posts
Likes Given: 22

Default

Basically what I'm looking to do is have a box where I can plug both into. I want switches with lights saying wheather it's on or off, with an emergency switch, and a key to turn everything on.

Basically a ebresupply.com box that just controls the pumps.
http://www.ebrewsupply.com/ebrew-con...bcs2panel.html

I'm looking to see how I should wire it.

__________________
marshallbeer is offline

Reply With Quote Quick reply to this message
Old 03-19-2013, 06:02 PM   #8
terodox
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2011
Location: Concord, NH
Posts: 106
Liked 6 Times on 6 Posts
Likes Given: 4

Default

Parts
Incoming Plug: http://www.amazon.com/gp/product/B00...?ie=UTF8&psc=1

Illuminated Switches:
http://www.automationdirect.com/adc/...D/GCX3211-120L

Outlets:
http://www.amazon.com/Leviton-102-05...=single+outlet

The wiring is straight forward. Split the hot side into the two switches, those feed the hot side of the outlets. The neutral of both outlets feeds back to the plug in. Also a good idea to feed the ground back from the switches back to the in plug.

I hope this helps!

__________________
terodox is offline
marshallbeer Likes This
Reply With Quote Quick reply to this message
Old 03-19-2013, 06:16 PM   #9
marshallbeer
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2011
Location: Nottingham, NH, New Hampshire
Posts: 61
Liked 3 Times on 2 Posts
Likes Given: 22

Default

Quote:
Originally Posted by terodox View Post
Parts
Incoming Plug: http://www.amazon.com/gp/product/B00...?ie=UTF8&psc=1

Illuminated Switches:
http://www.automationdirect.com/adc/...D/GCX3211-120L

Outlets:
http://www.amazon.com/Leviton-102-05...=single+outlet

The wiring is straight forward. Split the hot side into the two switches, those feed the hot side of the outlets. The neutral of both outlets feeds back to the plug in. Also a good idea to feed the ground back from the switches back to the in plug.

I hope this helps!
It does! Thank you very much!
__________________
marshallbeer is offline

Reply With Quote Quick reply to this message
Old 03-20-2013, 03:39 AM   #10
limulus
Feedback Score: 0 reviews

limulus's Avatar
Recipes

Join Date: Oct 2009
Location: ATL Burbs, Georgia
Posts: 1,106
Liked 54 Times on 48 Posts
Likes Given: 72

Default

So how about something as simple as this switched panel. I've used this on my brew cart for years. I have a switch for the pumps, the RIMS heater, the PID and even the stereo. The whole thing is plugged into a GFCI outlet.

__________________
Hog Mountain Brewing Co.
Tap 1: American Brown Ale
Tap 2: Empty - IPA coming 18 May
Tap 3: Empty - APA coming June
Kolsch coming July


Primary:
Secondary:
Cold Conditioning: IPA
On Deck: Kolsch
On Deck: Pale Ale
On Deck: Dusseldorf Altbier

"Always do sober what you said you'd do drunk. That will teach you to keep your mouth shut."
-Ernest Hemingway
limulus is offline
jimbonnet Likes This
Reply With Quote Quick reply to this message
