Default Need help mounting propane plumbing for Brewstand

Hi folks,

I need some help getting the propane plumbing mounted to my Brewstand. Basically, I'm using black iron pipe and some 1" pieces of CSST for the plumbing, but I need some clamps or something to attach the B.I.P., which forms the bulk of the plumbing, to the brewstand itself.

I've tried using some pipe clips like these, but they after mocking things up it didn't seem like they'd clamp tight enough to keep the B.I.P. from rotating. Also, these are the only types of mounting hardware I could find at H.D./Lowe's but I may not be looking for the right things.

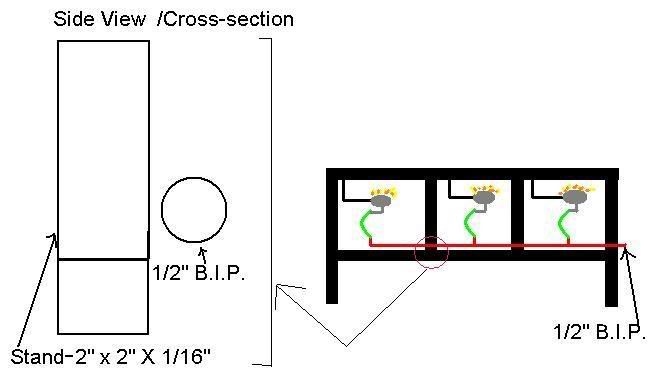

I've attached a picture below showing the general layout of the stand as well as a side cross-section showing how I'd like to mount the B.I.P. The stand is made out of 2"x2"x1/16" sq mild steel tubing, and there are 3 vertical supports that I'd like to attach the B.I.P. to if possible. The red line represents the B.I.P. section, the green is the CSST, the burners are grey, the black lines by the burners represent some adjustable mounting brackets that I'm making, and the yellow/orange is the sweet fire I'm going to make with my new setup Any help you could provide with hardware or methods of getting the plumbing attached would be appreciated.

__________________

"People who choose Bud and Coors over a microbrew are the same people that put catsup on their steak." - Some guy on the internet


Last edited by Dustin_J; 02-21-2009 at 04:13 PM. Reason: Speeling
Dustin_J is offline

Reply With Quote Quick reply to this message
Old 02-21-2009, 04:21 PM   #2
IrregularPulse
Hobby Collector
Feedback Score: 0 reviews

IrregularPulse's Avatar
Recipes

Join Date: Nov 2007
Posts: 42,547
Liked 2762 Times on 2713 Posts
Likes Given: 118

Default

I think what you have there is fine. Once you get all the piping screwed together with tape and everything, the pipes will not just sit there and spin. They will be secure. Just tighten the clamps around them good.

Take a look around the brew rig thread for ideas and to see how other did it.

__________________
Tap Room Hobo

I should have stuck to four fingers in Vegas. :o - marubozo

Last edited by IrregularPulse; 02-21-2009 at 04:23 PM.
IrregularPulse is online now

Reply With Quote Quick reply to this message
Old 02-21-2009, 04:28 PM   #3
tipicreeper
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: Arizona
Posts: 192
Liked 2 Times on 1 Posts

Default

Relying on any clip along to give rigidity to the piping in my opinion is not the way to go
I think I would utilize tees with piping going up the uprights. Then the clips are simply there to keep the piping from falling to the floor.
-David

[IMG][/IMG]

__________________
tipicreeper is offline

Reply With Quote Quick reply to this message
Old 02-21-2009, 04:40 PM   #4
Dustin_J
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2006
Location: St. Louis, MO
Posts: 106
Default

Thanks guys. I guess I should elaborate on things a bit. The plumbing itself is built/tested and ready to go, I just need a decent way to mount in on the frame in it's existing configuration if possible.

__________________

"People who choose Bud and Coors over a microbrew are the same people that put catsup on their steak." - Some guy on the internet


Last edited by Dustin_J; 02-21-2009 at 04:42 PM.
Dustin_J is offline

Reply With Quote Quick reply to this message
Old 02-21-2009, 05:45 PM   #5
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 2 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 21,914
Liked 942 Times on 628 Posts
Likes Given: 28

Default

Just put a little piece of rubber over the pipe where the clamps go to give it some grip.

__________________
BrewHardware.com
Sightglass, Refractometer, Ball Valve, Weldless bulkhead, Thermometer, Decals, Stainless Steel Fittings, Compression Fittings, Camlock Quick Disconnects, Scale, RIMS tube, Plate Chiller, Chugger Pump, Super Clear Silicone Tubing, and more!

New Stuff?
Bobby_M is online now

Reply With Quote Quick reply to this message
Old 02-21-2009, 07:47 PM   #6
Dustin_J
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2006
Location: St. Louis, MO
Posts: 106
Default

Quote:
Originally Posted by Bobby_M View Post
Just put a little piece of rubber over the pipe where the clamps go to give it some grip.
Aahhh, that's a good idea. Thanks

BTW, it worked like a charm. IT doesn't need to be super rigid since it won't really be supporting the burners, and the rubber was enough to keep it in place. Thanks again for the suggestions guys.
