Glad to hear it worked out for you. Magnets are always going to be a matter of availability and power, which is why I use a steel washer to fine tune the plate before gluing permanently. Thanks for the kudos!

__________________

I'd rather have a bottle in front of me, than a frontal lobotomy.
--Tom Waits

You can't be a real country unless you have a beer and an airline - it helps if you have some kind of a football team, or some nuclear weapons, but at the very least you need a beer.
--Frank Zappa

My Cheap and Easy Stirplate

Anthony_Lopez is offline

Reply With Quote Quick reply to this message
Old 01-06-2009, 05:27 PM   #82
mthompson
Feedback Score: 1 reviews
Recipes

Join Date: Sep 2008
Location: Plymouth, WI
Posts: 511
Liked 43 Times on 27 Posts
Likes Given: 2

Default

Quote:
Originally Posted by joety View Post
The above build in action in 1400 ml of water at about 75% power.

Does that illuminated rocker switch actually illuminate? I have one for my second stir plate (gave the first to my FIL), but I can't get the LED to turn on. It turns the fan on just fine, but the light doesn't work.

Do you, or anyone else, have a diagram on how to properly wire a spst LED rocker switch? Mine has three connections; 1,2, 3+-

Thanks,
__________________
MT
------------------------------------------------------------------------------------------
Save me, O God! For the waters have come up to my neck. - Psalm 69:1
mthompson is offline

Reply With Quote Quick reply to this message
Old 01-06-2009, 06:01 PM   #83
Anthony_Lopez
Feedback Score: 0 reviews

Anthony_Lopez's Avatar
Recipes

Join Date: Mar 2008
Location: Groton, MA
Posts: 1,694
Liked 17 Times on 8 Posts
Likes Given: 2

Default

It should have 3 pins. They are labeled "Source" "Load" and "Earth"

The positive side of your power supply connects to the "Source" pin on the switch. The "Load" Pin goes to the Positive wire on your Fan. The "Earth" Pin should be attached to the ground of the fan and the ground of the power supply. That should illuminate your switch.

__________________

I'd rather have a bottle in front of me, than a frontal lobotomy.
--Tom Waits

You can't be a real country unless you have a beer and an airline - it helps if you have some kind of a football team, or some nuclear weapons, but at the very least you need a beer.
--Frank Zappa

My Cheap and Easy Stirplate

Anthony_Lopez is offline

Reply With Quote Quick reply to this message
Old 01-06-2009, 06:30 PM   #84
joety
Feedback Score: 0 reviews

joety's Avatar
Recipes

Join Date: Oct 2008
Location: Germantown Wisconsin
Posts: 1,434
Liked 14 Times on 13 Posts
Likes Given: 10

Default

Quote:
Originally Posted by mthompson View Post
Does that illuminated rocker switch actually illuminate? I have one for my second stir plate (gave the first to my FIL), but I can't get the LED to turn on. It turns the fan on just fine, but the light doesn't work.

Do you, or anyone else, have a diagram on how to properly wire a spst LED rocker switch? Mine has three connections; 1,2, 3+-

Thanks,
Yes, but I used the exact parts and instructions Tony prescribed so it was a no brainer.
__________________
Conical 1 - Bye-Week Blonde
Conical 2 - Empty
Carboys - Cougar Killer DIPA

Secondaries - Sunday Night Hoppy Pale Ale
Lagering in Kegs - None

Kegged: American Wheat/Rye, Nut Brown Ale, Munich Helles, Belgian Stout, Resurrection Milk Stout, Bourbon County Stout, BLC
Bottled: Oaked Bourbon Porter
Planned: Baltic Porter
joety is offline

Reply With Quote Quick reply to this message
Old 01-06-2009, 07:08 PM   #85
mthompson
Feedback Score: 1 reviews
Recipes

Join Date: Sep 2008
Location: Plymouth, WI
Posts: 511
Liked 43 Times on 27 Posts
Likes Given: 2

Default

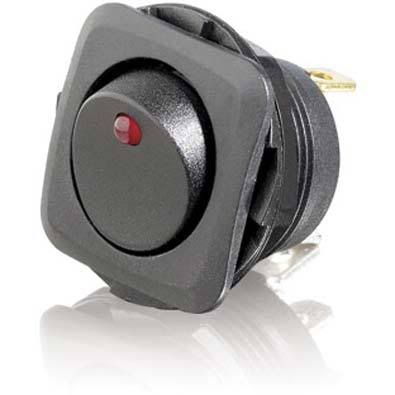

The switch I have is a different one, its not labeled as you stated Anthony. It has two silver collored pins, 1 and 2; and a gold colored pin 3+- (or something, I don't have it in front of me); you can kind of see this in the picture.

I'll have to check when I get home, but it might be rated for more than 12vdc, which might mean the light will not work on the lower voltage for this project. (side note - I did learn that running a 12v fan on a 14.5v adapter will melt a fan in about 10 minutes )

I tried a few ways of connecting it, but I was just guessing from other projects/experience. I got a spark on the ground wire from one arrangement and stopped messing around before I ruined something else.

I'll look and see if your labels make sense with my switch, and then try to rewire it. The switch works, but I would like the light to work as well, just the nerd side I guess.

Thanks,
__________________
MT
------------------------------------------------------------------------------------------
Save me, O God! For the waters have come up to my neck. - Psalm 69:1
mthompson is offline

Reply With Quote Quick reply to this message
Old 01-06-2009, 07:13 PM   #86
Anthony_Lopez
Feedback Score: 0 reviews

Anthony_Lopez's Avatar
Recipes

Join Date: Mar 2008
Location: Groton, MA
Posts: 1,694
Liked 17 Times on 8 Posts
Likes Given: 2

Default

That looks EXACTLY like a 120VAC rocker switch I bought from Radioshack.

__________________

I'd rather have a bottle in front of me, than a frontal lobotomy.
--Tom Waits

You can't be a real country unless you have a beer and an airline - it helps if you have some kind of a football team, or some nuclear weapons, but at the very least you need a beer.
--Frank Zappa

My Cheap and Easy Stirplate

Anthony_Lopez is offline

Reply With Quote Quick reply to this message
Old 01-06-2009, 07:17 PM   #87
mthompson
Feedback Score: 1 reviews
Recipes

Join Date: Sep 2008
Location: Plymouth, WI
Posts: 511
Liked 43 Times on 27 Posts
Likes Given: 2

Default

That's where I got mine, didn't ever think to look if it was a 12v.....that's why I am thinking its 120v.

Is that gonna make the LED un-usable?

__________________
MT
------------------------------------------------------------------------------------------
Save me, O God! For the waters have come up to my neck. - Psalm 69:1
mthompson is offline

Reply With Quote Quick reply to this message
Old 01-06-2009, 07:42 PM   #88
notwoohoo
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: Woodstock, GA
Posts: 163
Default

I've tried building this with limited success so far...

I'm using the 8x6x3 project box from radio shack, a 12v pc fan that is around 3.25", screws in the project box that are 2" (leaving an inch before the top of the encolsure). I've tried using both a 12v and a 5v adapter. With the 12v, my 1.5" stirbar gets immediately thrown off center in my 200mL flask filled with 650mL of harvested yeast (test run). The 5v power source appears to not turn the magnet. I'm using two hard drive magnets, mounted on a large metal washer. I'm thinking of giving up and just buying some magnets from McMaster (anyone got a part #? - there is a bunch of rare earth magnets).

Anyone got a helpful trick or tip for me? Thanks in advance!!

Edit: Didn't mention that I'm using this basic design with the rheostat.

__________________

Last edited by notwoohoo; 01-06-2009 at 07:55 PM.
notwoohoo is offline

Reply With Quote Quick reply to this message
Old 01-06-2009, 08:17 PM   #89
Jonnio
Feedback Score: 0 reviews

Jonnio's Avatar
Recipes

Join Date: Dec 2007
Posts: 1,525
Liked 7 Times on 7 Posts
Likes Given: 1

Default

If your immediately throwing your stir bar your magnets probably just need to be repositioned.

__________________

------------------------------------------------
Official member of HBAMAP (Home Brewers Against Murder and Pedophilia)

Quote:
Originally Posted by Revvy View Post
Then that means dumping your beer because you think it's bad is tantamount to abortion! And as Big Kahuna says, drinking a beer too soon is tatamount to beer pedophilia...
Jonnio is offline

Reply With Quote Quick reply to this message
Old 01-06-2009, 08:18 PM   #90
notwoohoo
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: Woodstock, GA
Posts: 163
Default

Because they are not centered?

__________________
notwoohoo is offline

Reply With Quote Quick reply to this message
