Default My stir plate in progress,, Lopez style. *pics*

I was sitting in my hotel room this weekend with nothing to do but browse HBT. I read the DYI Stir plate thread and decided to give it a go. Now I'm pretty far from home so I had to buy everything. Its almost done but I still have a couple questions.

I bought everything from the original list except the rocker switch. I dont think they sold that style anymore so I got a similar one.

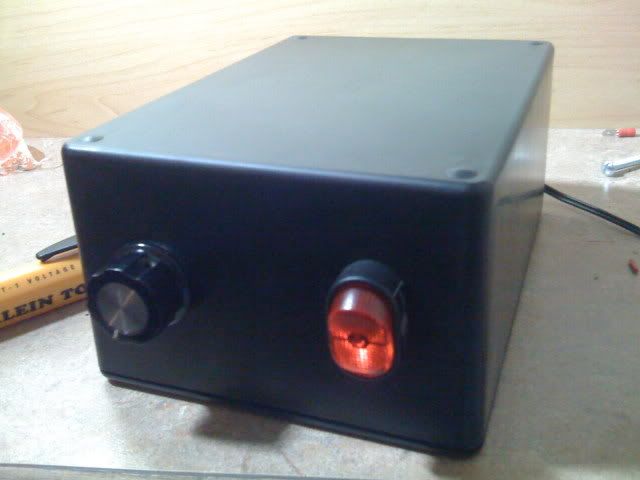

Heres a pic after I mounted the switch and rheostat:


Now I didn't think I'd be able to juice it up today because I had no spare phone charger, but then i got an idea,.. I asked the front desk if they had a box of chargers that people left behind. they had about 50 of them for me to chose from. I grabbed a BB charger and hooked it up.. Here's my first Q: the charger is only 5 volts. will this be sufficient of should I really find a 6v like Anthony used? It spins pretty fast and seems like it could work, but i haven't weighed it down with washers and magnets yet.

Both wires on the charger were black so it took some switching around to finally get it working!



Believe it of not, the biggest fender washer Depot had was 1 1/2" . Again, a 2" is used. should I look for a bigger one elsewhere or can i use the one i have?

heres a pic of it all closed up. I know I mounted the switch upside down, Ill flip it around once I mount the magnet.



So far, this thing is so silent, that i have to put my ear to it to hear the speed change when turning the rheostat. I know it doesn't run hot, but should I give it any ventilation?

Couple more Q's:

I don't have a spare hard drive to salvage. Is a rare earth magnet really necessary? why cant I just use any old magnet? If I do need one, are there any retail stores that sell them or do I have to order online? same thing with stir bars,. can these be made or do i have to order?

Special thanks to Anthony Lopez for posting the "how to" on this. It was really fun and super simple to make.

__________________

Last edited by fretsforlife; 04-07-2009 at 03:26 AM.
fretsforlife is offline

Reply With Quote Quick reply to this message
Old 04-06-2009, 04:00 AM   #2
beerthirty
big beers turn my gears
Feedback Score: 0 reviews

beerthirty's Avatar
Recipes

Join Date: May 2008
Location: Phoenix AZ
Posts: 2,651
Liked 23 Times on 11 Posts

Default

Mine is so different I can only say that it is not ventilated and I have never had heat build up problems.
Rare earth magnets are stronger for their weight and usually required. I have heard that some people have gotten it to spin just using the fan magnets.
Stir bar- buy a small one. Larger ones seem to get spun off with our homebrew stirplates. Stir bars are magnets and teflon coated, this helps prevent cross contamination as nothing will stick.

__________________
Quote:
Originally Posted by the_bird View Post
"I've got a fever... and the only prescription is, MORE CARBOYS!"
primary- Tangerine Dream, SWMBO slayer,
serving- amber ale hop experiment #6, Roggenbier, apfelwine
planning- Cru?
conditioning- 9/9/09 barleywine
Drink water?... Never, fish fornicate in it.--- W.C. Fields
Most problems can be solved with the proper application of force.
beerthirty is offline

Reply With Quote Quick reply to this message
Old 04-06-2009, 12:11 PM   #3
fretsforlife
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: Floyd, VA
Posts: 314
Liked 2 Times on 2 Posts

Default

Yeah thats what i was thinking. I wouldn't think that it'd need much or any ventilation at all so ill skip that. I also read that the 1 3/8" stir bar is a decent size that doesn't get tossed around so much. Thanks!

__________________
fretsforlife is offline

Reply With Quote Quick reply to this message
Old 04-06-2009, 01:51 PM   #4
Anthony_Lopez
Feedback Score: 0 reviews

Anthony_Lopez's Avatar
Recipes

Join Date: Mar 2008
Location: Groton, MA
Posts: 1,694
Liked 17 Times on 8 Posts
Likes Given: 2

Default

I have played around with a number of different power supplies. It is really a matter of determining what works for you. I would suggest looking at K&J magnets. I put the link in the beginning of my stirplate thread a few weeks ago. The model I ended up using should be there as well. Nice job and thanks for the honorable mention!

__________________

I'd rather have a bottle in front of me, than a frontal lobotomy.
--Tom Waits

You can't be a real country unless you have a beer and an airline - it helps if you have some kind of a football team, or some nuclear weapons, but at the very least you need a beer.
--Frank Zappa

My Cheap and Easy Stirplate

Anthony_Lopez is offline

Reply With Quote Quick reply to this message
Old 04-07-2009, 03:31 AM   #5
fretsforlife
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: Floyd, VA
Posts: 314
Liked 2 Times on 2 Posts

Default

Hey thanks! man I'll buy from K&J if I have to, but the thing that rips me is that the magnet is only $3.35 but they want $8 bucks to ship it. Im trying to keep cost down on this thing as much as possible. Are there no retail places like ACE or something where I can just walk in and buy one?

__________________
fretsforlife is offline

Reply With Quote Quick reply to this message
Old 04-07-2009, 03:50 AM   #6
olllllo
[]-O-[]
Feedback Score: 0 reviews

olllllo's Avatar
Recipes

Join Date: Apr 2006
Location: Phoenix, Arizona
Posts: 13,514
Liked 123 Times on 104 Posts
Likes Given: 13

Default

You're going to make the TSA's day when you roll up with that in your bag.

__________________
Rabbit And Coyote Schwag
Rob - Phoenix Ambassador to Milwaukee
Where did your avatar go?
Ginger Beer for Moscow Mules Bacon Vodka
Twitter
olllllo is offline

Reply With Quote Quick reply to this message
Old 04-07-2009, 04:18 AM   #7
fretsforlife
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: Floyd, VA
Posts: 314
Liked 2 Times on 2 Posts

Default

Quote:
Originally Posted by olllllo View Post
You're going to make the TSA's day when you roll up with that in your bag.
I just spent a good solid minute laughing at this, thanks! I actually drove up here in a POS bucket truck that doesn't go over 55mph when on an incline. Took me about 14 hours total. I will be flying back and forth though and actually never though about how they'd take seeing this. Im probably already on their watch list since a couple years ago, while going through the scanning area, my bag was seized and the feds came in to question me. Turns out, I forgot that my step father had put a large hunting knife that he didnt want anymore, in my bag. I just barely escaped a hefty fine.
__________________
fretsforlife is offline

Reply With Quote Quick reply to this message
Old 04-09-2009, 01:30 AM   #8
fretsforlife
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: Floyd, VA
Posts: 314
Liked 2 Times on 2 Posts

Default

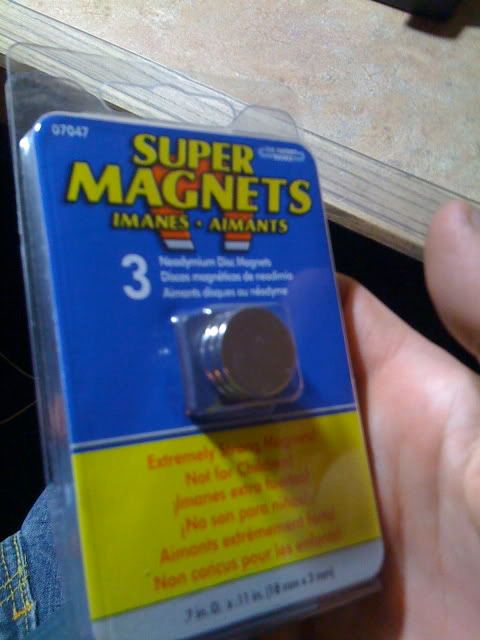

I read up on Rare Earth Magnets and found out that they're also called Neodymium. I found these at ACE Hardware for under 5 bucks! They come in a 3 pack, are super light and are about as big as a nickel a piece. They are the strongest magnets i've ever seen. They also sell them in six packs @ a smaller size for the same price. No.07047
