mikelikesit2000 · 12-03-2011, 03:17 PM

Quote:

Originally Posted by day_trippr

If you're thinking of mounting typical centrifugal "beer pumps" above the level of the fluids in your kettles, I think you might be creating a major headache for yourself...

Cheers!

The pumps will mount about 5" below the liquid level. Far enough to start a siphon, and will only need to pump liquid up about a foot and a half.

mikelikesit2000 · 12-03-2011, 03:52 PM

While I was planning out the stand, I kept my eyes open for kegs to convert. The first 3 I found on craigslist.

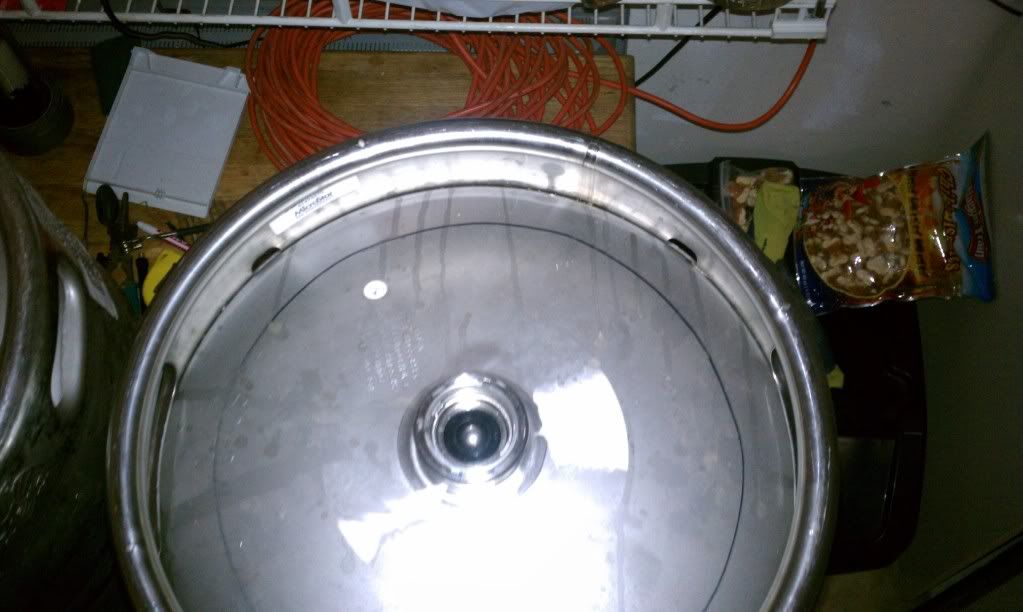

First I laid out a circle, and cut the tops out.
[IMG]

[/IMG]

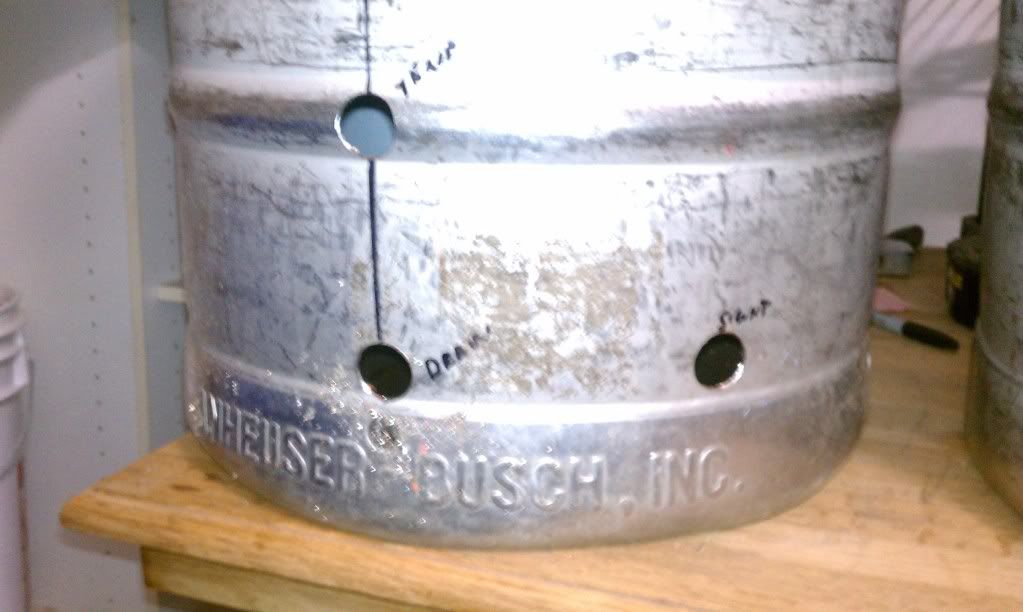

Then I planned out how many ports I would need, and where I would need them, and started drilling holes.
[IMG]

[/IMG]
I used a hole saw to drill the holes just a bit smaller then the OD of the 1/2" couplings, and then used an abrasive stone to make the holes just the right size. You want the couplings to fit just perfect, not to sloppy, ro welding them will be a pain.
[IMG]

[/IMG]

mikelikesit2000 · 12-03-2011, 03:55 PM

I test fit each coupling, then welded them up. I used Solaflux on the inside for the welding. I did not want to purge the entire keg with Argon, too expensive.
[IMG]

[/IMG]

mikelikesit2000 · 12-03-2011, 04:01 PM

I planned on using an immersion chiller to cool the wort, but did not want to have to take it out, put it in, connect hoses, too much work. So I ordered a 50' roll of SS 1/2" tubing, rolled it around a vessel (pain in the rear) and installed it in the Boil Kettle.
[IMG]

[/IMG]
