Default My little kegerator

Doner freezer, you can see the new 20amp dedicated circuit just to the left under the breaker box.


All the cooling aperatus is on top. No lines in the walls to worry about if I need to make a hole.

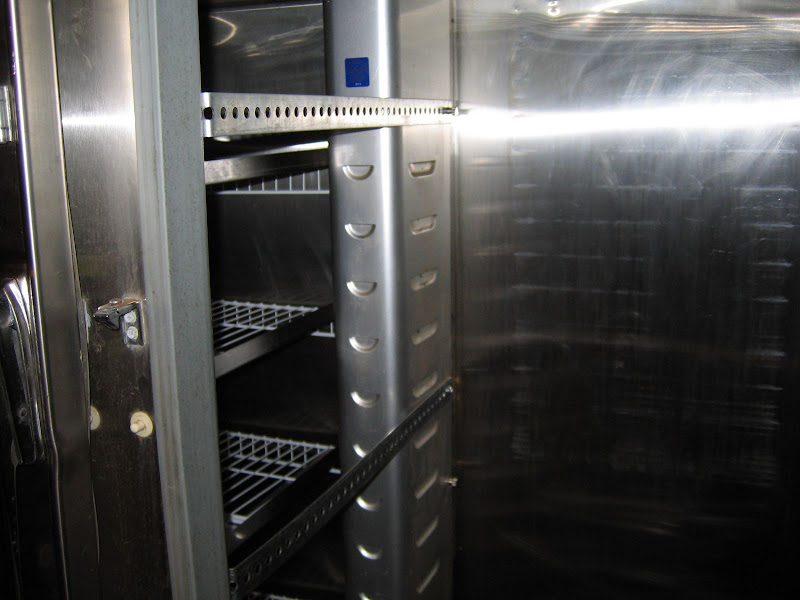

Right hand side. I added the flat perforated bars, you will see why later. Cold air is forced down the louvered column in the back.

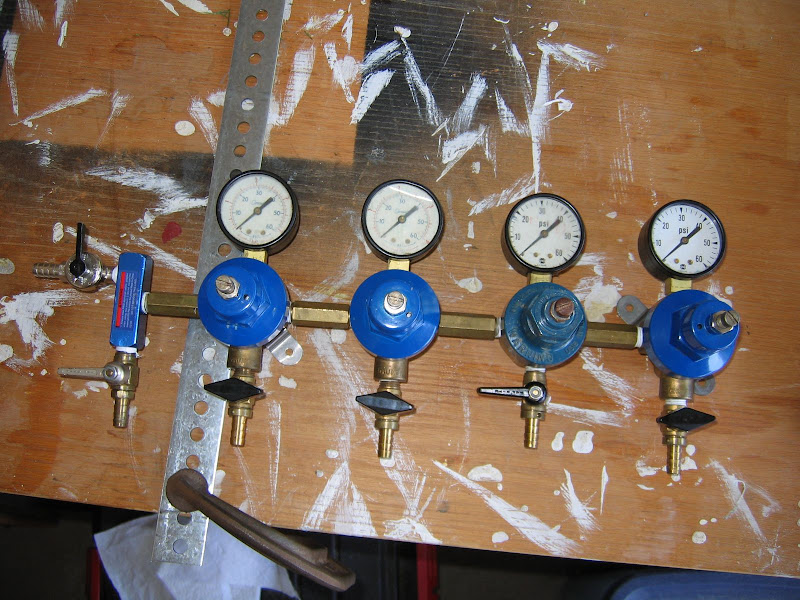

Regulator Manifold. Regs were all given to me. Ended up taking the stuff off the left to have room to mount it.



Dry fit, 8 cornies on the right side, you can see the top of the 10# co2 tank just left of the cornies. You can see shelving I added on the left, originally the freezer only had rails to hold commercial sized baking sheets/pans etc. I used the white plastic coated shelving to make shelves.

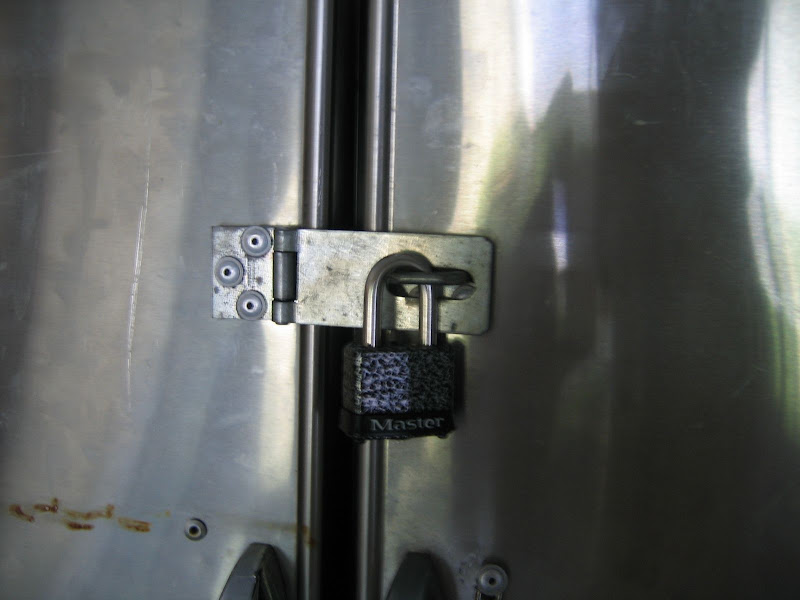

High tech tap locks:



False panel with faucets. Piano hinge on the right, there is a bit of a bow in the wall so the hinge doesn't fit flush near the top.

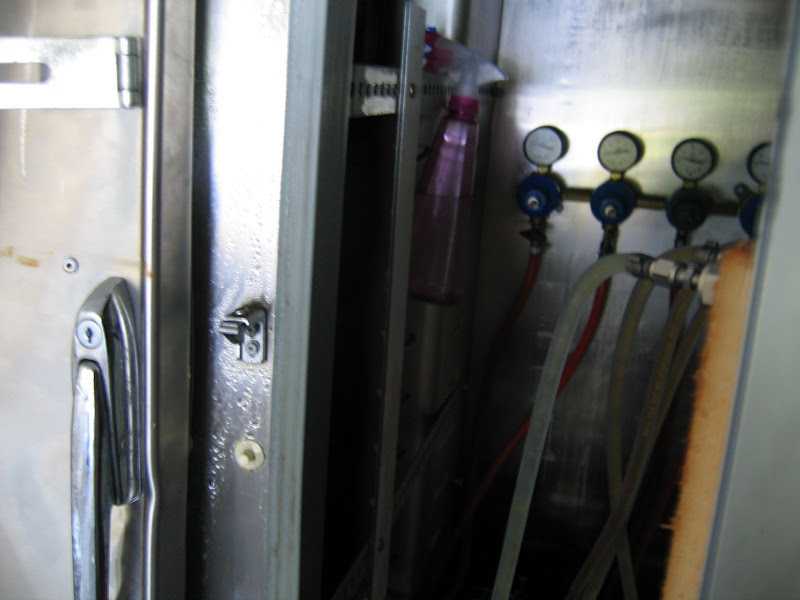

False panel open. There is a "door jamb" of the same material on the left attached to the flat stock I added. The false panel material is two thin sheets of anodized aluminum with a foam core between them. It is very ridged. I only had to add that bit of wood in the back because the shanks are not threaded for the last inch or so.



I hadn't compleatly decided on the false pannel stuff when I ordered my stuff so that shanks are much longer than I need. All the shanks have 1/4" MFL nipples to make it easy to swap out a hose, etc.




Last edited by camiller; 08-10-2009 at 07:34 PM. Reason: stupid typo
camiller is offline

Reply With Quote Quick reply to this message
Old 08-10-2009, 06:43 PM   #2
KYB
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2009
Posts: 1,566
Liked 38 Times on 24 Posts
Likes Given: 6

Default

Looks like you can fit at least 16 kegs on the bottom. Get more taps and get to brewing! That's awesome though.



__________________
KYB is offline

Reply With Quote Quick reply to this message
Old 08-10-2009, 06:57 PM   #3
hitbyatrain
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2009
Location: Round Rock, TX
Posts: 24
Default

Holy crap, that's huge! Well done.

__________________
hitbyatrain is offline

Reply With Quote Quick reply to this message
Old 08-10-2009, 07:02 PM   #4
camiller
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2007
Location: Omaha, NE
Posts: 1,883
Liked 27 Times on 27 Posts
Likes Given: 9

Default

Quote:
Originally Posted by ODaniel View Post
Looks like you can fit at least 16 kegs on the bottom. Get more taps and get to brewing! That's awesome though.
If I put the CO2 outside I could probably squeeze 17 in the bottom. Even though the the freezer, regulators, and temp controller were free I ordered everything else new (except 10 used cornies) I hope to add a couple more faucets and a stout faucet at some point but SWMBO felt like I spent enough for now.
camiller is offline

Reply With Quote Quick reply to this message
Old 08-10-2009, 07:24 PM   #5
Baja_Brewer
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2008
Location: Rhode Island
Posts: 1,920
Liked 11 Times on 9 Posts
Likes Given: 4

Default

Quote:
Originally Posted by camiller View Post
....I could probably squeeze 17 in the bottom....
Do it!!! It could be the most epic kegerator ever! You could get some manifolds and run them from the regulators... Running more than 4 pressures at once would be surprising, though not un-heard of..... Perlicks are getting cheaper and cheaper you know
__________________

Courage les garçons, et patience, vos femmes vont finir par apprécier la bière !

Baja_Brewer is offline

Reply With Quote Quick reply to this message
Old 08-10-2009, 10:07 PM   #6
boogyman
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: Folsom, CA
Posts: 402
Default

That's pretty amazing. I like the false panel idea... any issues with condensation build-up on it?

__________________
boogyman is offline

Reply With Quote Quick reply to this message
Old 08-11-2009, 02:05 AM   #7
camiller
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2007
Location: Omaha, NE
Posts: 1,883
Liked 27 Times on 27 Posts
Likes Given: 9

Default

Quote:
Originally Posted by boogyman View Post
That's pretty amazing. I like the false panel idea... any issues with condensation build-up on it?
normally no, but I took most of the final pics right after I finished it so it was open a lot. I had already keged 3 batches so it had been running at serving temp for a couple weeks with just the gas side installed. I finally got the serving side installed Friday.
__________________
In Nebraska? Nebraska Brewers Group
My Club OmaHops Homebrew Club

Put yourself on the Homebrewers Map see the forum thread

My ridiculously easy stir plate buildMy Kegerator
camiller is offline

Reply With Quote Quick reply to this message
Old 08-11-2009, 02:35 AM   #8
InfernoBrews
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: Pittsburgh
Posts: 233
Default

Kinda like a Homebrewers Wet Dream!!!! lol

__________________
www.ruffledhomebrewing.com


Next Up: Imperial IPA
Primary1: Pale Ale
Primary2: Low Pro IPA
Secondary:IPA with Falconers Hops, Blonde Ale

Bottled: Red Ale

Kegged:Red Ale, Wheat, HopSlam Clone, Chocolate Stout on Nitrogen, Holiday ale Left Overs On Nitrogen.
InfernoBrews is offline

Reply With Quote Quick reply to this message
Old 12-11-2009, 10:52 AM   #9
Grizzant
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: Georgia
Posts: 5
Default Amazing job

Looks great!

__________________
Grizzant is offline

Reply With Quote Quick reply to this message
Old 02-02-2013, 03:15 AM   #10
sapper-nc
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2012
Location: Chapel Hill / Carrboro, NC
Posts: 24
Likes Given: 17

Default

I have been shopping for a two door commercial cooler to do this with. I know rates differ from place to place but im curious if you have had a chance to gauge how much this added to your electric bill?

looks awesome!

Crap! noticed how old this post is .. oh well.
