Default My Keezer Build....

So... even before brewing my first batch, I had decided to build a keezer... Holiday brand 7cuft that I scored for $75... How I wish that was my total cost, but its gotten quite high, but I picked high end stuff to go in it... So on to the build....

First step, I painted the freezer (except the back) with chalk board paint... I did so with a smooth foam roller. I didn't prime or scuff up or anything... it came out fairly nice, but seems to chip somewhat easily... we'll see over time. Interesting thing is, its not super smooth... slight texture like most appliances even though the appliance was originally smooth.

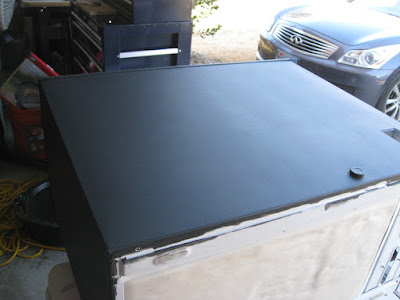

Picture of the lid painted sitting on top of my deep freezer...
In regards to the gasket, I cut it off and ended up breaking part of the plastic in the process, so cut most of the plastic that held the gasket off from the inside of the lid... I plan to just add a little extra caulk/silicone when I attach the lid to the collar.

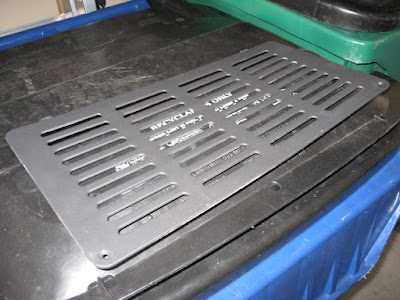

Even painted the grill and control panel...



Next I built a wood base. Made out of 2x4s, painted with a can of flat black spray paint, and attached 4 (2 locking) 2.5" casters... I screwed it together with pocket screws to help keep it as low profile as possible.

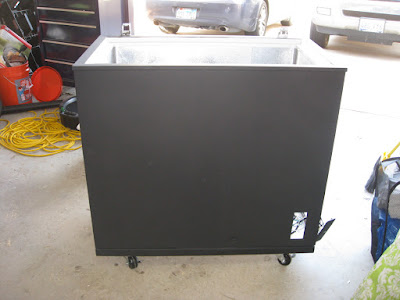

Picture of the freezer sitting on the base.

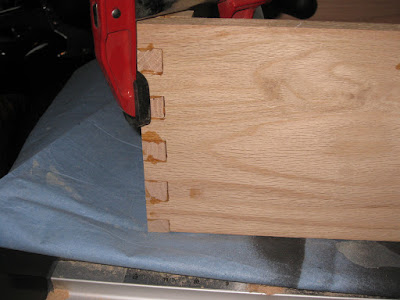

Next on to the collar. I had 8" (7.5 actual) red oak already, so I used it... I cut the boards to length, and box jointed the ends together...

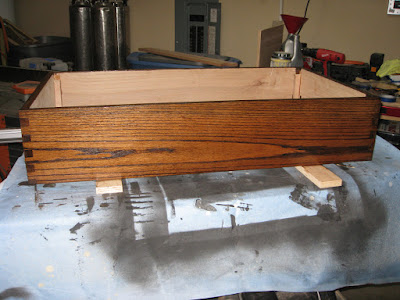

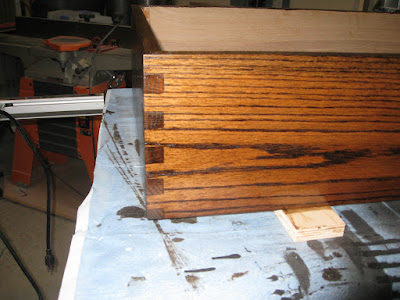

Next I sanded things down to fit, added two coats of dark walnut stain and am currently starting the poly (went with glossy to contrast the mat black of the freezer).



__________________
centex99 is offline

Reply With Quote Quick reply to this message
Old 01-27-2012, 12:40 AM   #2
centex99
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2011
Location: Buda, TX
Posts: 214
Liked 4 Times on 4 Posts

Default

I plan to attach the lid to the collar using this:



Then for a gasket from the collar to the freezer using this:



Now on to the good stuff... the inside pieces...
I plan to have 3 pressures available... may run water in there as well, so this will help. Plan is primary regulator with Y splitter, to secondary dual regulator... one output going to a 3 way splitter. 3x at 1 pressure, 1x at two others... All valves are check valves for extra security.



I picked up some standard 5/16" red air hose, and 3/16" bev-seal line for the beer.



Next onto the beer side... standard plastic disconnects for now, but with MFL connections. On the air source and beer destination (shank), Ive used barbed connections, but at the keg, I've used MFL for both gas/beer. I went with all stainless pieces.
Will have 4 taps with 4" stainless shanks and stainless Perlick 525 faucets...



I also picked up 8 5 gallon single handled ball locks for $25 each + shipping... Thats my progress so far, but plan to finish this up by this weekend...

I've ordered a temperature controller and a replacement thermostat as I ended up breaking the thermostat trying to put it back together after I had to take it apart after the screw came out trying to adjust the temperature... I'm not sure if I'll install the replacement thermostat or just use the ebay controller in its place yet.

__________________
centex99 is offline

Reply With Quote Quick reply to this message
Old 01-27-2012, 12:41 AM   #3
centex99
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2011
Location: Buda, TX
Posts: 214
Liked 4 Times on 4 Posts

Default

Secondary Regulators with MFL connector for input.


Primary regulator with Y and 1 3' and 1 6' lead both with FFL connectors...


Secondary regulator panel mounted between foam and collar on the inside of freezer. This spaces it out far enough to not hit the freezer.

__________________
centex99 is offline

Reply With Quote Quick reply to this message
Old 01-27-2012, 12:42 AM   #4
centex99
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2011
Location: Buda, TX
Posts: 214
Liked 4 Times on 4 Posts

Default

Shanks and faucets from inside with foam insulation... I used the taped insulation and added duct tape around the edges to keep the foam in better and clean it up. Its all attached with double side tape...


Picture of the foam with temperature sensor coming into keezer...


Outside with faucets and handles...


Side panel with additional handle/towel rack...


Rear of freezer... I painted this with flat black spray paint...rest of black was chalkboard paint... the flat black spray paint is smooth.. the rest has a slight texture to it.


Ebay temperature controller and wiring...

__________________
centex99 is offline

Reply With Quote Quick reply to this message
Old 01-27-2012, 06:33 AM   #5
nofriendsbz3
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2011
Location: oceanside, CA
Posts: 3
Default

where did you get the ball locks for so cheap at?

__________________
nofriendsbz3 is offline

Reply With Quote Quick reply to this message
Old 01-27-2012, 01:44 PM   #6
centex99
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2011
Location: Buda, TX
Posts: 214
Liked 4 Times on 4 Posts

Default

Beverage Elements... I had originally ordered 4... then I was well... lets get 4 more... now they're OOS... they may still have some broken handle (full circle) ones for $20 though....
The ones I got were a bit banged up here and there, but still hold pressure... I don't really care what they look like though as long as they work. And at ~$134 for 4 of them shipped, it wasn't too pricey.

__________________
centex99 is offline

Reply With Quote Quick reply to this message
Old 01-28-2012, 04:17 AM   #7
Jeebas
Feedback Score: 3 reviews

Jeebas's Avatar
Recipes

Join Date: Mar 2010
Location: Pittsburgh, Pennsylvania
Posts: 465
Liked 28 Times on 21 Posts
Likes Given: 1

Default

nice box joints!

__________________
Jeebas is offline

Reply With Quote Quick reply to this message
Old 01-29-2012, 03:07 AM   #8
centex99
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2011
Location: Buda, TX
Posts: 214
Liked 4 Times on 4 Posts

Default

Thanks... any suggestions on how/where to mount that secondary regulator? I'm not sure it'll fit on my collar... the gas lines going down may hit the freezer side unless I push it out a bit further... I do plan to install some sheet insulation... so perhaps sandwhich wood (outer) + insulation + board and it'd be extended over the kegs more... should work...
Or could possible mount to the lid bottom somehow...

__________________
centex99 is offline

Reply With Quote Quick reply to this message
Old 02-14-2012, 12:21 AM   #9
centex99
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2011
Location: Buda, TX
Posts: 214
Liked 4 Times on 4 Posts

Default

Updated with pictures...

__________________
In Primary: Nothing
In Keezer: Nothing
Up Next: TBD

My Keezer Build
centex99 is offline

Reply With Quote Quick reply to this message
Old 02-18-2012, 02:53 AM   #10
bowiefan
HomeBrewTalk 2012 Vendor Giveaway Participate
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2009
Location: Bowie Maryland
Posts: 473
Liked 7 Times on 7 Posts

Default

Saw rhis in your sig from the bottler thread.... nice build so far.
Don't sweat the gas line contact with the walls of the keezer, they will be fine. Just make sure to keep the beer lines away from the keezer walls and you will be golden. Just out of curiosity, why the primary/secondary regulator configuration instead of having three serving pressures? I have three regs in my keezer which are daiey chained through the high pressure gauge port. This allows me 2 beer pressures and a third regulator with a Y splitter for soda water and Bacardi/Coke premixed.

Ben
