Default My DIY Grainmill

Personaly I am not a big fan of multi roller malt mills.... seems they are hard to get setup "just right" and if you need to change your gap well.... everything needs to be cleared out, gap set, add grain and hope its where you want it...(ok ok I know thats a bit overdramatic lol) when I first started brewing I lived in southern ohio not to terribly far from listermanns(home of the phil mill and a bunch of other "phil" products) and I grew to love the simplicity of the Phil Mill's adjust on the fly abilities along with what I have always felt as a superiour crush compared to multi roller mills... then I moved a bit north and had to stop brewing for a spell... Now I am back into brewing but unfortunatly Listermanns is just to far of a drive and well the phil mill hasnt been made since like 2008/2009... so I setout to make a single roller mill similiar to the phill mill just bigger(ok alot bigger)

basics
Roller
2"diameter X 4.5" long
Crushplate is made from 1/8 steel plate
Frame is 1/4" thick 4x5" steel tubing
bosses are welded on 1/4 inch plate
and bushings and such is bearing bronze

and a few pics of the build!!

Roller Stock

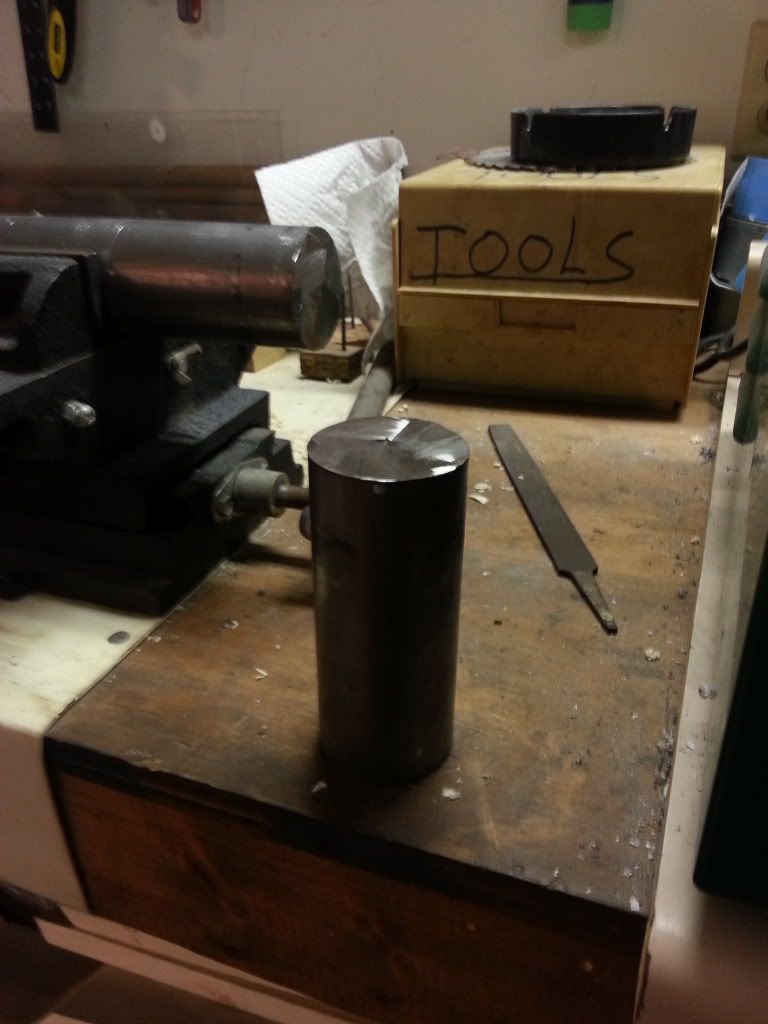

rough cut to length


Rough Frame and Roller


Roller ends faced and small recess machined for the face of the bushings


Bronze bushing being turned and then parted from the bronze stock


bosses welded to the box to add alittle more support for the bushings(I KNOW I suck at welding LOL they are ugly as sin but its a strong weld )


welds cleaned up a bit


holes bored for bushings and shafts


then there was the general facing, drilling and threading for the shafts and knurling of the roller... shaping and cutting the crushplate.. and all the other odds and ends of drilling holes tapping for screws etc etc... honestly I kinda got into a groove and forgot to take pics of most of it but this is what I ended up with





and the most important part... the crush


as you can see almost completly intact hulls and the grain itself is seperated from the hulls and pulverized with very little flour... and this thing is a beast.... the one complaint anyone really ever had about the original phil mill is it was slower then the multirollers...... this bigger single roller mill is fast....and I mean FAST next time I brew I will make a video of the grain crushing to show how fast it is

__________________
Quote:
Originally Posted by Laughing_Gnome_Invisible View Post
I'm smoking a fag right now. My neighbours can see, and I just don't care. They stopped me having fags in bars, but I'll be damned if they will stop me having fags in the privacy of my own home.
michaelm is offline

Reply With Quote Quick reply to this message
Old 02-26-2013, 11:10 PM   #2
microbusbrewery
Senior Member
Feedback Score: 0 reviews

microbusbrewery's Avatar
Recipes

Join Date: Jan 2011
Location: West Jordan, UT
Posts: 1,095
Liked 86 Times on 66 Posts
Likes Given: 42

Default

That's pretty awesome and I'm glad to see there's someone that's a worse welder than me

Seriously though, nice job. That looks like it will last a lifetime and your crush looks great too.

__________________
http://www.microbusbrewery.org/
microbusbrewery is offline

Reply With Quote Quick reply to this message
Old 02-26-2013, 11:11 PM   #3
Beer_is_good_for_you
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2010
Location: Bothell, WA
Posts: 106
Liked 12 Times on 9 Posts
Likes Given: 26

Default

Cool idea, I like it. I've been trying to figure out how I want make my mill, but hadn't thought of using a single roller.

__________________

"Once, during Prohibition, I was forced to live on nothing but food and water." W.C. Fields

Beer_is_good_for_you is offline

Reply With Quote Quick reply to this message
Old 02-26-2013, 11:18 PM   #4
AnOldUR
fer-men-TAY-shuhn
Feedback Score: 0 reviews

AnOldUR's Avatar
Recipes

Join Date: Mar 2007
Location: New Jersey
Posts: 6,031
Liked 530 Times on 387 Posts
Likes Given: 405

Default

Great innovation, but this picture made my sides hurt from laughing.
But it doesn't take much after a few beers.


__________________
Sent from my POS computer because I refuse to own a smartphone!
AnOldUR is offline

Reply With Quote Quick reply to this message
Old 02-26-2013, 11:33 PM   #5
michaelm
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2009
Location: Franklin,Ohio
Posts: 142
Liked 2 Times on 1 Posts

Default

Quote:
Originally Posted by AnOldUR View Post
Great innovation, but this picture made my sides hurt from laughing.
But it doesn't take much after a few beers.


LOL I promise I didnt file through the bar....(it took long enough with a chop saw...) I always have a few files laying around and about.... and the box labled tools is an old file box I used to use when I was a bench tech for a electronics company its full of half used sand papers and emery cloth now
__________________
Quote:
Originally Posted by Laughing_Gnome_Invisible View Post
I'm smoking a fag right now. My neighbours can see, and I just don't care. They stopped me having fags in bars, but I'll be damned if they will stop me having fags in the privacy of my own home.
michaelm is offline

Reply With Quote Quick reply to this message
Old 02-27-2013, 12:17 AM   #6
EZCyclone
Feedback Score: 0 reviews

EZCyclone's Avatar
Recipes

Join Date: Jan 2013
Location: Ames, Iowa
Posts: 255
Liked 26 Times on 21 Posts
Likes Given: 14

Default

Hmm, I have been thinking about making a mill myself but never thought of a single roller. I guess that's cause I have never seen one! It really crushes the grain enough for a good efficiency? I may have to think seriously about going this route instead of the tripple roller I was going to build. I'm glad you used 2" hot roll, I'm going to use 2" myself but both I and the supplier are out of 2" hot roll. So I guess i will use CR instead.

__________________

Just hittin rocks with hammers, it's how we do it.
~~~~
Galactic Geonauts Brewing Co.
http://www.facebook.com/pages/Galact...577265?fref=ts
Come say hi on Facebook and "like" the effort!

In fermentors: 8 batches of beer and 3 batches of wine
In Bottles: Chocolate Stout, Hoppy Wheat Amber, Tripple IPA, Red Beer, Malty Goodness, Heffe, Cider

EZCyclone is offline

Reply With Quote Quick reply to this message
Old 02-27-2013, 12:29 AM   #7
acidrain
Feedback Score: 3 reviews
Recipes

Join Date: Jul 2012
Location: Central Cascadia, Washington
Posts: 1,452
Liked 112 Times on 98 Posts
Likes Given: 25

Default

Great job! You've inspired me... I've been thinking about doing this exact project.

__________________

Keg #1: Empty
Keg #2: Cascadian Stout
Keg #3: Bavarian Hefeweizen

Fermenter #1 Thor's Hammer

Superbowl champions.

acidrain is offline

Reply With Quote Quick reply to this message
Old 02-27-2013, 12:37 AM   #8
lumpher
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2009
Location: texas
Posts: 4,515
Liked 118 Times on 107 Posts
Likes Given: 15

Default

really nice. looks like a perfect crush, too. too bad i suck at that kinda stuff. my jsp mill works great, but might be going out of round soon. i bet yours will never do that

__________________

Taps:
1: Yeti RIS clone
2: Mangrove Hefe
3: Barkshack Gingermead
4: Oatmeal Stout
5: Bavarian Wheat
6: Premium Lager

Fermenting: Concord Wine, ESB

lumpher is offline

Reply With Quote Quick reply to this message
Old 02-27-2013, 12:45 AM   #9
mattd2
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2009
Location: Papamoa, New Zealand
Posts: 3,386
Liked 233 Times on 190 Posts
Likes Given: 41

Default

How does the roller assemble into the frame? Are the axles screwed in after the roller is in position?
Looks good!

__________________
My DIY grain mill
First AG mini-BIAB
mattd2 is offline

Reply With Quote Quick reply to this message
Old 02-27-2013, 01:14 AM   #10
michaelm
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2009
Location: Franklin,Ohio
Posts: 142
Liked 2 Times on 1 Posts

Default

Quote:
Originally Posted by EZCyclone View Post
Hmm, I have been thinking about making a mill myself but never thought of a single roller. I guess that's cause I have never seen one! It really crushes the grain enough for a good efficiency? I may have to think seriously about going this route instead of the tripple roller I was going to build. I'm glad you used 2" hot roll, I'm going to use 2" myself but both I and the supplier are out of 2" hot roll. So I guess i will use CR instead.
Imho the crush is as good if not better then multi roller setups.. its also super easy to adjust.. you just tweak the crushplate with the thumbscrew to adjust.. dont even have to stop the mill...

Quote:
Originally Posted by acidrain View Post
Great job! You've inspired me... I've been thinking about doing this exact project.
I always loved the original phil mill so when I couldn't even find a used one I just decided to make it bigger

Quote:
Originally Posted by mattd2 View Post
How does the roller assemble into the frame? Are the axles screwed in after the roller is in position?
Looks good!
Yup the shafts are 1/2 tool steel threaded 1/2 x 20 (well the drive shaft is. .. I got lazy and used a grade 8 1/2 x 20 bolt for the other shaft... a hardened grade 8 bolt is plenty tough enough for the job) the roller ends was trued in the lathe then bored and tapped then the shafts where made on the lathe then I threaded the shafts to the roller chucked it back into the lathe and trued the face of the roller to the shafts then knurled the roller..

The crush plate is not flat.. its curved to fit the face of the roller giving a longer crush area as well... will take a pic of the bottom and post it.. it shows the curved crushplate and simple gap adjust better
