Is there any way you can post your wiring diagram? I'm wondering if somehow I wired it incorrectly, creating less torque?

Mine operates fine in forward and reverse, but as I said, it jammed very easily.

I was using some very old grain, but I doubt that should matter.

__________________
On Tap: Surly Furious, Belgian Trippel, Da Yoopers Pale Ale, Chocolate Lager, Wee too Heavy (barrel aged Scottish), Belgian Barrel Aged Barleywine, Simcoe Pale Ale, Galaxy/Nelson Sauvin IIPA, Broken foot Pilsner, Da Yooper's Oatmeal Stout

Bourbon Barrel
Kegged:

Fermenting Gumballhead with Nelson Sauvin

on Deck: Dogfish Head Indian Brown Clone, Ocktoberfast Ale, Rodenbach Clone.

StMarcos

Recipes

Used a belt/sheave with the 3d for years, but I like my current setup more:

Duckfoot

Recipes

__________________
On deck : DFB Triple Black Death By Chocolate Stout
Primary: Notta...
Secondary: 21 Year Mead...
Kegged : DFB Belgian Pale, DFB Brown, DFB Belgian Dark Strong, DFB Cider...
------------------------------------------------------

Lilrascal

Recipes

This is the diagram I used: http://www.homebrewtalk.com/f51/capacitor-motor-mill-wiring-help-220505/index4.html#post2784126

__________________
Dinky Dog Brewing
My Keezer Build

Dgonza9

Recipes

I upgraded my motor to a bodine gear motor with 120 in/lbs of torque. Cost more, about $150 on ebay. Was brand new, though. But it works fantastic. Easily started up with 20lbs in the hopper already. Milled 32 lbs of grain for today's brew day.

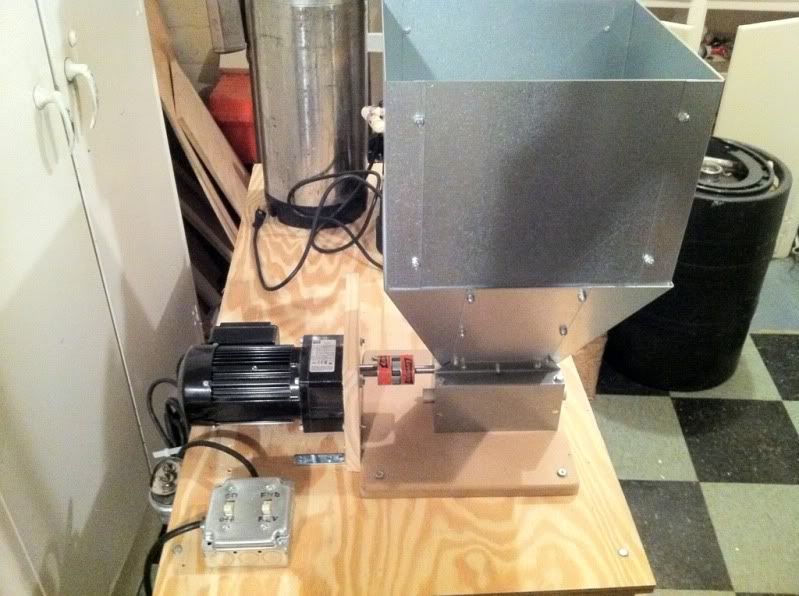

I'm glad the 40 in/lb motor worked for you. But I'd caution others to try that motor with a 3 roller mill anyway. My only problem was torque. I had mine wired the same as yours, so who knows what the difference was. Maybe the capacitor on mine wasn't working properly. Anyway, here's a pic of my new mill setup.

__________________
On Tap: Surly Furious, Belgian Trippel, Da Yoopers Pale Ale, Chocolate Lager, Wee too Heavy (barrel aged Scottish), Belgian Barrel Aged Barleywine, Simcoe Pale Ale, Galaxy/Nelson Sauvin IIPA, Broken foot Pilsner, Da Yooper's Oatmeal Stout

Bourbon Barrel
Kegged:

Fermenting Gumballhead with Nelson Sauvin

on Deck: Dogfish Head Indian Brown Clone, Ocktoberfast Ale, Rodenbach Clone.

ultra_

Recipes

Hey guys?
did anyone make there rollers? could i make some from hard wood on a lathe and use some oil? or would there be problems with that
Also are the drill driven ones enough??
Thanks guys

rico567

Recipes

I think you'll find there was a reason why grain used to be ground by mill "stones" and not mill "logs." That stuff is going to be so abrasive that it will erode the hardest wood in short order.

__________________
“Malt does more than Milton can / To justify God’s ways to man”

-A. E. Housman (1859–1936). A Shropshire Lad , 1896.

ultra_

Recipes

good point
what about using 2 marble rolling pins?
could make a cheap mill

pola0502ds

Recipes

Here is a picture of my mill.

Take a look a the picture, I have a lot of you have the same motor and I have a question.

Have you add any problems with the motor jambing because you have to much grain in the hopper. I do all the time. I wonder if I need to close up the exit portion of the hopper to limit how much grain hits the rollers at once.

P-J

Recipes

Which direction are you running the motor when milling CCW or CW?

Reason I'm asking is the Gear Motor 5-1098 is designed to run CCW (viewed from the wiring end). If run CW it has far less torque available.

And another thought. If you got this Gear Motor 5-1074 it has far less torque available in either direction as well as a much lower speed.
