Default Mini fridge temp controller?

I want to hard wire a controller into my mini-fridge kegerator, I am not so keen on the wiring of controllers, so I need some help.

I am looking to wire either a love or auber controller to regulate temps in my kegerator. I am leaning towards the love controller because it is smaller and all I need tocontrol is the temp for a kegerator.

I am working with the Frgidaire model #445GM I want o wire this into the fridge, and place the display in the door, I do not want to wire this into the power supply/plug and plug it ito the wall.

Can ayone provide any help?

__________________
follow me @ Broken Glass Brewery

Okham's Razor - simplest explanation is usually the correct one.

My DIY Kegerator - My DIY Fermentation Chamber - My DIY Portable Pump Box
Schnitzengiggle is offline

Reply With Quote Quick reply to this message
Old 04-15-2010, 11:38 AM   #2
evandy
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2008
Posts: 79
Default

I took a look on the Frigidaire website for the schematic for your fridge, but it looks like the model number you gave may be incorrect.

Essentially, what you want to do is to follow the wires of the temperature sensor back into the guts of the fridge. Somewhere, they will encounter the thermostat. You want to unplug the thermostat and have your temperature controller directly control power to your compressor. If you're lucky, there is already a relay in place to do this and you won't have to touch 120V.

By the way, if size is your main concern, Auber does make a 1/32 DIN unit that's pretty small. It might suit your needs.

__________________
evandy is offline

Reply With Quote Quick reply to this message
Old 04-17-2010, 04:59 AM   #3
Schnitzengiggle
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: Tucson, AZ
Posts: 2,664
Liked 29 Times on 22 Posts
Likes Given: 16

Default

Quote:
Originally Posted by evandy View Post
I took a look on the Frigidaire website for the schematic for your fridge, but it looks like the model number you gave may be incorrect.

Essentially, what you want to do is to follow the wires of the temperature sensor back into the guts of the fridge. Somewhere, they will encounter the thermostat. You want to unplug the thermostat and have your temperature controller directly control power to your compressor. If you're lucky, there is already a relay in place to do this and you won't have to touch 120V.

By the way, if size is your main concern, Auber does make a 1/32 DIN unit that's pretty small. It might suit your needs.
I do like the Auber PID's, but the Love's are a little more cosmetic, for this purpose,IMHO.

BTW, the full Model#FRC445GM.
__________________
follow me @ Broken Glass Brewery

Okham's Razor - simplest explanation is usually the correct one.

My DIY Kegerator - My DIY Fermentation Chamber - My DIY Portable Pump Box
Schnitzengiggle is offline

Reply With Quote Quick reply to this message
Old 04-21-2010, 11:24 PM   #4
Schnitzengiggle
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: Tucson, AZ
Posts: 2,664
Liked 29 Times on 22 Posts
Likes Given: 16

Default

If anyone else would like to chime in, I'd appreciate it!

__________________
follow me @ Broken Glass Brewery

Okham's Razor - simplest explanation is usually the correct one.

My DIY Kegerator - My DIY Fermentation Chamber - My DIY Portable Pump Box
Schnitzengiggle is offline

Reply With Quote Quick reply to this message
Old 04-22-2010, 12:45 AM   #5
ClaudiusB
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: El Paso, Texas
Posts: 1,272
Liked 58 Times on 50 Posts
Likes Given: 111

Default

Quote:
If anyone else would like to chime in, I'd appreciate it!
I did a small cube fridge conversion with a Love controller, very easy to do.

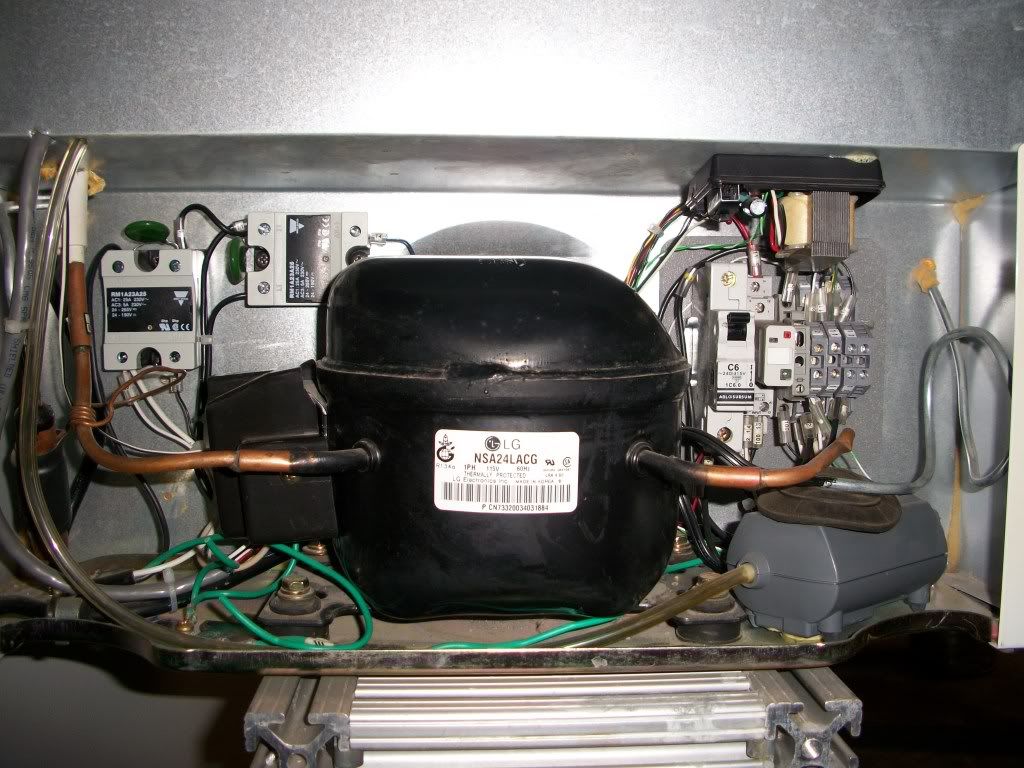

As you can see from the second picture I added a lot of parts for my conversion, not required for your setup.
Send me a PM.

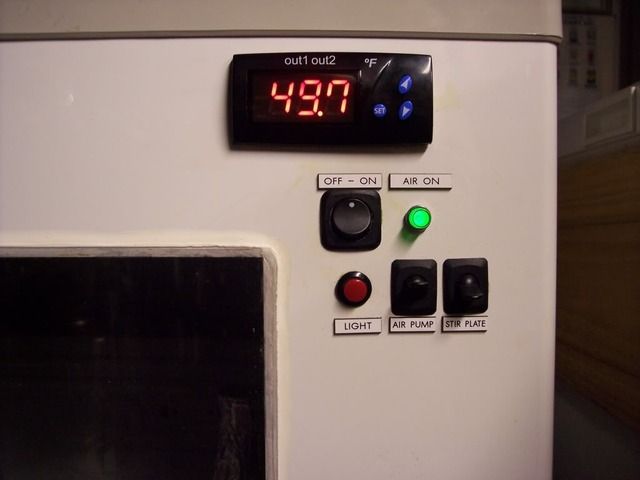

Love controller cover
