Default Mash Tun Upgrades!

Tonight Caspio came over with a keg of his Hefeweizen and brazing torch to work on some brew equipment. I've been meaning to upgrade my single copper tube manifold on my MLT, so I figured why not build a fly sparge manifold at the same time? And really, what goes better with a few pints of homebrew than a blowtorch, magma hot solder, and power tools?!

First, pics of the manifold for the bottom of the MLT:

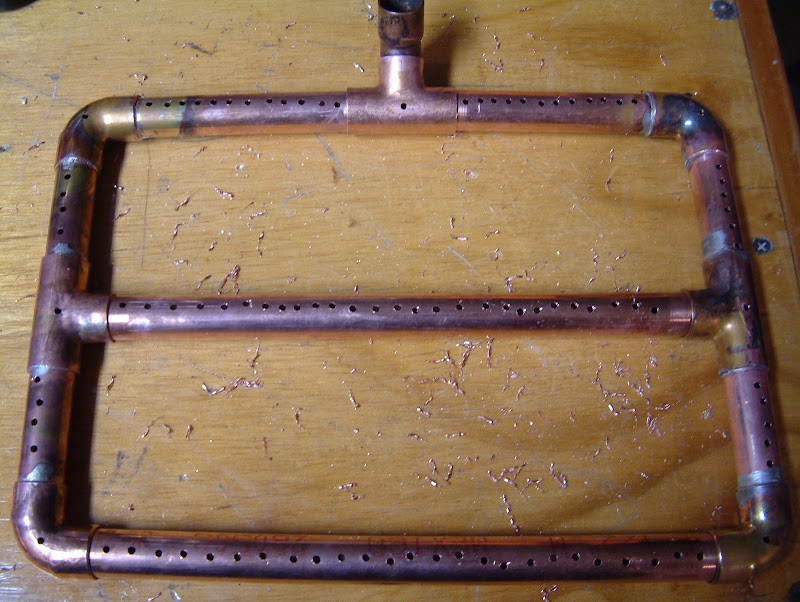

Drilling a bunch of 3/32" holes in the bottom of the manifold for adequate draining. A big upgrade in surface area and total coverage than my old single copper tube.



And here, proof that I did at least some of the work. Soldering up the fly sparge manifold in an "H" pattern:

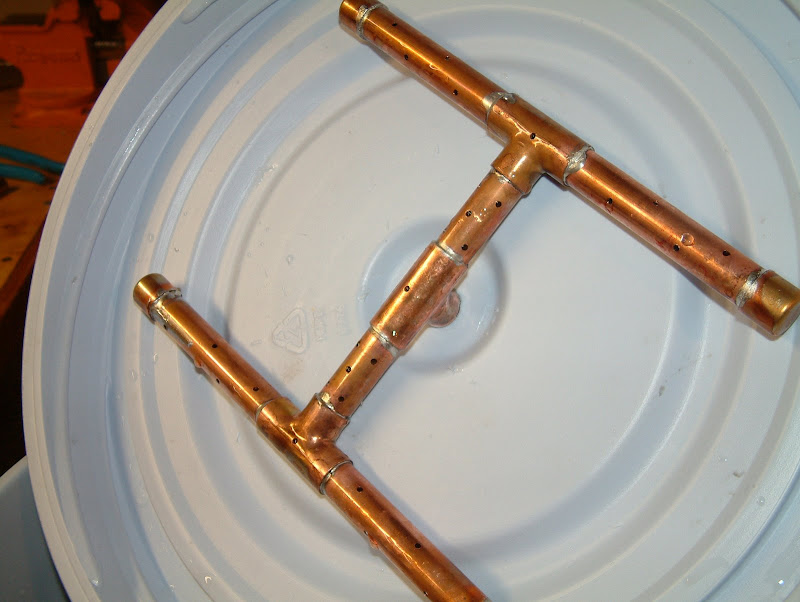

Not so random holes drilled in this piece. I drilled holes at an angle and staggered them to achieve an even flow over the top of the grainbed. Or at least that's the idea...we'll see what happens.



__________________

Fermenting: ESB
Kegged: Extra IPA, Brown Ale, American Wheat, Blackheart Stout
Coming Up: Dunkleweizen, 3C Pale Ale


DIY Fermentation Chamber
More Brew Stuff
TwoHeadsBrewing is offline

Reply With Quote Quick reply to this message
Old 01-22-2009, 06:24 AM   #2
TwoHeadsBrewing
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2008
Location: Chico, CA
Posts: 3,930
Liked 26 Times on 25 Posts
Likes Given: 2

Default

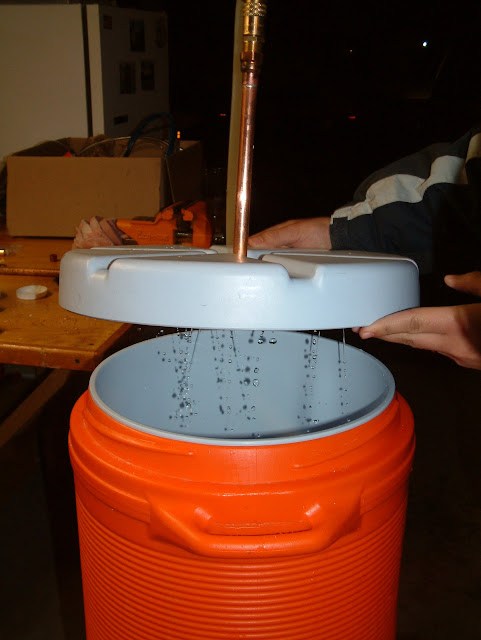

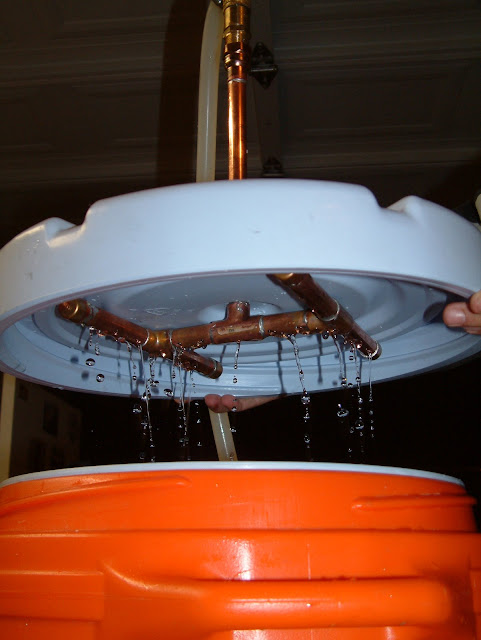

At Caspios suggestion I gave the top tube a long length of 9". This will enable me to adjust the height of the manifold depending on the grainbed depth. I also added a SS hose clamp so once I find the proper height for a given brew, I can tighten it down and lock it into place.

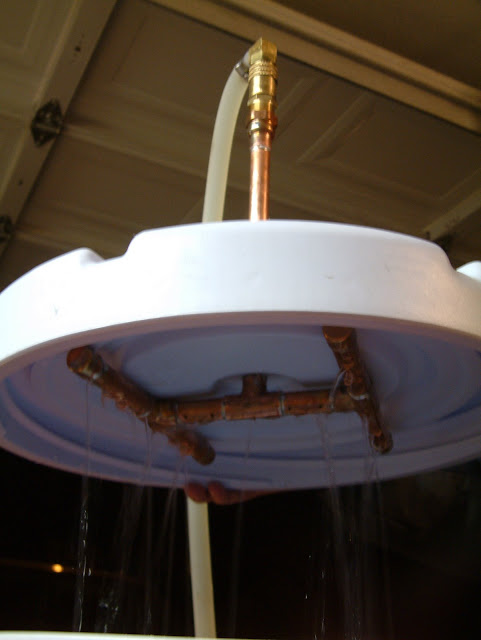

I'll be using a march pump in this setup, so I have a male quick disconnect mounted on the top of the intake post. This makes it easy to pump in from the HLT, and gravity drain out to the boil kettle.


Not bad for a nights' work!
