Default March Pump Toolbox Build

I recently got a March Pump 815 (with a cord with a plug). I have seen a few toolbox builds and was gonna try something like that myself. I had been looking at http://brewing.lustreking.com/gear/portapump.html specifically as it was pretty simple.

Quote:
Next I wired each of the black wires to the gold screws on the switch, both of the green wires to the green screw on the switch, and tied both white wires together with a wire nut
Is there any reason I couldn't just skip the "use an extension cord" part, and just cut the included cord a few inches from the pump, wire it like above? Not that extension cords are really expensive or anything, I was just curious.

Also, how does one remove the Part 14 from the motor.. hex key?

Thanks for the time.
Jeebas is offline

Reply With Quote Quick reply to this message
Old 04-28-2012, 07:35 PM   #2
krazydave
Feedback Score: 1 reviews
Recipes

Join Date: Aug 2010
Location: Santa Clarita, California
Posts: 872
Liked 24 Times on 22 Posts
Likes Given: 3

Default

No reason you couldn't cut the existing cord. I think the main advantage to an extension cord is that it gives you more length to play with if your power outlet isn't right where you're brewing.
I made the cord on mine about 15-20' just for that reason.

__________________
krazydave is offline

Reply With Quote Quick reply to this message
Old 05-15-2012, 02:54 PM   #3
Jeebas
Feedback Score: 3 reviews

Jeebas's Avatar
Recipes

Join Date: Mar 2010
Location: Pittsburgh, Pennsylvania
Posts: 465
Liked 28 Times on 21 Posts
Likes Given: 1

Default

OK so I am trying to recreate what was done here - http://brokenglassbrewing.blogspot.com/2011/05/pump-projekt.html

I ordered the same power inlet used - Leviton 4937 (http://www.amazon.com/gp/product/B00074USHY) and tried to follow the wiring diagram for it found here - http://www.platt.com/CutSheets/Leviton/4937%20Wiring.pdf

And wired it like the following wiring diagram (i just threw this together in five minutes i know it looks like crap - the red circles are splices with wire nuts). It doesn't seem to be getting any power when I plug in an extension cord (to the switch or the outlet even) Any help would be greatly appreciated!

Jeebas is offline

Reply With Quote Quick reply to this message
Old 05-15-2012, 03:13 PM   #4
Duckfoot
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2008
Location: Dürty Soüth, GA
Posts: 1,375
Liked 5 Times on 5 Posts

Default

Assuming you have tested for voltage on the inlet lugs with a meter? Next place to check would be the lugs on the line side of the GCFI.

Has the GCFI been tested and reset?

__________________

On deck : DFB Triple Black Death By Chocolate Stout
Primary: Notta...
Secondary: 21 Year Mead...
Kegged : DFB Belgian Pale, DFB Brown, DFB Belgian Dark Strong, DFB Cider...
------------------------------------------------------

Quote:
Originally Posted by Timberwolf View Post
Non-Alcoholic beer is like going down on your cousin, it might taste the same but it just ain’t right!
Duckfoot is offline

Reply With Quote Quick reply to this message
Old 05-15-2012, 04:18 PM   #5
Jeebas
Feedback Score: 3 reviews

Jeebas's Avatar
Recipes

Join Date: Mar 2010
Location: Pittsburgh, Pennsylvania
Posts: 465
Liked 28 Times on 21 Posts
Likes Given: 1

Default

Quote:
Originally Posted by Duckfoot View Post
Assuming you have tested for voltage on the inlet lugs with a meter? Next place to check would be the lugs on the line side of the GCFI.

Has the GCFI been tested and reset?
I have one of these - http://www.acetoolonline.com/ProductDetails.asp?ProductCode=KLE-NCVT-1&utm_source=googlebase&utm_medium=cpc&utm_term=Kl einNcvt1NonContactVoltageTester&utm_content=KleinN cvt1NonContactVoltageTester&utm_campaign=googlebas e&site=google_base&gclid=CPrmjZvYgrACFSWFQAodGEgXD Q

Could I use that to test the screws on the back of the inlet?
Jeebas is offline

Reply With Quote Quick reply to this message
Old 05-15-2012, 06:41 PM   #6
krazydave
Feedback Score: 1 reviews
Recipes

Join Date: Aug 2010
Location: Santa Clarita, California
Posts: 872
Liked 24 Times on 22 Posts
Likes Given: 3

Default

Ideally you should use a multi-tester. That thing is really only meant to show if there's power there or not. Most people just use those to test if there's power to a receptacle.

Your wiring diagram looks correct.
It almost sounds like you're not getting a good connection from your cord to the inlet or something. I would start there and make sure the power is even making it past your inlet connector first.

__________________
krazydave is offline

Reply With Quote Quick reply to this message
Old 05-17-2012, 01:17 PM   #7
Jeebas
Feedback Score: 3 reviews

Jeebas's Avatar
Recipes

Join Date: Mar 2010
Location: Pittsburgh, Pennsylvania
Posts: 465
Liked 28 Times on 21 Posts
Likes Given: 1

Default

So I undid all of the wiring, turns out I was a little sloppy and using stranded wire didn't help.

Then redid the inlet -> GFCI with solid 14 gauge wire and it still wouldn't work. Then I remembered finding a GFCI that my wife must have bought years ago in our toolbox, so I tried that one - and bingo!

I still have to wire the GFCI to the switch and then the switch to the (significantly shorter) cable running from the pump itself, but I think the problem was a faulty GFCI - $15 I am definitely taking that back to Home Depot.

__________________
Coffin Keezer List

My Keezer Build

Plate Chiller Setup

March Pump Toolbox Build
Jeebas is offline

Reply With Quote Quick reply to this message
Old 05-21-2012, 03:05 PM   #8
Jeebas
Feedback Score: 3 reviews

Jeebas's Avatar
Recipes

Join Date: Mar 2010
Location: Pittsburgh, Pennsylvania
Posts: 465
Liked 28 Times on 21 Posts
Likes Given: 1

Default

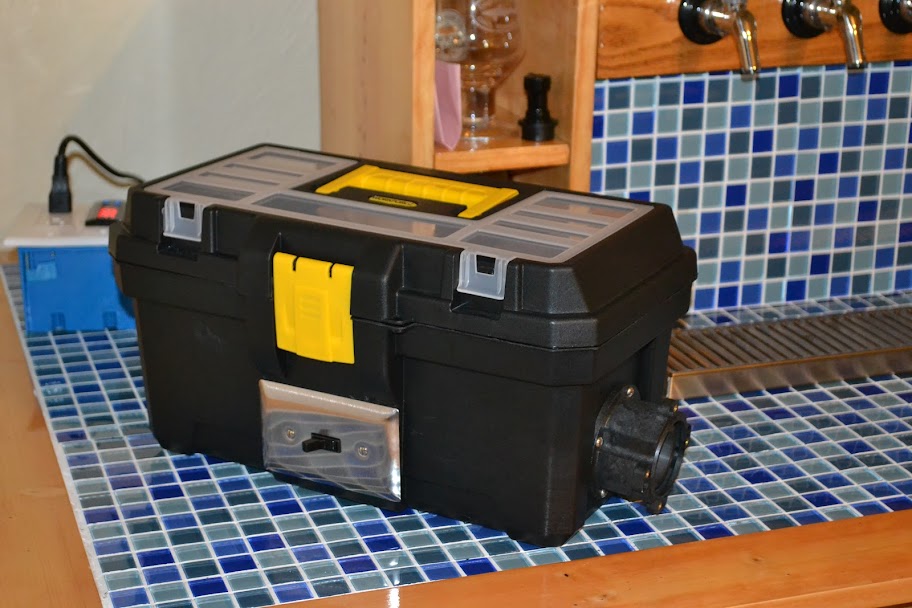

I rewired everything and got a smaller pvc box to cover up the NM wire spliced to the shorter pump power cord - I figure I shouldn't have exposed splices anywhere. It all fits neatly within the toolbox that I got. I may have to cut holes in the tray if I want it to fit, but I don't think that's too important.

I will post pics and a parts list tonight / tomorrow for anyone who is interested.

__________________
Coffin Keezer List

My Keezer Build

Plate Chiller Setup

March Pump Toolbox Build
Jeebas is offline

Reply With Quote Quick reply to this message
Old 05-22-2012, 09:01 PM   #9
Jeebas
Feedback Score: 3 reviews

Jeebas's Avatar
Recipes

Join Date: Mar 2010
Location: Pittsburgh, Pennsylvania
Posts: 465
Liked 28 Times on 21 Posts
Likes Given: 1

Default

I found the wire on the power cord for the pump to be a bit tough to work with - maybe it was just because this is the first wiring project that I have taken on - so I picked up some 14/2 NM-B to use instead. Note that this parts list does not include the March Pump itself or any fittings for the pump head.

Parts List







__________________
Coffin Keezer List

My Keezer Build

Plate Chiller Setup

March Pump Toolbox Build
Jeebas is offline

Reply With Quote Quick reply to this message
Old 05-22-2012, 10:29 PM   #10
krazydave
Feedback Score: 1 reviews
Recipes

Join Date: Aug 2010
Location: Santa Clarita, California
Posts: 872
Liked 24 Times on 22 Posts
Likes Given: 3

Default

Looks nice and clean! Very nice!
