Default keezer conversion - what do I need?

I've got all of my kegs and most of my fermenters full now so I need to get back to this project. I've been just opening the lid using party taps to this point and bumping the CO2 hose from keg to keg as needed. I've already ordered my faucets. I actually have 2 CO2 tanks because I want to keep one in the keezer and one for carbing, cleaning, and backup. What materials am I going to need other than the collar build? I'm going to start with a 6 way manifold and see if I can live with one pressure for all beers for a while. I'm assuming I'll need beer and gas line. Should I buy this in a 50' spool, measure and get by the foot, buy pre-made lines with hardware already on them? What hardware will I need? Obviously I need 6 gas and beer line ball lock disconnects because this is a 6 keg system. What about hardware for mounting the faucets and installing and connecting to the shanks? Does anyone have a method of running the lines that they think would work best for this setup? I'm connecting the collar to the lid so that the faucets swing up when I open it but still want to have the lines out of the way so that it's easy to swap out kegs. Are wingnuts much more convenient than hexnuts? What else am I forgetting here?

__________________
Belmont is offline

Reply With Quote Quick reply to this message
Old 04-23-2009, 01:37 PM   #2
Joe C
Feedback Score: 0 reviews
Recipes

Join Date: May 2008
Location: Gate City
Posts: 1,104
Liked 1 Times on 1 Posts
Likes Given: 2

Default

Let's see...
-Collar
-Taps
-Shanks
-tailpieces and nuts
-Beer line
-Bulk beer line
-Bulk co2 line
-quick disconnects
-6-way manifold

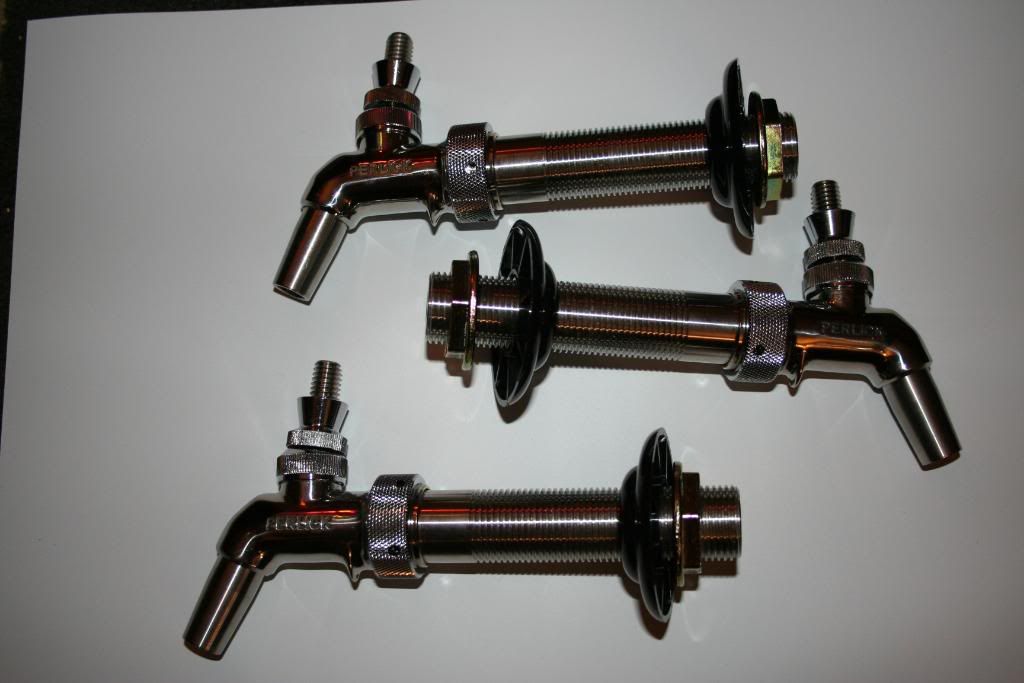

The tap is held to the collar by the shank. The tightest fit (if its a normal sized shank) is 7/8" or 1" bore. The shank has a nut on the back which tightens the tap onto the collar. Here's a picture of the shank attached to the tap:


As for running the beer line, that's completely up to you. I plan on running mine very soon, so if you check out my thread (in my signature) it may help out.

__________________
Sláinte
Quote:
Originally Posted by thataintchicken View Post
Apfelwin does not play well with others. In fact, Apfelwein runs with scissors and yells obscenities at it's classmates :)
Project Monsterator! Click here for a howto on building a keezer! And how to ruin one!

Support a Brewing Soldier!
Joe C is offline

Reply With Quote Quick reply to this message
Old 04-23-2009, 02:04 PM   #3
Belmont
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: Spring, TX
Posts: 247
Liked 1 Times on 1 Posts

Default

what do you need to connect beer line to shank?

__________________
Belmont is offline

Reply With Quote Quick reply to this message
Old 04-23-2009, 02:25 PM   #4
Belmont
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: Spring, TX
Posts: 247
Liked 1 Times on 1 Posts

Default

I'm also looking at this manifold but can't figure out what hardware I need to connect the CO2 lines to it.

6 Port CO2 air manifold with 1/4" flare (threaded) fittings, shutoff valves and check valves: www.kegkits.com

__________________
Belmont is offline

Reply With Quote Quick reply to this message
Old 04-23-2009, 02:36 PM   #5
beerthirty
big beers turn my gears
Feedback Score: 0 reviews

beerthirty's Avatar
Recipes

Join Date: May 2008
Location: Phoenix AZ
Posts: 2,651
Liked 25 Times on 12 Posts

Default

Beer line to the shank is done with the barbed tail piece and nut assembly.
co2 line to manifold is done with a barbed flare nut and a hose clamp.
In both instances the line is installed onto the barb and clamped. the then the nut is tightened down. Make sure you slide the clamp and nut onto the line(facing the right direction) before installing the line to the barb. Then slide the nut into position and install the clamp.

__________________
Quote:
Originally Posted by the_bird View Post
"I've got a fever... and the only prescription is, MORE CARBOYS!"
primary- Tangerine Dream, SWMBO slayer,
serving- amber ale hop experiment #6, Roggenbier, apfelwine
planning- Cru?
conditioning- 9/9/09 barleywine
Drink water?... Never, fish fornicate in it.--- W.C. Fields
Most problems can be solved with the proper application of force.
beerthirty is offline

Reply With Quote Quick reply to this message
Old 04-23-2009, 03:53 PM   #6
Belmont
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: Spring, TX
Posts: 247
Liked 1 Times on 1 Posts

Default

Does this shopping list cover it? Going to two different places because of the particular manifold and regulator that I want.

Manifold – 6 Port CO2 air manifold with 1/4" flare (threaded) fittings, shutoff valves and check valves: www.kegkits.com
Beer line - Clear 3/16" ID Beer line (BIB tubing): www.kegkits.com
CO2 line - Clear 5/16" ID CO2 line (BIB tubing): www.kegkits.com
¼” swivel nut hose adapter for each end of CO2 line(12) - Stainless Steel 1/4 Swivel Nut X 3/8 Adapter: www.kegkits.com
¼” kit for beer line to disconnect(6) - 1/4" Barb Stem, Nut & Washer assembly: www.kegkits.com
Gas disconnect(6) - Ball Lock gas disconnect - 1/4" flare fitting: www.kegkits.com
Beer disconnect(6) - Ball Lock Liquid Disconnect - 1/4" Flare: www.kegkits.com

Shanks with hardware - BeverageFactory.com
CO2 regulator - Draft Beer Co2 Regulator - Premium, Double Gauge | BeverageFactory.com
Line clamps(24) - Worm Drive Hose Clamps for 3/16" or 5/16" ID Vinyl Beer Line Tubing | BeverageFactory.com

__________________
Belmont is offline

Reply With Quote Quick reply to this message
Old 04-23-2009, 06:08 PM   #7
beerthirty
big beers turn my gears
Feedback Score: 0 reviews

beerthirty's Avatar
Recipes

Join Date: May 2008
Location: Phoenix AZ
Posts: 2,651
Liked 25 Times on 12 Posts

Default

I think you have it covered. A couple things I noticed, the reg is on back order at least until tomorrow. Those are some pricey hose clamps. Have you priced them at Lowes or Home Depot? IIRC a contractor pack(10) runs about $3. If you are stretching 3/16 line over 1/4" barbs, you probably won't need clamps. Just trying to do this can be a battle in itself. I use hot water to soften the line and heat the barb then install it. Some will argue that they can taste the plastic but I get my gas and bev line from Lowes and it has served me very well at a fraction of the cost. For the beverage lines there are calculators out there that will tell you how much line is need to reduce foaming. I just used 10 ft per faucet and coil the extra up. Check my gallery for what it looks like. Everything is out of the way for loading and unloading. The small fan blows over the temp probe and circulates air inside for more stable temps without stratification.

__________________
Quote:
Originally Posted by the_bird View Post
"I've got a fever... and the only prescription is, MORE CARBOYS!"
primary- Tangerine Dream, SWMBO slayer,
serving- amber ale hop experiment #6, Roggenbier, apfelwine
planning- Cru?
conditioning- 9/9/09 barleywine
Drink water?... Never, fish fornicate in it.--- W.C. Fields
Most problems can be solved with the proper application of force.
beerthirty is offline

Reply With Quote Quick reply to this message
Old 04-23-2009, 06:15 PM   #8
Belmont
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: Spring, TX
Posts: 247
Liked 1 Times on 1 Posts

Default

So where would I find the lines in Lowe's/HD and what would they be called? I was wondering about the length of the lines. I was hoping to be able to cut them to fit but I guess then I'd have some lines longer than others and have varying amounts of foam(maybe not a bad thing varying for style). Guess I need to figure this out too.

__________________
Belmont is offline

Reply With Quote Quick reply to this message
Old 04-23-2009, 06:19 PM   #9
Belmont
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: Spring, TX
Posts: 247
Liked 1 Times on 1 Posts

Default

I wish I could see those pics better. It's hard to see your setup in the gallery. You don't have these posted anywhere else in full size do you?

__________________
Belmont is offline

Reply With Quote Quick reply to this message
Old 04-23-2009, 07:40 PM   #10
beerthirty
big beers turn my gears
Feedback Score: 0 reviews

beerthirty's Avatar
Recipes

Join Date: May 2008
Location: Phoenix AZ
Posts: 2,651
Liked 25 Times on 12 Posts

Default

sorry I was still learning how to have another site host Those are the only pics I have at the moment. You will find the line in the plumbing section. DO NOT use ice maker line, it doesn't have the burst strength. The gas line is 1/4 ID braided and the beer line is 3/16 clear poly. As posted in the previous post I use 10 ft of bev line and coil up the extra (in the open keezer lid pic you can see the three coils on the the left with just enough line left loose to reach the kegs) I've been looking for my camera that I misplaced last week. If I can find it I will replace the pics of the keezer.

__________________
Quote:
Originally Posted by the_bird View Post
"I've got a fever... and the only prescription is, MORE CARBOYS!"
primary- Tangerine Dream, SWMBO slayer,
serving- amber ale hop experiment #6, Roggenbier, apfelwine
planning- Cru?
conditioning- 9/9/09 barleywine
Drink water?... Never, fish fornicate in it.--- W.C. Fields
Most problems can be solved with the proper application of force.
beerthirty is offline

Reply With Quote Quick reply to this message
