Default Just finished my sculpture!

Well this project took on a life of it's own! What started out as the desire to get back in to grain brewing evolved in to what you see here! First time I've ever welded and am very happy with the way it turned out . My original intent was to make it from SS, but not being familiar with welding and the fear of ruining $300+ in SS lead me to use regular steel, but as a compromise I figured I'd put a cool paint job on it!

I'd like to thank the HBT community for all the ideas and inspiration and all the HBT vendors and supporters, almost everything was built with their products:
Tri-Clovers from Swagman - Beautiful fittings and his service was over the top!
Bargain Fittings for many of the compression fittings and weldless valves
Chugger Pumps for the pumps
More Beer for so many things - kettles, chillers, fittings, hoses, attire
and
Brewer's hardware for the burner shields and stir plate.

As for the build, it's kind of a Brutus 10 but modified to meet the requirements of a 5 gallon system.

Steel is 1.5" square tube 14GA and if very robust. I don't see anyway that this thing would fail under a full load.

Horizontal pieces are what the called "hammered" to give the project a little visual appeal and vertical pieces are standard square tube.

One of my goals was to keep everything contained within the frame. I didn't want gas lines, burners, or any misc hanging outside the frame. I couldn't accomplish that with everything (pumps) but other than that everything is contained within the frame.

On a test run I didn't have the risers on top of the frame, the kettle sat directly on the frame. This created a couple concerns. It seemed like they burners could not really breath (although there were openings in the corners), I also observed the flames wrapping around the frame and I thought there might be some thermal stratification preventing me from getting the full efficiency from the burners. To address that, I welded some angle iron on to the top of the frame. This gave the burners enough room to breath and helped heat the kettles.

Enjoy and please PM me if you have any questions!

The project stated as a taped template on my garage floor!

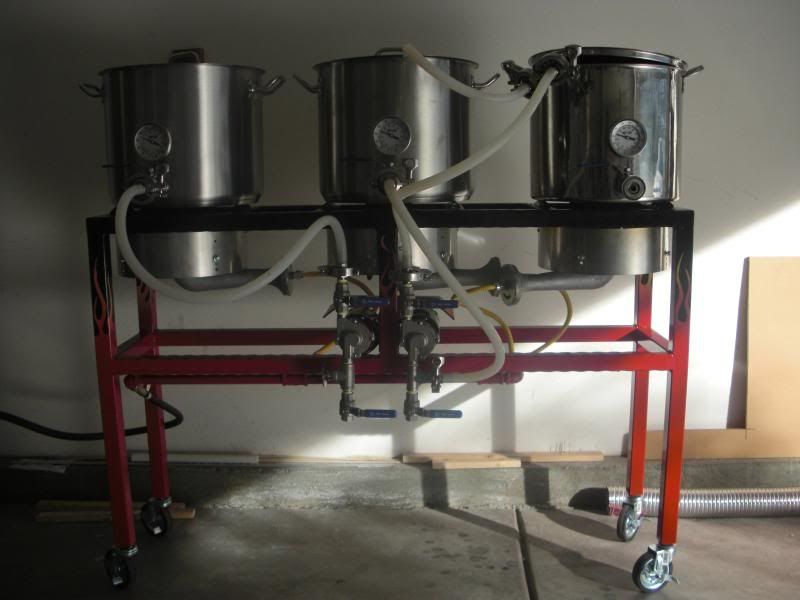

Finished project with kettles, pumps and hoses. Still need to do the electrical, but that will be easy



Pumps


__________________

Last edited by Chipster27; 11-04-2010 at 05:55 PM.
Chipster27 is offline

Reply With Quote Quick reply to this message
Old 11-04-2010, 05:24 PM   #2
Chipster27
Feedback Score: 1 reviews
Recipes

Join Date: Oct 2010
Location: So Cal, Ca
Posts: 101
Liked 1 Times on 1 Posts
Likes Given: 5

Default

Gas lines and burners








Of course there are flames! It has burners!


__________________
Chipster27 is offline

Reply With Quote Quick reply to this message
Old 11-04-2010, 05:25 PM   #3
Chipster27
Feedback Score: 1 reviews
Recipes

Join Date: Oct 2010
Location: So Cal, Ca
Posts: 101
Liked 1 Times on 1 Posts
Likes Given: 5

Default

The superfluous "artsy" shots


__________________
Chipster27 is offline

Reply With Quote Quick reply to this message
Old 11-04-2010, 05:29 PM   #4
celticcolorado
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: Centennial, CO
Posts: 269
Liked 3 Times on 3 Posts

Default

That is a work of art!!! Amazing.

__________________
celticcolorado is offline

Reply With Quote Quick reply to this message
Old 11-04-2010, 05:38 PM   #5
buzzkill
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: Green Country Oklahoma
Posts: 987
Liked 20 Times on 20 Posts
Likes Given: 15

Default

I love the dented sides. A+++

__________________
buzzkill is offline

Reply With Quote Quick reply to this message
Old 11-04-2010, 05:43 PM   #6
SweetSounds
Feedback Score: 1 reviews
Recipes

Join Date: Jan 2010
Location: Des Moines, Iowa
Posts: 1,429
Liked 17 Times on 16 Posts
Likes Given: 4

Default

Congratulation on a beautiful build!

How does the beer taste?

__________________
Quote:
Originally Posted by Ecnerwal View Post
What does the primary pressure gauge on the tank tell us? That's right, the temperature. Put it on a scale if you want to know how much is in it...
Put some duct tape over the gauge - Or better yet - Replace the high pressure gauge with a plug - High pressure gauges are useless!
SweetSounds is offline

Reply With Quote Quick reply to this message
Old 11-04-2010, 06:00 PM   #7
PantsOffBrewing
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2009
Location: Seattle
Posts: 52
Liked 2 Times on 1 Posts

Default

Those dented sides are sweet.

It looks really tall, is there a reason for that?

__________________
PantsOffBrewing is offline

Reply With Quote Quick reply to this message
Old 11-04-2010, 06:17 PM   #8
Chipster27
Feedback Score: 1 reviews
Recipes

Join Date: Oct 2010
Location: So Cal, Ca
Posts: 101
Liked 1 Times on 1 Posts
Likes Given: 5

Default

Quote:
Originally Posted by celticcolorado View Post
That is a work of art!!! Amazing.
Thanks
Quote:
Originally Posted by SweetSounds View Post
How does the beer taste?
LOL, it will probably taste the same as it did when I was brewing with a HDPE mashtun and a single turkey fryer burner but it will look cool
Quote:
Originally Posted by PantsOffBrewing View Post
It looks really tall, is there a reason for that?
Yea it might be a little tall, I'll brew for the first time tomorrow or Sat and will get a feel for the height. I liked the height as I was building it, then added the wheels and that brought it up a little higher than I think I would like. Worst case I can cut the legs down and re-weld the wheels on without taking away from the paint job or functionality of it
__________________
Chipster27 is offline

Reply With Quote Quick reply to this message
Old 11-04-2010, 06:18 PM   #9
tasq
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2010
Location: Denver, Colorado
Posts: 582
Liked 12 Times on 12 Posts
Likes Given: 11

Default

Looks awesome!

__________________
The Keg Ran Out Club
Broomfield, Colorado
http://www.kroc.org/
tasq is offline

Reply With Quote Quick reply to this message
Old 11-04-2010, 06:22 PM   #10
Jaysus
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2008
Location: H'burg, PA
Posts: 956
Liked 24 Times on 22 Posts
Likes Given: 79

Default

That's hot
