Default I swear this is my last fermentation chamber idea/build!

So after numerous failed, somewhat successful, and stupid ideas and attempts at fermentation control (see HERE and HERE and HERE), I have decided to do the damn thing right.

I am building a wooden box, lined with rigid foam panel insulation, and a window AC unit with thermostat bypassed mounted in the far end, with ebay temperature controller, in order to ferment up to four 5 gallon batches at a time.

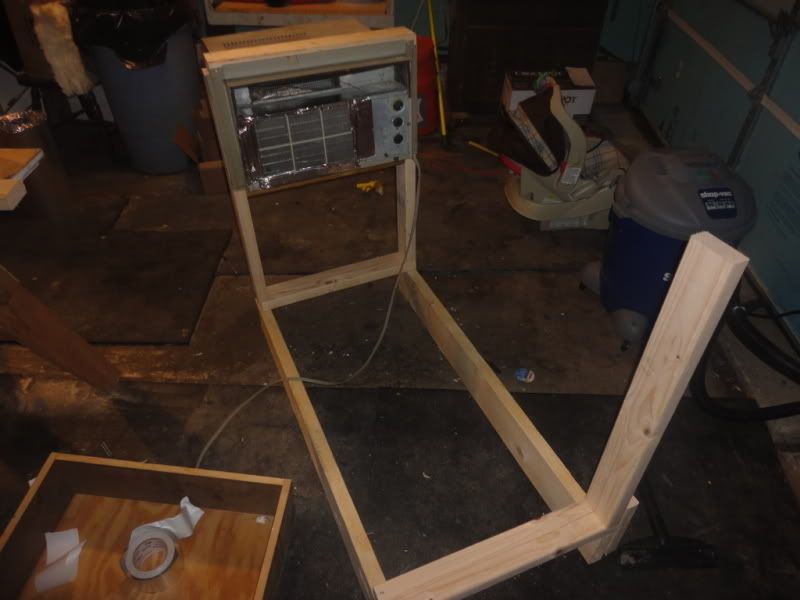

I started the framing today with some 2x4 and 2x6's I had in the garage. Here's where I am at so far:

__________________
ADD ME on GOOGLE+
Primary: Nugget Nectar 2014
Kegged:

Bottled:
Bulk Aging:
Up Next: ???? Suggestions?
kpr121 is offline

Reply With Quote Quick reply to this message
Old 07-23-2011, 12:13 AM   #2
hops2it
Feedback Score: 0 reviews
Recipes

Join Date: May 2011
Location: Des Moines, IA
Posts: 423
Liked 22 Times on 22 Posts
Likes Given: 43

Default

Good start for sure. Look forward to the progress pics.

__________________
hops2it is offline

Reply With Quote Quick reply to this message
Old 07-23-2011, 04:00 AM   #3
kpr121
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2009
Location: Pittsburgh, PA
Posts: 2,754
Liked 59 Times on 56 Posts
Likes Given: 57

Default

Thanks. I'm hoping this all turns out okay. My underbar DIY kegerator has been holding at 38 deg F for over a year now (a minifridge with about double the cooling size, see sig), but fermentation temperatures have always been an issue for me. This chamber will initially go in the garage. Today it was 94 out and the temperature in the garage did not go above 80. There is a good amount of insulation on the walls so temps stay pretty consistent. Im thinking the chamber will not need to run very often for normal ale temperatures (lagers may be another story). If so, and the unit kicks out too much heat I may end up building a manifold that vents heat to the outside. I hope I don't have to do that.


FYI the AC was manufactured in 1988 and puts out 5000 BTU. The chamber I am building is approximately 48 in wide x 25 inches deep x 30 inches tall (interior dimensions). I plan on using 6 inches of fiberglass batting on the bottom, and 2 inches of rigid polystyrene foam on the walls and ceiling. The inside will hopefully be sealed up and skinned with FRP paneling, and the outside will be bare or cheap layered ply.

Those are the big plans. Who knows how far they will go.... we shall see!

__________________
ADD ME on GOOGLE+
Primary: Nugget Nectar 2014
Kegged:

Bottled:
Bulk Aging:
Up Next: ???? Suggestions?
kpr121 is offline

Reply With Quote Quick reply to this message
Old 07-26-2011, 01:25 AM   #4
kpr121
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2009
Location: Pittsburgh, PA
Posts: 2,754
Liked 59 Times on 56 Posts
Likes Given: 57

Default

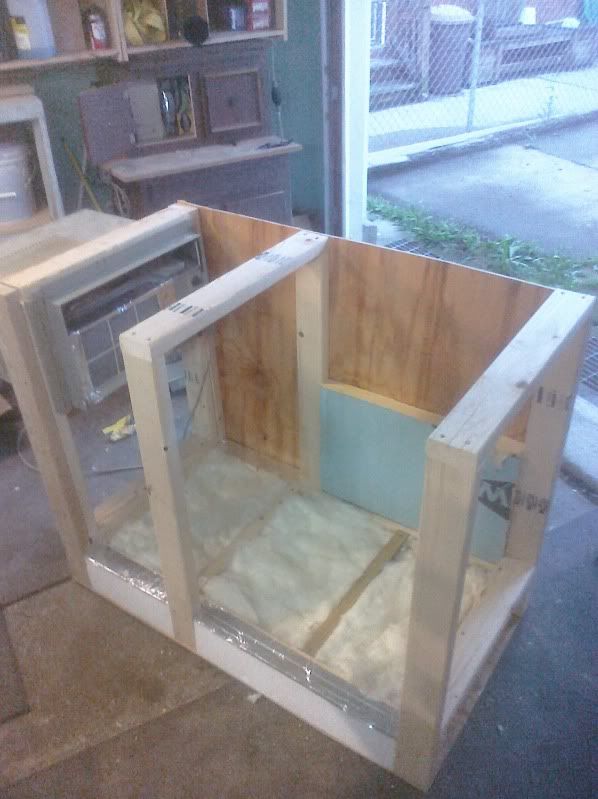

Heres a progress pic. Got some of the outside sheathing, the bottom floor insulation, and the door (not pictured) done.

__________________
ADD ME on GOOGLE+
Primary: Nugget Nectar 2014
Kegged:

Bottled:
Bulk Aging:
Up Next: ???? Suggestions?
kpr121 is offline

Reply With Quote Quick reply to this message
Old 07-26-2011, 02:43 AM   #5
BetterSense
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2011
Location: Richardson, Texas
Posts: 977
Liked 45 Times on 35 Posts
Likes Given: 3

Default

That should work perfectly. Good idea if you have an AC unit around.

__________________
BetterSense is offline

Reply With Quote Quick reply to this message
Old 07-26-2011, 03:02 AM   #6
kpr121
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2009
Location: Pittsburgh, PA
Posts: 2,754
Liked 59 Times on 56 Posts
Likes Given: 57

Default

Yepp, I will probably keep 2-3 fermenters in there at a time, and two cases of beer being aged. Can't wait to not have to worry about changing ice every day. It will also be nice being able to ferment in the same general area that I brew. Its amazing how lazy a homebrewer can get.

__________________
ADD ME on GOOGLE+
Primary: Nugget Nectar 2014
Kegged:

Bottled:
Bulk Aging:
Up Next: ???? Suggestions?
kpr121 is offline

Reply With Quote Quick reply to this message
Old 07-26-2011, 03:02 AM   #7
hops2it
Feedback Score: 0 reviews
Recipes

Join Date: May 2011
Location: Des Moines, IA
Posts: 423
Liked 22 Times on 22 Posts
Likes Given: 43

Default

Coming together.

__________________
hops2it is offline

Reply With Quote Quick reply to this message
Old 07-27-2011, 07:03 PM   #8
corwin6654
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2010
Location: Hillsboro, OR
Posts: 108
Default

I have an extra 5k BTU AC unit in the garage, and was thinking of doing the same thing. Except, I was also thinking about making it a little bigger and dividing in with an internal wall. On one side I would serve kegs, and I'd have a separate temp controller hooked to a fan in the divider wall that will blow cold air from the serving side to the other side I will use as a fermentation chamber. Interested to see if you can get lager/serving temps in yours to see if it will work. I was thinking of doing 5ft long X 3ft Wide X 3ft Tall. If I divide that I can probably fit 2 or 3 carboys in the fermentation side, and 5-6 kegs in the serving/lager side.

__________________
corwin6654 is offline

Reply With Quote Quick reply to this message
Old 07-27-2011, 07:12 PM   #9
kpr121
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2009
Location: Pittsburgh, PA
Posts: 2,754
Liked 59 Times on 56 Posts
Likes Given: 57

Default

Quote:
Originally Posted by corwin6654 View Post
I have an extra 5k BTU AC unit in the garage, and was thinking of doing the same thing. Except, I was also thinking about making it a little bigger and dividing in with an internal wall. On one side I would serve kegs, and I'd have a separate temp controller hooked to a fan in the divider wall that will blow cold air from the serving side to the other side I will use as a fermentation chamber. Interested to see if you can get lager/serving temps in yours to see if it will work. I was thinking of doing 5ft long X 3ft Wide X 3ft Tall. If I divide that I can probably fit 2 or 3 carboys in the fermentation side, and 5-6 kegs in the serving/lager side.
I have thought about maybe making a removable insulated baffle with temp controlled fan that I could put in there when I wanted to ferment lagers and ales at the same time.

I have no doubts I will be able to do this, but getting down to serving temps might be a bit harder. Just laying a few sleeping bags over the open areas last night I was able to get down to below 50 in about 10 minutes. I shut it off or else it probably would have gone lower. The problem you have when temps are that low is that the coolant coils want to freeze over if you do not keep air blowing over them.
__________________
ADD ME on GOOGLE+
Primary: Nugget Nectar 2014
Kegged:

Bottled:
Bulk Aging:
Up Next: ???? Suggestions?
kpr121 is offline

Reply With Quote Quick reply to this message
Old 07-27-2011, 08:51 PM   #10
corwin6654
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2010
Location: Hillsboro, OR
Posts: 108
Default

Yeah, but I was thinking of attaching fans to the A/C unit to keep air blowing over them. Check out this thread http://www.homebrewtalk.com/f51/webe...hamber-159239/. I basically want to do what this one did, but all in one box rather than two.
