Default hybrid electric brew kettle

I've got an idea...tell me if I'm being stupid....

I'm currently doing extract brewing in my kitchen. I started out with a smaller pot boiling 3 gallons and adding 2 gallons to make a 5 gallon batch, but my girlfriend got me a 32qt brew kettle for Christmas so i could do full 5 gallon boils. Here's the problem, my stove is old, and it take forever to get 5 gallons of water boiling.

I had the idea of adding an electric heating element to my brew kettle like This, but I live in an apartment and don't have a 240v circuit and don't really want to go through that much trouble, so i'm stuck with normal 120V outlets. I'm assuming that a 120V electric heating element wouldn't pack the punch to get things boiling, so there's no point in that......but what about together?

Rig up a 120V heating element to use as a boost to my crappy stove top?

picture of crappy stove

-------------------------------------------------------

Finally get to follow up on this post

I completed the modifications yesterday and brewed 2 batches with it. Everything went great

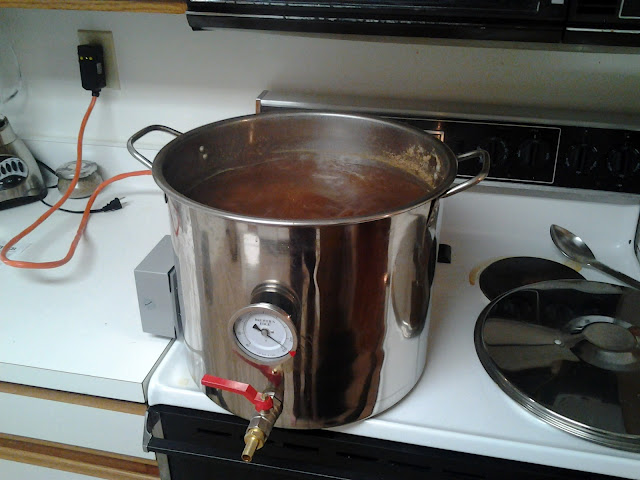

here she is in action


inside


outside


Basics
-Brewer's Edge 32-Quart Brewkettle
-Kettlevalve
-3/8" Kettlescreen for Kettlevalve
-Brewer's Edge Weldless Thermometer
Camco 02963 5500W 240V 14-Inch Screw in Lime Life Ripple Element Water Heater

-various other parts listed at The Electric Brewery

I basically followed the instructions from The Electric Brewery except i used a 120V GFCI plug. The only complaint i have is that the cord is too stiff. I'm going to have to replace that. I also want to put some high-temp paint on the outlet box to make it look better

as far as brewing technique, the only issue is that i don't think dumping LME into the pot would work to well, so what i do is heat up 2 gallons in my old kettle and mix in the LME with that and dump it into this pot and brew as normal. Without the heating element, my stove struggled to barely hold a boil. With it, I had the stove turned down to medium.

__________________
Lancer033 is offline

Reply With Quote Quick reply to this message
Old 01-05-2012, 02:03 PM   #2
djt17
Feedback Score: 0 reviews

djt17's Avatar
Recipes

Join Date: Apr 2009
Location: Central MN
Posts: 672
Liked 35 Times on 33 Posts
Likes Given: 349

Default

I use a 120V 1500W heatstick to assist my stove. It works great for full boils.

__________________
djt17 is offline

Reply With Quote Quick reply to this message
Old 01-05-2012, 02:30 PM   #3
Lancer033
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2011
Location: Norfolk, VA
Posts: 77
Liked 2 Times on 2 Posts
Likes Given: 15

Default

i should have done some more reading and searching 1st

How to make a Heat SitckLove Brewing Company
I think I'll modify this design a bit, but that should do it for me.

__________________
Lancer033 is offline

Reply With Quote Quick reply to this message
Old 01-05-2012, 03:03 PM   #4
xjncoguyx
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: Philly
Posts: 325
Liked 17 Times on 14 Posts

Default

Quote:
Originally Posted by Lancer033 View Post
i should have done some more reading and searching 1st

How to make a Heat SitckLove Brewing Company
I think I'll modify this design a bit, but that should do it for me.

Im glad you enjoy, that is my website.

I've actually since modified the design in that i changed the element. The smaller element worked fine for about a year or so, then when i went to make a pumpkin ale the pumpkin during the boil seemed to scorch and adhere itself to the element, thus burning up the element. I've since upgraded to a 240v 5500w ulwd(ultra low watt density) element. It is exactly the same wattage when run on 110v, but since it has a much larger surface area it is much gentler.

Prost!
__________________
xjncoguyx is offline

Reply With Quote Quick reply to this message
Old 01-05-2012, 03:29 PM   #5
Lancer033
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2011
Location: Norfolk, VA
Posts: 77
Liked 2 Times on 2 Posts
Likes Given: 15

Default

thank you for posting it.

I'm looking at this Camco heating element from amazon

and i was thinking about using a GFI plug instead of having to install a GFI outlet in the kitchen.

have any thoughts on that?

__________________
Lancer033 is offline

Reply With Quote Quick reply to this message
Old 01-05-2012, 05:15 PM   #6
Disintegr8or
Feedback Score: 0 reviews

Disintegr8or's Avatar
Recipes

Join Date: Dec 2011
Location: , FL
Posts: 257
Liked 22 Times on 14 Posts
Likes Given: 3

Default

Quote:
Originally Posted by Lancer033 View Post
thank you for posting it.

I'm looking at this Camco heating element from amazon

and i was thinking about using a GFI plug instead of having to install a GFI outlet in the kitchen.

have any thoughts on that?
Your Kitchen should already be on a GFCI, either at an outlet (just because the outlet your plugging into doesn't look like a GFCI, doesn't mean that the circuit isn't on a GFCI), or at the panel. If it isn't, I'd install a GFCI receptacle just for peace of mind when using other appliances in the Kitchen.

And I'm assuming since you've read other threads, the 220v element you listed won't run at 5,500w on 110.
__________________
Disintegr8or is offline

Reply With Quote Quick reply to this message
Old 01-05-2012, 05:28 PM   #7
Lancer033
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2011
Location: Norfolk, VA
Posts: 77
Liked 2 Times on 2 Posts
Likes Given: 15

Default

I'll double check to be sure about the kitchen, but i'd just like to be extra safe

correct, if i understand correctly it should be 1/4 of the watts at 1/2 the voltage so ~1375w

__________________
Lancer033 is offline

Reply With Quote Quick reply to this message
Old 01-05-2012, 07:06 PM   #8
dallasdb
Feedback Score: 3 reviews
Recipes

Join Date: Sep 2010
Location: Aurora, Colorado
Posts: 1,208
Liked 53 Times on 43 Posts
Likes Given: 17

Default

Quote:
Originally Posted by xjncoguyx View Post
Im glad you enjoy, that is my website.

I've actually since modified the design in that i changed the element. I've since upgraded to a 240v 5500w ulwd(ultra low watt density) element. It is exactly the same wattage when run on 110v, but since it has a much larger surface area it is much gentler.

Prost!
To clarify, you can run 240v on a 110v outlet?
__________________
dallasdb is offline

Reply With Quote Quick reply to this message
Old 01-05-2012, 07:21 PM   #9
Varroa
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2010
Location: Ottawa, Ontario
Posts: 185
Liked 2 Times on 2 Posts
Likes Given: 4

Default

No, but you are ran a 240v heating element off 120volts, it just produces less watts and less heat.

__________________
Primary #1: Hoppy LAN Party DIPA (>100 IBUs)
Primary #2: Irish Red
Primary #3: Belgian Trappist Pumpkin Ale
Primary #4:
Secondary:
Bottle/Kegged: Belgium Dubbel Blonde, Centennial Honey Blonde, Throwdown Oatmeal Stout, Throwdown Milk Stout, Festabrew Czech Pilsner, Hard Sparking cider On Deck: Varroa's Wee Scottish Heavy, hard sparkling cider
Varroa is offline

Reply With Quote Quick reply to this message
Old 01-05-2012, 07:29 PM   #10
shortyjacobs
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2009
Location: Twin Cities, MN
Posts: 2,511
Liked 29 Times on 29 Posts
Likes Given: 3

Default

Running a 240V element on 120V puts out 1/4 the wattage. So a 5500W element puts out 1125W. Better to run a 120V 1500W element, as you get more power!

Also, that camco ripp element is frigging huge...sure it'll even fit in your pot?

For ease of handling and use, I'd suggest much smaller.
Amazon High density element: http://www.amazon.com/Camco-2143-150...5795153&sr=1-2

Plumbing Supply Elements, including Low Density and Extra Low Density Incoly: Electric water heater elements, thermostats and faq's - PlumbingSupply.com

Get one of those, much better.

__________________
Itchy Dog Brewery.

(As of 10-24-2011)
Primary - Steppe 112 PA, 2x Monday RyePA
Aging - None :-(
On tap - Big Dog, Apfelwein, Steppe 112 PA

My invisible AG sculpture, with no actual sculpture and a tiny footprint.
My Kegerator goes offroading!
My Coors Home Draft dispenser for boating/beering on the go.
