Default how do I get nice blue SS welds, not oxidized ?

My TiG welds are always gray and oxidized. How do I get them to be a nice, clean, blue color ?

__________________

Getting back into brewing...

brewman ! is offline

Reply With Quote Quick reply to this message
Old 12-03-2012, 09:17 PM   #2
ryan_george
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2009
Location: Fergus, Ontario
Posts: 215
Liked 18 Times on 14 Posts
Likes Given: 6

Default

Not an expert here, but use less heat (or travel faster) and increase your argon coverage. Also make sure you're not melting through to the back side of the weld (if it's unshielded), which can also pull contaminants through to the front.

__________________
ryan_george is offline

Reply With Quote Quick reply to this message
Old 12-03-2012, 11:08 PM   #3
bluemoose
Feedback Score: 0 reviews

bluemoose's Avatar
Recipes

Join Date: Jun 2011
Location: , Vermont
Posts: 1,957
Liked 133 Times on 98 Posts
Likes Given: 5

Default

Back gas with argon.

__________________

Beer makes me pee.

bluemoose is offline

Reply With Quote Quick reply to this message
Old 12-03-2012, 11:18 PM   #4
sr20steve
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2012
Location: Discovery Bay, Ca
Posts: 103
Liked 12 Times on 9 Posts
Likes Given: 8

Default

Grey means too much heat input. If your welding thin SS, make sure your purge the backside of weld with argon, or use solar flux B to prevent sugaring of the weld. Using a gas lens and as big of a cup as you can get, and small diameter tungsten also really helps with thin stuff. I like to use 1/16" tungsten and filler. Also check your hoses for leaks as well because that can cause contamination. A good way to check if to strike a arc on a piece of SS in just one spot and let off the pedal keeping the torch directly over the spot untill the gas stops, the spot should be silver or a bit gold or you have a leak.

__________________
sr20steve is offline

Reply With Quote Quick reply to this message
Old 12-04-2012, 12:01 AM   #5
sr20steve
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2012
Location: Discovery Bay, Ca
Posts: 103
Liked 12 Times on 9 Posts
Likes Given: 8

Default

Also, there are few ways to control heat input I figure I will mention. Heat input is not always the problem of too much amps, it can also be from traveling to slow as well. It's normally better to use a higher amps and faster travel speed to achieve a weld with less heat. You can also use things like copper on the back of a weld to try and suck some of the heat out of the weld (if the joint will allow it).

__________________
sr20steve is offline

Reply With Quote Quick reply to this message
Old 12-04-2012, 03:03 AM   #6
Bluesfastduce
Feedback Score: 0 reviews

Bluesfastduce's Avatar
Recipes

Join Date: Apr 2012
Location: reno, nv
Posts: 40
Likes Given: 2

Default

If your welder can pulse it can help with to much heat

__________________
Bluesfastduce is offline

Reply With Quote Quick reply to this message
Old 12-04-2012, 03:49 AM   #7
brewman !
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2006
Posts: 1,227
Liked 14 Times on 13 Posts
Likes Given: 16

Default

Its not a problem of purging the back side because its happening even on thicker material. Here is a picture of a bead laid on 1/4" SS. There is no way it was penetrating through on that.



I don't think its a heat problem. On 0.100 wall SS, I am waiting for the puddle and waiting to add rod. Maybe I need to turn up the heat and move faster ?

I think it must be the nozzle on the torch. I'm using a #5 cup. Maybe I need a gas lens ?

__________________

Getting back into brewing...

brewman ! is offline

Reply With Quote Quick reply to this message
Old 12-04-2012, 04:11 AM   #8
brewman !
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2006
Posts: 1,227
Liked 14 Times on 13 Posts
Likes Given: 16

Default

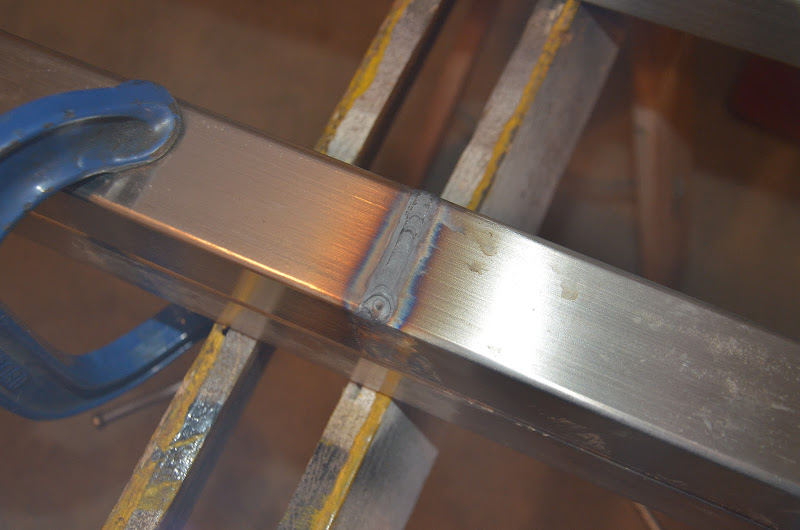

Here is another weld of mine.

__________________

Getting back into brewing...

brewman ! is offline

Reply With Quote Quick reply to this message
Old 12-04-2012, 04:27 AM   #9
brewman !
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2006
Posts: 1,227
Liked 14 Times on 13 Posts
Likes Given: 16

Default

Quote:
Originally Posted by sr20steve View Post
Grey means too much heat input. If your welding thin SS, make sure your purge the backside of weld with argon, or use solar flux B to prevent sugaring of the weld. Using a gas lens and as big of a cup as you can get, and small diameter tungsten also really helps with thin stuff. I like to use 1/16" tungsten and filler. Also check your hoses for leaks as well because that can cause contamination. A good way to check if to strike a arc on a piece of SS in just one spot and let off the pedal keeping the torch directly over the spot untill the gas stops, the spot should be silver or a bit gold or you have a leak.
Some good ideas here. Thanks.

I'm using a 1/16" electrode on the tubing. I'm probably going to step up to 3/32" to get a bit wider arc. Its focused too small with the 1/16" electrode.
__________________

Getting back into brewing...

brewman ! is offline

Reply With Quote Quick reply to this message
Old 12-04-2012, 01:18 PM   #10
ryan_george
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2009
Location: Fergus, Ontario
Posts: 215
Liked 18 Times on 14 Posts
Likes Given: 6

Default

I'd use a bigger cup (#8?) and turn up the argon flow a bit.
