Old 02-24-2012, 04:06 PM   #1
mysobry
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2011
Location: Ivrea, Italy
Posts: 81
Liked 15 Times on 8 Posts

Default Hot/cold fermentation cabinet with TEC (peltier) module

Ciao

Hi I’m an Italian Homebrewer and I got lot of my inspiration for my DIY project from the forum pages…In Italy the hombrewer community is far away from certain incredible realization but nevertheless I would like to share my experience in building a thermostatic fermentation chamber using TEC (peltier) module

The reason for such an approach are well known..

-No mechanical part with maintenance like normal compressor
-No hysteresis in switching on and off the engine
-Both cooling and heating capability
-Low Noise, compact size implementation

There are also many disadvantages starting from efficency…

The most attractive feature for me is the capability to drive the TEC module with a programmable electronic circuit that is capable to revert the polarity (h bridge circuit) and to modulate via PWM the power with a fine PID control. With this solution I’m able to cool or heat the chamber in a very effective way and try to have a constant range of temperature regardless external temperature (my cellar is very cool in winter and to hot in summer)

The TEC module was based on 4 x120W cells driven by 24V source PWM modulated. It has been assembled by myself adding 2 heat sink and 2 fan on both side.



The electronic circuit to drive the TEC module is passed on TeTech TC-36-25-RS232 that uses solid-state MOSFET devices in an electrical "H" bridge configuration to automatically control the direction of current simply based on the temperature set point. The controller can be communicated with and programmed directly through a personal computer’s RS232 serial communication port



Here you can find all the picture of the fermentation cabinet and the assembling

https://picasaweb.google.com/mysobry.picasa/CameraTermostaticaACelleDiPeltier?authuser=0&feat= directlink

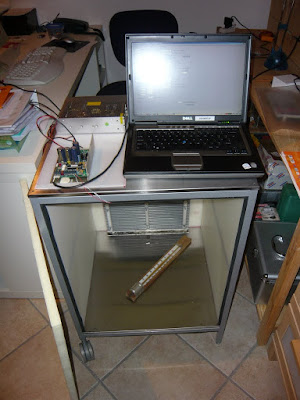

The cabinet is based on IKEA trolley …it’s stainless steal, robust, light and perfect for 50L fermentation bucket





For insulating I have used some polyurethane panel 2CM thick inserted in the cabinet frame connect with hot glue.





Than I have applied an external and internal thin plastic panel in order to further insulate and have an internal clean surface.



On the bottom I have inserted the TEC module opening a proper hole in the insulating panel





Finally I have sealed all the split with a specific foam



The top cover can be removed as well the front door kept on it’s own place with super magnet



I’m in the final stage and I have to insert in a proper enclosure the power supply and the control circuit as well a thermometer
I’ts not and AAA+ refrigerator but it looks nice ..isn’t it?





When everything is completed I will start to tune PID and software parameter and I will share the result in term of performance and stability
Any comment is off course appreciated.. sorry for my English !


Stay tuned
Davide

__________________
mysobry is offline

Reply With Quote Quick reply to this message
Old 02-24-2012, 04:57 PM   #2
thepartsmancometh
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2010
Location: central, IL
Posts: 389
Liked 20 Times on 20 Posts

Default

Cool project!

I have also thought about a peltier fermentation chamber but haven't ever done it. Your project looks very nicely constructed, and I look forward to hearing how it works!

__________________
thepartsmancometh is offline

Reply With Quote Quick reply to this message
Old 02-27-2012, 08:52 AM   #3
mysobry
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2011
Location: Ivrea, Italy
Posts: 81
Liked 15 Times on 8 Posts

Default some more pics

Some more pics and update of the final assembly with the electronic part.

Control panel wit 24V switching power supply, PID controller with H-bridge power circuit, digital potentiometer


Inside details with fan mounting



Back panel mounting



Final result , rear, front, top






Enjoy

Davide

__________________
mysobry is offline

Reply With Quote Quick reply to this message
Old 02-27-2012, 02:30 PM   #4
thelorax121
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2009
Location: Athens GA
Posts: 419
Liked 1 Times on 1 Posts
Likes Given: 1

Default

Great post! Have you fermented in it yet? How well does it keep temps?

__________________
thelorax121 is offline

Reply With Quote Quick reply to this message
Old 02-27-2012, 02:53 PM   #5
mysobry
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2011
Location: Ivrea, Italy
Posts: 81
Liked 15 Times on 8 Posts

Default

Quote:
Originally Posted by thelorax121 View Post
Great post! Have you fermented in it yet? How well does it keep temps?
not really yet...just tried with plain water...would like to tune PID parameter, sensor probe positioning, digital potentiometer mapping etc..

With 15L of water the system is stable and I have reached 8C (celsius) as lower temperature with 20-22 c external temp

will update with a real beer batch that produces hot during fermentation

regards
Davide
__________________
mysobry is offline

Reply With Quote Quick reply to this message
Old 02-27-2012, 03:02 PM   #6
rhamilton
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2011
Location: Austin, Texas
Posts: 1,257
Liked 64 Times on 53 Posts
Likes Given: 1

Default

Ahhhh peltier coolers. I did 3-4 science projects back in the day with them - really fun stuff if you can dissipate the heat on the backside fast enough.

Awesome build and thanks for the write up!

__________________
On Deck: Cornucopia Oktoberfest
Primary: Centennial Blonde v2, Ed Wort's Kolsch
Secondary: none
Kegged: County Jail Pale Ale, AHS Anniv IPA, AHS Brooklyn Brown, Raspberry Wheat, Blood Orange Hefe, Ranger IPA clone (x2), Newcastle clone, AHS Irish Red, Centennial Blonde
Bottled: Session Series Belgian Saison, Apocalypso, Pecan Porter, DFH 90 Minute Clone, Apfelwein (x2), Wytchmaker Rye IPA Clone, Vienna/Simcoe SMaSH, Munich/Cascade SMaSH
rhamilton is offline

Reply With Quote Quick reply to this message
Old 03-01-2012, 09:11 AM   #7
mysobry
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2011
Location: Ivrea, Italy
Posts: 81
Liked 15 Times on 8 Posts

Default power compsumption

Hi
Some more tests in order to monitor power consumption and avoid surprise in the electricity bill!

I have inserted on the power supply a basic device that allow to measure current and power (istant and max)
In the above example I have a set point of 16.1 and a measured temperature of 17.3 so the PID control uses all the fridge power (-100%) to drive the TEC module.
As result the consumption is 153W






Around the set point of course the PID reduces the power…in a range of +- 20% (it depends on many factor ..external temperature…set point…heat produced by fermentation..)…in my experiment I have measured a power around 50W for in a stable standard situation.





Anyway the worst case is 150W that is not so much also for a long period…maybe I can switch off a light in one room..but I don’t want to give up drinking a good beer !

Davide

__________________
mysobry is offline

Reply With Quote Quick reply to this message
Old 03-01-2012, 02:08 PM   #8
wyzazz
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2009
Location: Atwater, OH
Posts: 4,263
Liked 39 Times on 39 Posts
Likes Given: 48

Default

Very cool!

__________________
Quote:
Originally Posted by Revvy View Post
And I'd like to see my 1.080 beers ready from grain to glass in a week, and served to me by red-headed twin penthouse pets wearing garter belts and fishnet stockings, with Irish accents, calling me "master luv gun," but we can't always get what we want can we? :)
wyzazz is offline

Reply With Quote Quick reply to this message
Old 03-01-2012, 02:48 PM   #9
starsailor
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2008
Location: Central MA
Posts: 278
Liked 10 Times on 10 Posts
Likes Given: 1

Default

This is an awesome project. I really like the use of the cart and the reversable nature of the peltier devices to both heat and cool based on DC current direction. Do you have any schematics that you can share for the circuitry to build the control system?

A couple of thoughts came to me while reading your posts. One, that cart may not really be stainless steel because most magnets won't stick to most stainless. So, it may not be a corrosion resistant as you think. Two, that thin foam insulation just placed between the frame members many not prove to be very good insulation because the frame members themselves will thermally bridge the inside to the outside. I'd consider continuous layer of insulation on the outside to break up the thermal bridge and make the cabinet far more efficient because it's already efficiency challenged by the peltier devices.

__________________
On Tap: Apfelwein, SkeeterPee
Bottled: Robust Porter, Roasty Toasty Stout, Belgian Wit, Belgian Saison
Kegged: None
Primary: Rye-I-Brew Belgian Rye Saison
Secondary: None
On Deck: Wheat ale
RIP: BadBoy Wit, Wild Cider, Got Mild?x2, Wyeast Cider-2x, SO4 Cider, Wheat ale, Carnival Kölsch-2x, Am Pale Ale, Am Brown Ale, Dunkel Larger, Erik The Red, Newporter, Cream Ale, Bitter, Trapist Triple, Bourbon Oaked Porter, Gluteus Minimus(Gluten Free)-2x, English Brown

Wizards Homebrew Club
starsailor is offline

Reply With Quote Quick reply to this message
Old 03-01-2012, 08:10 PM   #10
mysobry
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2011
Location: Ivrea, Italy
Posts: 81
Liked 15 Times on 8 Posts

Default

Quote:
Originally Posted by starsailor View Post
Do you have any schematics that you can share for the circuitry to build the control system?
I have no a circuit design and details, I hva bought the controller ready made from a US manufacturer..there are few suppliers of this type of circuits.

http://www.tetech.com/Temperature-Controllers.html
The PID control is not a big issue..it's quite common in this type of applications..the power circuit is more complex..it includes PWM modulator and H-bridge power section. Than there is the control software that drives via RS232 the board and allow you to set the parameter.
In order to configure the set point I have selected the "potentiometer" option and I have used a "digital" 10Khom potentiometer from Bourns 3680 family

http://www.bourns.com/data/global/pdfs/3680.pdf


Quote:
Originally Posted by starsailor View Post
that cart may not really be stainless steel because most magnets won't stick to most stainless. So, it may not be a corrosion resistant as you think.
The frame is not stainless steel...I don't see any problem since you shouldn't have liquid in direct contact.

Quote:
Originally Posted by starsailor View Post
Two, that thin foam insulation just placed between the frame members many not prove to be very good insulation because the frame members themselves will thermally bridge the inside to the outside. I'd consider continuous layer of insulation on the outside to break up the thermal bridge and make the cabinet far more efficient because it's already efficiency challenged by the peltier devices.
please consider that inside the thin plastic foil (internal and external) you have 2cm insulating layer that perfectly insert into the frame.

I prefer this multilayer solution in order to keep the assembling clean and compact...in any case you will never reach AAA+ insultaion grade..

ciao
Davide
