Default Homebuilt Draft Tower (pics)

Some in progress photo's of my two post draft tower

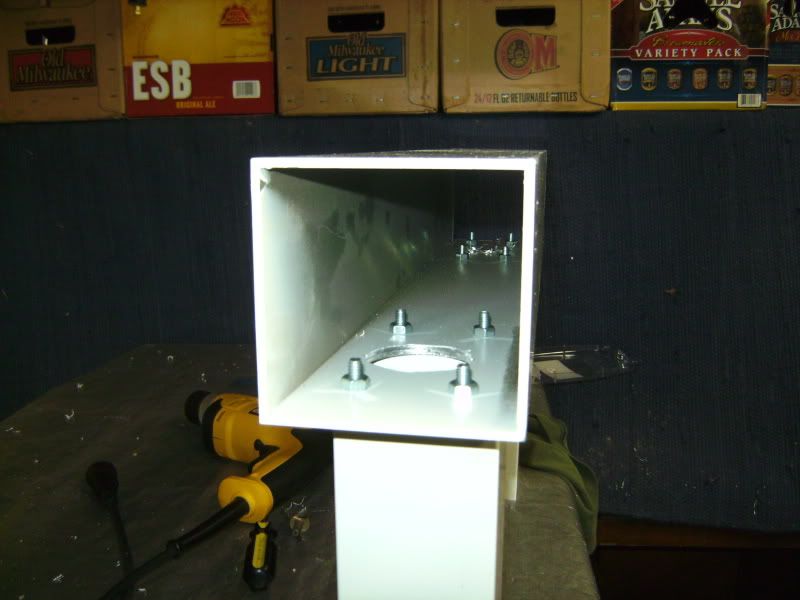

It uses 3x3 aluminum for the legs and 4x4 aluminum for the taps and brackets to hold them together


leg base bracket for easy attachment to a keezer lid

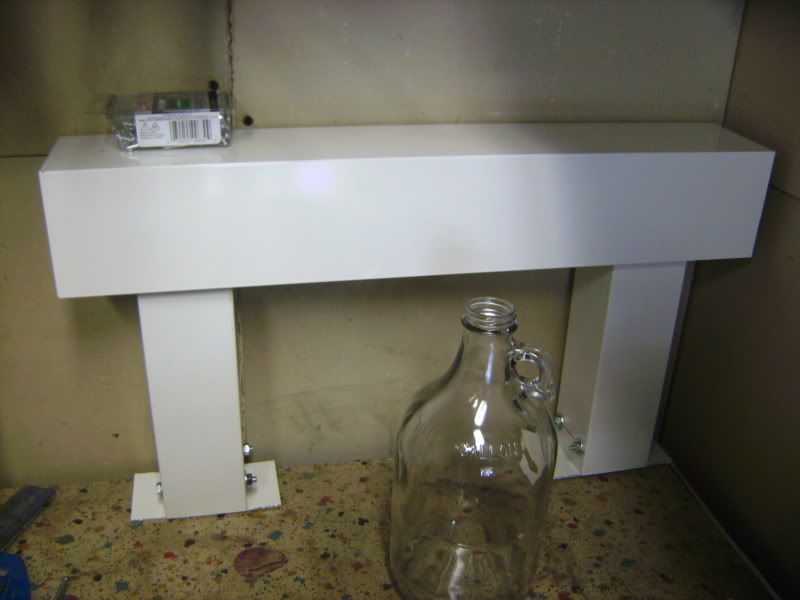

9" legs so I could easily fill a growler


partially assembled, leg brackets not shown

__________________
sjvicker is offline

Reply With Quote Quick reply to this message
Old 04-11-2009, 04:58 PM   #2
sjvicker
Feedback Score: 0 reviews
Recipes

Join Date: May 2008
Location: Des Moines, WA
Posts: 100
Default

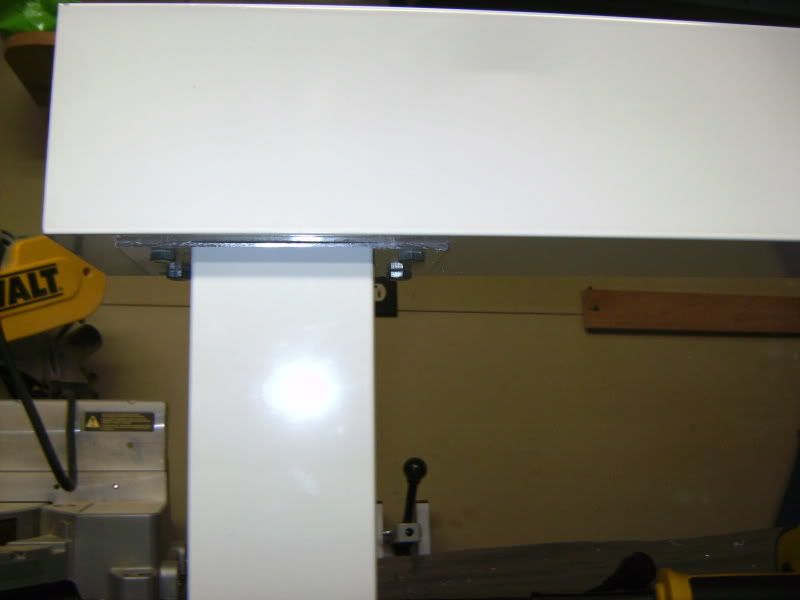

Decided to use bolts instead of rivets because I'll be able to disassemble it if I want and I like the industrial look. If the end product doesn't look good I'll build another using rivets. It's going to be tight getting the shanks in there but the end product will look better if the 4x4 is one solid piece.


bolts don't look too bad. If I do switch to rivets I'll still probably bolt the bottom of the legs to the brackets so the whole thing can be easily removed from the keezer.


End caps are going to be plastic and should be in the mail next week. I'm also considering altering the bracket so the leg sits flush with the 4x4.

What do you all think? It's not micromatic quality but then again it also doesn't cost 1k.

__________________
sjvicker is offline

Reply With Quote Quick reply to this message
Old 04-11-2009, 09:36 PM   #3
Hammy71
Senior Member
Feedback Score: 0 reviews

Hammy71's Avatar
Recipes

Join Date: Sep 2008
Location: , Maryland, The Tax Me State
Posts: 5,574
Liked 398 Times on 310 Posts
Likes Given: 602

Default

Looks great so far...as far as the bolts....only time someone will see 'em is if they're on the floor....by that point, who cares...LOL... Way to go..

__________________
Hammy71 is offline

Reply With Quote Quick reply to this message
Old 04-11-2009, 10:35 PM   #4
liquid_courage
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2009
Location: Maricopa
Posts: 7
Default

where did you find the posts

__________________
liquid_courage is offline

Reply With Quote Quick reply to this message
Old 04-11-2009, 10:36 PM   #5
liquid_courage
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2009
Location: Maricopa
Posts: 7
Default

looking good i think i may copy it for my set up

__________________
liquid_courage is offline

Reply With Quote Quick reply to this message
Old 04-12-2009, 02:32 AM   #6
CenCalWorthog
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2009
Location: Fresno, CA
Posts: 137
Default

Looking good so far. Is this a kit or just something you found and painted?

__________________
CenCalWorthog is offline

Reply With Quote Quick reply to this message
Old 04-12-2009, 04:19 PM   #7
sjvicker
Feedback Score: 0 reviews
Recipes

Join Date: May 2008
Location: Des Moines, WA
Posts: 100
Default

I was able to buy most of the parts through where I work and home depot. The end caps are coming from a plastic cap company.

__________________
sjvicker is offline

Reply With Quote Quick reply to this message
Old 04-12-2009, 04:46 PM   #8
indianaroller
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2008
Posts: 192
Liked 4 Times on 4 Posts

Default

Very nice!

__________________
indianaroller is offline

Reply With Quote Quick reply to this message
Old 04-12-2009, 05:31 PM   #9
sjvicker
Feedback Score: 0 reviews
Recipes

Join Date: May 2008
Location: Des Moines, WA
Posts: 100
Default



All that's left is to drill the shank holes, plug the ends and paint it.
__________________
sjvicker is offline

Reply With Quote Quick reply to this message
Old 04-29-2009, 05:55 PM   #10
Ketchepillar
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2007
Location: Albuquerque, NM
Posts: 239
Liked 2 Times on 2 Posts

Default

any updates on this? I would like to see the final product. And if you wanted to be really nice, a parts list, dimensions, schematics, things like that would be great.
