Old 01-28-2011, 05:15 PM   #21
Catt22
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2009
Posts: 4,998
Liked 57 Times on 55 Posts
Likes Given: 51

Default

FWIW, I have a dip tube installed and have no problems whatsoever with running or priming my mag drive pump. None!

__________________
Catt22 is offline

Reply With Quote Quick reply to this message
Old 01-28-2011, 05:21 PM   #22
IrregularPulse
Hobby Collector
Feedback Score: 0 reviews

IrregularPulse's Avatar
Recipes

Join Date: Nov 2007
Posts: 42,000
Liked 2747 Times on 2698 Posts
Likes Given: 111

Default

Quote:
Originally Posted by Catt22 View Post
FWIW, I have a dip tube installed and have no problems whatsoever with running or priming my mag drive pump. None!
That's awesome. Mind posting pictures of a setup that is working out? I feel a lot of people say, "Mine works fine" but we never see them. Maybe pictures of setups that are working could help out those having trouble.
I haven't really dove into mine yet to try it out.
__________________
Tap Room Hobo

I should have stuck to four fingers in Vegas. :o - marubozo
IrregularPulse is offline

Reply With Quote Quick reply to this message
Old 01-28-2011, 06:01 PM   #23
Flomaster
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2010
Location: Orange, Ca
Posts: 2,134
Liked 31 Times on 29 Posts
Likes Given: 37

Default

my diptube was trapping air in my line. What I had to do was, lift and lower the ss tubing until all the air was forced back into the keggle leaving the tubing full of wort. then once I hooked it up to the pump I could clearly hear the little bit of air that was in there leave the vent and it started to auto siphon before I even turn the pump on.

-=Jason=-

Flomaster is offline

Reply With Quote Quick reply to this message
Old 01-28-2011, 06:11 PM   #24
klyph
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: North Pole, Alaska
Posts: 1,809
Liked 38 Times on 34 Posts
Likes Given: 3

Default

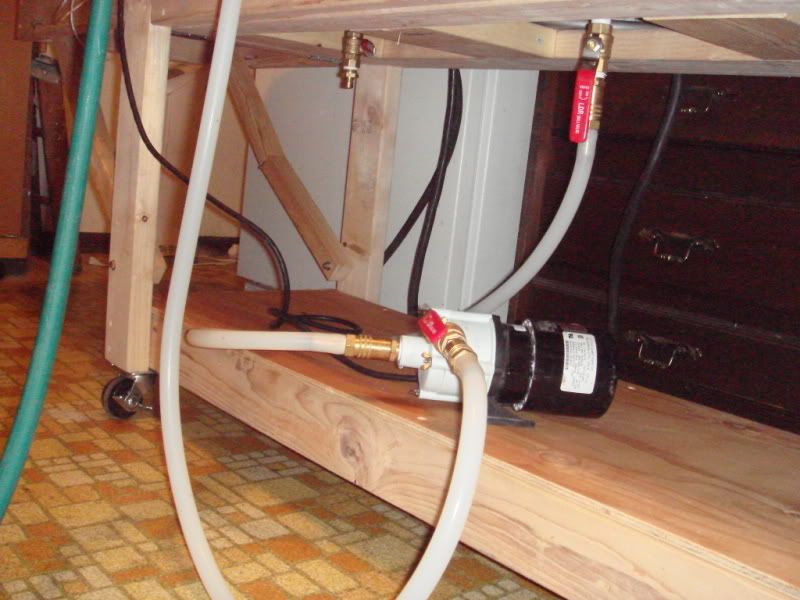

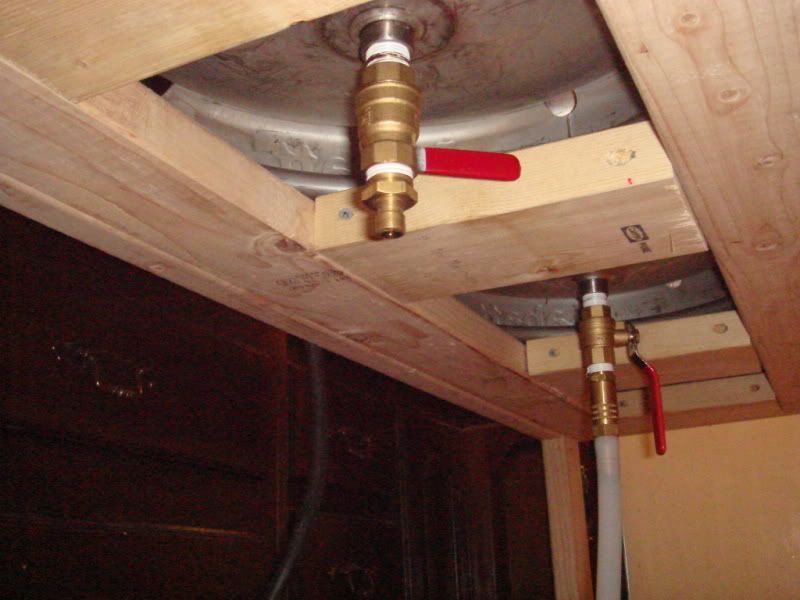

Here's a setup that reliably primes itself without any monkey business.


__________________
10 gallon electric system
Stovetop 110v single vessel 5 gallon system

Primary: saison
Secondary: nada
Conditioning: macaroon stout
Drinking: store bought
klyph is offline

Reply With Quote Quick reply to this message
Old 01-28-2011, 06:41 PM   #25
Boerderij_Kabouter
Feedback Score: 0 reviews

Boerderij_Kabouter's Avatar
Recipes

Join Date: Dec 2007
Location: Oconomowoc, Wisconsin
Posts: 8,461
Liked 115 Times on 100 Posts
Likes Given: 11

Default

I don't understand why so many people have problems with pumps. It really isn't complicated, dip tubes or otherwise.

1. Water level in vessel must be higher than the highest point in the tubing leading to the inlet of the pump (water doesn't flow up hill).

2. To prime the pump, water must be able to flow freely. Open all downstream valves and reduce back pressure as much as possible. This is why dump valves work well.

3. flood the pump.

4. start/stop pump rapidly a few times to purge air pockets from pump head.

5. pump to your hearts content.

I have used March pumps in every config. possible and they work just fine in any orientation.

They do not produce a positive displacement so they cannot move air. You need liquid in the pump head before the pump will work.

Here is one setup, the pump is in the box in the arrangement shown in the OP but doesn't even have a dump valve or autovent. To prime, I lower the box until liquid flows naturally, then I am done and primed.

Boerderij_Kabouter is offline

Reply With Quote Quick reply to this message
Old 01-28-2011, 07:37 PM   #26
Catt22
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2009
Posts: 4,998
Liked 57 Times on 55 Posts
Likes Given: 51

Default

Quote:
Originally Posted by IrregularPulse View Post
That's awesome. Mind posting pictures of a setup that is working out? I feel a lot of people say, "Mine works fine" but we never see them. Maybe pictures of setups that are working could help out those having trouble.
I haven't really dove into mine yet to try it out.
This is the 1/2" ID DIP Tube/Siphon Tube


This shows the pump w/dump valve, flow control valve and vacuum gauge mounted on a swiveling wood base:


I close the flow control valve and open the dump valve and start the pump. As soon as I get a forceful flow from the dump valve (about 2 seconds) I close the dump valve and open the flow control valve to start pumping. This method is quick and reliable. It literally never fails and it's extraordinarily easy. I find it puzzling that there are so many posts reporting difficulty with priming or losing prime with their mag drive pumps. It's really not difficult to use these pumps.

IMO, for optimum pump performance, use large ID hose or pipe, keep hoses or pipe as short as conveniently possible and use the fewest number of fittings possible.
__________________
Catt22 is offline

Reply With Quote Quick reply to this message
Old 01-29-2011, 03:47 AM   #27
BrewBeemer
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2006
Location: no city an island, inside an atoll
Posts: 3,503
Liked 20 Times on 20 Posts
Likes Given: 7

Default

Quote:
Originally Posted by Boerderij_Kabouter View Post
If Flomaster's pump were rotated 90º clockwise, the the exit would be top dead center.
B_K, I find this wrong rotating the pump from vertical inlet / outlet 90 degress clockwise to the horizontal position as the exit at "top dead center", inside the pump is not at the top for the outlet port.
If you rotate the head from vertical inlet / outlet clockwise 66 degrees this will place the outlet discharge inside the pump at the top of the impeller chamber or straight up at the highest point to best vent air from inside the pump. Adding to this 66 degrees or 24 degrees discharge pointed upwards on my Chugger pump.
Installing the March HF impeller having longer impeller blades this reducing the impeller tip to pump body OD clearance from .374" to .135" can only help with catching pump prime. I had to spout off.
__________________
BrewBeemer is offline

Reply With Quote Quick reply to this message
Old 01-30-2011, 05:14 PM   #28
bendiy
Feedback Score: 0 reviews

bendiy's Avatar
Recipes

Join Date: Jan 2011
Location: Boulder, CO
Posts: 129
Liked 1 Times on 1 Posts
Likes Given: 7

Default

I was having a hard time the first time I used my pumps. I found that there were two things causing a problem.

First, I was using quick disconnects hooked up to barbs with hose fittings. Once the o-ring in the hose fittings got warm, they started introducing bubbles into my lines. What I thought was tight before I started brewing proved to be very loose once it got warm. To solve this, I just tightened all my hose fittings when everything was hot (wear gloves). I stopped getting bubbles in the lines after that. If you have clear lines, check them for small bubbles like you see from CO2 in beer or soda. If you have bubbles, you are going to get a stuck pump.

Second, my orientation of the pump head was wrong. Turning it so the outlet was pointing up like on the Brutus 10 solved my problem completely. No need for any bleeding value or vent. Just let it fill from the bottom with your outlet valve open. Once it's full and you see fluid in the outlet line, turn the pump on.

I think the biggest reason that having your outlet point up works is because your INLET is pointing DOWN. This means that all the bubbles have to go through the outlet, they cannot travel down into the inlet. If you have the inlet coming in horizontally from the side, it lets bubbles travel back up the inlet. If you are using a dip stick on the inlet side, bubbles in the inlet side will kill your siphon.

__________________
bendiy is offline

Reply With Quote Quick reply to this message
Old 01-30-2011, 05:58 PM   #29
Catt22
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2009
Posts: 4,998
Liked 57 Times on 55 Posts
Likes Given: 51

Default

IMO & IME, the pump head orientation doesn't matter if you have a dump valve installed and any air trapped in the dip tube can be very easily purged as well.

__________________
Catt22 is offline

Reply With Quote Quick reply to this message
Old 01-31-2011, 04:51 PM   #30
klyph
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: North Pole, Alaska
Posts: 1,809
Liked 38 Times on 34 Posts
Likes Given: 3

Default

Bendiy, that's a great point about the orientation of the inlet being more important than the outlet. Whatever method you use, the most important thing is purging all the air from the inlet side. Diptubes, leaky fittings, and having your pump as a high spot that traps air in the impeller housing are all the usual suspects.

__________________
10 gallon electric system
Stovetop 110v single vessel 5 gallon system

Primary: saison
Secondary: nada
Conditioning: macaroon stout
Drinking: store bought
klyph is offline

Reply With Quote Quick reply to this message
