Old 05-24-2010, 02:54 PM   #121
mlyday
Feedback Score: 0 reviews
Recipes

Join Date: May 2010
Location: Bay City, MI
Posts: 915
Liked 25 Times on 24 Posts

Default

I would look at these for the floor.
http://www.garagefloor.com/garage-floor-new-diamond.htm
My father in law did his garage in them. they come in solid or a mesh type and just snap together with. They come in multiple colors so you could do a design if you wanted. They arent cheap, but you could do a section at a time as money came available. They come up pretty easy too if you need to get them up.

__________________
mlyday is offline

Reply With Quote Quick reply to this message
Old 05-24-2010, 03:10 PM   #122
blackheart
Feedback Score: 0 reviews
Recipes

Join Date: May 2008
Location: Binghamton, NY
Posts: 300
Liked 9 Times on 7 Posts

Default

Quote:
Originally Posted by mlyday View Post
I would look at these for the floor.
http://www.garagefloor.com/garage-floor-new-diamond.htm
My father in law did his garage in them. they come in solid or a mesh type and just snap together with. They come in multiple colors so you could do a design if you wanted. They arent cheap, but you could do a section at a time as money came available. They come up pretty easy too if you need to get them up.
Only problem with that is the garage is 22x22 which is about 484 sq ft which is about 12 boxes of 40x 1ft tiles which are $100 a box... which is over $1,200 just for the floor. It looks like really nice stuff... at looks like it is thin enough to easily install without getting in the way of anything else... but for it to be a great floor I would really want it to cover wall to wall.. then if you have a spill etc you can just grab the hose and spray it out! perfect!

We spent about 5,000 on the garage remodeling, the doors were about $1,200 and the ceiling was somewhere close to $1,000 with all of the tiles, lights, and insulation etc. Already spent over $600 on strippers and epoxy paint on the floors which will now have to be removed.... so we are already -$600... lets see if we can find some investors..... If we can afford it it would be a great idea.... I am liking the Coin style best as I think it could create better channels to mop up spills etc. Thanks for the link!
__________________
Black Heart Brewery
blackheart is offline

Reply With Quote Quick reply to this message
Old 05-24-2010, 03:17 PM   #123
mlyday
Feedback Score: 0 reviews
Recipes

Join Date: May 2010
Location: Bay City, MI
Posts: 915
Liked 25 Times on 24 Posts

Default

Just wanted to point out another option. My father in law did the solid ones and then at the floor drain area did the mesh ones. But you are correct they are not cheap.

__________________
mlyday is offline

Reply With Quote Quick reply to this message
Old 05-24-2010, 03:31 PM   #124
blackheart
Feedback Score: 0 reviews
Recipes

Join Date: May 2008
Location: Binghamton, NY
Posts: 300
Liked 9 Times on 7 Posts

Default

We finished up modifying our large chest freezer into a fermentation chamber. We decided to mount the Love controller in a project box instead of to the chest freezer as their is a good chance the freezer will die long before the Love controller does.

A XLR microphone connector was use to get Hot, Neutral, and Hot->Out lines to the controller. A mono 1/8" jack was used to get the temperature sensor into the controller. We used 4x 8lb magnets glued on the inside of the box to easily stick and move the controller. The XLR cable was sleeved in some Tech Flex to make it look nice. The magnets are great as we can stick the controller to the lid or the side etc, wherever is convenient. The wiring diagrams found on this forum were very strait forward and helpful in wiring this thing up. We may make more of these to make them interchangeable with various heating and cooling tasks around the brewery. Might go with a 4 pin XLR though next time just incase we need to do heating and cooling and need the extra wire.

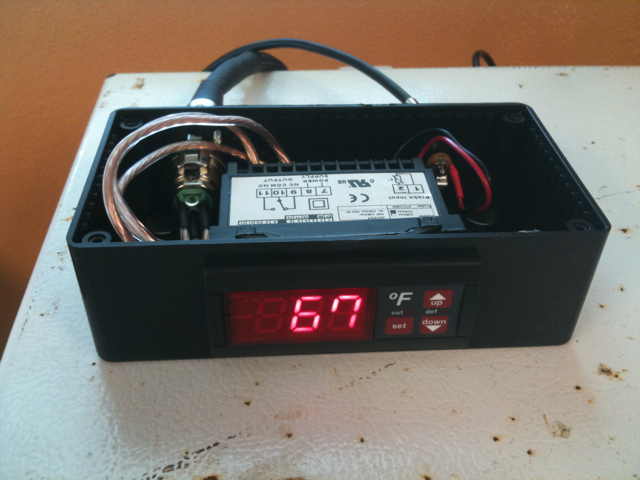

Controller with lid off

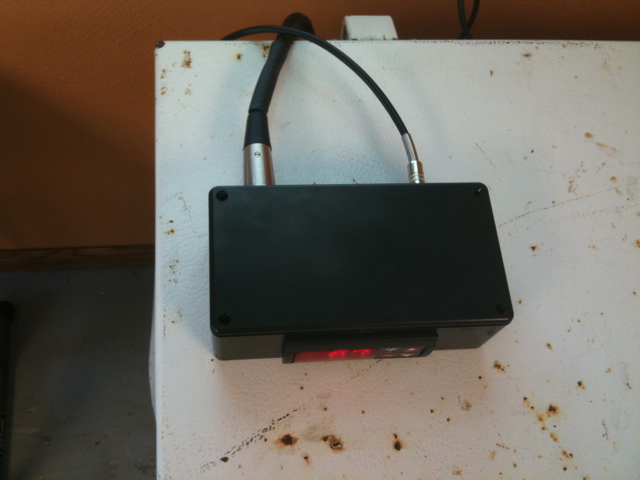

Top of controller with cables going out the back.

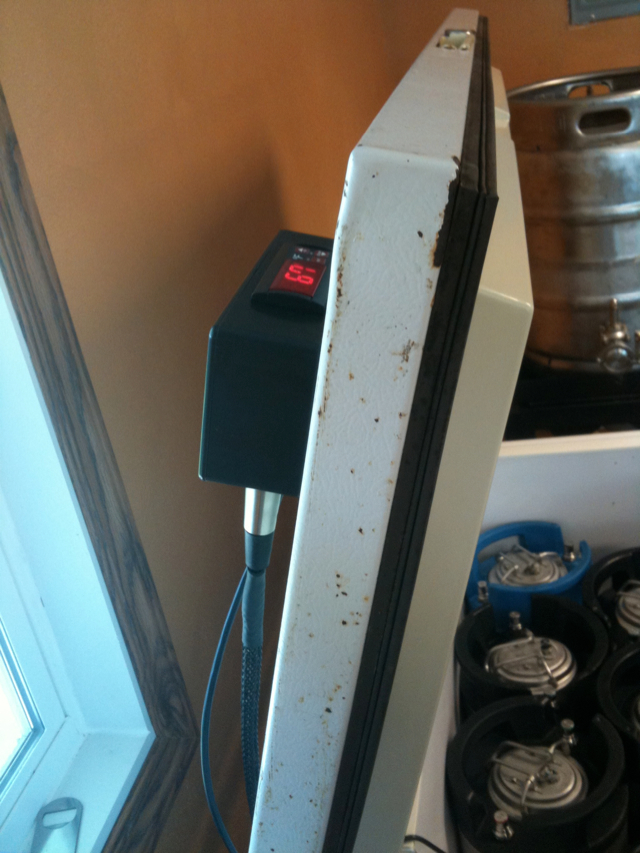

Controller hanging on to the lid


Insides showing magnets and wiring connections.
__________________
Black Heart Brewery
blackheart is offline

Reply With Quote Quick reply to this message
Old 05-24-2010, 05:19 PM   #125
mullenite
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2010
Location: Gainesville, Fl
Posts: 638
Liked 5 Times on 5 Posts
Likes Given: 1

Default

Is that an XLR connection on the left?

__________________
mullenite is offline

Reply With Quote Quick reply to this message
Old 05-24-2010, 05:36 PM   #126
blackheart
Feedback Score: 0 reviews
Recipes

Join Date: May 2008
Location: Binghamton, NY
Posts: 300
Liked 9 Times on 7 Posts

Default

Quote:
Originally Posted by mullenite View Post
Is that an XLR connection on the left?
Yes. Thats what it says in the description above.
__________________
Black Heart Brewery
blackheart is offline

Reply With Quote Quick reply to this message
Old 05-24-2010, 05:49 PM   #127
mullenite
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2010
Location: Gainesville, Fl
Posts: 638
Liked 5 Times on 5 Posts
Likes Given: 1

Default

Quote:
Originally Posted by blackheart View Post
Yes. Thats what it says in the description above.
I never claimed to have good reading comprehension...
__________________
mullenite is offline

Reply With Quote Quick reply to this message
Old 05-24-2010, 06:18 PM   #128
lschiavo
Drinks Beer
Feedback Score: 0 reviews

lschiavo's Avatar
Recipes

Join Date: Sep 2009
Location: Surrounded by Yoopers
Posts: 3,958
Liked 778 Times on 518 Posts
Likes Given: 531

Default

That is a pretty slick use of the xlr connector but is it rated for ac? Also, what is the current rating? I cant imagine it would be much. Im sure it is unlikely but I'd hate to see that one component burn down your nice brewery.

__________________
lschiavo is offline

Reply With Quote Quick reply to this message
Old 05-24-2010, 06:28 PM   #129
blackheart
Feedback Score: 0 reviews
Recipes

Join Date: May 2008
Location: Binghamton, NY
Posts: 300
Liked 9 Times on 7 Posts

Default

125v 16A.... same as the love controller.

__________________
Black Heart Brewery
blackheart is offline

Reply With Quote Quick reply to this message
Old 05-24-2010, 06:40 PM   #130
lschiavo
Drinks Beer
Feedback Score: 0 reviews

lschiavo's Avatar
Recipes

Join Date: Sep 2009
Location: Surrounded by Yoopers
Posts: 3,958
Liked 778 Times on 518 Posts
Likes Given: 531

Default

Quote:
Originally Posted by blackheart View Post
125v 16A.... same as the love controller.
Nice. I had no idea they were rated for ac or such current. Where did you get the ones you used? It makes a nice clean controller and moving it around for another application as you mentioned would be great.

I am just setting up a chest freezer ferm chamber and have to put together my controller yet. I may steal a few of your ideas. The magnets are sweet also.
__________________
lschiavo is offline

Reply With Quote Quick reply to this message
