Old 06-10-2009, 02:31 PM   #101
RDLJr
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: Abita Springs, LA
Posts: 10
Default

I converted mine last night, but it doesn't seem to be very cold.

I put two kegs of water in the fridge and set the thermostat to about 3 and it was cool this morning, but not cold. Certainly not cold enough to serve beer.

Could the fact that it's in a garage be an issue?

__________________
RDLJr is offline

Reply With Quote Quick reply to this message
Old 06-10-2009, 03:21 PM   #102
AJ_in_HD
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: Philly
Posts: 120
Liked 3 Times on 2 Posts

Default

Quote:
Originally Posted by RDLJr View Post
I converted mine last night, but it doesn't seem to be very cold.

I put two kegs of water in the fridge and set the thermostat to about 3 and it was cool this morning, but not cold. Certainly not cold enough to serve beer.

Could the fact that it's in a garage be an issue?
the higher the number the colder the fridge. My beer comes out at the serving temp that I like for a good ale...low 40s. I think it's at either 4 or 5.
__________________

*********

AJ_in_HD is offline

Reply With Quote Quick reply to this message
Old 06-10-2009, 03:41 PM   #103
RDLJr
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: Abita Springs, LA
Posts: 10
Default

Quote:
Originally Posted by AJ_in_HD View Post
the higher the number the colder the fridge. My beer comes out at the serving temp that I like for a good ale...low 40s. I think it's at either 4 or 5.
I turned it up before I left for work this morning. I'm going to check it again this evening.
__________________
RDLJr is offline

Reply With Quote Quick reply to this message
Old 06-10-2009, 07:22 PM   #104
brewluver
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2008
Location: Archdale, NC
Posts: 57
Default

I just tapped my first keg in this exact fridge, looks like a great idea to drill hole and run co2 line to the outside since the fridge does get a little tight with all the hoses. What size hole did you drill for the co2 line?

__________________
brewluver is offline

Reply With Quote Quick reply to this message
Old 06-11-2009, 12:24 AM   #105
nolnacs
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2009
Location: PA
Posts: 3
Default

Excellent step-by-step. do you have a finished picture w/ drip tray and tap?

__________________
nolnacs is offline

Reply With Quote Quick reply to this message
Old 06-11-2009, 01:32 AM   #106
brewluver
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2008
Location: Archdale, NC
Posts: 57
Default

Here is a picture of mine finished, i actually have magnets holding my drip tray right now.


__________________
brewluver is offline

Reply With Quote Quick reply to this message
Old 06-11-2009, 10:59 PM   #107
BADS197
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2008
Posts: 470
Default

I think I'm headed to lowes this weekend. haha

__________________

Frosty Nipple Brewing Co.

Bottled
Pumpkin Ale
Faw-Kin Hevy Scotch Ale
Slam Dunkelweizen
GPC American Ale
Not-October Octoberfest Ale


Primary
English Pale Ale
Secondary

Keg
#1 2.5g - Faw-kin Hevy Scotch Ale
#2 2.5g - Nut Brown Ale

Next
American Amber
English Pale

BADS197 is offline

Reply With Quote Quick reply to this message
Old 06-11-2009, 11:31 PM   #108
BreWirfel
Feedback Score: 0 reviews
Recipes

Join Date: May 2009
Location: maryland
Posts: 168
Liked 2 Times on 2 Posts
Likes Given: 1

Default

its a good choice. Keep the shelves...they come in handy if you dont have anything on tap (i know...but it happens sometimes) you can still stack a couple 6ers in there for when you go downstairs to "check on the beer"

__________________
BreWirfel is offline

Reply With Quote Quick reply to this message
Old 06-15-2009, 02:21 AM   #109
sodapop
Feedback Score: 0 reviews
Recipes

Join Date: May 2008
Posts: 17
Liked 2 Times on 1 Posts

Default Taking the top off.

Finally found the pics of this conversion. Basically, if anyone wants to convert this to a tower, but locate it towards the back, this is the way to go.

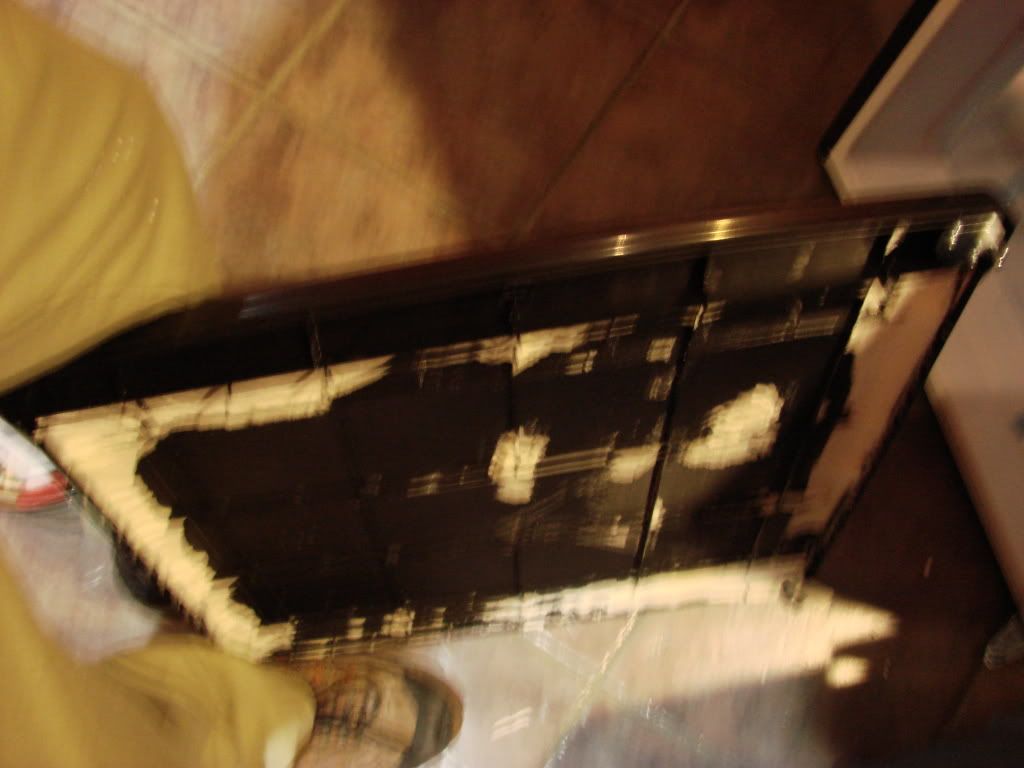

If you open the door and lift up the plastic top with minimal effort, it comes right off. You can see what the top looks like in this blurred image. just cheap plastic, and barely glued down.

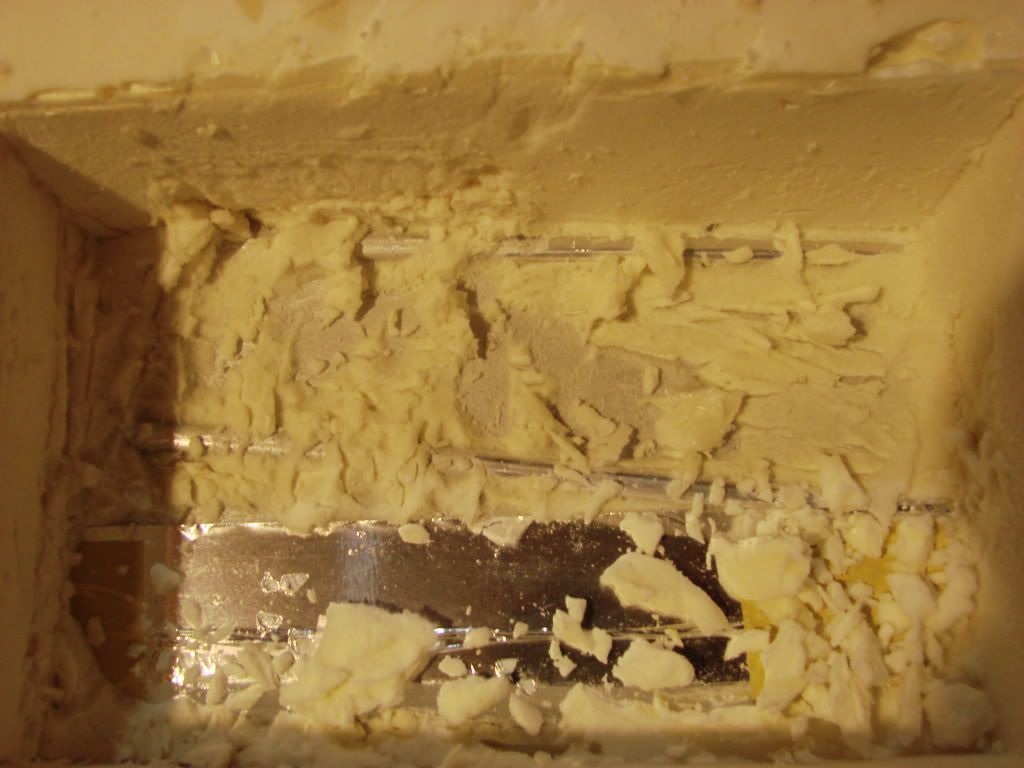

In this image you can see what you have to remove next. It is foam insulation that seems like the expandable foam type so that it is pretty well stuck to the plastic liner of the fridge. In between the foam and the inside plastic contains the coolant lines. They are wrapped around the outside of the plastic fridge liner, and secured to it with what I remember to be metal-tape. You can see them in the next pic:

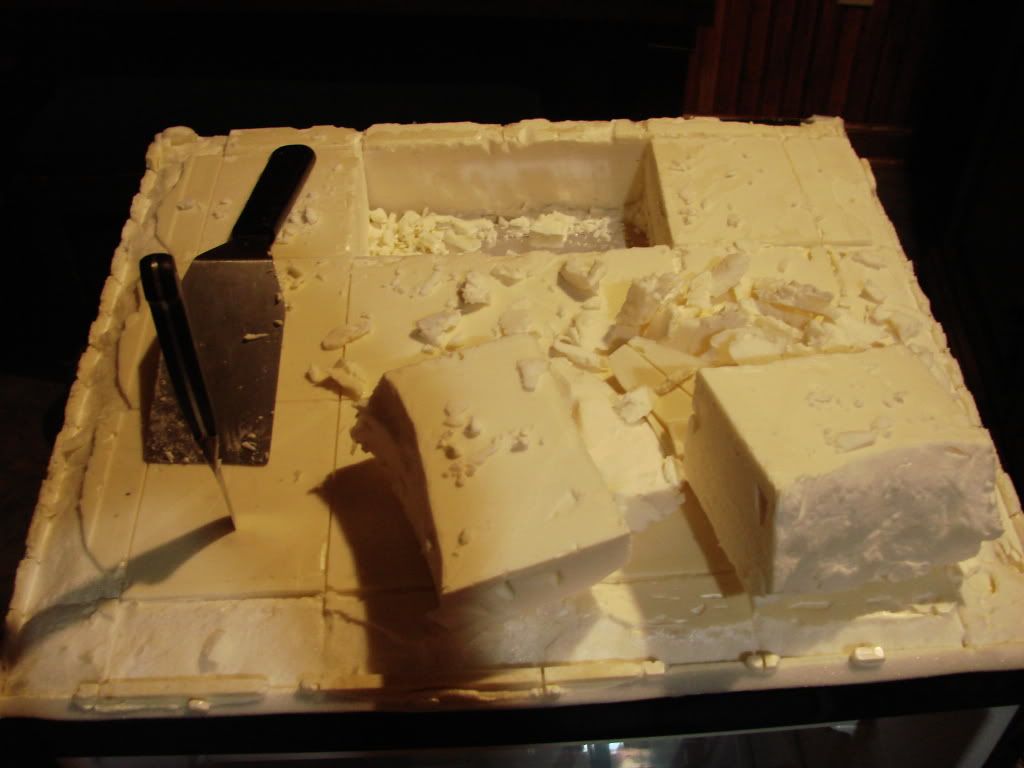

I basically used a filet knife and a spatchula to pull out the foam where I put the tower. The foam is a good two and a half inches deep, but be very careful not to push to hard or too deep with the knife, cause if you knick a coolant line your screwed.



After you get all the foam out of the way, pick a spot between the coolant lines, and drill with a holesaw. Then line up the plastic top, mark and drill the top out as well. After this step, its pretty much up to you how to proceed.

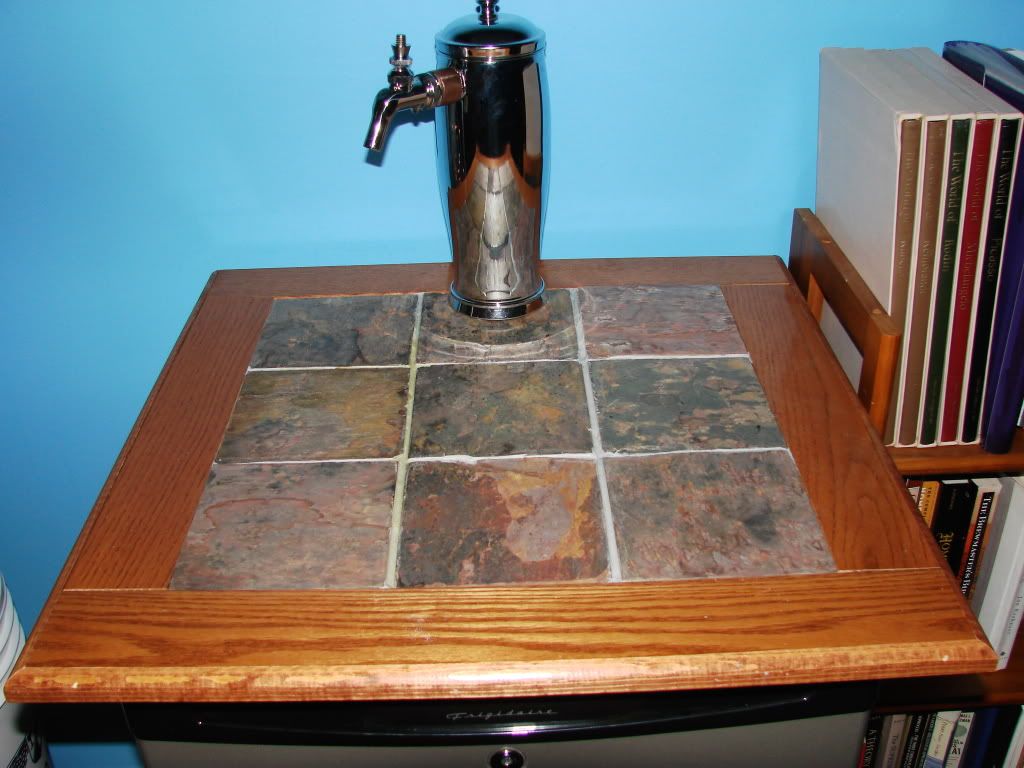

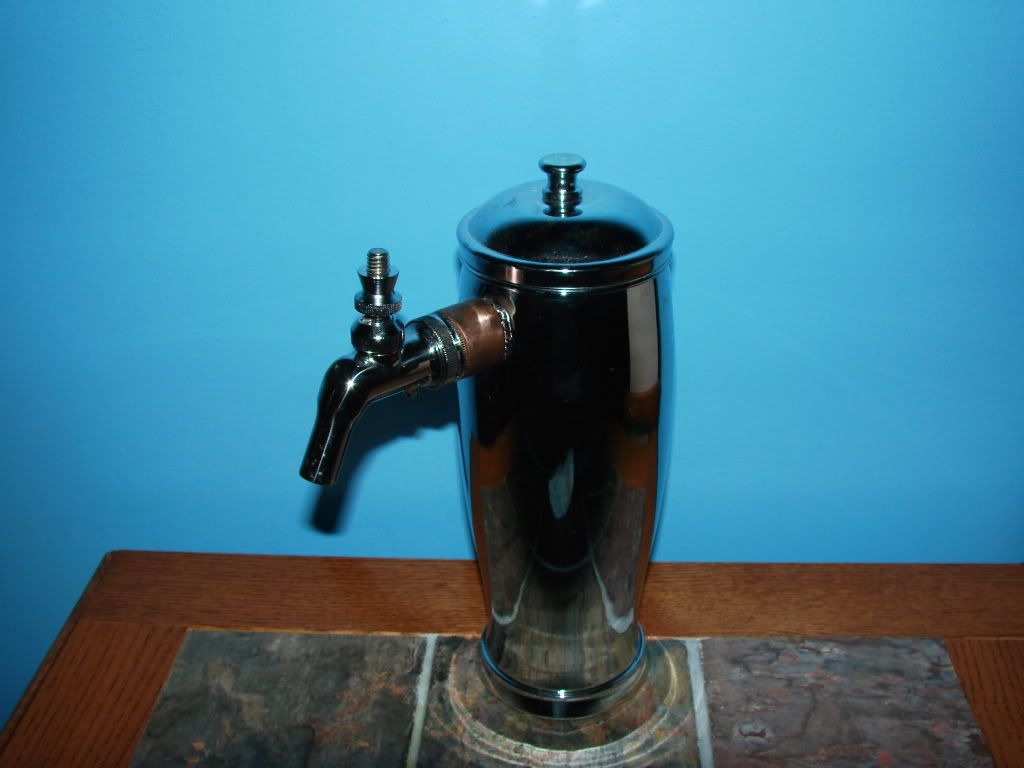

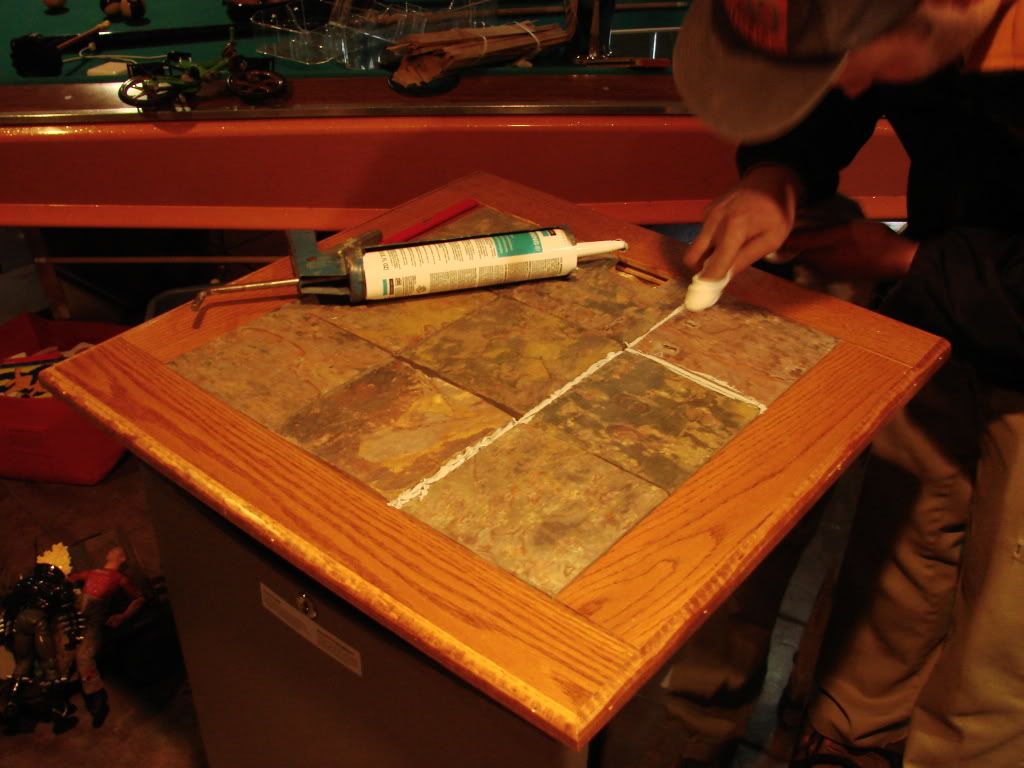

I elected to put a false top over the plastic. First I secured the plastic top back on with some heavy duty silicone. Then 5/8 plywood with the silicone. I finished up with some cultured slate tiles, oak and pine trim wrap. Custom fabbed tower screwed down to the plywood. Just have to install the second faucet next week.


__________________
sodapop is offline
2
People Like This
Reply With Quote Quick reply to this message
Old 06-15-2009, 11:29 AM   #110
Bumbler
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2009
Location: Duluth MN
Posts: 249
Liked 20 Times on 12 Posts
Likes Given: 5

Default

Nice! I like the top.

__________________
If there was more love in the world, there would probably be less dying.
Bumbler is offline

Reply With Quote Quick reply to this message
