Old 12-22-2009, 02:53 AM   #1
GreenMonti
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2009
Posts: 1,014
Liked 8 Times on 8 Posts

Default Flash boiler

I thought I would put up my Flash boiler build. After MANY, MANY, Pm's to Kladue. I have started. Thank You Kevin for all you have done!

So I have built mine around Klaude's design. I am using copper tubing on mine instead of the SS. I bought a 50' roll of 1/4" copper tubing and cut 4 12'4" lengths. I wrapped the lengthes around a 2" PVC pipe to get nice tight wound coils. Keeping them on the pipe I spread them out to get about 1" of spacing inbetween the coils. I am using 1/2" type L as the center tube for the inlet water. I didn't take pics of the coils while they were seperate. Sorry.

Here is a pic of it as it is now.


I have decided to weld in the tubes at the bottom, because I don't really trust solder and because I am able to weld them. Kladue used compression fittings on his. I like the use of compression fittings very much so. I am just trying something different as well as I am not to sure of the brass compression fittings being able to hold up. So, I drilled holes in the bottom of the 1/2" pipe to allow the 1/4" tubes to go into it. Here are a couple of shots of that.
Reminds me of the base of a x-mas tree.


The inside.


That's it for now. I am doing a test weld tomorrow with a couple of different filler wires. I have welded copper before with no issues, I am just playing with different stuff. Stainless filler, or Silicone bronze.....

Any thoughts or suggestions are welcome. Prost.

__________________
GreenMonti is offline

Reply With Quote Quick reply to this message
Old 12-22-2009, 03:20 AM   #2
ReeseAllen
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2009
Location: Seattle
Posts: 415
Liked 3 Times on 3 Posts
Likes Given: 1

Default

How will you be heating that monstrosity?

__________________
ReeseAllen is offline

Reply With Quote Quick reply to this message
Old 12-22-2009, 03:47 AM   #3
GreenMonti
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2009
Posts: 1,014
Liked 8 Times on 8 Posts

Default

Quote:
Originally Posted by ReeseAllen View Post
How will you be heating that monstrosity?

A propane burner from a turkey fryer. In reality it isn't that big. I would guess a little over 18" long.
__________________
GreenMonti is offline

Reply With Quote Quick reply to this message
Old 12-22-2009, 09:25 PM   #4
kladue
Senior Member
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2006
Location: Turner, Oregon, Oregon most of the time now
Posts: 2,309
Liked 47 Times on 43 Posts

Default

How has the weld testing gone?

__________________
kladue is offline

Reply With Quote Quick reply to this message
Old 12-22-2009, 11:14 PM   #5
GreenMonti
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2009
Posts: 1,014
Liked 8 Times on 8 Posts

Default

Quote:
Originally Posted by kladue View Post
How has the weld testing gone?

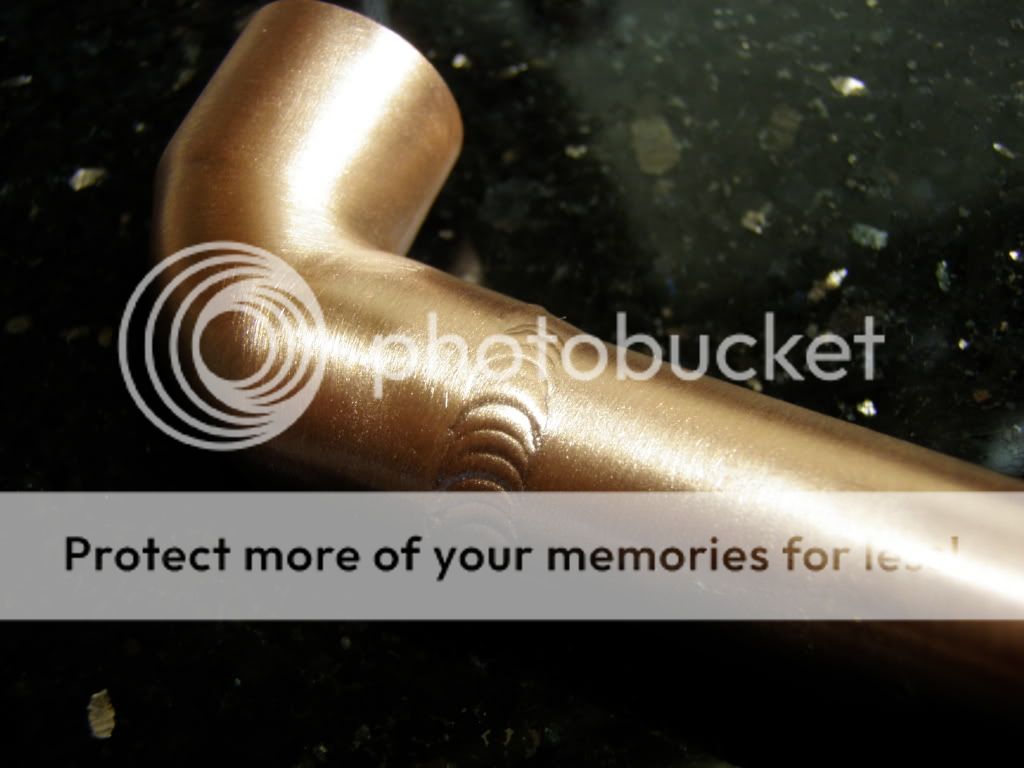

I didn't get much time to devote to the testing today but. I did get a couple small welds done. As I suspected in the begining, that copper filler would be the best. I cut a piece of romex and used the ground wire from it. It was 12 awg wire so it was a huge piece of filler for the job. But it gave me a real good idea of what to expect. I also used stainless and silicone bronze. While the welded the pieces together, they were not ideal for what I want. Here is a pic of the copper filler weld. Again it is a bit big for the job.




I also got a chunk of 6" stove pipe from a guy at work who just finished his stove install. It looks like it should be just about perfect in height.

Oh yea, I did purge the inside. Here is how it looks without cleaning.
__________________

GreenMonti is offline

Reply With Quote Quick reply to this message
Old 12-23-2009, 01:40 PM   #6
CodeRage
Death by Magumba!
Feedback Score: 0 reviews

CodeRage's Avatar
Recipes

Join Date: Aug 2007
Location: Melbourne, Fl
Posts: 2,254
Liked 31 Times on 17 Posts
Likes Given: 5

Default

Dead sexy GreenMonti! Not sure if we talked about this but definitely get some clear on the finished product to preserve the finish. I kind of like the brushed finish.

__________________
Brutus 20e build | Electrical Primer for Brewers | Auber SYL-2362A2 PID Install & Config
So as I am walking out the door this morning I think to my self:
"self, going to work on Monday is like knowing you're going to get kicked in the nuts. You just don't know when or by who"
CodeRage is offline

Reply With Quote Quick reply to this message
Old 12-23-2009, 11:29 PM   #7
GreenMonti
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2009
Posts: 1,014
Liked 8 Times on 8 Posts

Default

Thank you CodeRage. Yes you mentioned to me about the clear coating to stop the tarnish from happening. That will save a lot of time polishing.

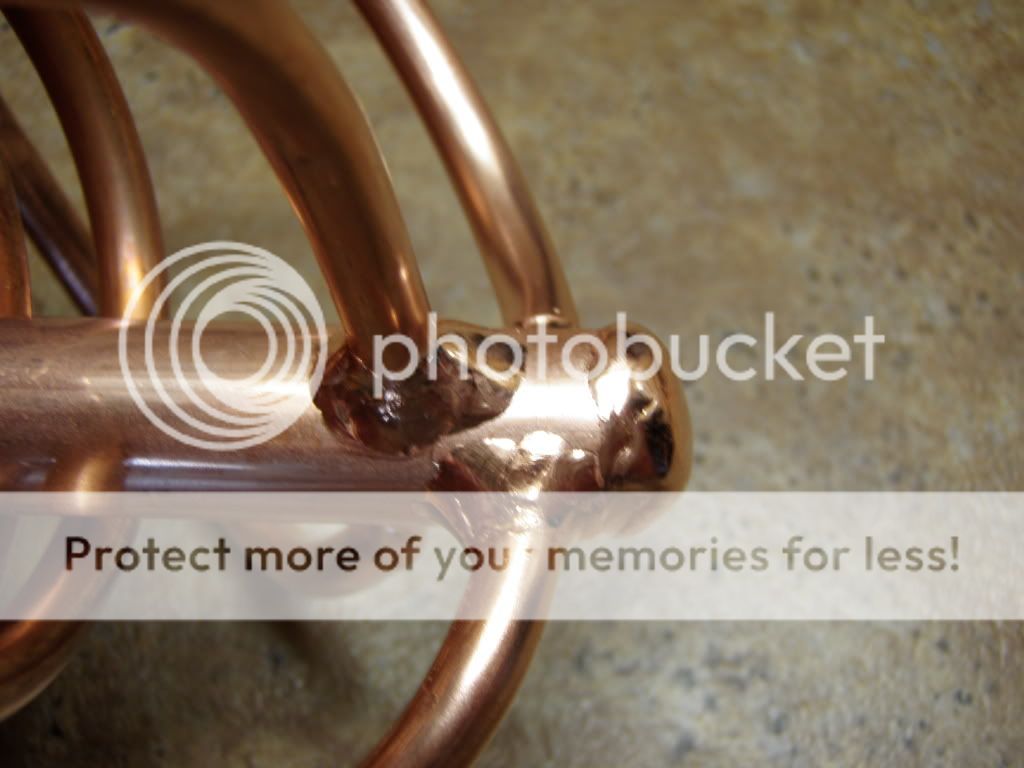

Well, I took the boiler into work today to get the lower end welded up. I decided to weld it in the bubble. (purge chamber) Since I don't have much experience welding copper, I can't say why it wouldn't do what I wanted it to do. When I did my copper gas manifold it came out like the pic above. This time......No. I showed it to a few guys at work who have done some copper and they all said "that is exactly how mine came out. Looks great for a copper weld." I am not happy. I am glad I wont ever see it.

Here it is.

__________________
GreenMonti is offline

Reply With Quote Quick reply to this message
Old 12-24-2009, 04:13 AM   #8
GreenMonti
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2009
Posts: 1,014
Liked 8 Times on 8 Posts

Default

Lots of views and no thoughts. I guess I will let this one die.

__________________
GreenMonti is offline

Reply With Quote Quick reply to this message
Old 12-24-2009, 04:26 AM   #9
Mista_Sparkle
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2009
Location: Aurora, Illinois
Posts: 397
Liked 1 Times on 1 Posts

Default

Its pretty cool, though I'm not entirely sure what its for, is it just used to heat sparge water or something? I am still quite a newb though so I may be missing something fairly obvious. Its always cool looking at these monstrous copper creations

edit: cause I'm a nerd, what temp to you plan on boiling from and how fast do you want to get how much water that hot, I assume your not going for steam, just on the verge of boiling

__________________
Primary #1+Auxiliary: Burning River Pale Ale clone
Primary #2: empty
Primary #3: EdWorts Apfelwein #4
Conditioning/Drinking:Brewers Best Belgian Tripel, Apfelwein #3, EdWorts Apfelwein #2, Cranapple Wine, Routers Share Network Closet Strong Scotch Ale, McCormack's Old Malt Oatmeal Stout

Mista_Sparkle is offline

Reply With Quote Quick reply to this message
Old 12-24-2009, 04:38 AM   #10
ReeseAllen
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2009
Location: Seattle
Posts: 415
Liked 3 Times on 3 Posts
Likes Given: 1

Default

Quote:
Originally Posted by GreenMonti View Post
Lots of views and no thoughts. I guess I will let this one die.
Just because there aren't dozens of people commenting on it doesn't mean it's not going to be useful info for someone down the line. I say keep documenting your progress and taking pictures. I know I'm interested; I just don't really have any welding or copper-working experience to share.
__________________
ReeseAllen is offline

Reply With Quote Quick reply to this message
