Looks like it's going to be great!



__________________
Kegged: Flanders Blonde, Germanic Pale Ale, Saison (WLP585), Saison (Belle Saison), Mid-ABV Janet's Brown Primary: None Souring: Oaked Brett Blended Saison On Deck: Texas Brown Ale On the Horizon: Epic Pale ale clone, Tonguesplitter Updated: 2014/04/09
Untappd: barrooze
barrooze is offline

Reply With Quote Quick reply to this message
Old 01-09-2012, 12:52 AM   #22
CollinsBrew
Feedback Score: 0 reviews

CollinsBrew's Avatar
Recipes

Join Date: Mar 2007
Location: Jacksonville, FL, Florida
Posts: 412
Liked 3 Times on 3 Posts

Default

If you notice, the last beam on there is different than the first five. Overall, I was about 4 inches short so I had to buy something to supplement. The bix box stores don't sell 1.5" square tubing but they do sell 1.5" zinc plated steel shelving frame so I got that instead. I'm coating the steel and the inside of the upper rim in black BBQ paint anyway. I'm thinking the rails will fit in the oven. Now I have to wait for SWMBO to take a nap so I can cure the paint in there.



__________________

Flying, golfing, boating and brewing. The first is my job. The other three I wish were my job.

“I like beer. On occasion, I will even drink beer to celebrate a major event such as the fall of Communism or the fact that the refrigerator is still working.”

Single Tier Wooden Brutus build

CollinsBrew is offline

Reply With Quote Quick reply to this message
Old 01-10-2012, 04:42 AM   #23
CollinsBrew
Feedback Score: 0 reviews

CollinsBrew's Avatar
Recipes

Join Date: Mar 2007
Location: Jacksonville, FL, Florida
Posts: 412
Liked 3 Times on 3 Posts

Default

The burners are mounted. I have some aluminum flashing that I'm going to make some wind screens out of for the larger burners. This should also contain the heat enough to keep the wood from scorching.

Mounted burners:



You can sort of see that the middle burner is sitting lower than the other two due to the way I have them mounted. It's held on by a bold right in the canter on the underside of the burner. I'll probably end up getting a longer bolt with a spacer or two to sit it up a little higher.



Here you can see how I mounted the burners and made them adjustable with some 5/16" all-thread. The spacers are 1/2" to give a little more play in burner adjustment.

__________________

Flying, golfing, boating and brewing. The first is my job. The other three I wish were my job.

“I like beer. On occasion, I will even drink beer to celebrate a major event such as the fall of Communism or the fact that the refrigerator is still working.”

Single Tier Wooden Brutus build

CollinsBrew is offline

Reply With Quote Quick reply to this message
Old 01-10-2012, 12:45 PM   #24
stratslinger
Brewing Thespian
Feedback Score: 0 reviews

stratslinger's Avatar
Recipes

Join Date: Dec 2010
Location: Terryville, CT
Posts: 1,800
Liked 101 Times on 88 Posts
Likes Given: 76

Default

Looking awesome so far... A couple quick questions:

1) You mentioned that the spacers are 1/2" to give more play - can you explain more clearly what you mean there? I'm not sure what I'm looking for in that picture.

2) Also, you mentioned the all-thread that you're using for height adjustment on the burners. How is that actually attached to the wood frame, and do you have any wingnuts or similar to hold the burner support at the right height? Are the holes on the burner support tapped and threaded for the all-thread?

3) You might have already addressed this, but do you have any plans to add casters to this thing? How heavy would you say it is? Looks super solidly built!

__________________
stratslinger is offline

Reply With Quote Quick reply to this message
Old 01-10-2012, 08:19 PM   #25
mightynintendo
Pastafarian
Feedback Score: 0 reviews

mightynintendo's Avatar
Recipes

Join Date: Aug 2009
Location: Columbia, Missouri
Posts: 2,579
Liked 93 Times on 79 Posts
Likes Given: 55

Default

Are you going to put wheels on that thing?

(subscribed)

__________________
mightynintendo is offline

Reply With Quote Quick reply to this message
Old 01-11-2012, 01:31 AM   #26
CollinsBrew
Feedback Score: 0 reviews

CollinsBrew's Avatar
Recipes

Join Date: Mar 2007
Location: Jacksonville, FL, Florida
Posts: 412
Liked 3 Times on 3 Posts

Default

Yes on the wheels. I'm putting six 2" 75lb load casters on this thing. A little overkill but casters from Harbor Freight are pretty cheap and haven't let me down. I'm a castering fool when it comes to the stuff in my garage. If it's heavy, I build a base that fits around the bottom with 2x4's and throw some casters on it. Makes my life a whole lot easier when needing to move workspaces around in my garage.

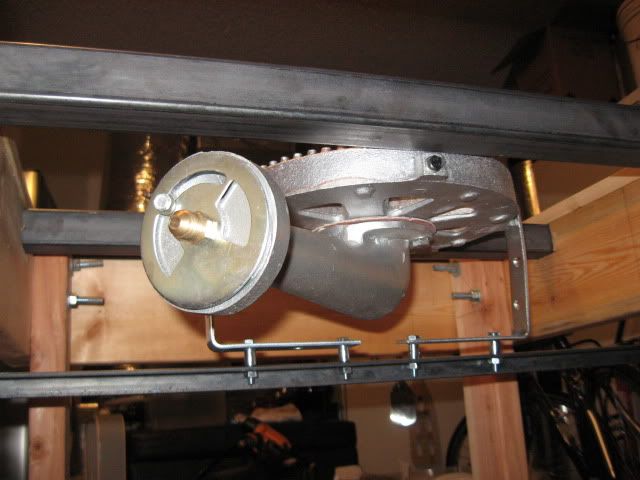

For the burner mounts, here's a better picture of the underside of the angle iron they're mounted to:
