Default Finally starting to rebuild - continued

Back in April I moved to a new house and became an outdoor brewer. As a former indoor brewer my system was set up for small spaces and when I moved outside I was liberated! However, I started upgrading this and that with absolutely no direction or plan of action and eventually ended up with a crappy contraption of a brew system that worked but not to the level of efficiency (not mash efficiency over all brew day efficiency) I wanted. In the end I don’t have the ability to brew for a few months so I flushed everything and have begun anew.

A few months ago I picked up a 50qt Igloo Ice Cube with the intention of bumping up to 10 gallon batches. After hours of research, deliberation, and designing I’ve come up with a plan that I think will work; I’ve designed my two cooler set ups to work interchangeably as HLT and MLT.
This is the beginning of my Hot Lickher (liquor) Tank.


Now I’ll preface this with this statement, I’m a wanabe DIYer. Can't cut a straight line or hammer a nail in without bending it to save my life. I’ll insert little comments on my mistakes here and there but over all I’ve been relatively successful so far.

The build started out relatively easy, or so I thought.
Here are the bits and pieces.


I had drilled the sight glass hole a few weeks ago and didn’t really place it right, the hole is too low for a washer and it’s been leaking. I was able to get the leak to stop and have a plan to improve the fitting. One problem was the brass elbow that I was using (in the pics) has crappy tolerances and bumpy surfaces that did not allow for a smooth fit. I swapped it out for a hard 90 elbow and it’s much better. About a drip every 5-7 seconds but I can fix it later.





My previous HLT/MLT had a 3/8” fitting and a Brewmomter that I had jury rigged through the wall with lots epoxy and cutting. I’ve decided to go with the through the valve thermometer idea with the ball valve off to the left. I’ve temporally capped the end with some fittings I had until I order the thermometer. The real issue I’ve had with installing this fitting is that I don’t have the proper washers. The ¾” washers from the big box stores are just a hair too small. I recently picked up some 11/16” washers for my 3/8” fittings from Grainger but they were out of stock on the 13/16”. So the valve is far from complete.





The final install of the night was the hot water in port. I’m aware that some people have excellent results pumping water into their main ball valve and filling their HLT that way. In my experience, and I’m not alone on this I’ve seen others with the same issue, that hasn’t worked for me so I decided to install the port. It’s a ½” barb that reduced to a 3/8”. I don’t have to lift the lid and can use the sight glass to monitor the water level. This elevates any height issues should I go with a partial gravity fed system later on and will also allow me to option to recirculate if I go RIMS or HERMS later on.





All in all I’m very happy with the results so far. Still have some work to do but it’s on the right track.

Final dry fit.

__________________

Last edited by ScottD13; 12-30-2009 at 01:16 PM.
ScottD13 is offline

Reply With Quote Quick reply to this message
Old 10-10-2009, 05:01 AM   #2
android
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2009
Location: Ames, Iowa
Posts: 3,117
Liked 37 Times on 31 Posts
Likes Given: 3

Default

lookin good man. i ended up taking the sight gauge off my MLT and plugging the hole, it just grew nasty stuff in the elbow and i never really used it to gauge anything...

edit: sorry, just noticed this was your HLT, not MLT...

__________________
primary: APA

ebay temp controller | thermostat temp controller
android is offline

Reply With Quote Quick reply to this message
Old 10-10-2009, 01:35 PM   #3
ScottD13
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2005
Location: Jersey
Posts: 309
Default

Quote:
Originally Posted by android View Post
lookin good man. i ended up taking the sight gauge off my MLT and plugging the hole, it just grew nasty stuff in the elbow and i never really used it to gauge anything...

edit: sorry, just noticed this was your HLT, not MLT...
Thanks!
About your sight glass was is plastic or glass? I am planning on putting on one in my MLT; never head of one getting funky before. Was it mold or wort residue?
__________________
ScottD13 is offline

Reply With Quote Quick reply to this message
Old 10-10-2009, 01:58 PM   #4
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 2 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 21,889
Liked 932 Times on 619 Posts
Likes Given: 28

Default

The only reason to put one in your MLT is if you direct fire and fill it with cold water directly. It's not really going to accurately show you the water/wort level when you have grain in there.

__________________
BrewHardware.com
Sightglass, Refractometer, Ball Valve, Weldless bulkhead, Thermometer, Decals, Stainless Steel Fittings, Compression Fittings, Camlock Quick Disconnects, Scale, RIMS tube, Plate Chiller, Chugger Pump, Super Clear Silicone Tubing, and more!

New Stuff?
Bobby_M is online now

Reply With Quote Quick reply to this message
Old 10-10-2009, 02:27 PM   #5
ScottD13
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2005
Location: Jersey
Posts: 309
Default

Quote:
Originally Posted by Bobby_M View Post
The only reason to put one in your MLT is if you direct fire and fill it with cold water directly. It's not really going to accurately show you the water/wort level when you have grain in there.
Hadn't thought of that.....interesting.
__________________
ScottD13 is offline

Reply With Quote Quick reply to this message
Old 12-30-2009, 01:25 PM   #6
ScottD13
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2005
Location: Jersey
Posts: 309
Default

Long time no update....Christmas was good to me. Got a new pot and a new MLT. No work in progress pics just the results.

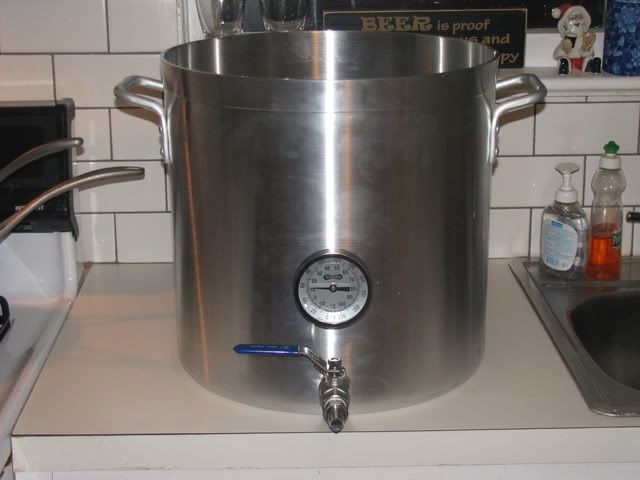

Picked up a 40qt aluminum pot after getting the stainless steel valve kit and thermometer from Morebeer. No pics of the internals but I added a 90 elbow and a nipple to extend the internals. I've been able to reduce my deadspace down to 1 qt and she's tight as a drum!
