Kegconnection Complete Starter Kit and More Giveaway!


Home Brew Forums > Home Brewing Beer > DIY Projects > Emerson 4.6 to Kegerator

Reply

LinkBack Thread Tools
Old 08-20-2010, 05:20 PM   #11
MRT888
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2010
Location: VA
Posts: 79
Liked 1 Times on 1 Posts

Default

trying to see if this picture works...

__________________
MRT888 is offline

Reply With Quote Quick reply to this message
Old 08-20-2010, 05:32 PM   #12
MRT888
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2010
Location: VA
Posts: 79
Liked 1 Times on 1 Posts

Default

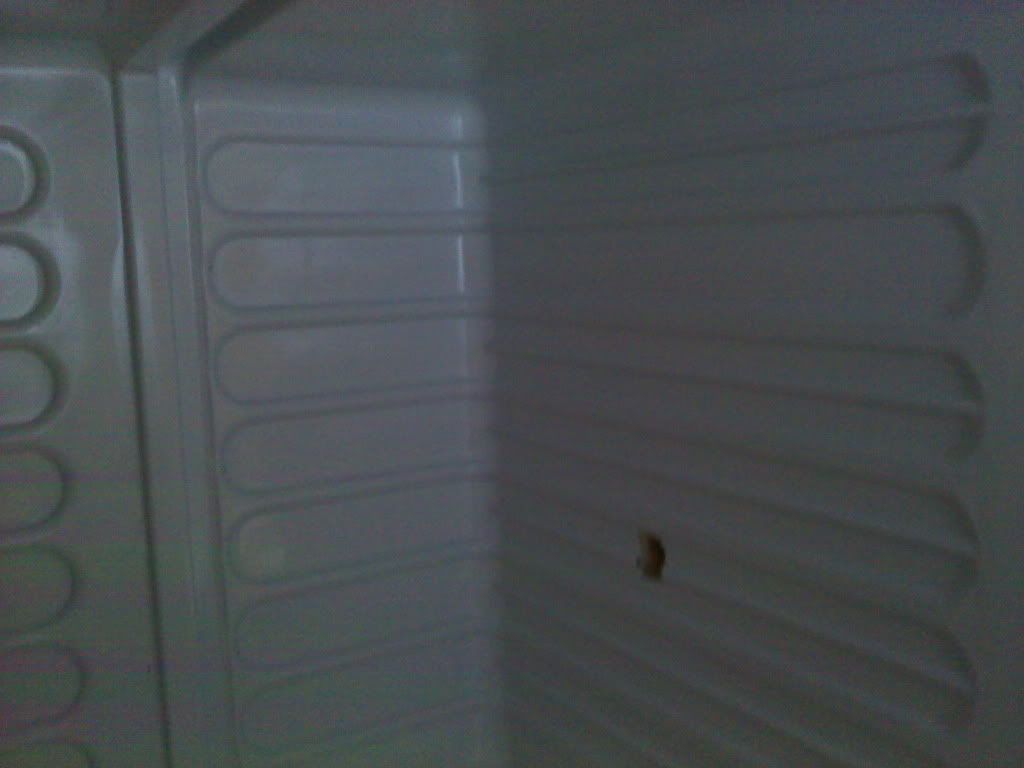

sorry its dark but here you can see where i put the whole in the top. the left side of the fridge is shown for reference, but it is basically in the dead center, a little bit back, and through one of the thinner, rounder stripes. I plan to enlarge it but probably just enough to be in between 2 of the thicker flatter stripes (in case those are lines or something)

__________________
MRT888 is offline

Reply With Quote Quick reply to this message
Old 09-06-2010, 08:00 PM   #13
brewcitybrewer
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2010
Location: Wauwatosa
Posts: 5
Default

Just wondering if you were able to fit the 5lb Co2 tank and the 2 kegs in. I just want to double check before I order a 5lb tank. Thanks for the pictures. I hope your conversion is going well. Thank you for your help.

__________________
brewcitybrewer is offline

Reply With Quote Quick reply to this message
Old 09-08-2010, 11:12 PM   #14
MRT888
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2010
Location: VA
Posts: 79
Liked 1 Times on 1 Posts

Default

sorry for the delay! I wanted to get some more pictures up but no time at the moment

In short, yes, everything fits! but just barely, and I did cut off the shelf ledges on both sides.
No lines hit and it works! As explained earlier i was careful about the top hole especially and still not sure where those lines are. The only other lines I saw were on the right side a little below where the light was- there are like 4 wires of different colors that run more or less vertically down from the thermostat/light hole, so just be sure not to dig in too far there when cutting off the ledges

Pics soon!

PS- best deal i could find on a CO2 tank if you havent ordered yet: $58 shipped
http://www.amazon.com/Carbon-Dioxide...3987516&sr=8-3

__________________
MRT888 is offline

Reply With Quote Quick reply to this message
Old 09-14-2010, 06:01 PM   #15
ekjohns
Feedback Score: 3 reviews
Recipes

Join Date: May 2009
Location: St Louis, MO
Posts: 1,379
Liked 20 Times on 19 Posts
Likes Given: 1

Default

has anyone else tried this? Also did the corn startch show any lines at all?

__________________
ekjohns is offline

Reply With Quote Quick reply to this message
Old 09-14-2010, 08:26 PM   #16
MRT888
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2010
Location: VA
Posts: 79
Liked 1 Times on 1 Posts

Default

corn starch did not show any lines when put on the top of the fridge... but didn't really expect it to work through the relatively thick plastic and such. As i said, I played it safe and only cut through one kind of ridge on the top so as not to test my luck. I will say that this fridge gets warm on its sides, so maybe that is where most of the lines are?

It was a fun project for me and I was able to swing it with very few legit tools so I'd say its very doable- cutting off the shelf ledges was the most tedious part

__________________
MRT888 is offline

Reply With Quote Quick reply to this message
Old 11-18-2010, 06:53 PM   #17
jdurward
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2010
Location: Santa Cruz, ca
Posts: 2
Default

Do you have any pictures of the final product? I am currently building my own home draft system with this fridge. When I cut through the freezer portion from the inside of the fridge I notice that behind the white plastic there was a very thin layer of what looked like aluminum foil. Could this foil layer be a way to cool the freezer. I assume it has not affected your system.

__________________
jdurward is offline

Reply With Quote Quick reply to this message
Old 11-18-2010, 07:41 PM   #18
MRT888
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2010
Location: VA
Posts: 79
Liked 1 Times on 1 Posts

Default

jdurward- yes I guess I didn't mention the foil-like layer- I was worried at first but it has had no effect and my system is fully operational! It didn't appear to be too functional- just another lining on the freezer compartment I guess
I'll try to get some pictures up of my final product soon.
I still feel pretty lucky that I didn't encounter any lines or anything in the freezer portion and that's partly why I stuck with the smallest hole that seemed reasonably to squeeze 2 lines through.

__________________
MRT888 is offline

Reply With Quote Quick reply to this message
Old 02-19-2011, 07:58 PM   #19
brewcitybrewer
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2010
Location: Wauwatosa
Posts: 5
Default Final Projects

Just wondering if anyone had any problems when drilling through the top of the freezer compartment?

Also does anyone have a good place to find a double tapper tower?

Anyone have final pictures of their projects?

Thank you in advanced for your help.

__________________
brewcitybrewer is offline

Reply With Quote Quick reply to this message
Old 02-20-2011, 07:44 PM   #20
jdurward
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2010
Location: Santa Cruz, ca
Posts: 2
Default

I had no problems drilling through the freezer compartment. obviously I was very careful but after i completed i did not see anything i should have been concerned about.

I bought a stainless double tap tower from a company called krome dispense. i got it online and it might have been through ebay. i forget. it came with all hoses as well. it was about $90. i shoped it for a while to find one that cheap.

the most important thing is being careful when cutting the shelf holders off because there is some wiring that you may cut into if your knife cuts too deep.

__________________
jdurward is offline

Reply With Quote Quick reply to this message
