Default Electrical question (heat stick related)

I want to move toward an electric brewery and am planning on building a couple heat sticks (http://www.cedarcreeknetworks.com/heatstick.htm) to this end. I have been reading over the forum and came up with a question for the more electrically inclined among us.

I will brew in my garage with this setup, right now there is one 20 amp outlet near my water heater on its own circuit. There are also two 15 amp outlets on the same circuit.

From what I understand, it will be beneficial to have two 2000W elements on separate 20 amp circuits for a good quick boil. Right now I do 5 gallon batches, but might move to 10 soon enough.

I went to my breaker box and noticed that every breaker is rated 20 amp, can I just switch one of the extra outlets in the garage to a 20 amp and then build two 2000W elements? I am guessing since the breaker is rated 20 amps, there should be no problems, is this correct?

Also, are there any extra precautions (aside from opening the garage door) I need note while brewing electric in the garage?



__________________

Andrew

avaserfi is offline

Reply With Quote Quick reply to this message
Old 04-14-2010, 04:14 PM   #2
Bjornbrewer
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2008
Location: St. Clair Shores, MI, USA, Earth, Sol System, Milky Way
Posts: 428
Liked 3 Times on 3 Posts

Default

the most important thing is the wire size of the circuit. That's why the breaker is there in the first place, to protect the wire. For 12 awg wire it must be a 20A breaker or smaller and for 14 awg wire it must be 15A breaker.

First question, what's the wire size of the circuits? If it's all 12 awg then your breakers are OK. However you should upgrade the recepticles to a 20A type (about $9 at HD).

Second question, do you have an GFCI's? This is a MUST for brewing with electric. Water and electricity don't play well together and can kill you. Make sure the breaker, the outlet or a seperate plugin GFCI device is used. Remember, one GFCI outlet will protect every recepticle on that branch circuit.



__________________
Sand Viking Brewery

“Happiness? A good cigar, a good meal, a good cigar and a good woman - or a bad woman; it depends on how much happiness you can handle.” ~George Burns

Last edited by Bjornbrewer; 04-14-2010 at 04:17 PM.
Bjornbrewer is offline

Reply With Quote Quick reply to this message
Old 04-14-2010, 04:18 PM   #3
avaserfi
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2008
Location: College Station, TX
Posts: 633
Likes Given: 5

Default

Quote:
Originally Posted by Bjornbrewer View Post
the most important thing is the wire size of the circuit. That's why the breaker is there in the first place, to protect the wire. For 12 awg wire it must be a 20A breaker or smaller and for 14 awg wire it must be 15A breaker.

First question, what's the wire size of the circuits? If it's all 12 awg then your breakers are OK. However you should upgrade the recepticles to a 20A type (about $9 at HD).
Okay, so I need to pull off the receptacle and measure wire size? Easy enough.

Quote:
Second question, do you have an GFCI's? This is a MUST for brewing with electric. Water and electricity don't play well together and can kill you. Make sure the breaker, the outlet or a seperate plugin GFCI device is used.
There are no GFCI's on the plugs right now, but I was planning on adding them. I haven't decided if I want to put it in the wall or have it in between the wall and the stick, just in case I brew elsewhere.
__________________

Andrew

avaserfi is offline

Reply With Quote Quick reply to this message
Old 04-14-2010, 04:36 PM   #4
sjlammer
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2007
Location: Albany, NY
Posts: 576
Liked 5 Times on 5 Posts
Likes Given: 1

Default

if you can see the jacketing the covers the wire (all three wires, not the red, black or white coverings, it will have the gauge printed on it.

this is likely easiest to check at the load center (breaker panel). the jacket will say 14/2 or 12/2

http://www.make-my-own-house.com/images/romex.jpg

Also, if your wiring is new, 14 gauge is white, while 12 gauge is yellow.

post a picture if you need help.

Oh yeah, be careful, don't kill yourself

__________________
~"A fine beer may be judged with only one sip, but it's better to be thoroughly sure.”

On Deck: Spruce APA, Chambord Fortified Chocolate Porter, Imperial IPA

Primary:
Primary:
Secondary: Belgian Dark Strong Ale
Conical:
Lagering: None
Kegged/Drinking: Cascade, Cent., Amarillo Pale Ale
Kegged/Drinking: Belgian Pale Ale (HG yeast for yeast cropping see above)
Bottled: ESB
sjlammer is offline

Reply With Quote Quick reply to this message
Old 04-14-2010, 04:43 PM   #5
avaserfi
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2008
Location: College Station, TX
Posts: 633
Likes Given: 5

Default

I just turned off the breaker to the garage and pulled out the receptacle. Solid wire, there was paint all over the jackets so I pulled out my wire strippers* (no not to cut anything). They have a solid side and a stranded side for what looks like measuring wire, the hot wire was 12 gauge and the ground was 14 gauge.

Seems like I would be fine switching the receptacle then, right?

* Something like these, the wire fit very tightly in the 12awg solid side, but wouldn't fit into the 14awg: http://gsmserver.com/newshop/images/large/Heavy_Duty_Wire_Strippers_Crim_pers_CP_412.jpg

I can't get to the wires at the breaker panel, the breaker is outside on the brick wall. Also, the wiring is from 2001, I didn't pay attention to wire colors, but everything seemed white, I think there was some black too. It could have been from paint though, there was a lot of white spray in the box.

__________________

Andrew


Last edited by avaserfi; 04-14-2010 at 04:48 PM.
avaserfi is offline

Reply With Quote Quick reply to this message
Old 04-14-2010, 05:32 PM   #6
Cpt_Kirks
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2008
Location: Lakeland TN
Posts: 3,731
Liked 43 Times on 38 Posts

Default

I made special extension cords for my 2kw heatsticks. I used 12AWG cable, with heavy plugs, and a outlet box with a 20A switch and a 20A GFCI installed.

That gives me protection no matter where I plug them in, and I can switch the stick on and off without unplugging.

__________________
Cpt_Kirks is offline

Reply With Quote Quick reply to this message
Old 04-14-2010, 05:40 PM   #7
Bjornbrewer
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2008
Location: St. Clair Shores, MI, USA, Earth, Sol System, Milky Way
Posts: 428
Liked 3 Times on 3 Posts

Default

Quote:
Originally Posted by avaserfi View Post
the hot wire was 12 gauge and the ground was 14 gauge.

...

I can't get to the wires at the breaker panel, the breaker is outside on the brick wall. Also, the wiring is from 2001, I didn't pay attention to wire colors, but everything seemed white, I think there was some black too. It could have been from paint though, there was a lot of white spray in the box.
Check that again. you won't have 12 awg hot and neutral and 14 awg ground. Better safe than sorry...sorry as in having your house burn down because the wire overheated inside the walls.

Take the front panel off the breaker box and check the wire size. That should be nice clean wire to read numbers from.


I like Cpt_Kirks idea. Very cool idea having a GFCI and switch all in one.
__________________
Sand Viking Brewery

“Happiness? A good cigar, a good meal, a good cigar and a good woman - or a bad woman; it depends on how much happiness you can handle.” ~George Burns
Bjornbrewer is offline

Reply With Quote Quick reply to this message
Old 04-14-2010, 05:46 PM   #8
avaserfi
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2008
Location: College Station, TX
Posts: 633
Likes Given: 5

Default

Quote:
Originally Posted by Cpt_Kirks View Post
I made special extension cords for my 2kw heatsticks. I used 12AWG cable, with heavy plugs, and a outlet box with a 20A switch and a 20A GFCI installed.

That gives me protection no matter where I plug them in, and I can switch the stick on and off without unplugging.

Yeah, I saw your build and really like the idea. I was thinking about doing something similar. Do you by any chance have a parts list for the lazy?

Quote:
Originally Posted by Bjornbrewer View Post
Check that again. you won't have 12 awg hot and neutral and 14 awg ground. Better safe than sorry...sorry as in having your house burn down because the wire overheated inside the walls.

I like Cpt_Kirks idea. Very cool idea having a GFCI and switch all in one.
There were three wires, I think a white one and a black one , both were 12awg. The third was 14awg and didn't have any sort of insulation. The wires were clearly different in size.

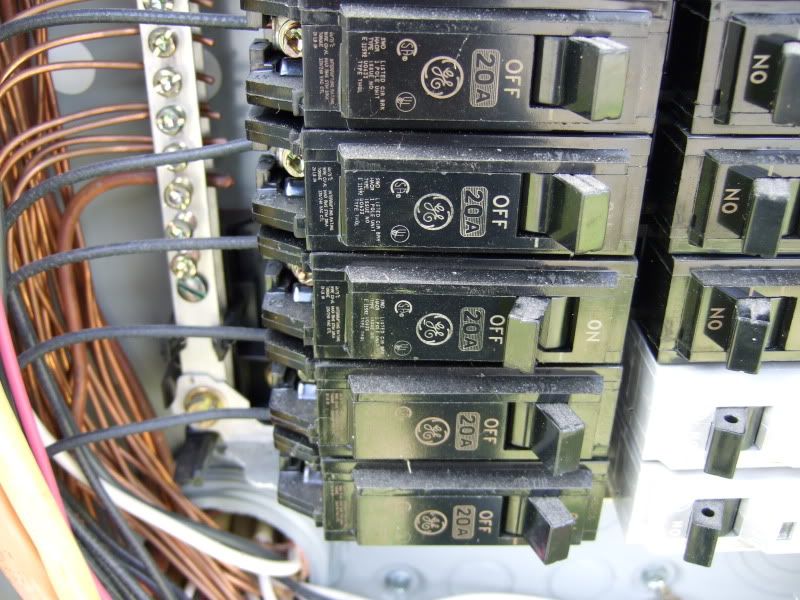

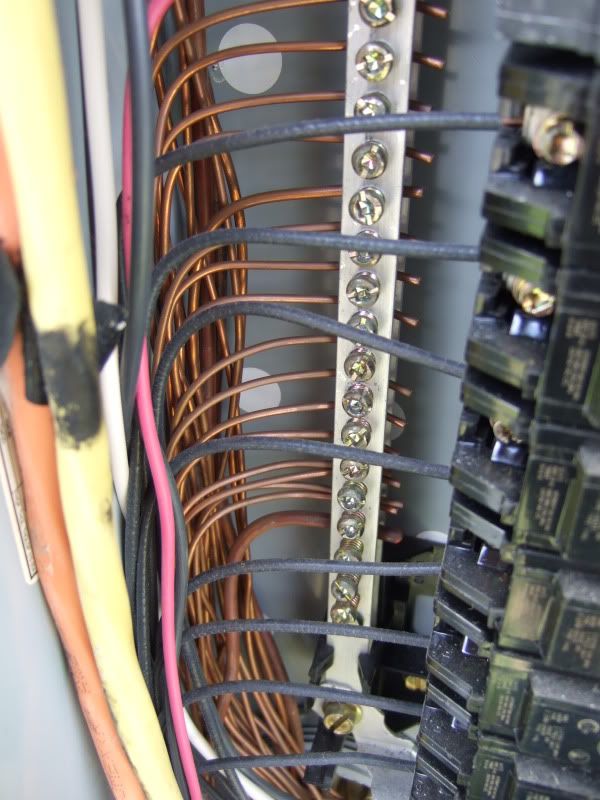

I don't really know what to look for here. The breaker switched off is the breaker relevant to this discussion. The only two marked cables are the two white ones on the right that are twisted, the are stranded 12 gauge cables for the kitchen. The yellow one on the left is marked 12awg as well, but doesn't hook up to anything.




__________________

Andrew


Last edited by avaserfi; 04-15-2010 at 12:54 PM.
avaserfi is offline

Reply With Quote Quick reply to this message
Old 04-14-2010, 09:47 PM   #9
Cpt_Kirks
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2008
Location: Lakeland TN
Posts: 3,731
Liked 43 Times on 38 Posts

Default

Extension Cord Parts:

20A GFCI
20A Switch
25' 12GA rubber coated cable (3 wire)
GFCI and Switch switch plate
cheap double outlet box
heavy duty plug

Some extra 12GA wire to connect switch and GFCI

All parts from Home Depot.

__________________
Cpt_Kirks is offline

Reply With Quote Quick reply to this message
Old 04-15-2010, 12:21 PM   #10
avaserfi
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2008
Location: College Station, TX
Posts: 633
Likes Given: 5

Default

Just bumping this up to see if anyone has any advice about determining wire gauge based on the pictures I posted. Or if I need to get more information.

Thanks.
