Old 12-05-2010, 03:35 PM   #21
ElevenBrewCo
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2010
Location: Camby, IN
Posts: 282
Liked 8 Times on 4 Posts
Likes Given: 3

Default

I use belimo at work...great actuators

__________________
ElevenBrewCo is offline

Reply With Quote Quick reply to this message
Old 12-09-2010, 04:44 AM   #22
TheFlyingBeer
Feedback Score: 0 reviews
Recipes

Join Date: May 2007
Location: Catonsville, MD
Posts: 425
Liked 13 Times on 12 Posts
Likes Given: 3

Default

Good news...

Four of the actuated valves I ordered arrived today! They are Johnson Controls model VA9104-AGA-3S, 24VAC floating, 3/4" ball valves. The valves have a red button that can be used to manually override the actuator should a problem come up.



My hopes of having an ISO5211 mounting interface were confirmed upon inspection. The black plastic adapter under the blue actuator body is sized to fit a F03 ISO5211 pad. For the triclamp valves I want to order (see post #1) I will most likely need to drill and tap a thread on the square valve stem.

This actuator operation is super simple, apply 24VAC on terminal 2 and it will begin opening, apply it on terminal 3 and it will begin closing. Terminal 1 is a common ground. The datasheet says the valve will open/close in 60 seconds at 60hz. There are no end switches or position indicators, something I am eager to implement myself.



The lower half of the actuator is the gear train which I have not and don't currently plan to inspect. There is a bunch of space in the top half of the enclosure to place components for position feedback/control etc.

I have modeled the actuator in 3D and it should fit perfectly on the valve pad:



I purchased these on eBay and now that I have the 6 I need I am willing to share the source for anyone who is interested, although he is almost out: 3-4-Two-Way-Ball-Valve-w-Electric-Actuator-NIB

A little cheaper than the KLD's people have used, but I still have to buy the actual valves... the price I pay for tri-clamps I suppose.

__________________

Primaries: Air
Secondaries: Lakefront India Brown Ale

On Tap 1: Rootbeer, On Tap 2: NB White ouse Honey Ale, On Tap 3: Nitrogen, On Tap 4: Air, On Tap 5: Air
On Deck: DIPA, Imp Stout, Porter, Wheat, Black IPA

"No sense having empty carboys around when full ones take up just as much space. " - Me
TheFlyingBeer is offline

Reply With Quote Quick reply to this message
Old 12-09-2010, 05:10 AM   #23
JonW
Feedback Score: 0 reviews

JonW's Avatar
Recipes

Join Date: Dec 2009
Location: Huntington Beach ☼
Posts: 1,465
Liked 97 Times on 59 Posts
Likes Given: 36

Default

60 seconds to open or close? That's a long time.

__________________
Surf City Brewing (TM)

My Single Tier, 3 Pump, BCS-462, Brutus Build: http://www.homebrewtalk.com/f51/single-tier-3-pump-bcs-462-automated-rig-204705/
My customized BCS-462 controller web interface: http://www.homebrewtalk.com/f51/hacking-bcs-add-customized-web-pages-done-209388/
My 8 tap, 11 keg, upright Keezer build: http://www.homebrewtalk.com/f51/upright-keezer-8-taps-11-kegs-371438/
JonW is offline

Reply With Quote Quick reply to this message
Old 12-09-2010, 05:52 AM   #24
ClaudiusB
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: El Paso, Texas
Posts: 1,273
Liked 60 Times on 51 Posts
Likes Given: 116

Default

Quote:
Originally Posted by TheFlyingBeer View Post
Anyone had success making their own actuators or adapting another product to work for brewing?
I have done it with pneumatic actuators.
2" butterfly valve



5 & 8 mm prox sensors can be mounted on the back.

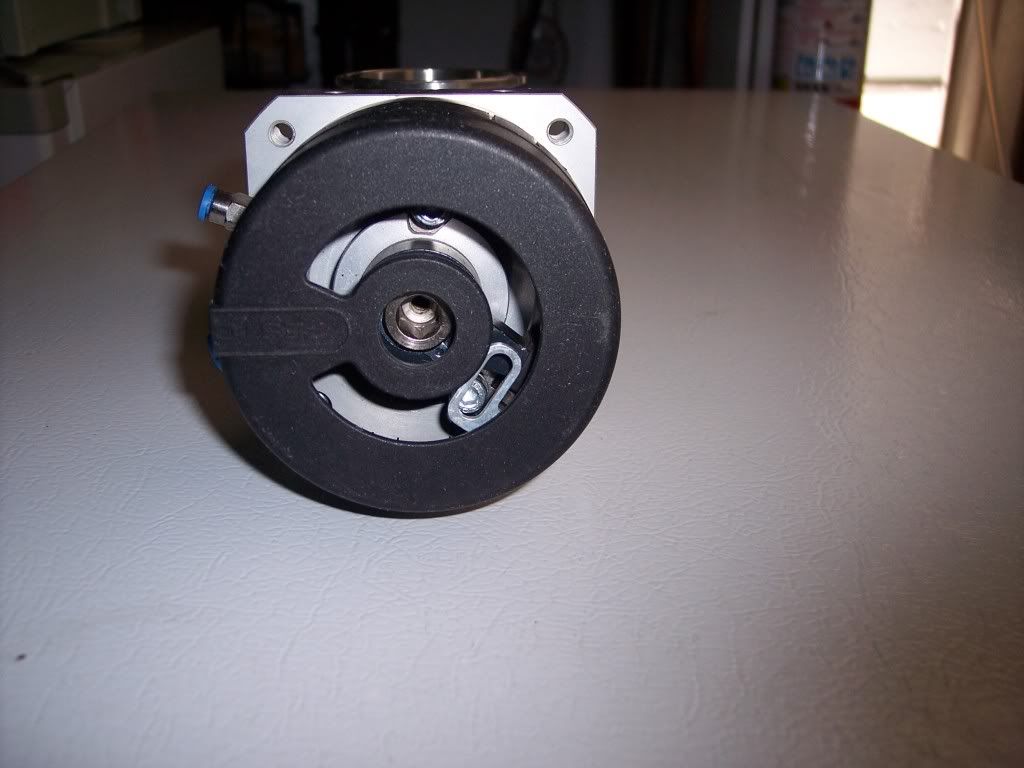

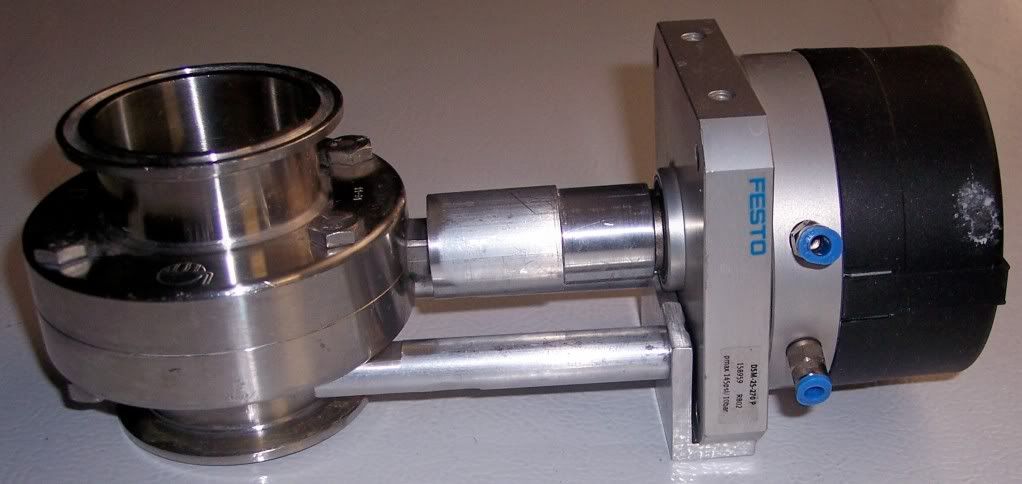

Commercial 2" actuator adapted to a 1-1/2" butterfly valve

Cheers,
ClaudiusB

ClaudiusB is offline

Reply With Quote Quick reply to this message
Old 12-09-2010, 06:03 AM   #25
TheFlyingBeer
Feedback Score: 0 reviews
Recipes

Join Date: May 2007
Location: Catonsville, MD
Posts: 425
Liked 13 Times on 12 Posts
Likes Given: 3

Default

Quote:
Originally Posted by JonW View Post
60 seconds to open or close? That's a long time.
The KLD are spec'd at 90sec. I am not too concerned with the open/closed time as they are really going to be used to change between modes (strike, sparge, transfer, etc) so time isn't critical.

Edit: After reviewing the datasheet on the KLD I see they have a 5-7s open to close time, not the 90 I remember... now which valve did I see 90 seconds on??? Still I don't think it will impact the process to have the valves open/close a little slower.


Claudius, as always that's some nice fancy equipment you have there. Me likey.
__________________

Primaries: Air
Secondaries: Lakefront India Brown Ale

On Tap 1: Rootbeer, On Tap 2: NB White ouse Honey Ale, On Tap 3: Nitrogen, On Tap 4: Air, On Tap 5: Air
On Deck: DIPA, Imp Stout, Porter, Wheat, Black IPA

"No sense having empty carboys around when full ones take up just as much space. " - Me
TheFlyingBeer is offline

Reply With Quote Quick reply to this message
Old 12-10-2010, 09:49 AM   #26
Guldberg
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2010
Location: Denmark
Posts: 14
Default

Im in the process of upgrading the KLD valve to proportional controlled over i2c or if you like to stick to analog, a potentiometer and some buttons.

Take a peek at http://forum.brewtroller.com/showthread.php?t=1044

__________________
Guldberg is offline

Reply With Quote Quick reply to this message
Old 02-24-2011, 03:07 AM   #27
TheFlyingBeer
Feedback Score: 0 reviews
Recipes

Join Date: May 2007
Location: Catonsville, MD
Posts: 425
Liked 13 Times on 12 Posts
Likes Given: 3

Default

Awesome day in homebrew land! The 7 3/4" 3pc tri-clamp ball valves I ordered from Taiwan were sitting on my step when I came home from work:



I now have 6 actuators and 7 valves (ordered an extra valve just in case).



I finally got to compare my 3D CAD versions against the real hardware and it looks like the valves and actuators should mate great!



Hopefully this weekend I can see if the actuators are up to the task of moving these valves.

__________________

Primaries: Air
Secondaries: Lakefront India Brown Ale

On Tap 1: Rootbeer, On Tap 2: NB White ouse Honey Ale, On Tap 3: Nitrogen, On Tap 4: Air, On Tap 5: Air
On Deck: DIPA, Imp Stout, Porter, Wheat, Black IPA

"No sense having empty carboys around when full ones take up just as much space. " - Me
TheFlyingBeer is offline

Reply With Quote Quick reply to this message
Old 02-25-2011, 03:00 AM   #28
TheFlyingBeer
Feedback Score: 0 reviews
Recipes

Join Date: May 2007
Location: Catonsville, MD
Posts: 425
Liked 13 Times on 12 Posts
Likes Given: 3

Default

The weekend came a little early I suppose, I was able to mount and test one of the valves with my actuators tonight. The actuator stem requires a little modification to get the orientation of the ball correct but overall they fit together well.

The actuator handles these valves with no issue! Time to continue the valve control circuit now that I know everything should work fine.

__________________

Primaries: Air
Secondaries: Lakefront India Brown Ale

On Tap 1: Rootbeer, On Tap 2: NB White ouse Honey Ale, On Tap 3: Nitrogen, On Tap 4: Air, On Tap 5: Air
On Deck: DIPA, Imp Stout, Porter, Wheat, Black IPA

"No sense having empty carboys around when full ones take up just as much space. " - Me
TheFlyingBeer is offline

Reply With Quote Quick reply to this message
Old 02-25-2011, 04:34 AM   #29
EarthBound
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2010
Location: Beer Capital of the World
Posts: 984
Liked 10 Times on 9 Posts
Likes Given: 84

Default

Quote:
Originally Posted by TheFlyingBeer View Post


Awesome!

From where did you purchase that stuff and for how much?
__________________

"You can do anything you set your mind to when you have vision, determination, and an endless supply of beer."

EarthBound is offline

Reply With Quote Quick reply to this message
Old 02-25-2011, 04:42 AM   #30
TheFlyingBeer
Feedback Score: 0 reviews
Recipes

Join Date: May 2007
Location: Catonsville, MD
Posts: 425
Liked 13 Times on 12 Posts
Likes Given: 3

Default

Actuators were from ebay about $45 each. Valves were direct from a supplier in Taiwan for $33 each, but shipping and bank transfer fees raised the unit rate up decent amount.

__________________

Primaries: Air
Secondaries: Lakefront India Brown Ale

On Tap 1: Rootbeer, On Tap 2: NB White ouse Honey Ale, On Tap 3: Nitrogen, On Tap 4: Air, On Tap 5: Air
On Deck: DIPA, Imp Stout, Porter, Wheat, Black IPA

"No sense having empty carboys around when full ones take up just as much space. " - Me
TheFlyingBeer is offline
