A single receptacle is fine, they exist for this sort of application. A duplex receptacle may be cheaper though since they are more common.


The enclosure should really be something properly rated as an electrical equipment enclosure. No reason you can't cover that with wood for appearance.

__________________
reynolds5520 is offline

Reply With Quote Quick reply to this message
Old 02-27-2013, 07:56 PM   #3412
Thursday88
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2013
Posts: 8
Likes Given: 2

Default

Been reading this thread since yesterday and I'm in the process of gathering everything. I'm wondering if I am on the right track.

Black = hot
Gray = neutral
Green = ground

None of the the only connections are at the terminal block. The intersections are just wires passing each other.

__________________
Thursday88 is offline

Reply With Quote Quick reply to this message
Old 02-27-2013, 08:00 PM   #3413
blaster_54738
BackDraught Brewing Co
Feedback Score: 0 reviews

blaster_54738's Avatar
Recipes

Join Date: Jan 2012
Location: Eleva, WI
Posts: 372
Liked 36 Times on 32 Posts
Likes Given: 79

Default

Quote:
Originally Posted by Thursday88 View Post
Been reading this thread since yesterday and I'm in the process of gathering everything. I'm wondering if I am on the right track.

Black = hot
Gray = neutral
Green = ground

None of the the only connections are at the terminal block. The intersections are just wires passing each other.

You only need one neutral wire off the receptacle, not 2, there is still the bridge there that you don't need to break on the neutral side...other than that looks good
__________________
Primary EMPTY

Secondary EMTPY

Kegged Bourbon Barrel Milk Stout, Vanilla Porter

Bottled Skeeter Pee, Apfelwein

Coming Soon English Brown Ale, Double Chocolate Stout, Mojave Red

BackDraught Home Brewery
blaster_54738 is offline

Reply With Quote Quick reply to this message
Old 02-27-2013, 08:51 PM   #3414
Thursday88
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2013
Posts: 8
Likes Given: 2

Default

Thanks blaster, much appreciated.

__________________
Thursday88 is offline

Reply With Quote Quick reply to this message
Old 02-28-2013, 04:25 AM   #3415
Padawan
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2013
Location: st. paul, minnesota
Posts: 50
Likes Given: 16

Default

Is this comparable to a Johnson temp controller? does it have a delay function?

__________________
Padawan is offline

Reply With Quote Quick reply to this message
Old 02-28-2013, 03:16 PM   #3416
Thursday88
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2013
Posts: 8
Likes Given: 2

Default

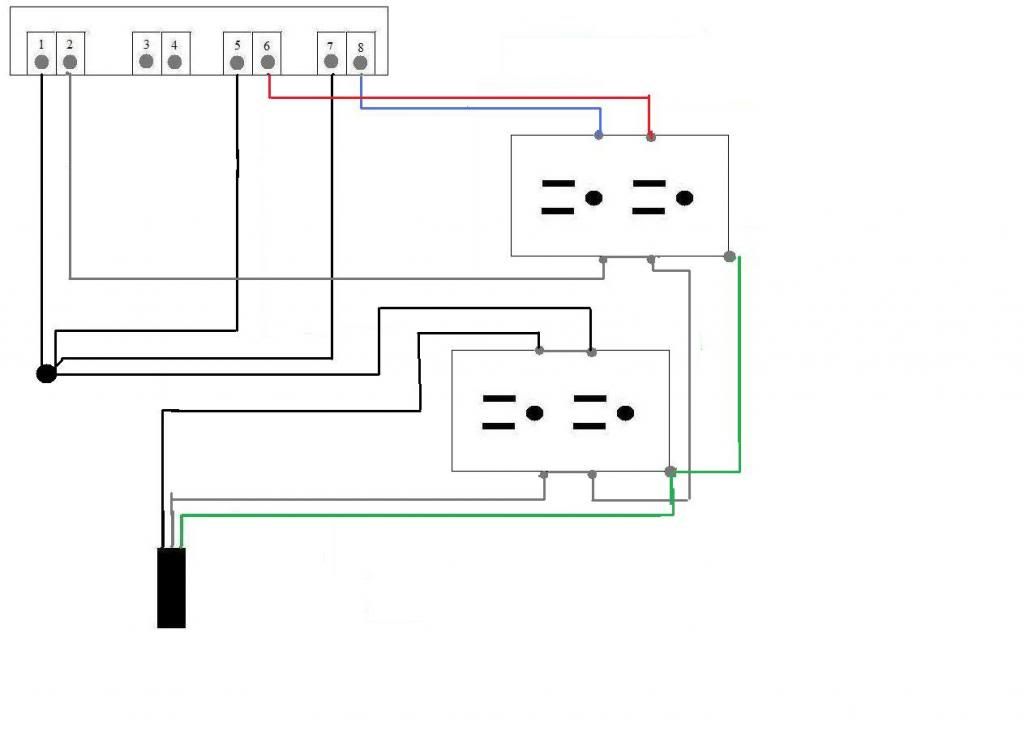

Another question. Would either of these be viable to wire up another receptacle for always hot?

1.


Or add another terminal/block and a jumper to keep it at 2 wires per connection.
2.


I know this is supposed to be a simple circuit and I think I might have it wired correctly but I wanted to make sure before I started.

__________________
Thursday88 is offline

Reply With Quote Quick reply to this message
Old 02-28-2013, 03:26 PM   #3417
Huaco
Feedback Score: 0 reviews

Huaco's Avatar
Recipes

Join Date: Dec 2011
Location: Just south of Cow Town, Tx
Posts: 1,204
Liked 109 Times on 68 Posts
Likes Given: 32

Default

If you have the two receptacles in a 2-gang box, you can just daisy chain the grounds and neutrals. This will reduce the amount of wires going back to the terminal block.

Huaco is offline

Reply With Quote Quick reply to this message
Old 02-28-2013, 04:06 PM   #3418
Thursday88
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2013
Posts: 8
Likes Given: 2

Default

Quote:
Originally Posted by Huaco View Post
If you have the two receptacles in a 2-gang box, you can just daisy chain the grounds and neutrals. This will reduce the amount of wires going back to the terminal block.
Well they will be on opposite sides of the box. So would a daisy chain still be a good alternative?
__________________
Thursday88 is offline

Reply With Quote Quick reply to this message
Old 02-28-2013, 04:43 PM   #3419
Huaco
Feedback Score: 0 reviews

Huaco's Avatar
Recipes

Join Date: Dec 2011
Location: Just south of Cow Town, Tx
Posts: 1,204
Liked 109 Times on 68 Posts
Likes Given: 32

Default

Quote:
Originally Posted by Thursday88 View Post
Well they will be on opposite sides of the box. So would a daisy chain still be a good alternative?
Probably not.
How many posts will your terminal block have? You could just install 2 small terminal blocks... a hot and a neutral block each. You will easily be able to connect both grounds to one post of the terminal block if you make sure to cut your jumper short of that "ground" post on the terminal block.
__________________
My E-Brewery Build ---- My Multi-Temp Fermentation Chamber Build ---- My Multi-Temp Fermentation Controller
Huaco is offline

Reply With Quote Quick reply to this message
Old 02-28-2013, 04:49 PM   #3420
Thursday88
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2013
Posts: 8
Likes Given: 2

Default

Quote:
Originally Posted by Huaco View Post
Probably not.
How many posts will your terminal block have? You could just install 2 small terminal blocks... a hot and a neutral block each. You will easily be able to connect both grounds to one post of the terminal block if you make sure to cut your jumper short of that "ground" post on the terminal block.
I can do whatever. I did another two without the blocks should be a little clearer and easier to fit in a tighter space. This is with twist caps. The only thing is I'm not sure if I've isolated one of the receptacles in the first one. I have a limited knowledge when it comes to electricity and circuits but from what I understand #1 should be fine, not 100% yet.

Thanks for your help.

1. The first receptacle that the incoming wire comes into is my always hot.



2. This is splitting the ground and neutral before the terminal.
