Default Dual coil chiller

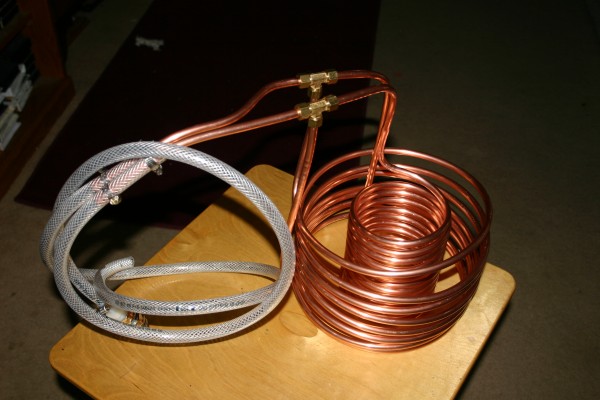

I wanted to make a chiller for standard extract batches in my 5 gal. brewpot, but felt that most chillers didn't chill the center of the kettle very well, so I made this dual coil chiller with standard hardware store stuff (man the prices have gone up recently) I havn't used it yet but my H2O temp in Michigan right now is just above 40* and I ran water through the chiller from my kitchen sink at just under 2 gals. per minute, so I have no excuse to not get another batch going soon!

__________________
nasmeyer is offline

Reply With Quote Quick reply to this message
Old 02-01-2009, 09:00 PM   #2
HBHoss
Chappell Brewery
Feedback Score: 0 reviews

HBHoss's Avatar
Recipes

Join Date: Jul 2008
Location: Mariposa, CA
Posts: 8,230
Liked 118 Times on 118 Posts
Likes Given: 3

Default

Looks good. Do have the inner coil connected to the outer coil for support so as not to put stress on it?

HBHoss is offline

Reply With Quote Quick reply to this message
Old 02-01-2009, 09:09 PM   #3
nasmeyer
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: Michigan
Posts: 254
Liked 2 Times on 2 Posts

Default

Quote:
Originally Posted by HBHoss View Post
Looks good. Do have the inner coil connected to the outer coil for support so as not to put stress on it?
Not yet, it is all pretty stiff due to the tee connectors so I might leave it, but I also might use some stainless wire to connect the coils for support.
__________________
nasmeyer is offline

Reply With Quote Quick reply to this message
Old 02-02-2009, 12:00 AM   #4
pen25
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2008
Location: tulsa, ok
Posts: 976
Liked 1 Times on 1 Posts
Likes Given: 6

Default

isnt the idea behind whirlpooling the wort during cooling was to increase surface contact with the wort chiller. wont this decrease that ability though you have increased the surface contact within those area's? or are you whirlpooling via a pump?

__________________

from or living in oklahoma? come join us in the oklahoma group

pen25 is offline

Reply With Quote Quick reply to this message
Old 02-02-2009, 04:04 AM   #5
nasmeyer
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: Michigan
Posts: 254
Liked 2 Times on 2 Posts

Default

Im not doing any whirlpooling, just sticking it in the brewpot 10 mins before knockout to sanitize it, removing the pot from the burner, placing the pot in an ice bath, and running H20 through the coils till I get 80* or so.

__________________
nasmeyer is offline

Reply With Quote Quick reply to this message
Old 02-02-2009, 04:39 AM   #6
pen25
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2008
Location: tulsa, ok
Posts: 976
Liked 1 Times on 1 Posts
Likes Given: 6

Default

let us know how it works out. thx for the pics. very interesting

__________________

from or living in oklahoma? come join us in the oklahoma group

pen25 is offline

Reply With Quote Quick reply to this message
Old 02-02-2009, 12:13 PM   #7
Jun
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: Boston, MA
Posts: 50
Default

Check out this thread that I started not too long ago, there is one similar to yours.
This might be becoming a trend!!

http://www.homebrewtalk.com/f51/imme...-design-98181/

__________________
Jun is offline

Reply With Quote Quick reply to this message
Old 02-04-2009, 07:47 AM   #8
nasmeyer
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: Michigan
Posts: 254
Liked 2 Times on 2 Posts

Default

I went a head and modified my chiller a bit by using some copper wire to tie the thing together and strengthen it some, I also tested it in 2 1/2 gallons of boiling H2O in my brewpot and got the temp down to 80* in just under 6 minutes! No more "chill haze for me!

__________________
nasmeyer is offline

Reply With Quote Quick reply to this message
Old 06-23-2010, 12:04 PM   #9
Mobstar
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2009
Location: Ottawa
Posts: 128
Default update

Any updates on this setup?
I was thinking of doing the same thing.

My immersion chiller is coiled too high so I thought of removing 1/2 and adding it as a center coil.
The outer diameter is 8". so I was thinking of coiling it at 6" maybe 4". it all depends on what I can find to shape the coil around. I would bend it as one piece though just to eliminate possible leaking/failing joints.

__________________
Mobstar is offline

Reply With Quote Quick reply to this message
Old 07-04-2010, 03:23 PM   #10
Redbeard5289
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2009
Location: Kasson, Minnesota
Posts: 178
Liked 14 Times on 13 Posts
Likes Given: 1

Default

cool design! I am looking to make an immersion chiller soon and like the idea of a double coil chiller.

What diameter copper did you use?
What did you use for solder?

Thanks
Redbeard5289

__________________
Redbeard5289 is offline

Reply With Quote Quick reply to this message
