Default Drilling my keggle holes

I am about ready to drill my hole for the welded fittings. I have heard that 3 3/4" is a good hole center from bottom? any recommendations? I am planning on using sabco internals for the false bottom. Sabco is on vacation untill the 17th so i can't call them for advice.

__________________
Elfmaze is offline

Reply With Quote Quick reply to this message
Old 08-05-2009, 07:13 PM   #2
WC87
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2007
Location: College Station, TX
Posts: 70
Default

I'm in the same boat. Anyone have recommendations? Also, does anyone have dimensions on a dip tube/siphon? Length of pipe till bend, etc.? Will HD or Lowes, etc bend the pipe? (I'm thinking copper)

__________________
WC87 is offline

Reply With Quote Quick reply to this message
Old 08-05-2009, 07:18 PM   #3
TwoHeadsBrewing
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2008
Location: Chico, CA
Posts: 3,930
Liked 28 Times on 25 Posts
Likes Given: 2

Default

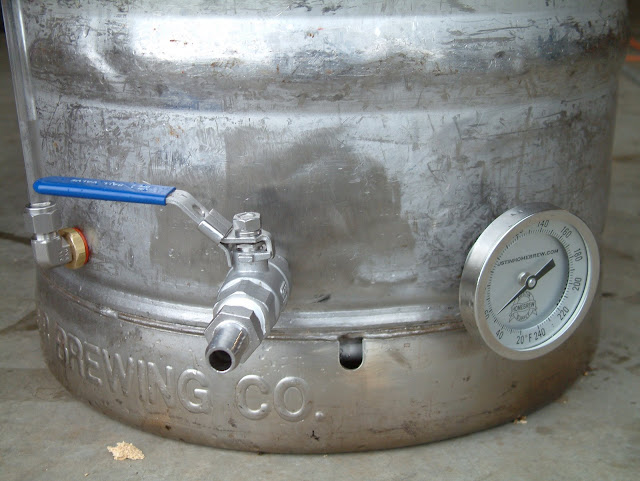

Here's a pic of my setup:





The ball valve is a bit low, but I haven't burnt the plastic handle off...yet! I like it being close to the bottom, so my dip tube doesn't stuck up too far. Those pics are my HLT, but the setup is just the same on my MLT. 7/8" hole, just far enough up the side so I have a flat mating surface for the weldless washer/bolt/seal. That's really the only crucial part, you just want to have a flat surface to bolt to, otherwise you'll never get a good seal. Oh, and I just soldered the dip tubes out of 1/2" copper pipe. I had some laying around from my counterflow chiller build, and a friend let me borrow the torch, solder and flux.

__________________

Fermenting: ESB
Kegged: Extra IPA, Brown Ale, American Wheat, Blackheart Stout
Coming Up: Dunkleweizen, 3C Pale Ale


DIY Fermentation Chamber
More Brew Stuff
TwoHeadsBrewing is offline

Reply With Quote Quick reply to this message
Old 08-06-2009, 02:18 AM   #4
WC87
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2007
Location: College Station, TX
Posts: 70
Default

Thanks 2Head. No issues with the temp gauge that low? I want to go as low as possible, because I'm going to be using a hop bag and don't want it to snag the temp probe.

__________________
WC87 is offline

Reply With Quote Quick reply to this message
Old 08-06-2009, 08:48 AM   #5
Elfmaze
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2008
Location: Allentown, PA
Posts: 505
Liked 3 Times on 3 Posts

Default

I see alot of guys that have them right along that bottom edge. Just be carefull that you don't hit the concave part inside.

__________________
Elfmaze is offline

Reply With Quote Quick reply to this message
Old 08-06-2009, 02:02 PM   #6
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 2 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 21,895
Liked 935 Times on 622 Posts
Likes Given: 28

Default

You can put the lower edge of the hole right on the skirt weld if you want to but it really doesn't matter give or take a quarter inch. The sight glass port should be as low as possible also. The thermo can be anywhere between the skirt weld and the first bump out. I like to put it just a bit higher than the drain port just to keep the burner heat off it.

__________________
BrewHardware.com
Sightglass, Refractometer, Ball Valve, Weldless bulkhead, Thermometer, Decals, Stainless Steel Fittings, Compression Fittings, Camlock Quick Disconnects, Scale, RIMS tube, Plate Chiller, Chugger Pump, Super Clear Silicone Tubing, and more!

New Stuff?
Bobby_M is offline

Reply With Quote Quick reply to this message
Old 08-21-2009, 03:06 PM   #7
Elfmaze
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2008
Location: Allentown, PA
Posts: 505
Liked 3 Times on 3 Posts

Default

do you want to pass the coupler thru the hole? or have it sitting on top of the hole before you weld it? basically 3/4 inch hole or one inch hole and let it pass thru?

__________________
Elfmaze is offline

Reply With Quote Quick reply to this message
Old 08-21-2009, 03:27 PM   #8
samc
Feedback Score: 1 reviews
Recipes

Join Date: Aug 2008
Location: Portland OR
Posts: 5,420
Liked 54 Times on 51 Posts
Likes Given: 29

Default

Keep the valve, etc. as far away from the skirt vent hole as possible to avoid the excess heat the flows from it.

__________________
samc is offline

Reply With Quote Quick reply to this message
Old 08-21-2009, 03:37 PM   #9
TwoHeadsBrewing
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2008
Location: Chico, CA
Posts: 3,930
Liked 28 Times on 25 Posts
Likes Given: 2

Default

Quote:
Originally Posted by WC87 View Post
Thanks 2Head. No issues with the temp gauge that low? I want to go as low as possible, because I'm going to be using a hop bag and don't want it to snag the temp probe.
Sorry man, just saw your post. I actually have had an issue with it being too low, but only because I built a new burner that creates hell on earth beneath the kettle. Before, when I had the SQ-14 burner it worked great no problems. But my new burner kicks up flames all around the bottom and up around the sides at full blast. My last brew, I cracked the glass in my thermometer. That sucks, but it doesn't seem to effect the temp gauge at all. To combat all the heat my burner throws, I'll be getting some flashing to put right under the valve, sight glass and thermo.
__________________

Fermenting: ESB
Kegged: Extra IPA, Brown Ale, American Wheat, Blackheart Stout
Coming Up: Dunkleweizen, 3C Pale Ale


DIY Fermentation Chamber
More Brew Stuff
TwoHeadsBrewing is offline

Reply With Quote Quick reply to this message
Old 08-21-2009, 04:30 PM   #10
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 2 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 21,895
Liked 935 Times on 622 Posts
Likes Given: 28

Default

I'd recommend dialing that flame down until it stops licking up the sides. That heat is just flying into nothing and wasting your gas.

__________________
BrewHardware.com
Sightglass, Refractometer, Ball Valve, Weldless bulkhead, Thermometer, Decals, Stainless Steel Fittings, Compression Fittings, Camlock Quick Disconnects, Scale, RIMS tube, Plate Chiller, Chugger Pump, Super Clear Silicone Tubing, and more!

New Stuff?
Bobby_M is offline

Reply With Quote Quick reply to this message
