Default DIY Stir Plate Problems

I am trying to make a DIY stir plate but all the "pea" does is jump around. It won't spin. I am using a 12v dc 4 inch computer fan powered by either a 5.9 v or a 9 v wall wort. I have tried 1 magnet, 2 magnets one on top of the other, and 2 magnets on opposite sides of the top of the fan. I have adjusted the distance from the spinning magnets to the "pea" from about 1/4 " to 1 1/2 ". I have read every post about the DIY stir plates and looked at all the pictures. But this *@%#$^ "pea" won't spin. Someone out there must have had the same problem... HELP.

__________________

.
.
The Liver is Evil and Must be Punished!!

Hops is offline

Reply With Quote Quick reply to this message
Old 04-01-2011, 01:50 PM   #2
wyzazz
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2009
Location: Atwater, OH
Posts: 4,265
Liked 39 Times on 39 Posts
Likes Given: 48

Default

How large is your stirbar? My 2" barbell is way harder to get spinning than my 1" one. What kind of magnets are you using? If you use a Hard Drive magnet 1 should do the trick, the round ones will take 2. And use a spacer (PVC/SS Washer/Wood) of some sort between the fan and magnet.

__________________
Quote:
Originally Posted by Revvy View Post
And I'd like to see my 1.080 beers ready from grain to glass in a week, and served to me by red-headed twin penthouse pets wearing garter belts and fishnet stockings, with Irish accents, calling me "master luv gun," but we can't always get what we want can we? :)
wyzazz is offline

Reply With Quote Quick reply to this message
Old 04-01-2011, 01:53 PM   #3
carrotmalt
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2008
Location: .
Posts: 469
Liked 6 Times on 5 Posts
Likes Given: 1

Default

I don't know what "pea" stands for, but what kind of stir bar do you have? Mine's about 1.5 inches long, and I have two magnets about a cm in diameter each that are placed just under the outer edges of the stir bar. Mine took a while to get right, but it's pretty much as close to the plexiglass it'll go before the fan tries lift off the table (mines not attached yet). You might let it sit on the magnets for a minute or so and make sure the poles aren't confused. I think this helped mine finally get locked in. Now it works every time w/o fail.

__________________

I like a little more beer in my beer.

carrotmalt is offline

Reply With Quote Quick reply to this message
Old 04-01-2011, 02:12 PM   #4
marnel
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2008
Location: Hagerstown, MD
Posts: 155
Liked 1 Times on 1 Posts

Default

Have you checked the poles of the magnets?

__________________
marnel is offline

Reply With Quote Quick reply to this message
Old 04-01-2011, 02:19 PM   #5
Hops
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: Orlando, Fl
Posts: 27
Default

Sorry about the technical terminology... "pea" equals stir bar. I am using a 1 inch stir bar. The magnets are from a hard drive. I will try the spacer between fan and magnet. The stir bar is currently sitting in the magnet hopefully that will allow it to orient itself correctly.

__________________

.
.
The Liver is Evil and Must be Punished!!

Hops is offline

Reply With Quote Quick reply to this message
Old 04-01-2011, 02:27 PM   #6
beergynt
Senior Member
Feedback Score: 0 reviews

beergynt's Avatar
Recipes

Join Date: Oct 2008
Location: Morris, IL
Posts: 326
Liked 43 Times on 31 Posts
Likes Given: 10

Default

Quote:
Originally Posted by Hops View Post
I am trying to make a DIY stir plate but all the "pea" does is jump around.

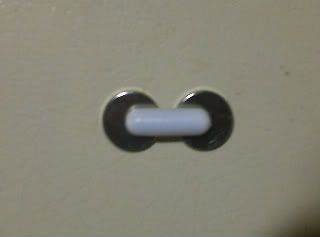

If it doesn't sound like your fan is struggling to spin, it might be a polarity issue... I had a similar problem in that the bar didn't want to center itself on the magnet. I went to Ace (they have very cheap Neodymium magnets BTW) and bought circular magnets.

At first I though I was having the same issue...

But by flipping one of the magnets, the poles lined up and the stir bar found its happy place...

On the actual fan, I epoxied a thin steel washer so I could adjust the magnets if necessary...
__________________
C6H12O62 CH3CH2OH + 2 CO2
beergynt is offline
nmfree Likes This
Reply With Quote Quick reply to this message
Old 04-01-2011, 02:34 PM   #7
beergynt
Senior Member
Feedback Score: 0 reviews

beergynt's Avatar
Recipes

Join Date: Oct 2008
Location: Morris, IL
Posts: 326
Liked 43 Times on 31 Posts
Likes Given: 10

Default

Link to those magnets I found at ACE. $4 is a good investment to avoid having to jack around with a hard drive, IMO...

http://www.acehardware.com/product/i...Id=51388772714

__________________
C6H12O62 CH3CH2OH + 2 CO2
beergynt is offline

Reply With Quote Quick reply to this message
Old 04-01-2011, 02:44 PM   #8
Catt22
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2009
Posts: 4,998
Liked 57 Times on 55 Posts
Likes Given: 51

Default



__________________
Catt22 is offline

Reply With Quote Quick reply to this message
Old 04-01-2011, 02:56 PM   #9
a10t2
Feedback Score: 0 reviews
Recipes

Join Date: May 2010
Location: Leadville, CO
Posts: 557
Liked 14 Times on 13 Posts
Likes Given: 1

Default

Is the bar getting thrown to the side immediately? If so you might just be starting it off too fast. I've found it's best to start the motor off barely spinning, let the bar get started, then increase the speed.

If the bar stays centered but doesn't spin, you just need more powerful magnets. HDD magnets didn't work for me either, so I got some rare-earth magnets, and now I can spin the bar in a 3 gal carboy. If you have a Harbor Freight nearby, they'll probably have some in stock.

__________________
http://seanterrill.com/category/brewing/
Quote:
Originally Posted by monty3777 View Post
squeeze your sack like it owes you money.
a10t2 is offline

Reply With Quote Quick reply to this message
Old 04-01-2011, 03:27 PM   #10
camiller
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2007
Location: Omaha, NE
Posts: 1,882
Liked 29 Times on 29 Posts
Likes Given: 9

Default

Other thing to consider ... is the center of the magnetic field (not the center of mass) centered on the fan? With a hard drive magnet I don't think the two are the same due to the odd shape. Let the stir bar find it's location on the magnet, the point in the middle of the stir bar needs to be centered on the fan.

__________________
In Nebraska? Nebraska Brewers Group
My Club OmaHops Homebrew Club

Put yourself on the Homebrewers Map see the forum thread

My ridiculously easy stir plate buildMy Kegerator
camiller is offline
