Default DIY Chillus Convolutus Caddy

I am thinking about making a caddy for my chiller and hoses similar to Morebeers Counterflow Caddy

I need somewhere sturdy to mount my chiller and would like a good place to hang dry my hoses between uses.

Has anyone done anything similar to this? would love some ideas.



__________________

Brewing Gadgeteer
Brian

bbarr21 is offline

Reply With Quote Quick reply to this message
Old 04-22-2012, 11:58 PM   #2
Bsquared
Feedback Score: 0 reviews

Bsquared's Avatar
Recipes

Join Date: Oct 2006
Location: San Diego
Posts: 1,804
Liked 52 Times on 49 Posts
Likes Given: 21

Default

I used Superstrut to mount my pumps and CFC, I'm going to modify my mounting of the CFC. but the 3" conduit strap holds the pumps in place, and the CFC bolts right on to the rig. I think I might try to use two 3/4" conduit straps to mount the CFC horizontal in stead of verticaly as I have it now.




__________________
Bsquared is offline

Reply With Quote Quick reply to this message
Old 04-23-2012, 03:58 AM   #3
ClaudiusB
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: El Paso, Texas
Posts: 1,220
Liked 50 Times on 45 Posts
Likes Given: 105

Default

Quote:
Originally Posted by bbarr21 View Post
I am thinking about making a caddy for my chiller and hoses similar to Morebeers Counterflow Caddy

I need somewhere sturdy to mount my chiller and would like a good place to hang dry my hoses between uses.

Has anyone done anything similar to this? would love some ideas.
Yes.
My rolling cart includes two CFC, Oxygen tank, flow meter and a hook for hoses.
The cart is made out of extruded aluminum.










Cheers,
ClaudiusB
ClaudiusB is offline

Reply With Quote Quick reply to this message
Old 04-23-2012, 11:40 AM   #4
Mpavlik22
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2011
Location: Pittsburgh, PA
Posts: 317
Default

Quote:
Originally Posted by ClaudiusB
Yes.
My rolling cart includes two CFC, Oxygen tank, flow meter and a hook for hoses.
The cart is made out of extruded aluminum.

Cheers,
ClaudiusB
Awesome. Can u provide more info or pictures on the flow meter and how you have it hooked up? Thanks.
__________________

"If you fail to plan, then you plan to fail"

Mpavlik22 is offline

Reply With Quote Quick reply to this message
Old 04-23-2012, 12:02 PM   #5
pickles
Feedback Score: 0 reviews

pickles's Avatar
Recipes

Join Date: Feb 2008
Location: Columbus
Posts: 1,897
Liked 39 Times on 32 Posts
Likes Given: 22

Default

That looks like a Dwyer rotometer or similar brand.

__________________
Gaptooth Brewhouse
pickles is offline

Reply With Quote Quick reply to this message
Old 04-23-2012, 02:03 PM   #6
ClaudiusB
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: El Paso, Texas
Posts: 1,220
Liked 50 Times on 45 Posts
Likes Given: 105

Default

Quote:
Originally Posted by pickles View Post
That looks like a Dwyer rotometer or similar brand.
Correct brand, model # VFB-60-SSV-PF



Quote:
Originally Posted by Mpavlik22
Can u provide more info or pictures on the flow meter and how you have it hooked up?

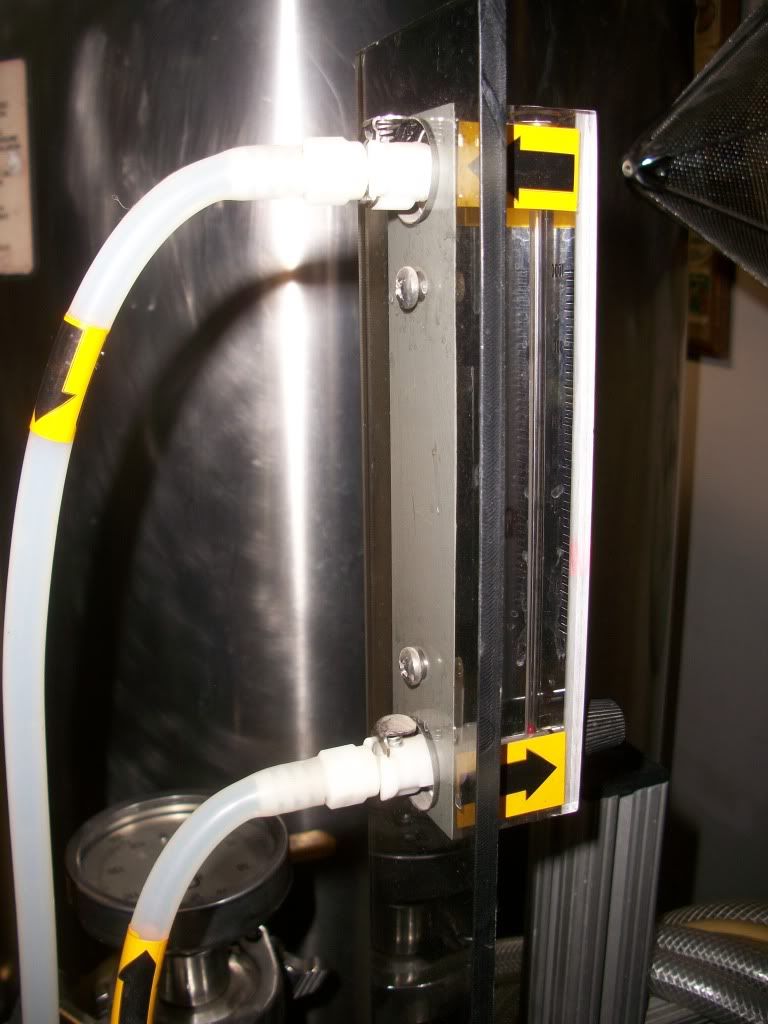

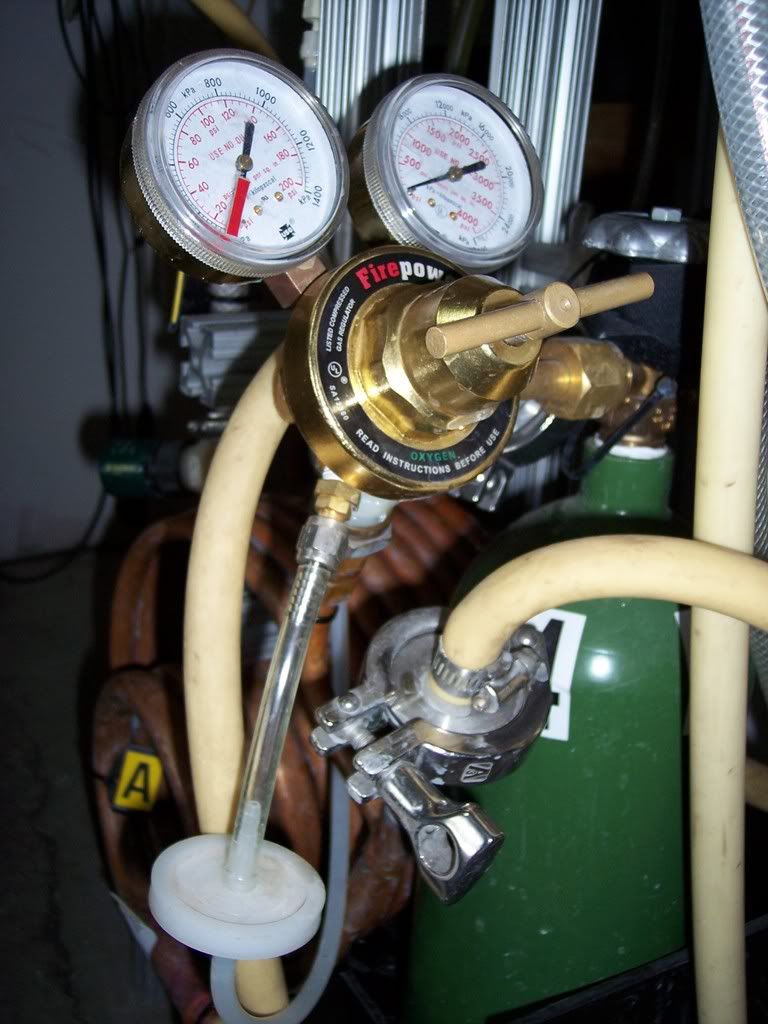

From the O2 tank regulator to the bottom of the flow meter

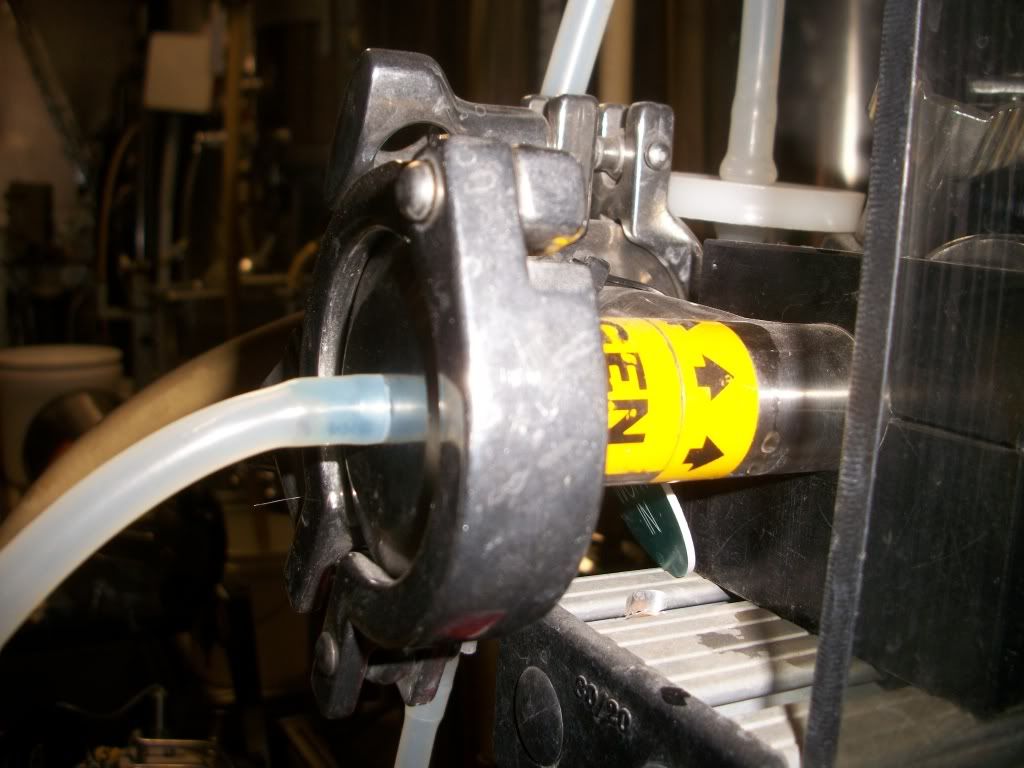

Top out connects to the stone



From the flow meter top



The O2 regulator is set to 20 psi, this prevents my wort pump from pushing any wort into the flow meter through the stone.
The best flow meter setting, minimal foam is 300 CC/min for my set-up.

Cheers,
ClaudiusB
